Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER......................... DRILLMATION
MODEL............................... 8412VA
SERIAL NUMBER....................... 757
MAX. DRILL CAP IN STEEL............. 3"
MAX. SPINDLE TRAVEL................. 84"
SPINDLE SPEED ...................... 6000 RPM
MAX FEED THRUST..................... 8000 LBS
MAX SPINDLE TORQUE.................. 6300 INCH LBS
RATE OF RAPID RETURN/APPROACH....... 150 IPM
MIN. FEED PER SPINDLE REV........... .0002
MAX. FEED PER SPINDLE REV........... .030
MAX FEED MOTOR...................... 1.5 HP
MAX. SPINDLE MOTOR.................. 25 HP
MIN. FEED RATE...................... .75 IPM
MAX. FEED RATE...................... 32 IPM
MACHINE LENGTH...................... 21'

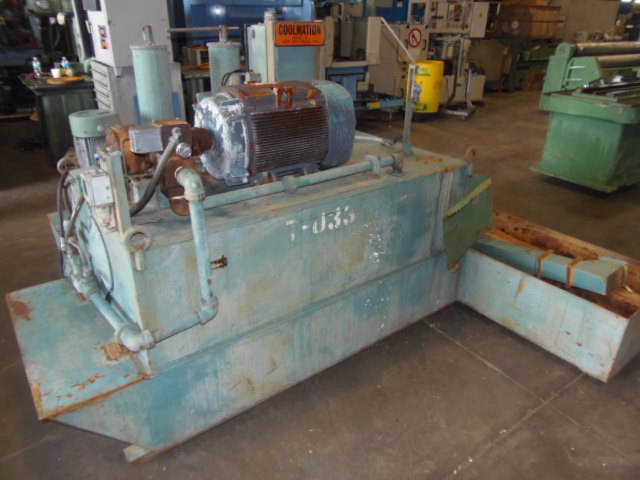

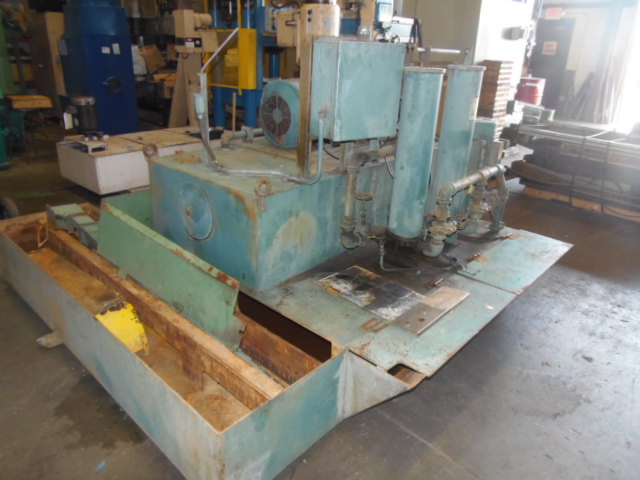

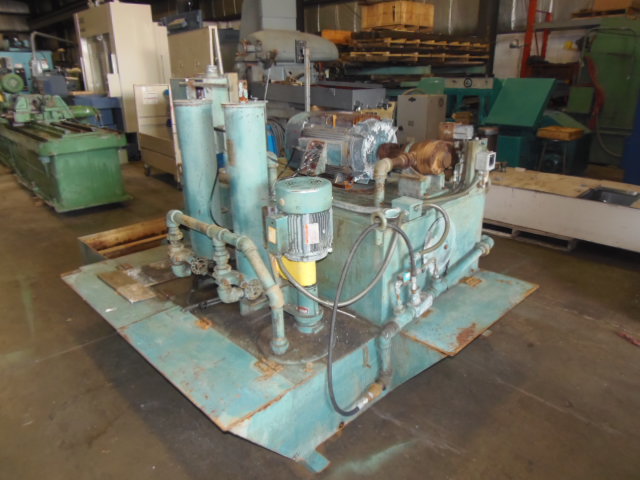

NOTE. THIS MACHINE IS MISSING CONTROLS, WIRING, SOME LUBE PARTS, AND THE COOLANT PUMP. TANK IS THERE, BUT IS MISSING PUMP.
