GENERAL SPECIFICATIONS:

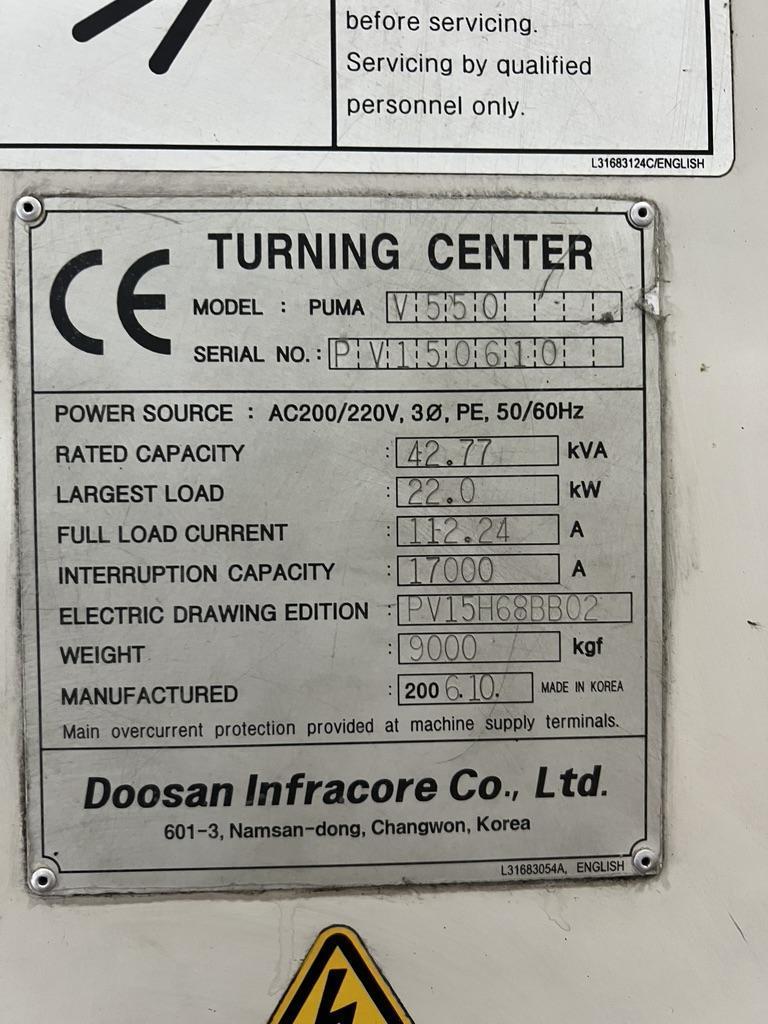

MANUFACTURER.............................. DOOSAN
MODEL..................................... V550
AGE....................................... 2006

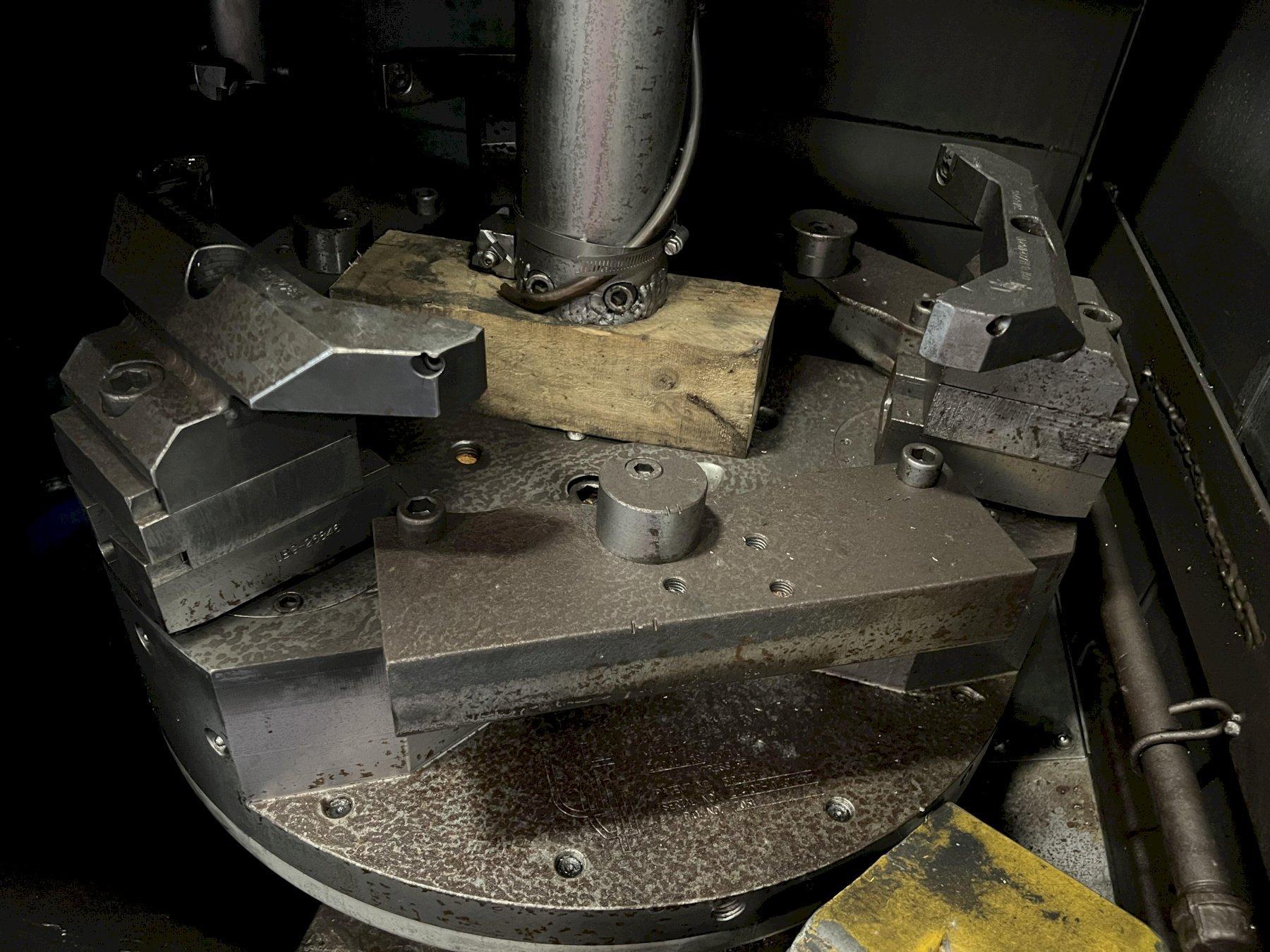

TABLE DIAMETER............................ 24"
MAX. SWING................................ 28.7"
MAX. TURNING HEIGHT....................... 29.5"
SPINDLE SPEED RANGE....................... 20 - 2000 RPM
SPINDLE MOTOR............................. 50 HP
X-AXIS TRAVEL (RAM)....................... 15.4"
Z-AXIS TRAVEL (RAIL)...................... 31"
X-AXIS GUIDEWAY SPAN...................... 15.2"
Z-AXIS GUIDEWAY SPAN...................... 24.8"
RAPID TRAVERSE RATE (X-AXIS).............. 472 IPM
RAPID TRAVERSE RATE (Z-AXIS).............. 630 IPM
MAX. FEED RATE............................ 236 IPM
NUMBER OF TOOLS........................... 10
TURNING TOOL SHANK SIZE................... 1.25" SQUARE
BORING BAR DIA. .......................... 2.5"
TOOL SELECTION............................ BI-DIRECTIONAL
COOLANT PUMP PRESSURE..................... 65 PSI
MACHINE WEIGHT............................ 19,850 LBS
MACHINE DIMENSIONS (L X W X H)............ 75" X 107" X 128"
EQUIPPED WITH:

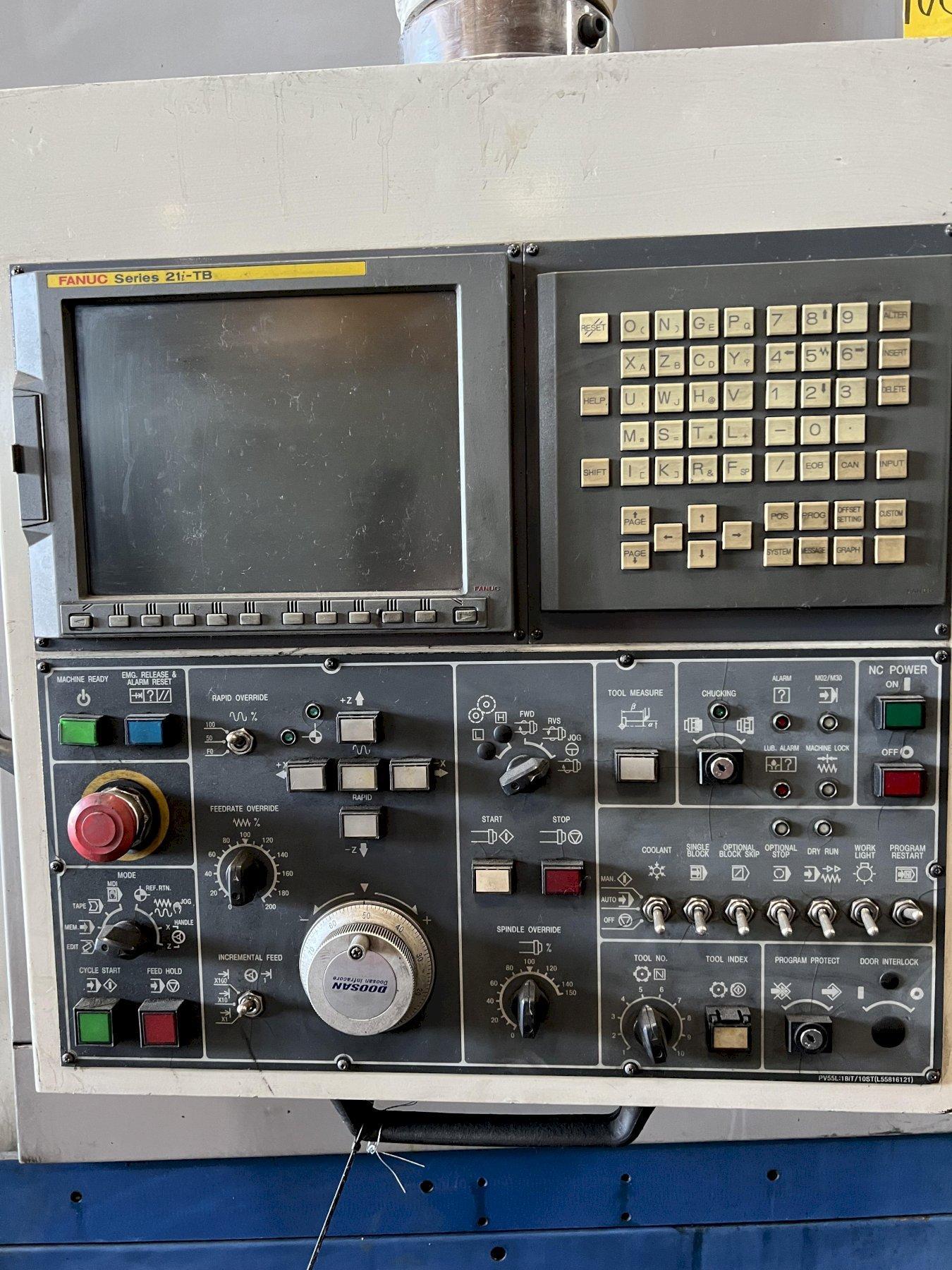

FANUC 21iTB CNC CONTROL

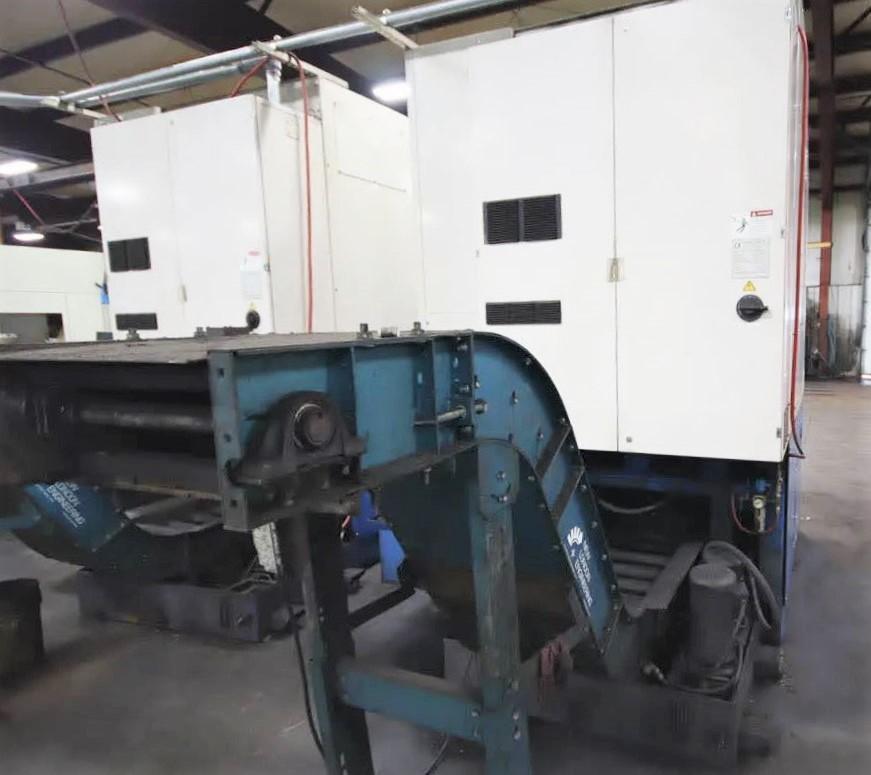

CHIP CONVEYOR
MISC MANUALS
