Specifications
Equipped With
GENERAL SPECIFICATIONS:

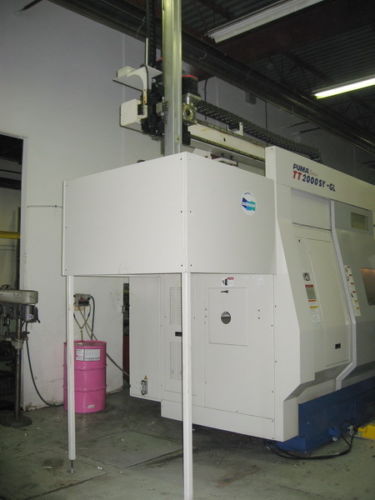

MAKE...................... DOOSAN
MODEL..................... TT 2000 SY-GL
AGE (YEAR)................ 2006
NUMBER AXIS............... 8
MAX BAR CAPACITY.......... 2.62"
SWING OVER CARRIAGE....... 24.41"
MAX TURNING LENGTH........ 29.13"
MAX TURNING DIAMETER...... 15.35"
SWING OVER BED............ 31.5"
CHUCK SIZE................ 8"
SPINDLE SPEEDS............ 5,000 RPM
SPINDLE MOTOR............. 25 HP
SPINDLE NOSE.............. A2-6
TRAVERSE X1 / X2 AXIS..... 10.04" / 7.48"
TRAVERSE Y AXIS........... 4.72" +/- 2.36"
TRAVERSE Z1 / Z2 AXIS..... 31.5" / 35.43"
X AXIS RAPID.............. 787 IPM
Y AXIS RAPID.............. 295 IPM
Z AXIS RAPID.............. 945 IPM
FLOOR SPACE............... 165" X 87"
WEIGHT (APPROX)........... 30,000 LBS.

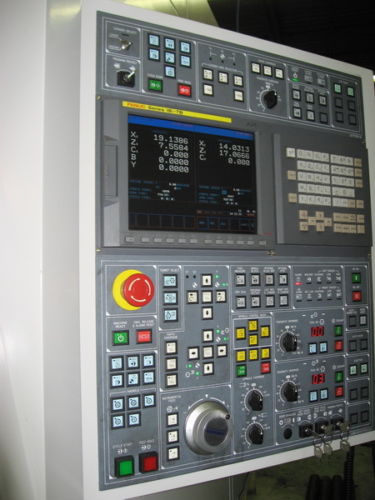

FANUC 18I-TB CONTROL,
REAR DISCHARGE CHIP CONVEYOR,
TWIN TOOL PRE-SETTER,
COOLANT BLOWER,
LIVE TOOL,
Y AXIS,

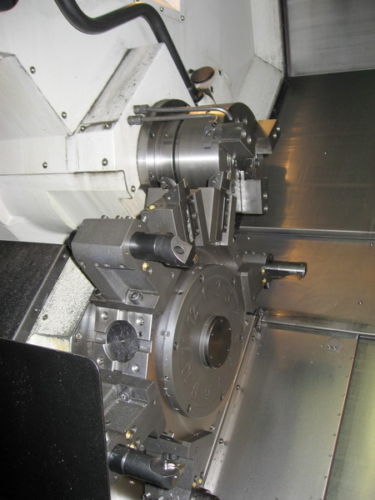

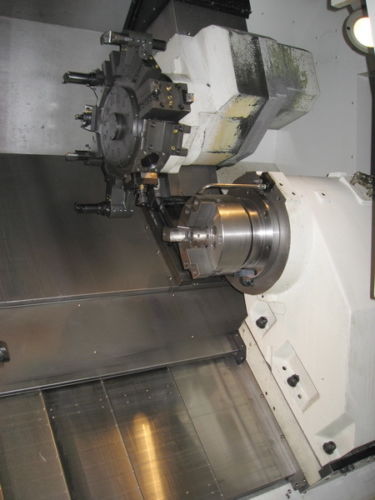

TWIN TURRET,

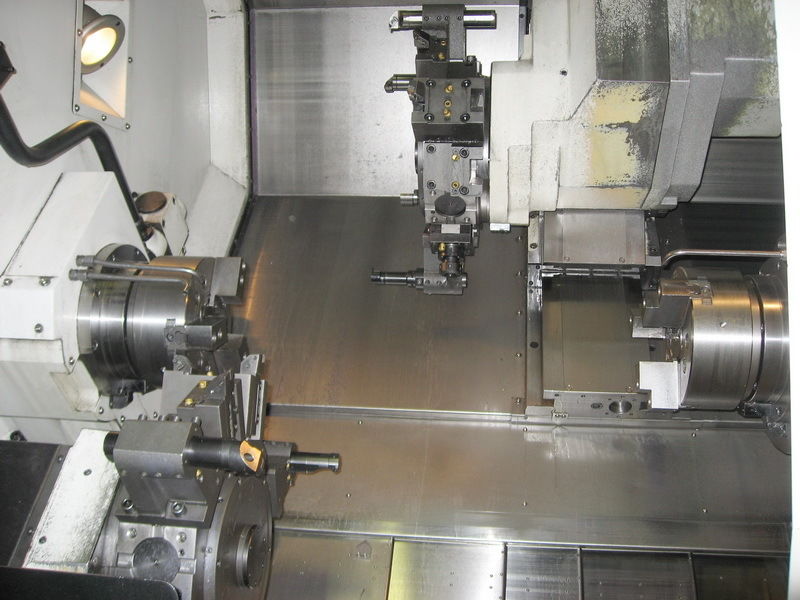

TWIN SPINDLE
EQUIPPED WITH:
FANUC 18I-TB CONTROL
REAR DISCHARGE CHIP CONVEYOR
TWIN TOOL PRE-SETTER
COOLANT BLOWER
Y AXIS
TWIN TURRET
TWIN SPINDLE
LIVE TOOLING
SPECIFICATIONS SUBJECT TO VERIFICATION
