Specifications
Equipped With
GENERAL SPECIFICATION
MAKE.................. DOOSAN
MODEL................. DNM 400

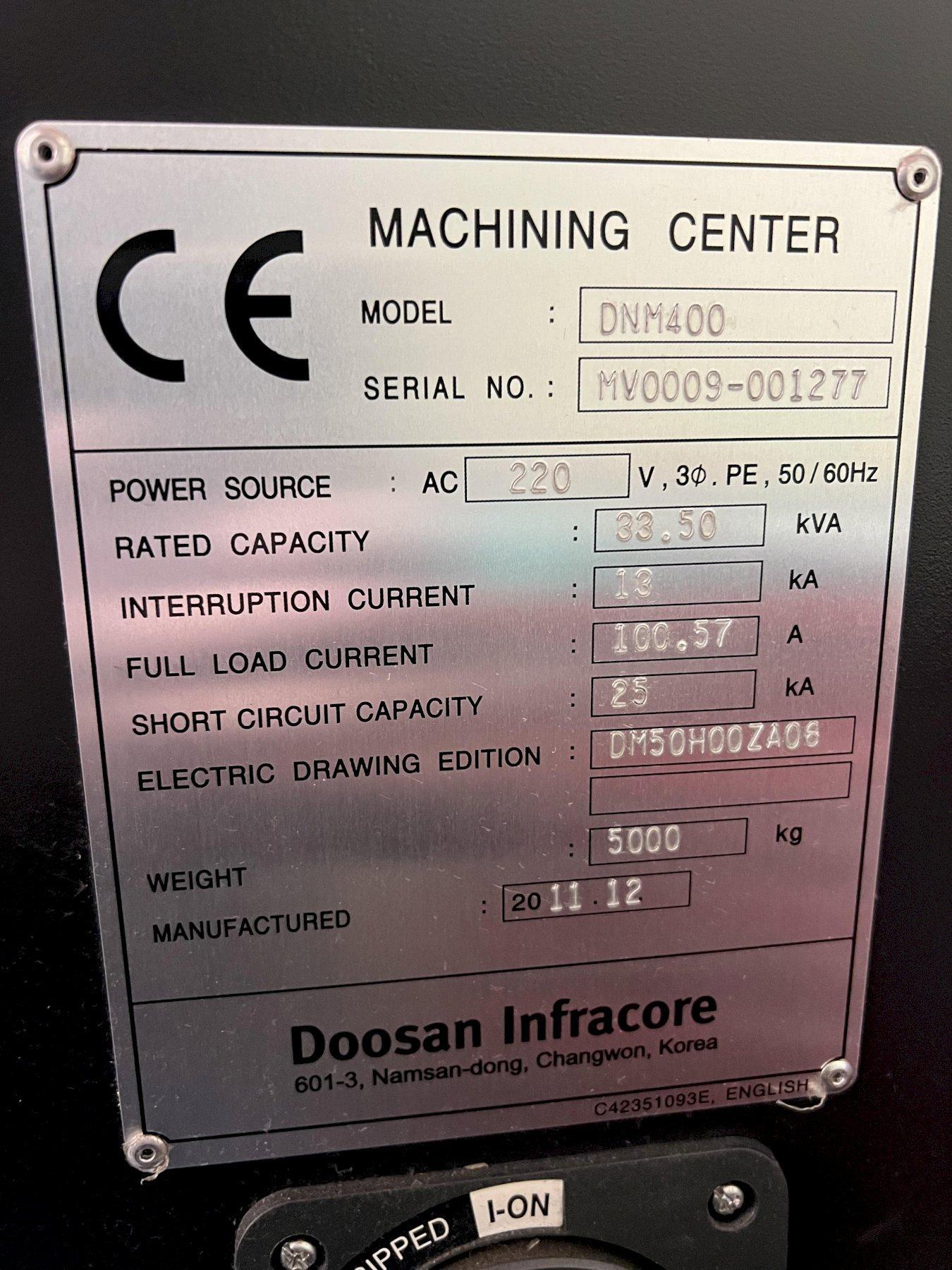

SERIAL NUMBER......... MV0009-001277
AGE (YEAR)............ 2011
TABLE SIZE............ 36" X 17" (435 X 920 MM)
TABLE CAPACITY........ 1320 LBS.(600 KG)
X AXIS TRAVEL......... 30" (762 MM)
Y AXIS TRAVEL......... 17.1" (435 MM)
Z AXIS TRAVEL......... 20" (510 MM)
SPINDLE TO TABLE SURF. 5.9" - 30.5" (150-775 MM)
RAPIDS X,Y............ 1418 IPM (36 M/MIN)
RAPIDS Z.............. 1170 IPM(30 M/MIN)
MAX CUTTING FEED RATE. .04 - 590.5 IPM (1-15000 MM/MIN)

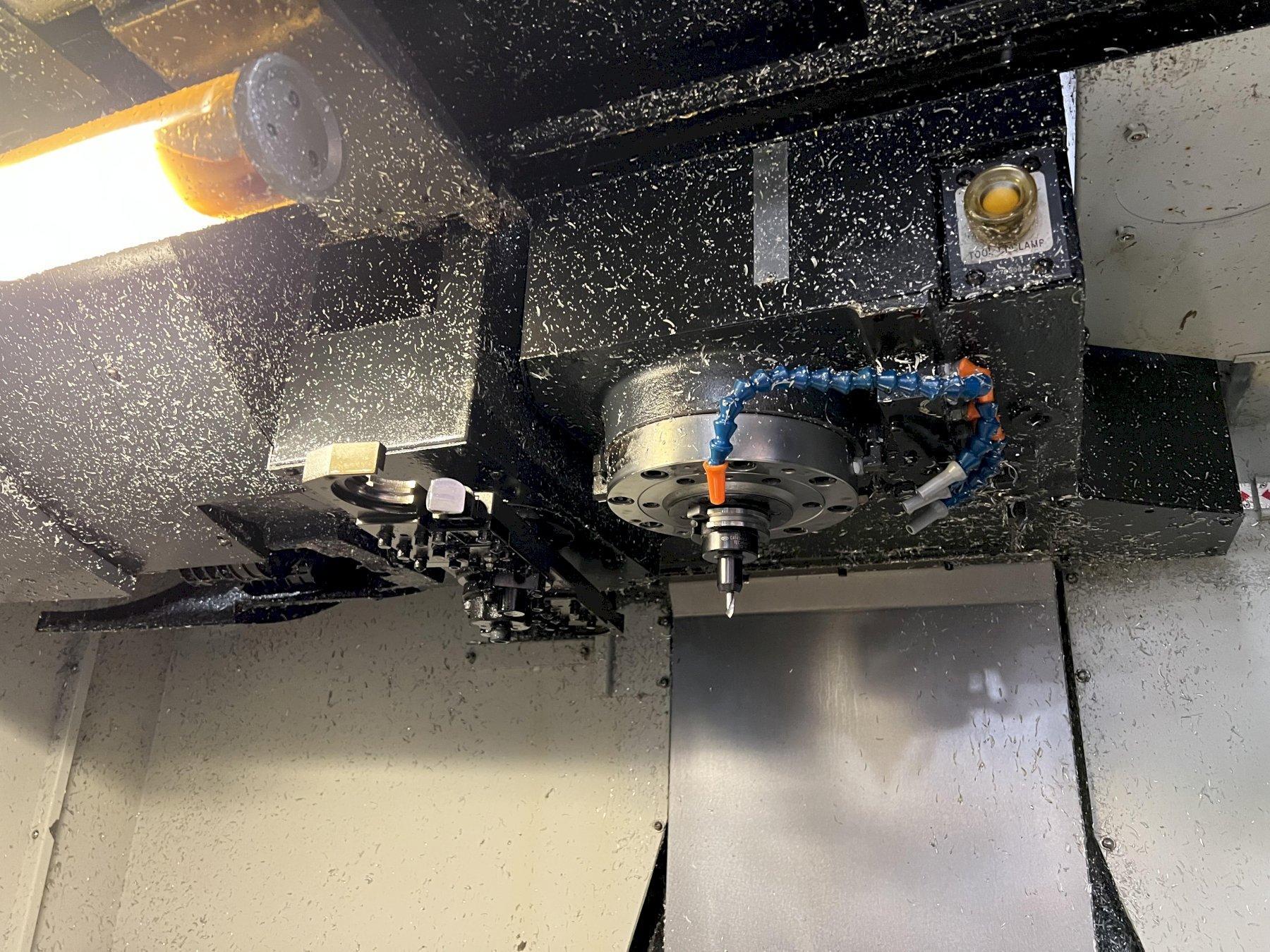

SPINDLE SPEEDS........ 12,000 RPM

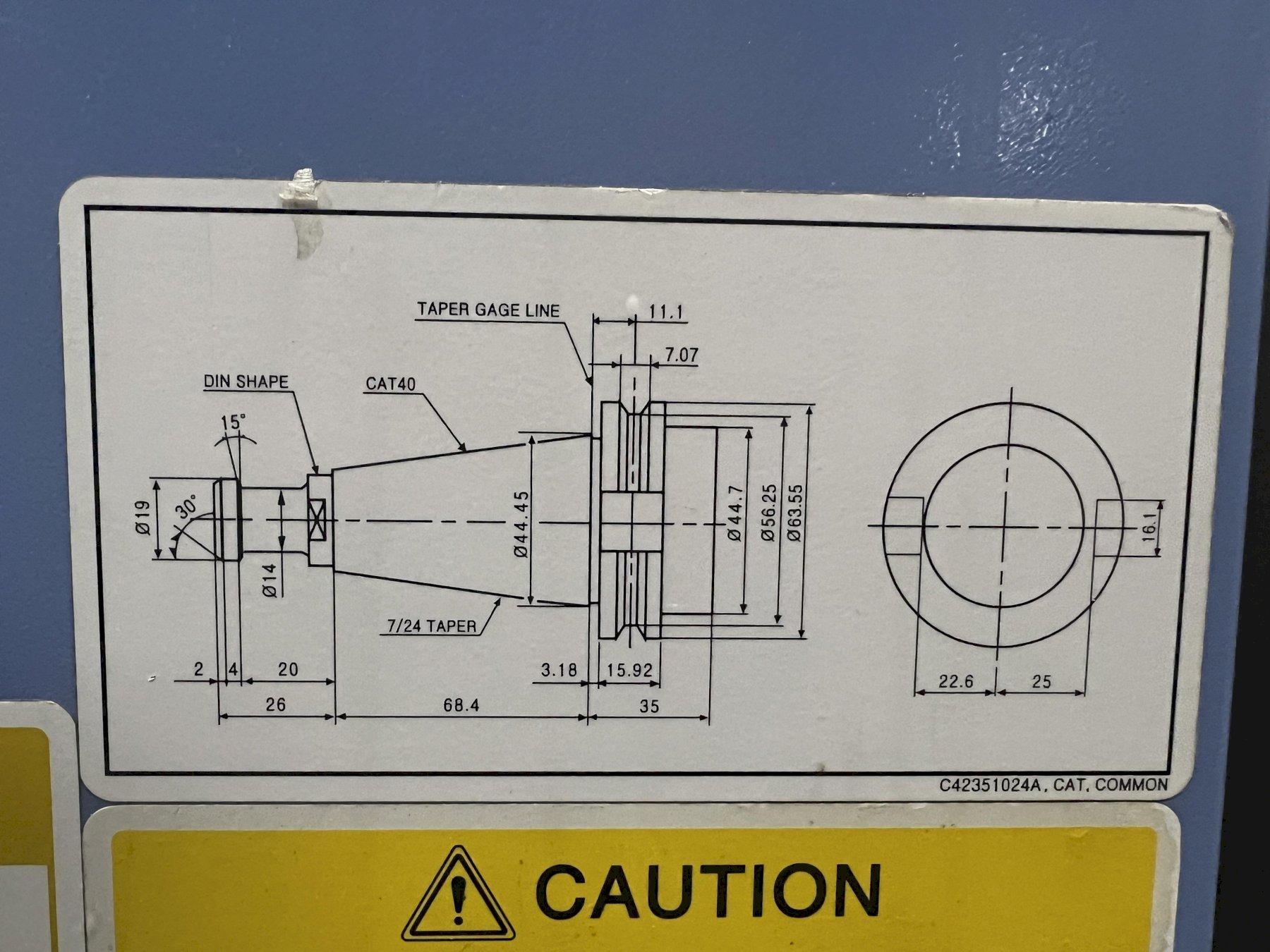

SPINDLE TAPER......... CAT 40 BIG-PLUS
ELECTRICS............. 220V / 3PH / 100 AMPS
MACHINE WEIGHT........ 11,000 LBS(5000 KG)
EQUIPPED WITH:
THRU SPINDLE COOLANT

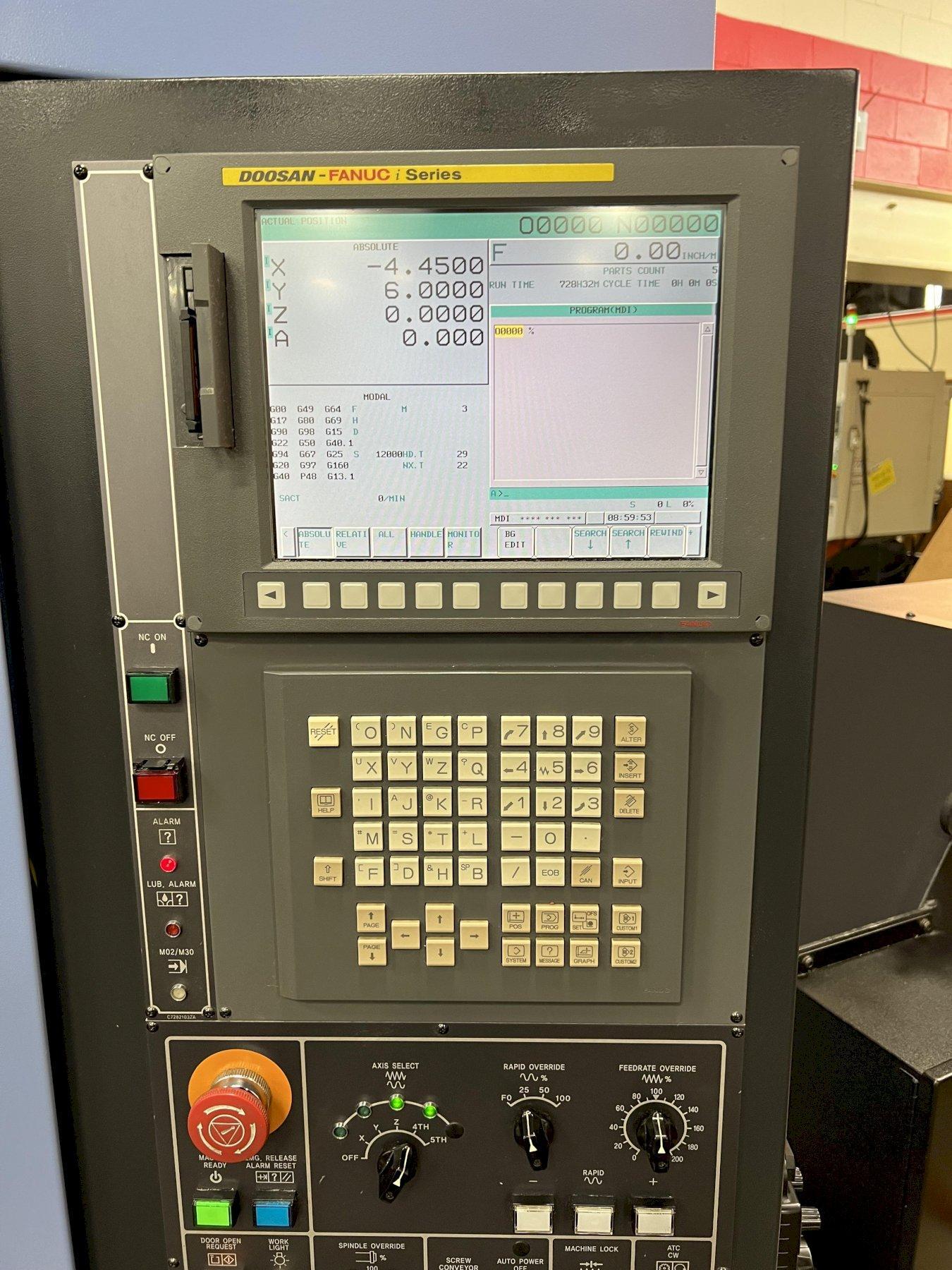

DOOSAN FANUC i SERIES CNC CONTROL

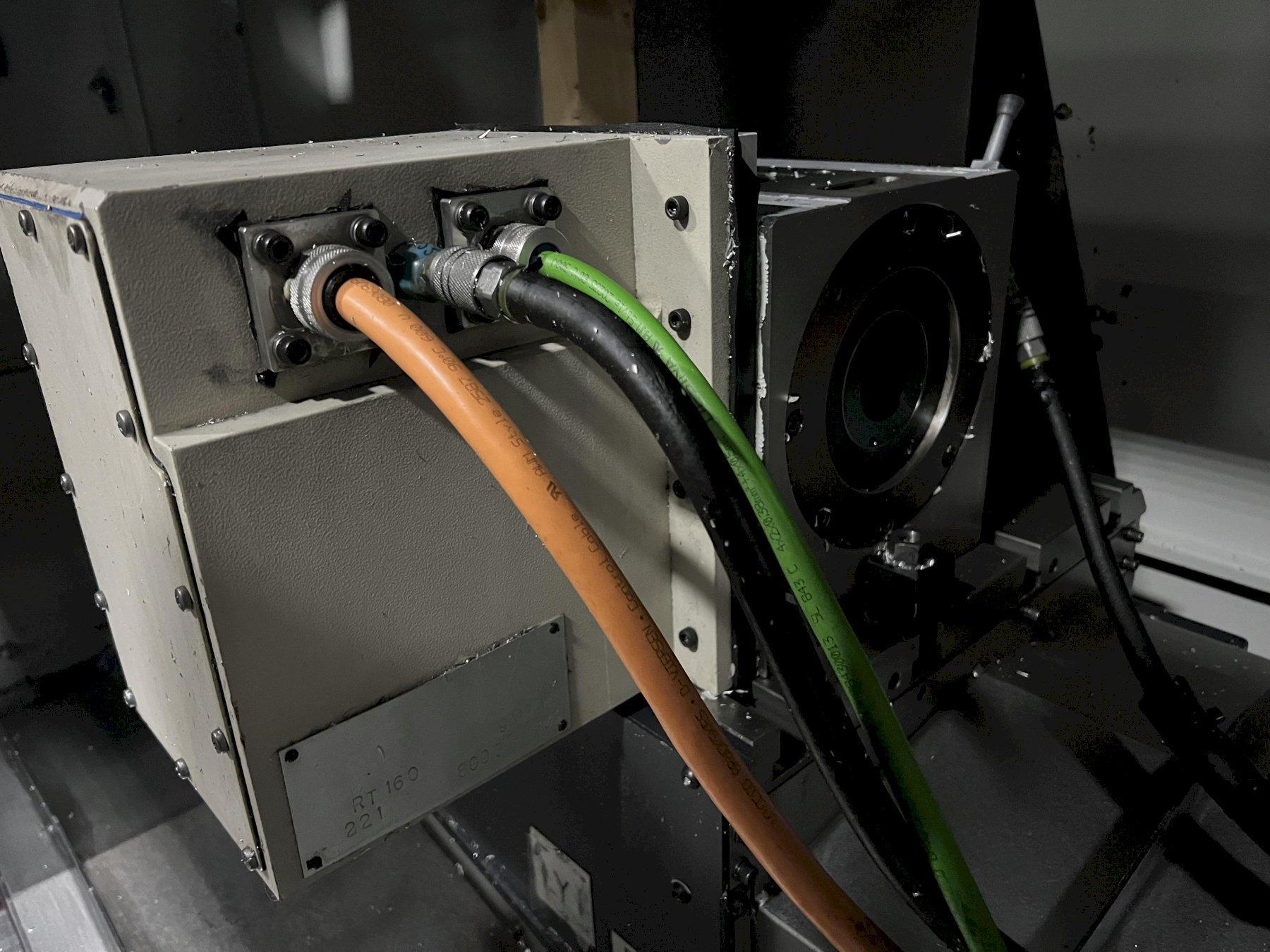

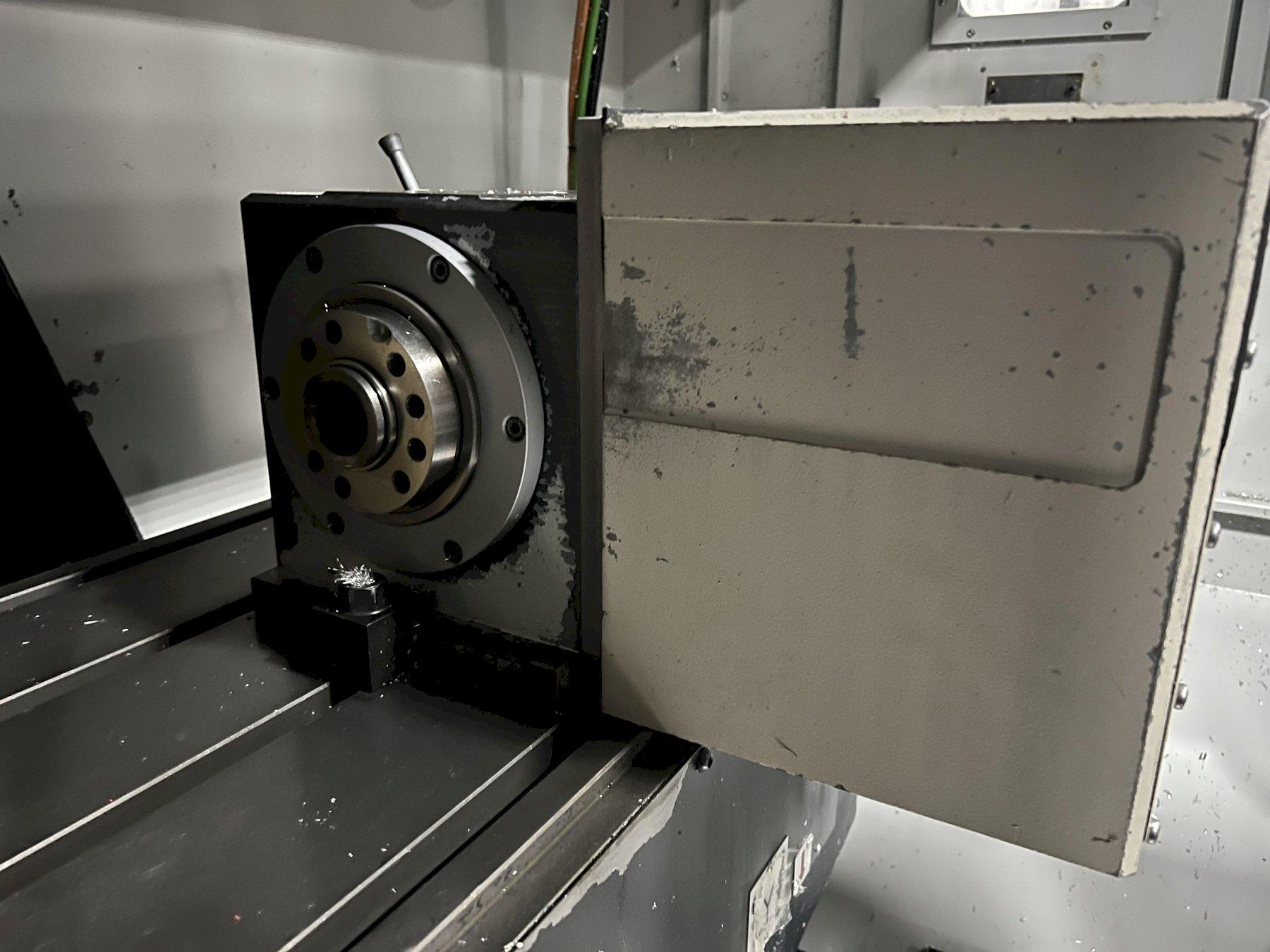

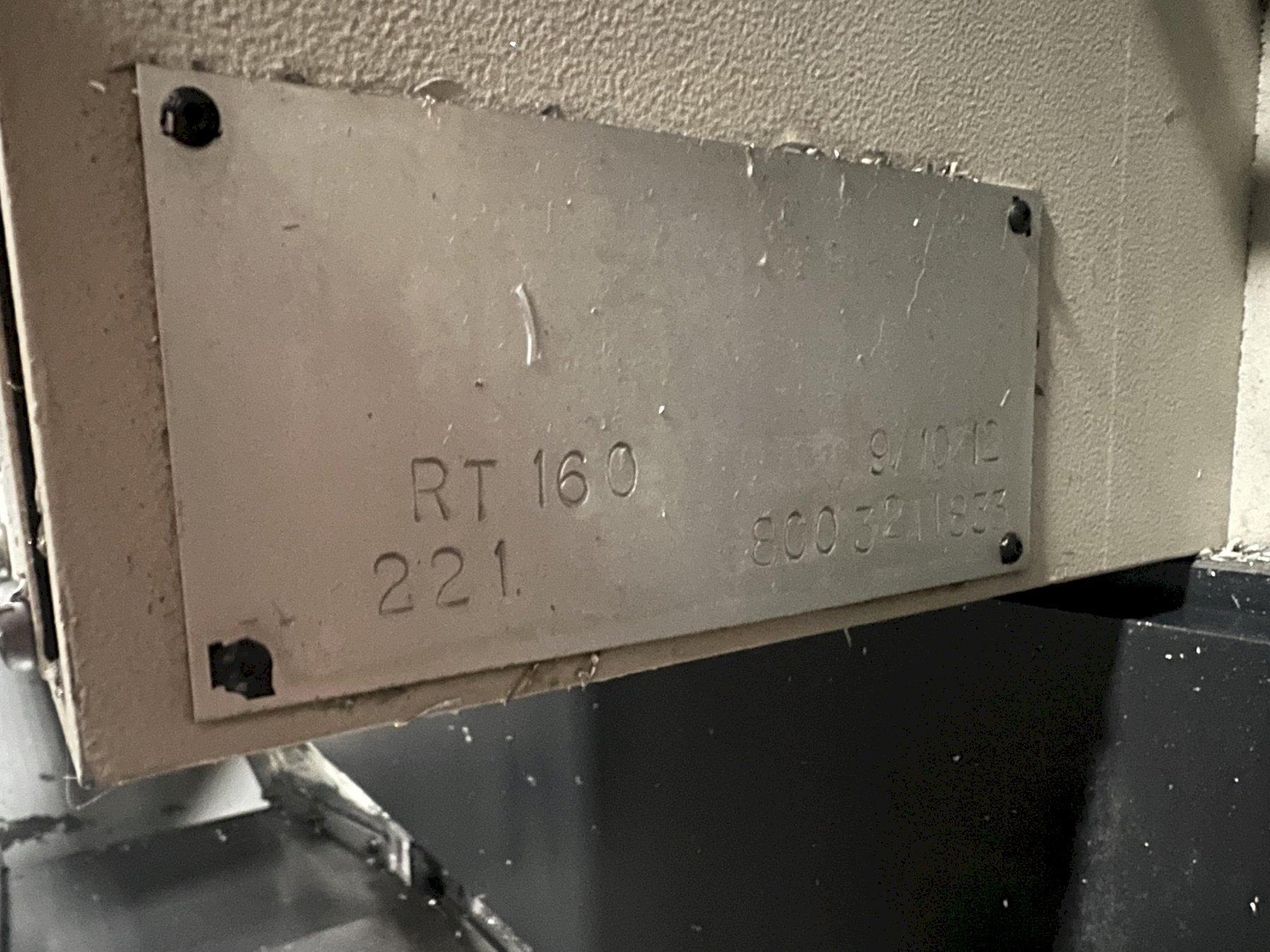

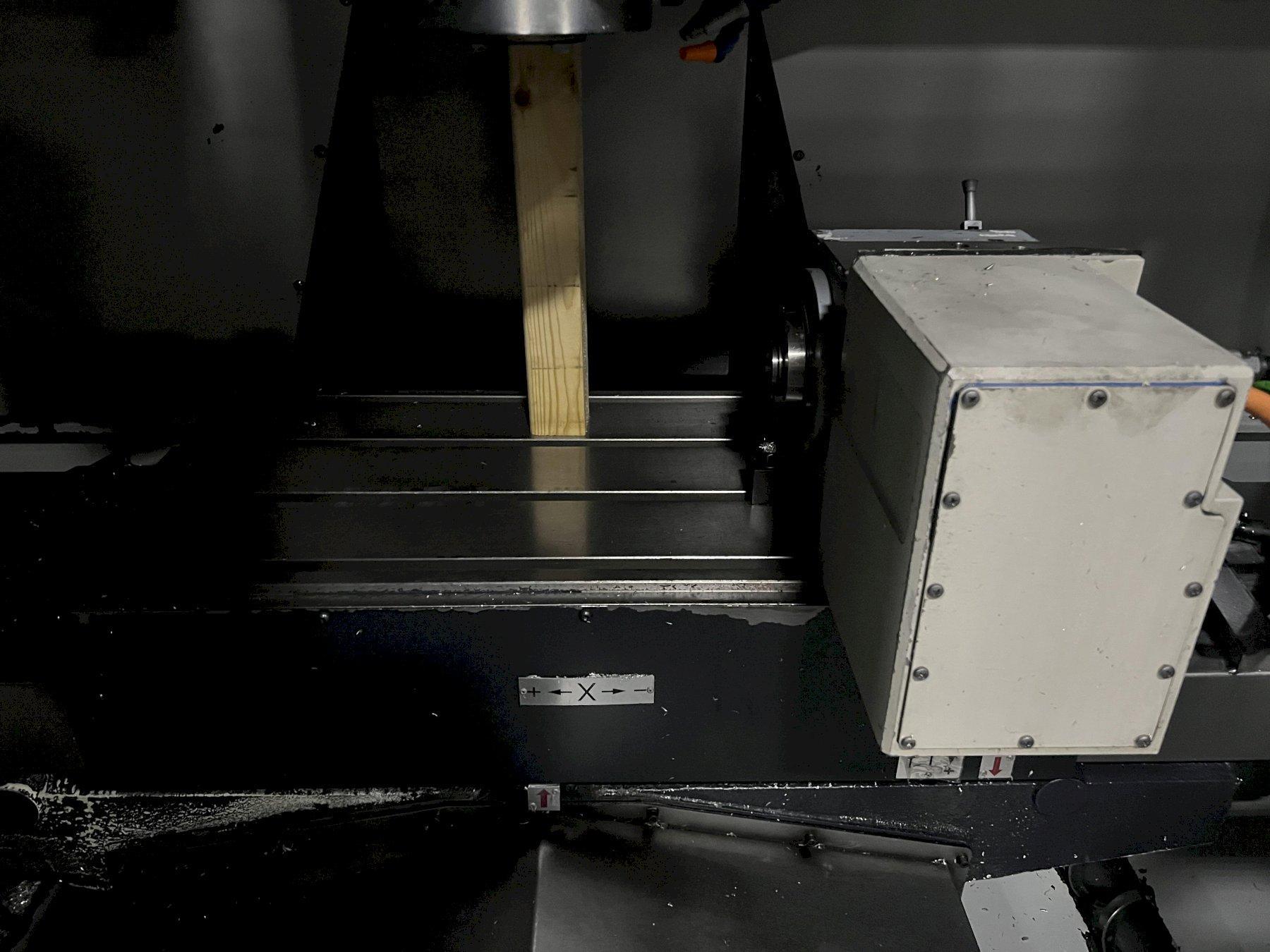

4TH AXIS ROTARY TABLE

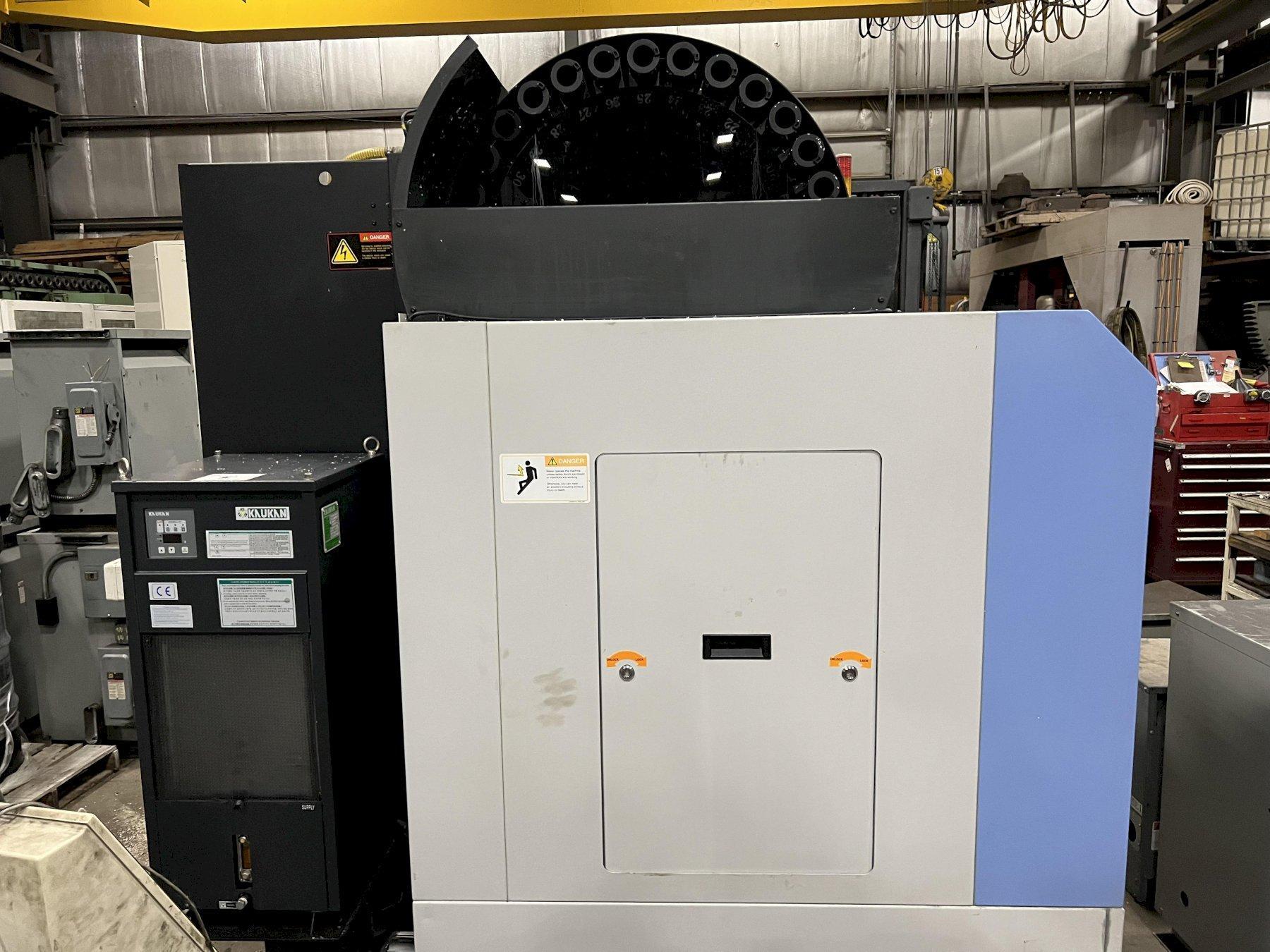

KAUKAN 4PTS OIL CHILLER
SPECIFICATIONS SUBJECT TO VERIFICATION
