Specifications
Equipped With

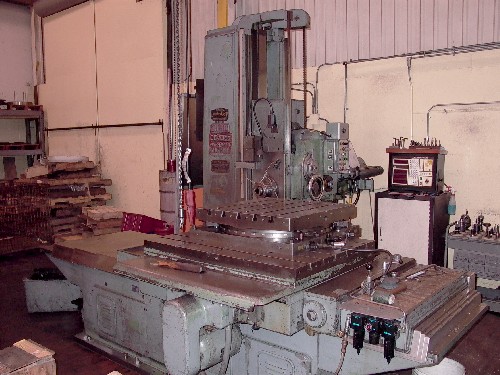

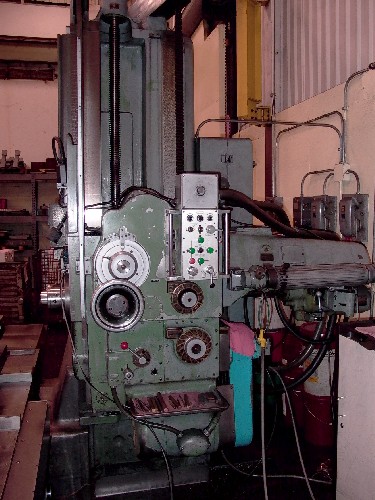

(1) USED DEVLIEG 3H-48 SPIRAMATIC JIG MILL
Serial No. 8588 New: 1968
Diameter of spindle: 3"
SPINDLE TAPER 40
Vertical spindle travel: 36"
Horizontal spindle travel: 16"
(16) Spindle speeds 25 to 1200 RPM
(6) Spindle feeds .002 to .024 IPR
Table size: 35" X 48"
Table travels:
Longitudinal 48"
Retraction 16"
Table feeds .5 to 36 IPM
Rapid traverse in all directions
Equipped with:
#40 Taper in spindle with power draw bar

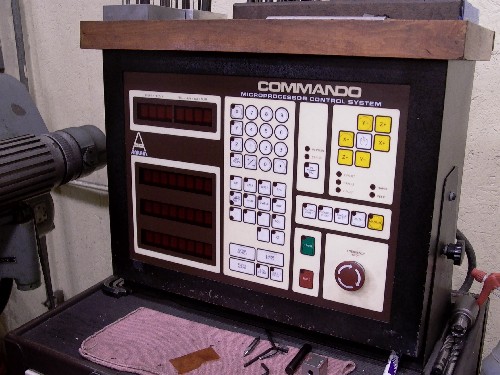

ANILAM COMMANDO CONTROL

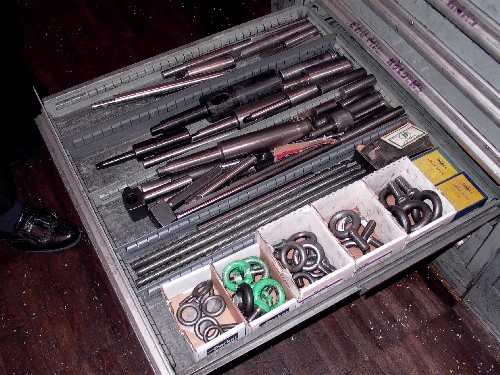

VARIOUS TOOLING
Stainless steel waycovers
Electrical motors and controls
Turret depth stop on spindle
Dimensions: FB X RL -132" X 145"
Height: 112"
Est. weight: 18,000#
