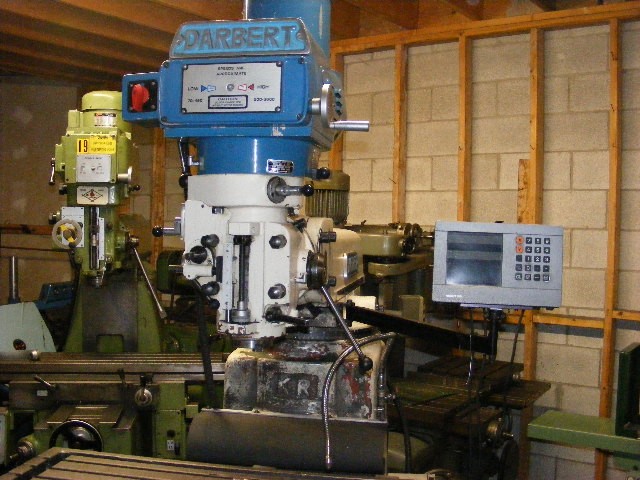

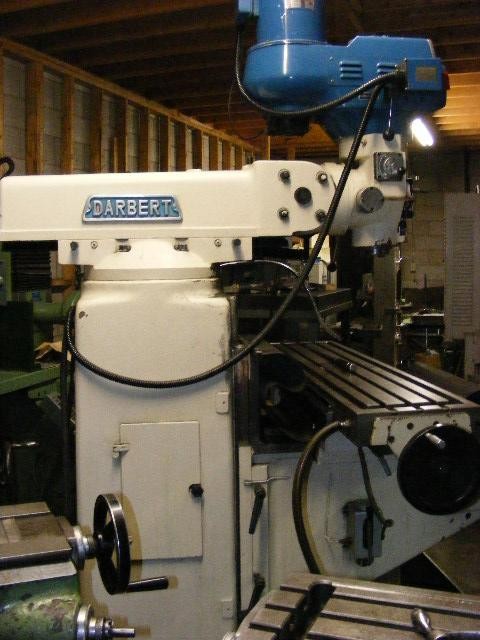

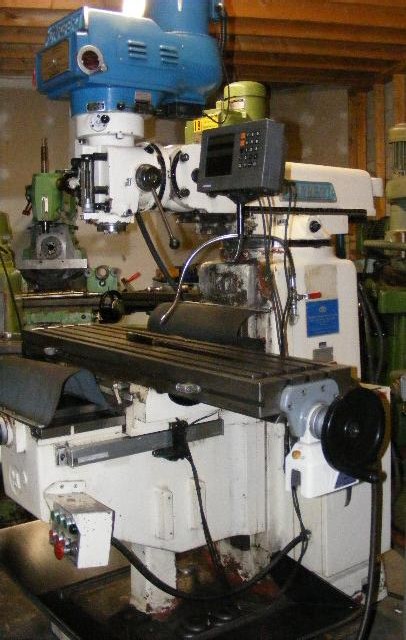

DARBERT (KING RICH) MODEL KR-V3000, 12 X 54 TABLE, 40 TAPER, 5 HP, VARY SPEED, 2 AXIS HEIDENHAIN READOUT

GENERAL SPECIFICATIONS
MANUFACTURER......................... DARBERT (KING RICH)
SERIAL NUMBER........................ 10045 Year................................. 1996
Table size........................... 12" x 54"
Travel longitudinal.................. 33.85"
Travel cross......................... 16"
Travel vertical knee................. 16"
Travel quill......................... 5"
Spindle taper........................ 40 ISO
Spindle speeds variable.............. 70 - 3600 RPM
Spindle motor........................ 5 HP
Ram travel........................... 18"
Swivel on turret..................... 360 deg.
Head tilt front to back.............. 45 deg
Head tilt left to right.............. 90 deg
Spindle nose to table surface........ 2" - 18"
Approximate weight................... 3,500 Lbs
Electrics............................ 575/3/60

Equipped with: 2 axes Heidenhain digital readout, Coolant pump, One shot lubrication, variable speed head, hardened and ground ways.
