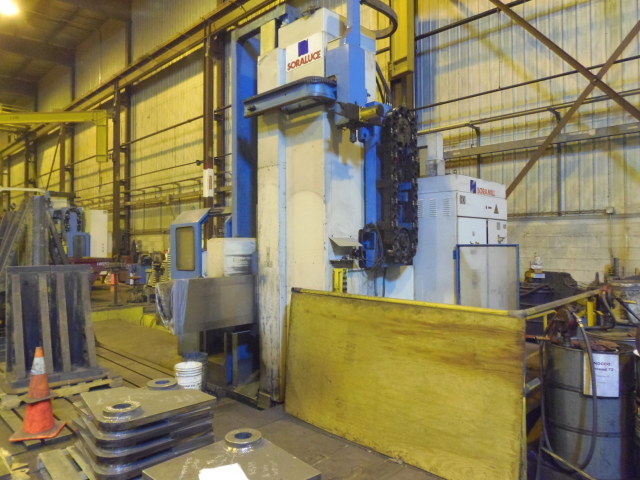

DANOBAT/SORALUCE, CNC FLOOR BAR WITH UNIVERSAL HEAD, 236" x, 110" y, 49" z, 30 ATC, HEIDENHAIN 415B CONTROL, REBUILT 2011, NEW 1995

DANOBAT/SORALUCE, CNC FLOOR BAR WITH UNIVERSAL HEAD, 236" x, 110" y, 49" z, 30 ATC, HEIDENHAIN 415B CONTROL, REBUILT 2011, NEW 1995

Brand
DANOBAT

Model
SP 6000

Type
Boring Mills, Horizontal, Floor Type

Stock #
9226

Condition
Used

Year
1995

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS:
MANUFACTURER------------------ DANOBAT SORALUCE
MODEL------------------------- FS-6,000
SERIAL NUMBER----------------- 105035
NEW--------------------------- 1995
TRAVELS
   X-------------------------- 236" (6,000mm)
   Y-------------------------- 110" (2,800mm)
   Z-------------------------- 49.2" (1,250mm)
BASE LENGTH------------------- 330" (8,400mm)
RAPID TRAVERSE RATE
   X AXIS--------------------- 236 IPM (6,000mm per min)
   Y/Z AXIS------------------- 315 IPM (8,000mm per min)
HEAD SPECIFICATIONS:
   SPINDLE TAPER-------------- 50
   MAX RPM-------------------- 2000
   HEAD TYPE------------------ UNIVERSAL SWIVEL
   MOTOR HP------------------- 40
   RPM RANGE------------------ 15-2,000
TOOL CHANGER SIZE------------- 30 ATC
CONTROL TYPE------------------ HEIDENHAIN 415B

EQUIPPED WITH:
UNIVERSAL SWIVEL HEAD REBUILT 2012
2011 COMPLETE MACHINE REBUILT (SEE DETAILS BELOW)

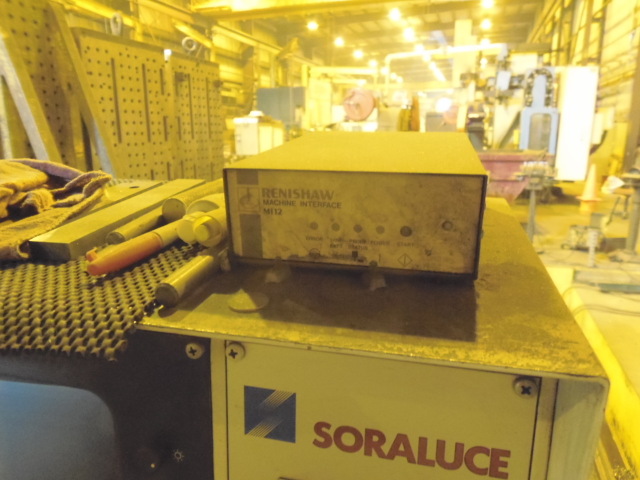

RENISHAW PROBE

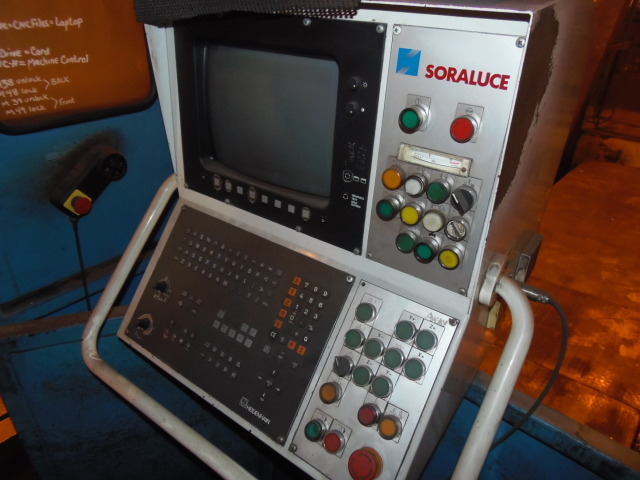

HEIDENHAIN 415B CONTROL WITH RS 232 INTERFACE, GRAPHICS, CONVERSATIONAL AND ISO PROGRAMMING, TOOL DEFINITION STORAGE, LOOK AHEAD, SIMULTANEOUS AXIS CONTROLS, RADIUS COMPENSATION, PROGRAM JUMPS, CANNED CYCLES, MATHEMATICAL FUNCTIONS, AND 3D PROBE APPLICATIONS

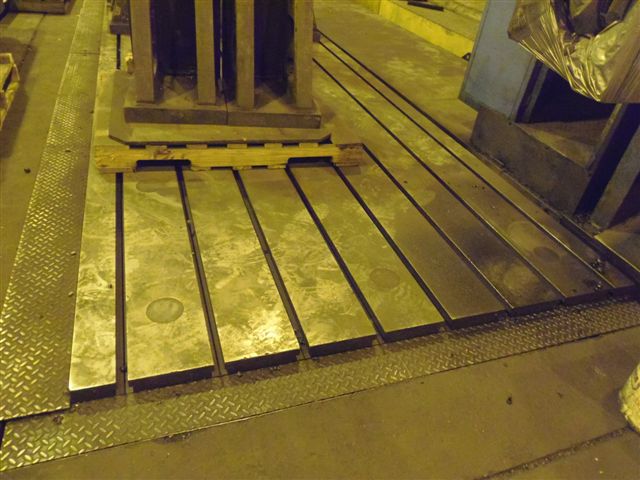

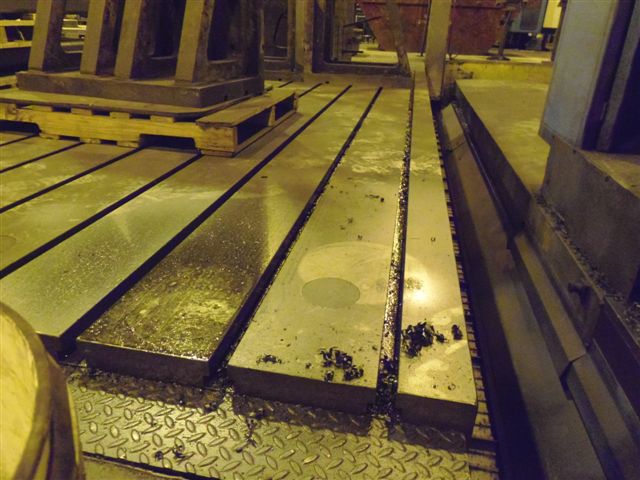

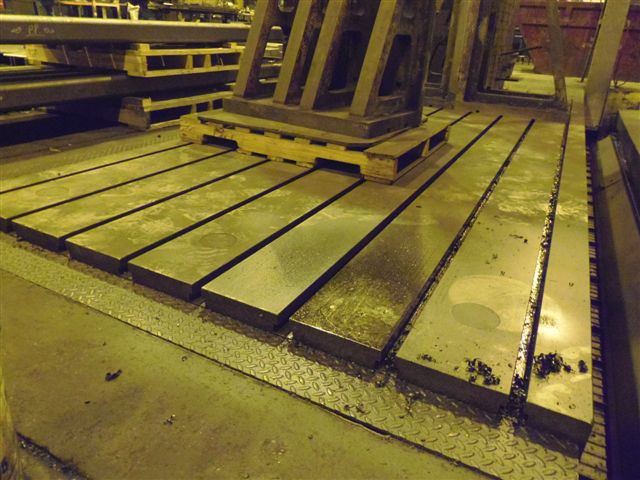

79" X 237" T SLOTTED FLOOR PLATE
AC SERVO DRIVES
REBUILD WORK:
    REMOVED ALL WAY PLATES AND RESURFACED
NEW TURCITE ON ALL AXES AND SCRAPED IN ALL GEOMETRIES
ALL BALLSCREWS SENT OUT AND REBUILT
HEADSTOCK REBUILT AS NEEDED INCLUDING SOME NEW GEARS, BELTS, AND ALL BEARINGS
REBUILT COUNTER WEIGHT CYLINDER
RESURFACED TABLE TOP
COMPLETE PM TO HYDRAULIC SYSTEM
REPLACED ALL LINEAR AND GUIDE BEARINGS ON ALL AXIS
CLEANED, REPAIRED AND REPLACED AS NEEDED THE LUBE SYSTEMS
REPLACED ALL AXIS WIPERS
CLEANED AND RE-STRETCHED ALL SCALE TAPES AND READER HEADS
REPLACED X AXIS GIB ROLLERS
REPAIRED ALL AXIS WAY COVERS
