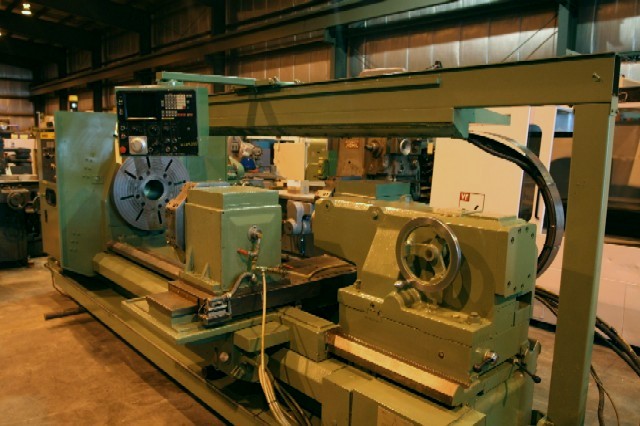

DAINICHI M95, SWOB 37.375", TURNING DIA. 20.44", TURNING LGTH 78", A2-11 NOSE, 9.375" BORE, 750 RPM, FANUC 6T CTRL, 1984

GENERAL SPECIFICATIONS:
MANUFACTURER DAINICHI
MODEL M95
SERIAL # 18082
NEW (APPROX.) 1984
SWING OVER BED 37.375"
MAX. TURNING DIAMETER 20.44"
MAX. TURNING LENGTH 78"
MAX. TRAVERSE OF X 24.75"
SPINDLE BORE 9.375"
MAX. SPEED 750 RPM
TURRET CAPACITY (FRONT) 8 STATION
TURRET CAPACITY (REAR) 8 STATION
TAILSTOCK QUILL MT 6
PART CAP. BETWEEN CNTRS 13,200 LBS.
DIMENSIONS (APPROX.) 106"W x 242"L x 85"D

EQUIPPED WITH:
CHIP CONVEYOR
FANUC 6T CNC CONTROL W/CRT
16" MANUAL CHUCK W/5" BORE

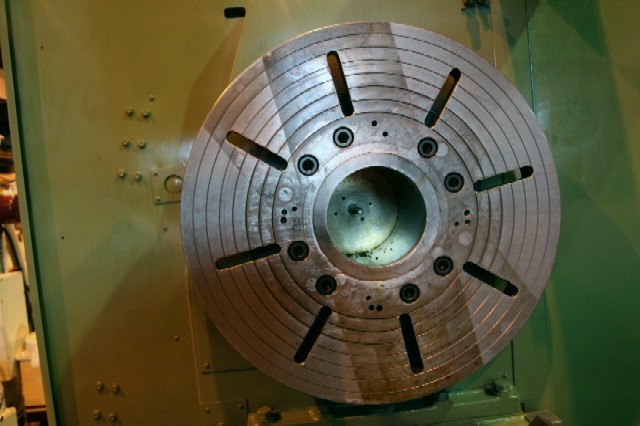

30" FACE PLATE
COOLANT
HYDRAULIC TAILSTOCK
