Specifications
Equipped With
GENERAL SPECIFICATIONS:

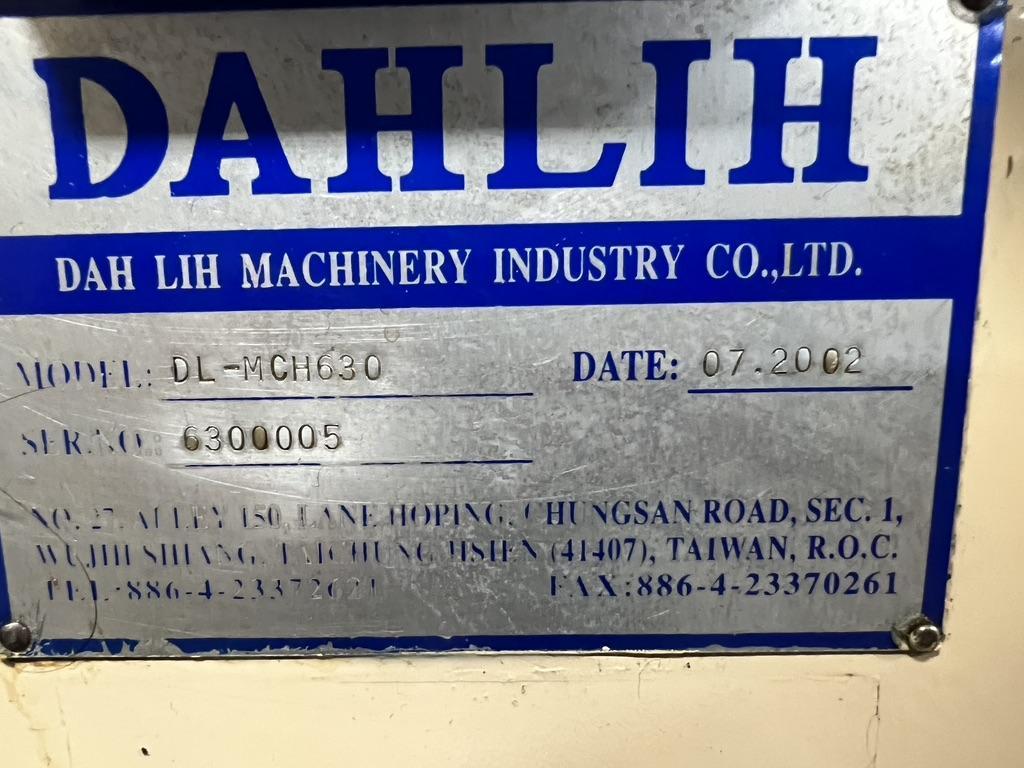

MAKE:.................... DAHLIH
MODEL: .................. DL-MCH630
CONTROL ................. FANUC 18M
SERIAL#: ................ 6300005
YEAR: ................... 2002
DUAL PALLET SIZE: ....... 24.4"
PALLET ROTATION: ........ 1 DEGREE
X TRAVELS: .............. 39.4 IN.
Y TRAVELS: .............. 34.8 IN.
Z TRAVELS: .............. 32.7 IN.
RAPID TRAVERSE RATE...... 945 IPM
TOOL CHANGER: ........... 60 ATC
SPINDLE TAPER: .......... 50 BT
MAX SPINDLE RPM: ........ 6,000
SPINDLE MOTOR HP......... 25
MACHINE WEIGHT........... 39,600 LBS
EQUIPPED WITH:

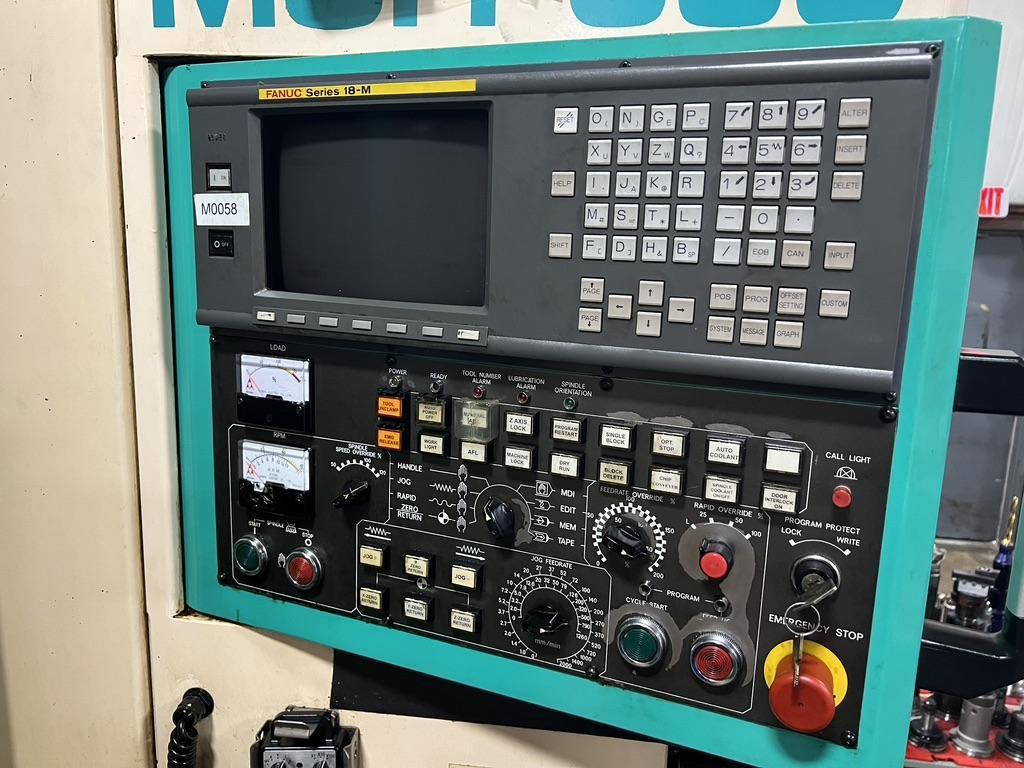

FANUC 18M CONTROL
COOLANT SYSTEM

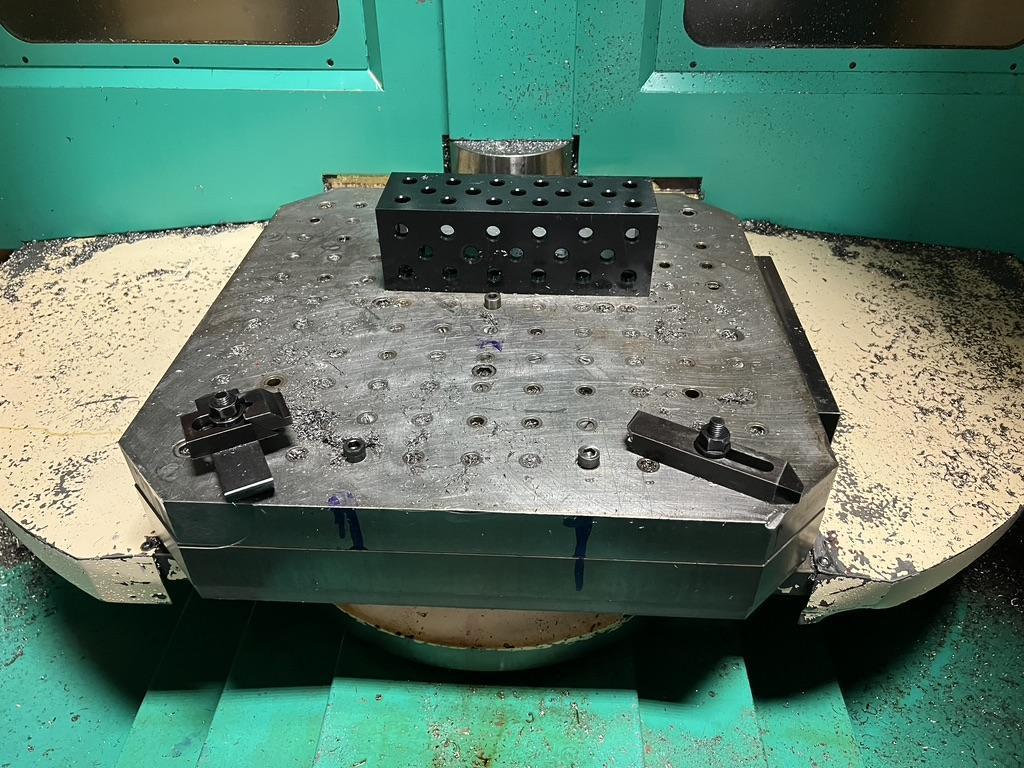

DUAL PALLET
CHIP CONVEYOR
***
SPECIFICATIONS SUBJECT TO VERIFICATION
