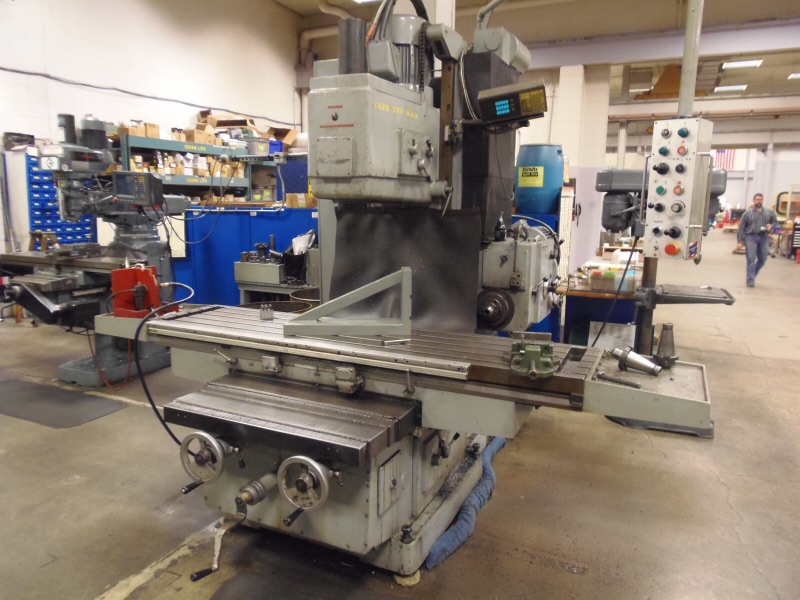

GENERAL SPECIFICATIONS:
MAKE............................................... DAH LIH
MODEL.............................................. V1600
AGE (YEAR)......................................... 1989

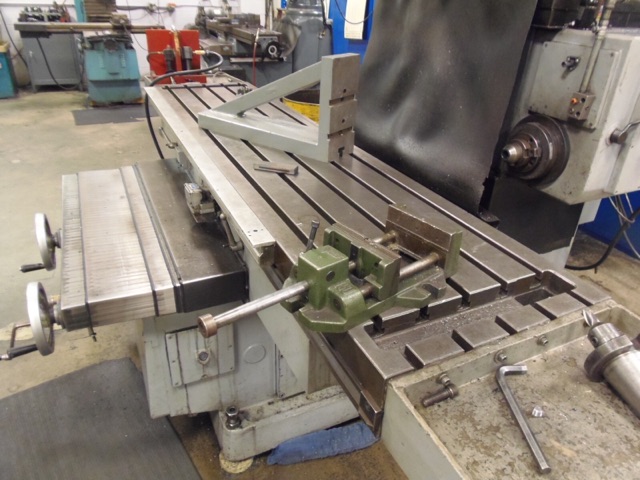

TABLE SIZE......................................... 87" X 20"
LONGITUDINAL TRAVEL................................ 63"
CROSS TRAVEL....................................... 24"
LONG. & CROSS FEEDS................................ .4-59.8"/MIN
LONG. & CROSS RAPID TRAVERSE....................... 118"/MIN
VERTICAL SPINDLE
HEADSTOCK TRAVEL................................... 28"
HEADSTOCK FEEDS.................................... .2-30"/MIN
HEADSTOCK RAPID TRAVERSE........................... 59"/MIN

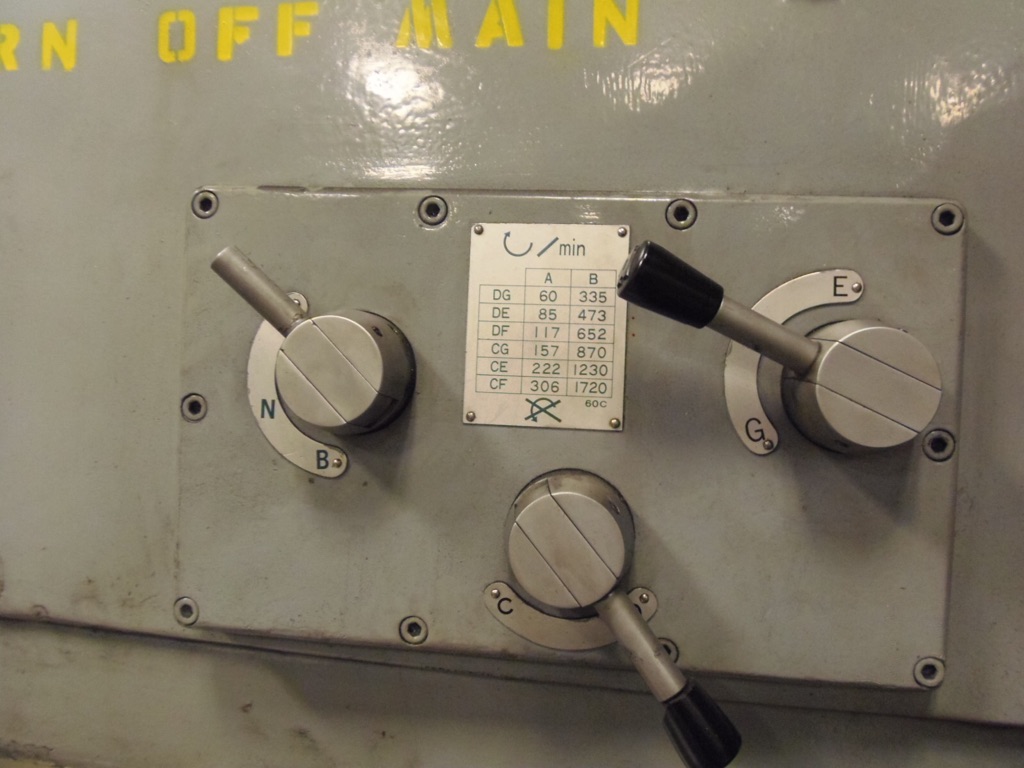

SPINDLE SPEEDS (12 STEPS).......................... 60-1720 RPM
DIST. OF SPINDLE END TO TABLE TOP.................. 3-31.5"
DIST. OF SPINDLE CENTER TO COLUMN SURFACE.......... 24"
SPINDLE TAPER...................................... 50 NST

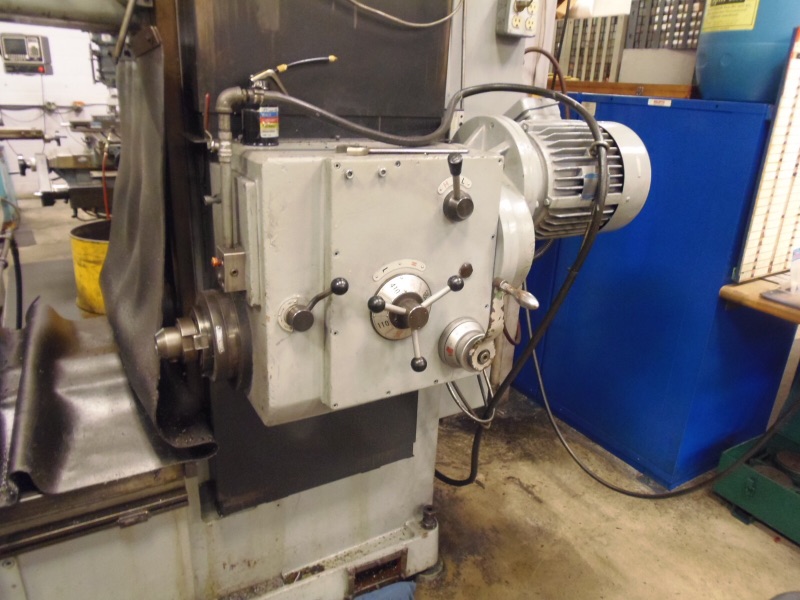

HORIZONTAL SPINDLE
HEADSTOCK TRAVEL................................... 20"
QUILL TRAVEL....................................... 3"
QUILL DIAMETER..................................... 7"
DIST. OF SPINDLE CENTER TO TABLE TOP............... .8-20.25"
DIST. BETWEEN VERTICAL AND HORIZ. SPINDLE CENTERS.. 21"
MOTORS
VERTICAL MAIN SPINDLE.............................. 15 HP
HORIZONTAL MAIN SPINDLE............................ 7.5 HP
TABLE FEED......................................... 2 HP
AUTOMATIC LUPE. PUMP............................... 1/4 HP
COOLANT PUMP....................................... 1/6 HP
DIMENSIONS
MAX. HEIGHT........................................ 108"
FOUNDATION AREA.................................... 65" X 42"
NET WEIGHT......................................... 16,300 LBS
EQUIPPED WITH:

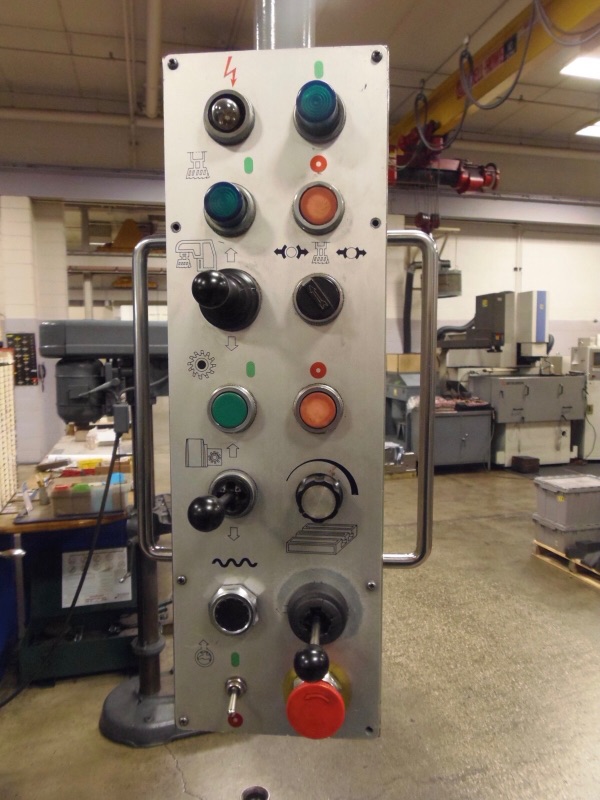

PENDENT CONTROL
DIGITAL READOUT
MANUALS
