GENERAL SPECIFICATIONS:

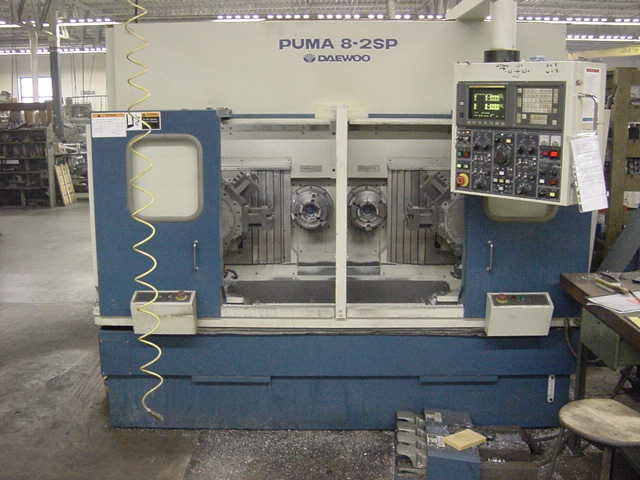

MODEL # PUMA 8-2SP
NEW APPROXIMATELY 1996 (INSTALLED 1998)
SWING OVER BED 12.2"
MAXIMUM TURNING DIAMETER 11.8"
MAXIMUM TURNING LENGTH 7.9"
X AXIS TRAVEL (EACH TURRET) 10.6"
Z AXIS TRAVEL (EACH TURRET) 7.9"
RAPID TRAVERSE RATE X AXES 630 IPM
RAPID TRAVERSE RATE Z AXES 630 IPM
SPINDLE NOSE (EACH SPINDLE) A2-6
SPINDLE BORE (EACH SPINDLE) 2.44"
MAXIMUM BAR CAPACITY (ROUND) 2.05"
SPINDLE SPEEDS (EACH SPINDLE) 40 - 3,500 RPM
SPINDLE MOTOR (EACH SPINDLE) 20 HP AC
MAXIMUM SPINDLE TORQUE 212 FT-LBS
TURRET CAPACITY (EACH TURRET) 8 STATION TURRET
TURRET INDEX TIME 1.0 SECONDS
EQUIPPED WITH:
FANUC 0TTC CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
2 (10") 3-JAW HYDRAULIC CHUCKS WITH JAWS
AUTO DOOR SYSTEM (AUTOMATIC DOOR OPEN / CLOSE)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE TURBO CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCK HOLDERS & MANUALS
