GENERAL SPECIFICATIONS:
MANUFACTURER DAEWOO

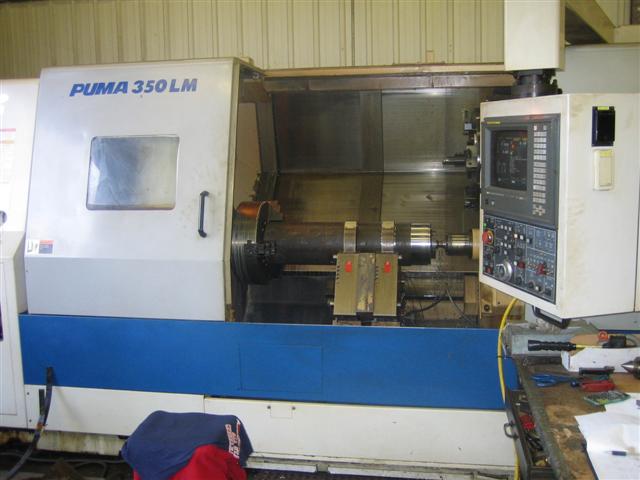

MODEL PUMA 350LM
AGE APPROXIMATE 1998
SERIAL NUMBER 35LM0102
SWING OVER BED 27.5"
SWING OVER CROSS SLIDE 18.9"
MAX TURNING DIAMETER 18.1"
RECOMMENDED TURNING DIAMETER 12.4"
MAXIMUM TURNING LENGTH 82.68"
X-AXIS TRAVEL (CROSS) 14.25"
Z-AXIS TRAVEL (LONG) 84.84"
MAXIMUM SPINDLE SPEED 30-3000 RPM
SPINDLE BORE 4.02"
SPINDLE NOSE A2-8
DRAW TUBE ID 3.58"

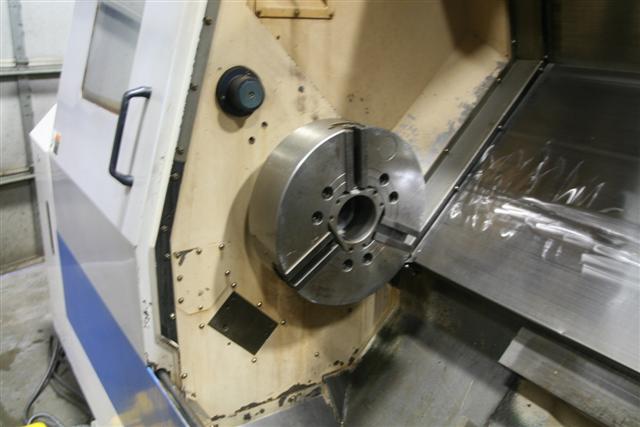

CHUCK SIZE 18"
TURRET 12 VDI HOLDER
ROTARY TOOLS 6
ROTARY TOOLS SPEED RANGE 30-3000 RPM
FEEDS(X) 630 IPM
FEEDS(Z) 787 IPM
MAIN SPINDLE MOTOR 40 HP
WEIGHT 30,800 LBS
OVERALL DIMENSIONS 193"L X 98"W X 93"H
EQUIPPED WITH:

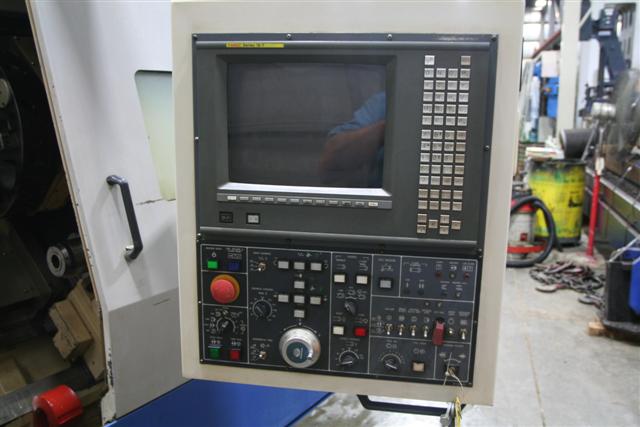

FANUC 18T CONTROL
C AXIS INDEXER 1 DEGREE

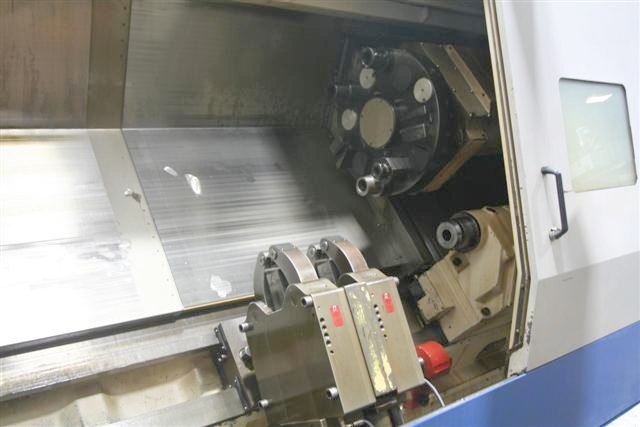

DOUBLE SMW HYDRAULIC STEADY REST 2.4"-10.56
TAILSTOCK
CHIP CONVEYOR
7 ROTARY HOLDERS
MISC MANUALS
THE ADDRESS BELOW WILL TAKE YOU TO A VIDEO OF THIS MACHINE RUNNING
http://www.wismet.com/buy/detail.cfm?inventoryid=8255
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
