Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 29.1"
SWING OVER CARRIAGE 19.0"
DISTANCE BETWEEN CENTERS 68.21"
MAXIMUM TURNING DIAMETER 25.2"
MAXIMUM TURNING LENGTH 62.0"
X AXIS TRAVEL 14.5"
Z AXIS TRAVEL 62.0"
RAPID TRAVERSE RATE X AXIS 393 IPM
RAPID TRAVERSE RATE Z AXIS 590 IPM
SPINDLE NOSE A2-11
SPINDLE BORE 5.2"
SPINDLE SPEEDS (4 SPEED GEARED) 5 - 2,000 RPM
SPINDLE MOTOR 50 HP AC

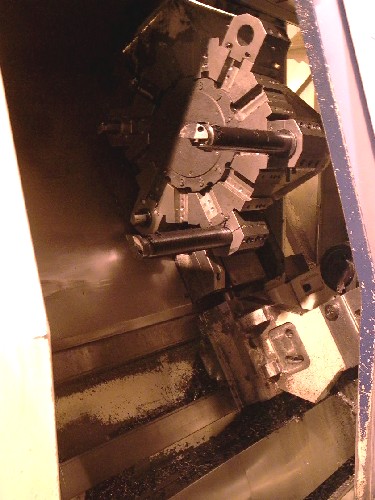

TURRET CAPACITY 12 STATION TURRET
TAILSTOCK QUILL DIAMETER 6.0"
TAILSTOCK QUILL TAPER MT #6
TAILSTOCK QUILL TRAVEL 6.0"
EQUIPPED WITH:
FANUC 15TF CNC CONTROL WITH 14" COLOR CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

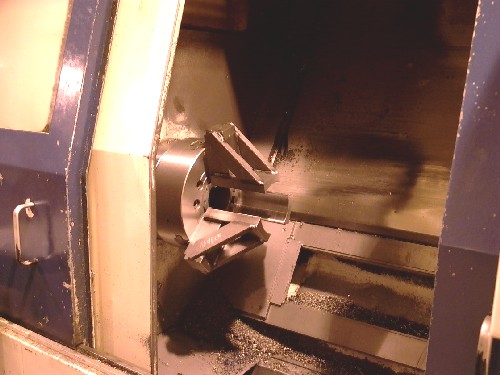

15" 3-JAW HYDRAULIC THROUGH HOLE CHUCK
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
