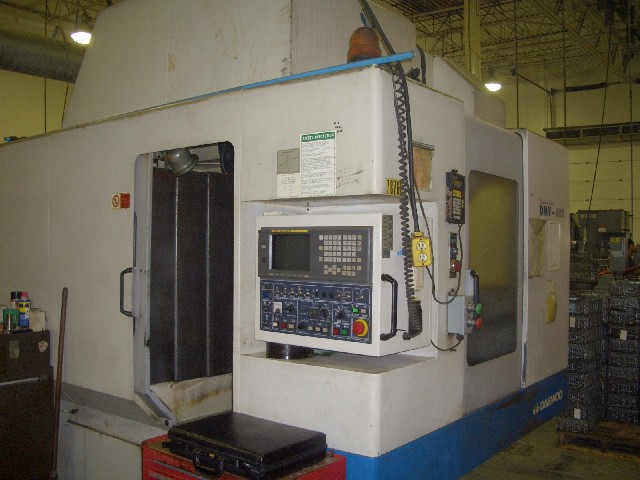

DAEWOO DMV400, CNC VERTICAL MACHINING CENTER, FANUC 18M, 2 PALLET, CAT 40, 30 TOOLS, RIGID TAP,1998

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1998
MANUFACTURER DAEWOO
MODEL DMV 400
DUAL PALLET SIZE 25.6" X 17"
MAX PALLET LOAD 660 LBS
SPINDLE NOSE TO TABLE TOP 5.9" TO 28.3"
TRAVELS (X) 22"
(Y) 15.7"
(Z) 22.4"
SPINDLE SPEED 0 - 10,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 15 HP
TOOL CHANGER 30 TOOL
APPROXIMATE DIMENSIONS 124" X 110" X 100"
APPROXIMATE WEIGHT 14,000 LBS

EQUIPPED WITH:

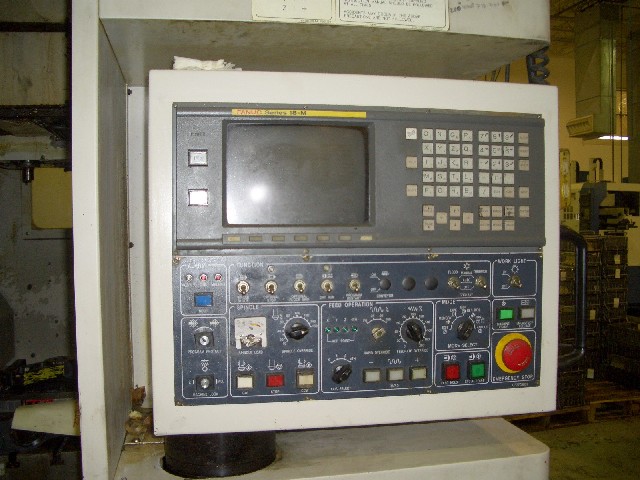

FANUC 18M CONTROL
HAND HELD PENDENT
RIGID TAPPING
CHIP CONVEYOR
COOLANT
INTERFACE FOR INDEXER
RS 232 FULL ENCLOSURE
