GENERAL SPECIFICATIONS:

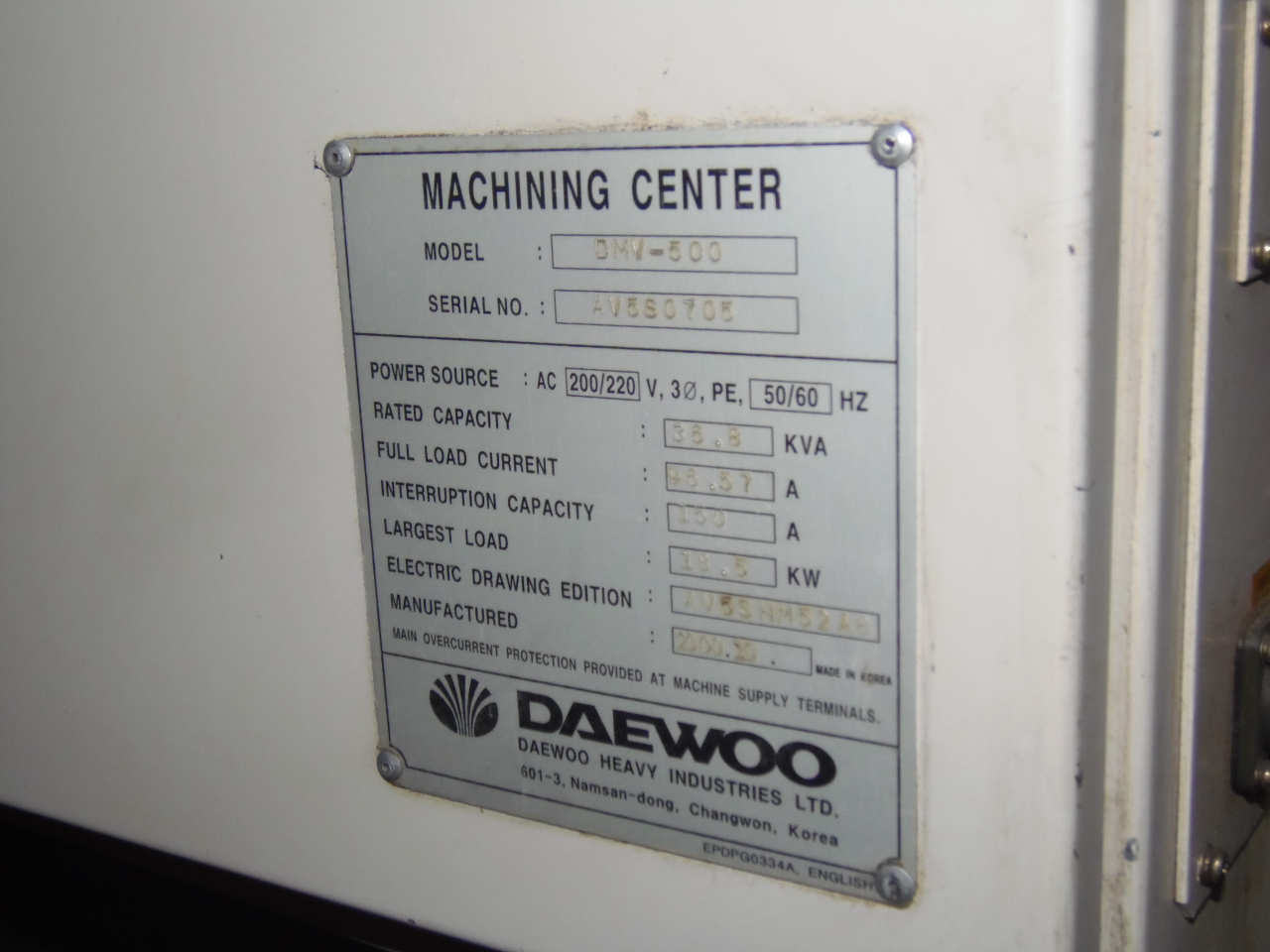

MANUFACTURER...................... DAEWOO
MODEL............................. DMV-500
AGE............................... 2000
SERIAL NUMBER..................... AV5S0705

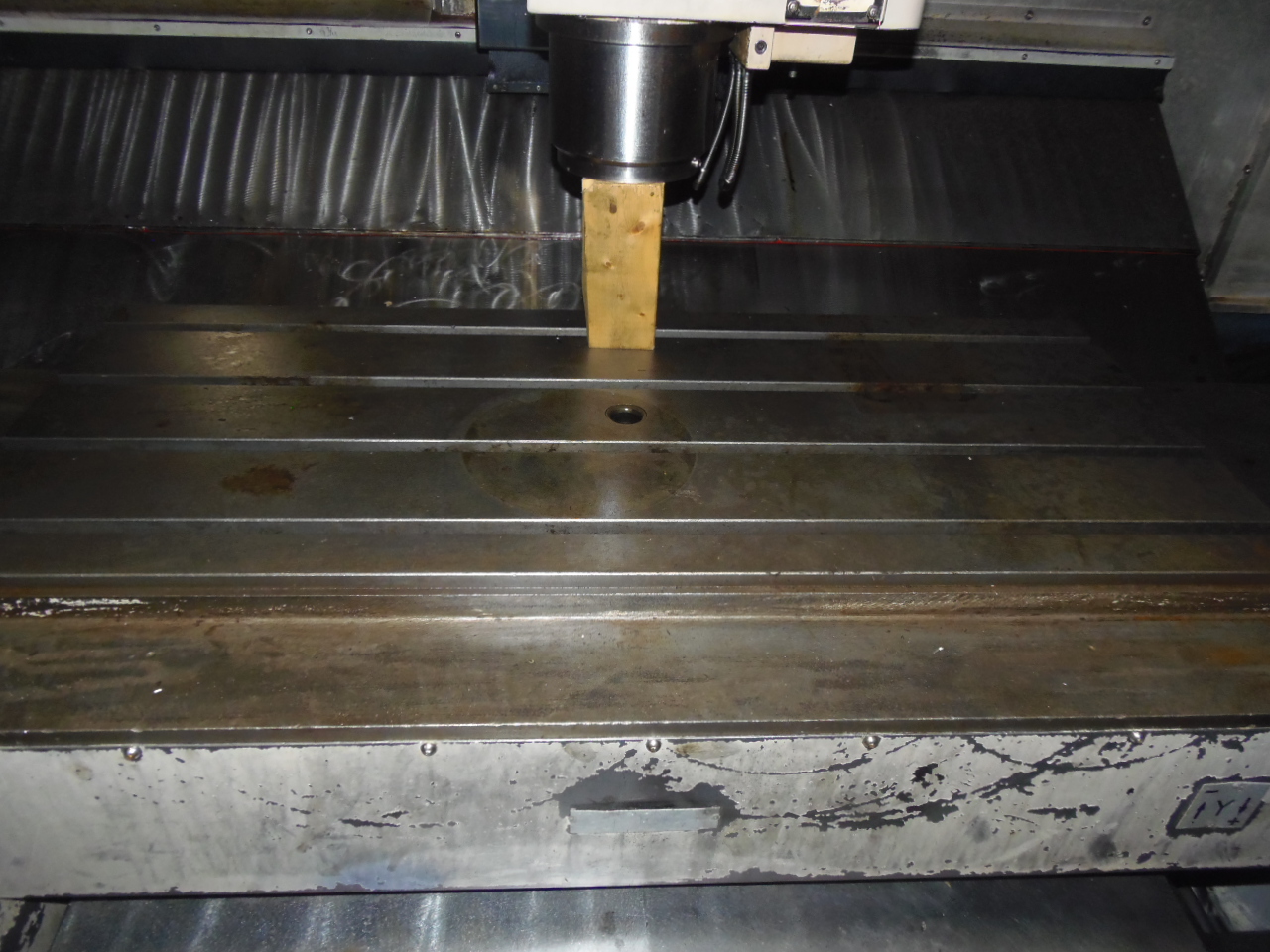

TABLE SIZE........................ 47.2" x 19.7"
MAXIMUM TABLE LOAD................ 1,760 LBS
SPINDLE NOSE TO TABLE TOP......... 5.9" - 25.9"
X AXIS TRAVEL..................... 40.1"
Y AXIS TRAVEL..................... 19.68"
Z AXIS TRAVEL..................... 20.1"
RAPID TRAVERSE RATE X AXIS........ 1181 IPM
RAPID TRAVERSE RATE Y AXIS........ 1181 IPM
RAPID TRAVERSE RATE Z AXIS........ 945 IPM
CUTTING FEED RATE................. 0.04 - 315 IPM
SPINDLE SPEEDS.................... 20 - 10,000 RPM

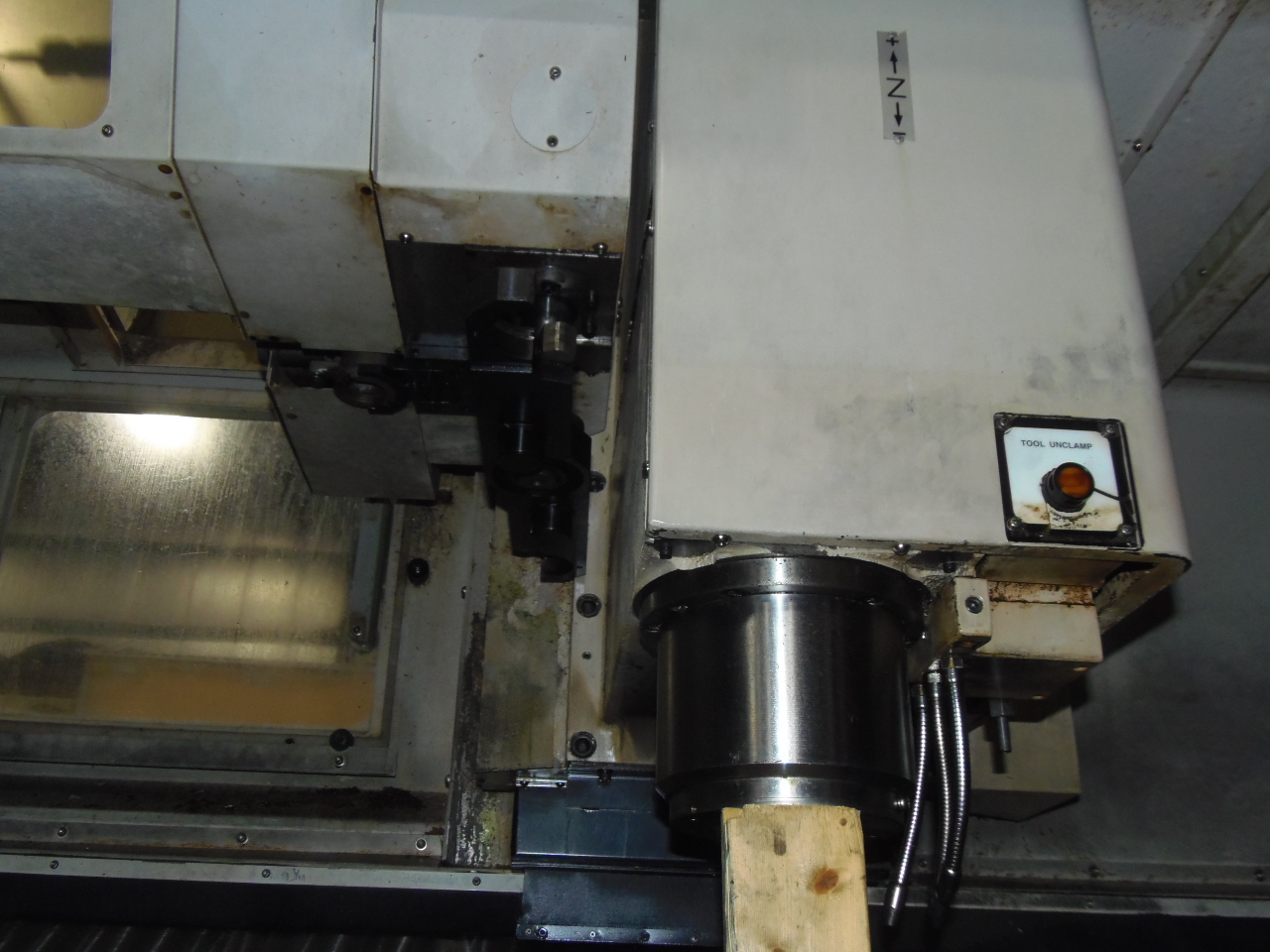

SPINDLE TAPER..................... CAT 40
SPINDLE MOTOR (2 SPEED GEARED).... 20 HP AC

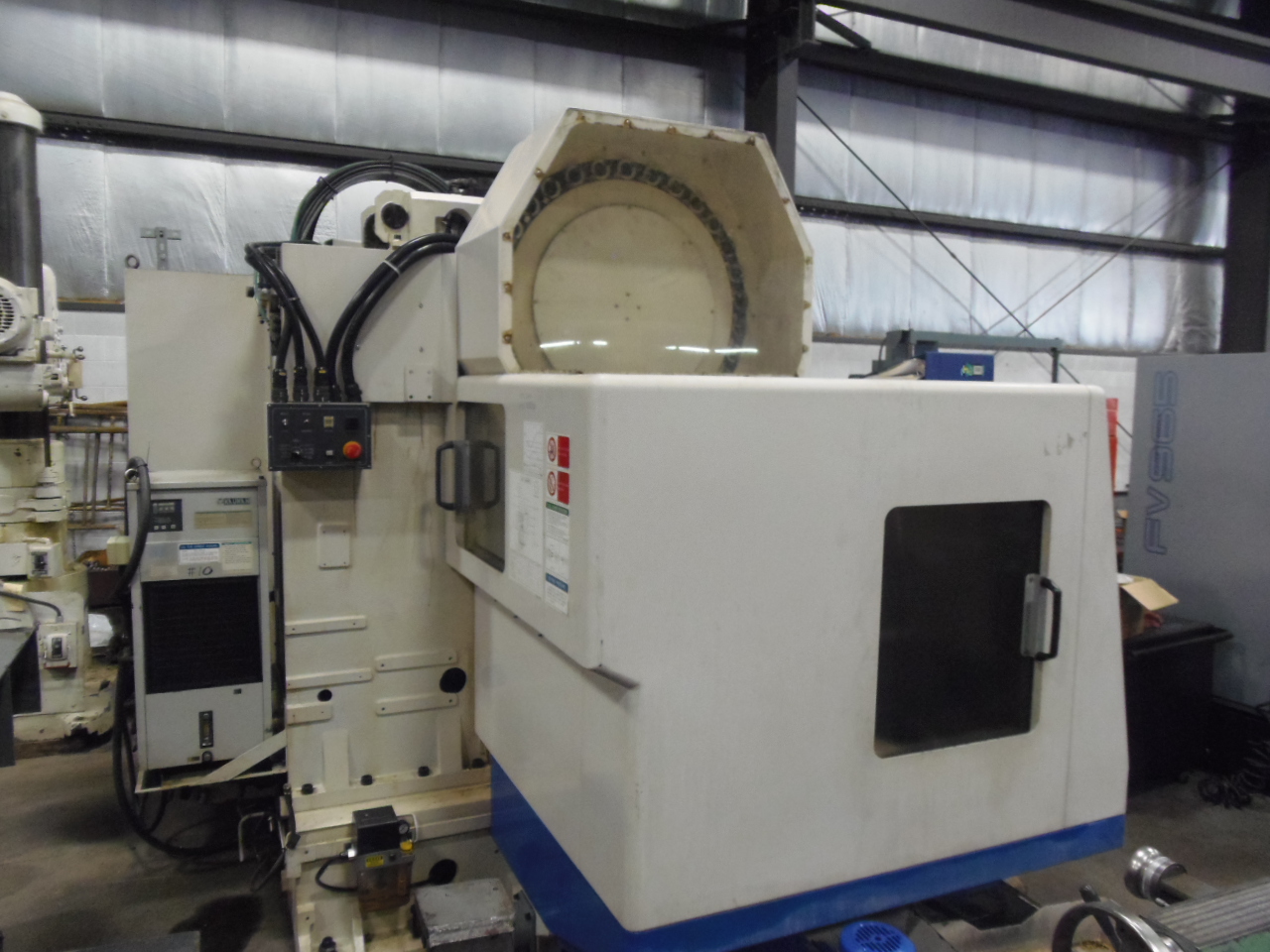

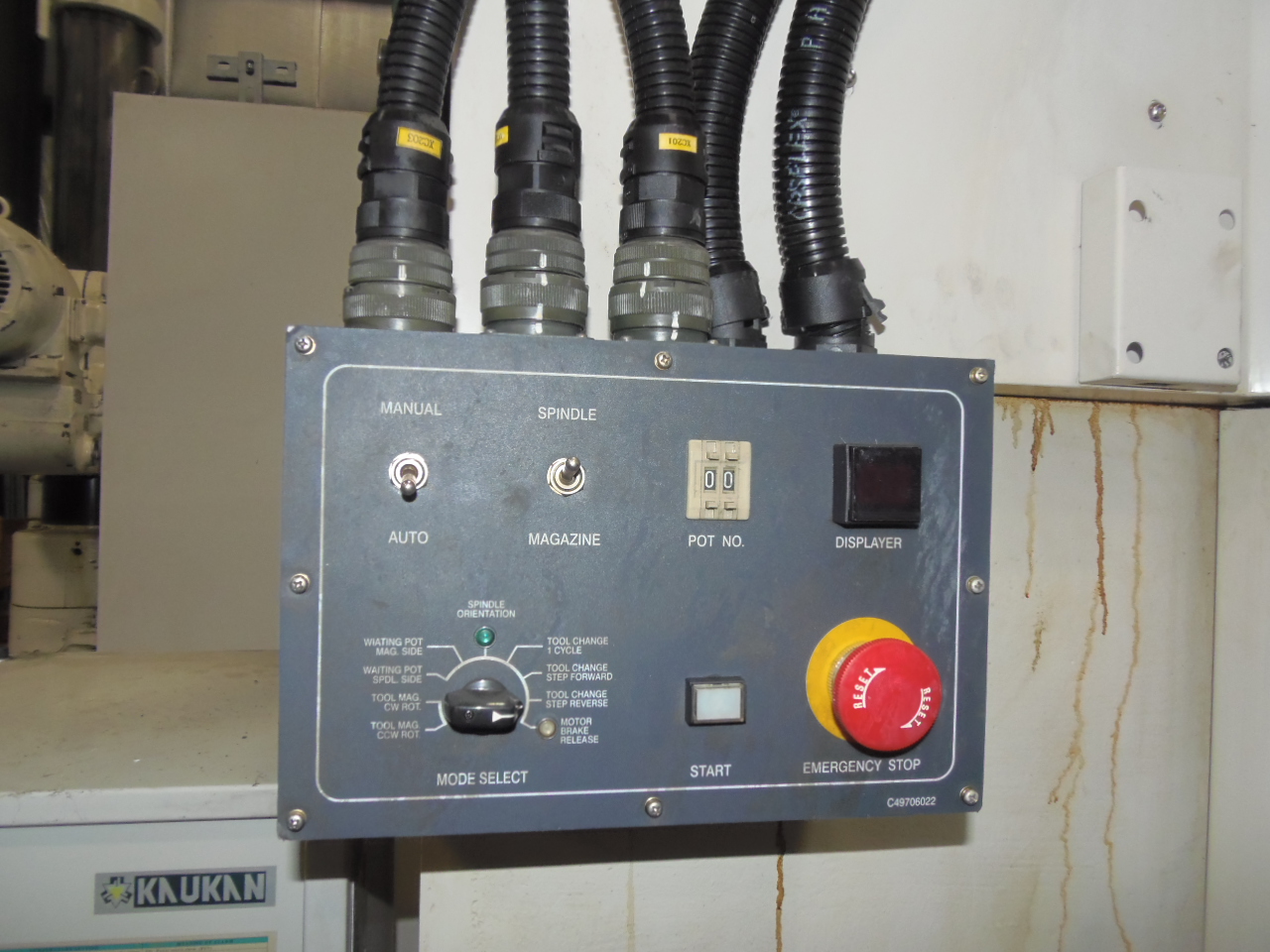

TOOL CHANGER CAPACITY............. 30 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)... 1.5 SECONDS
EQUIPPED WITH:

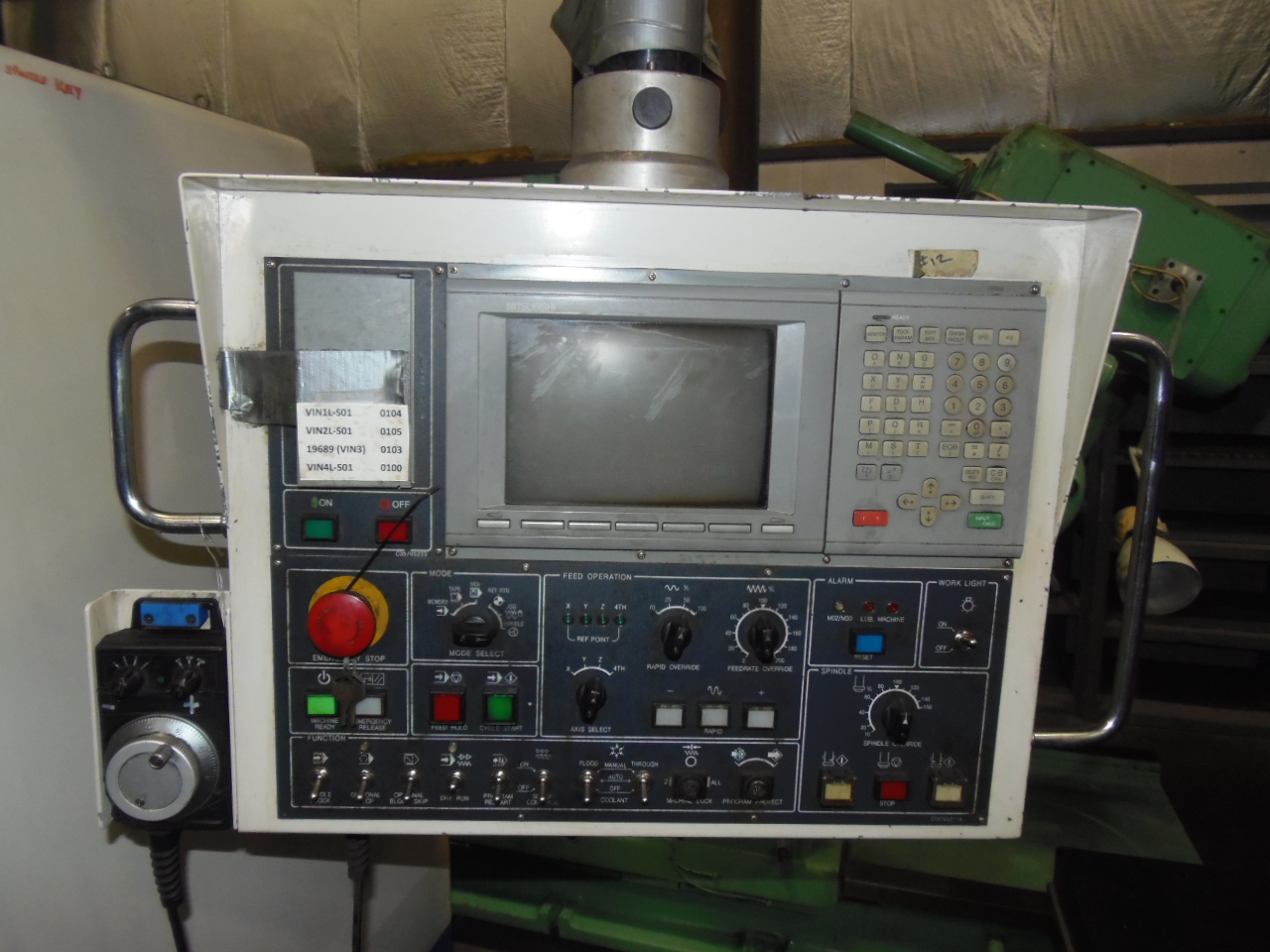

MITSUBISHI 520 CNC CONTROL WITH CRT & RS-232C PORT
RIGID TAPPING

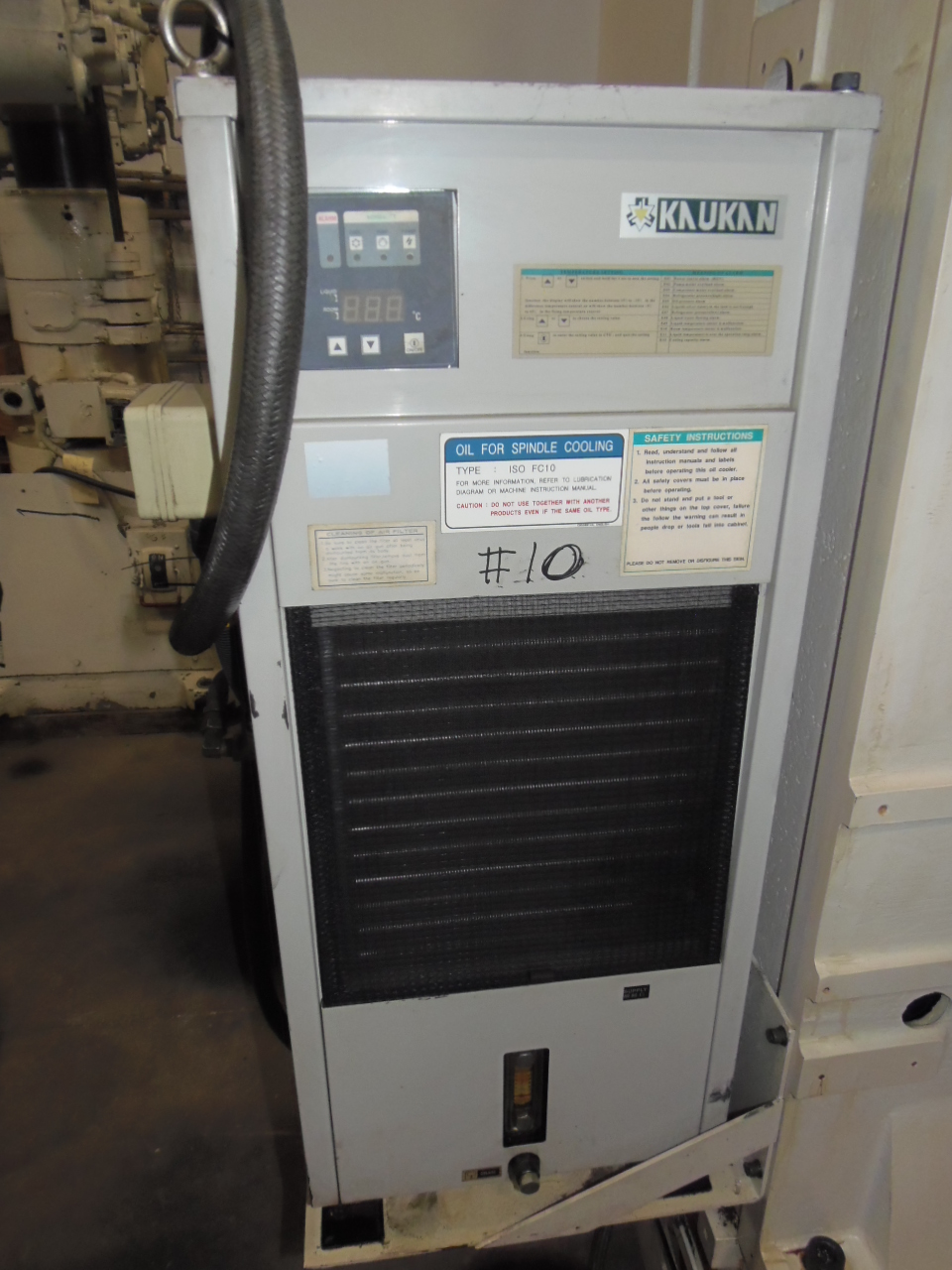

SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)

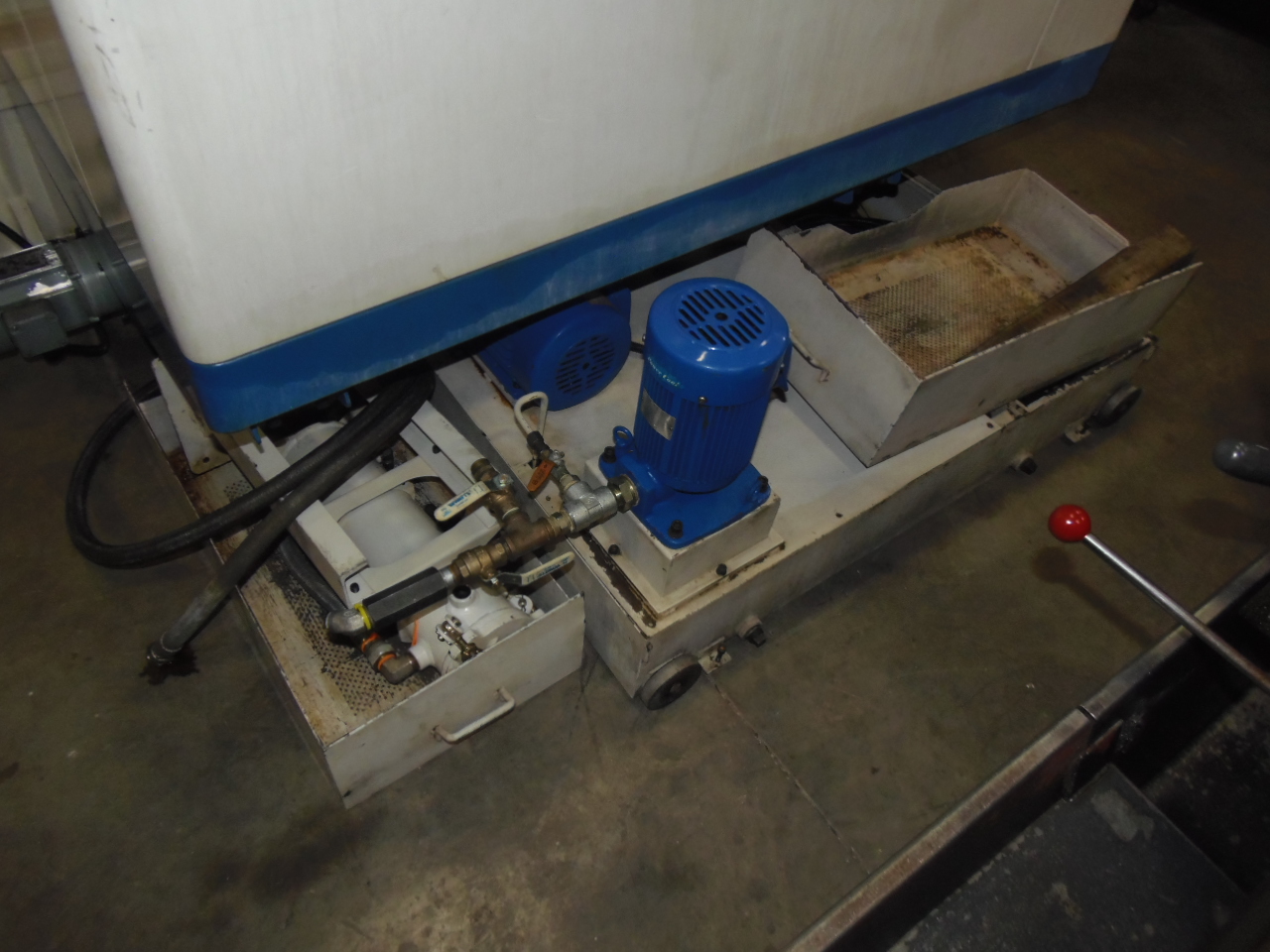

STANDARD COOLANT SYSTEM WITH TANK & PUMP

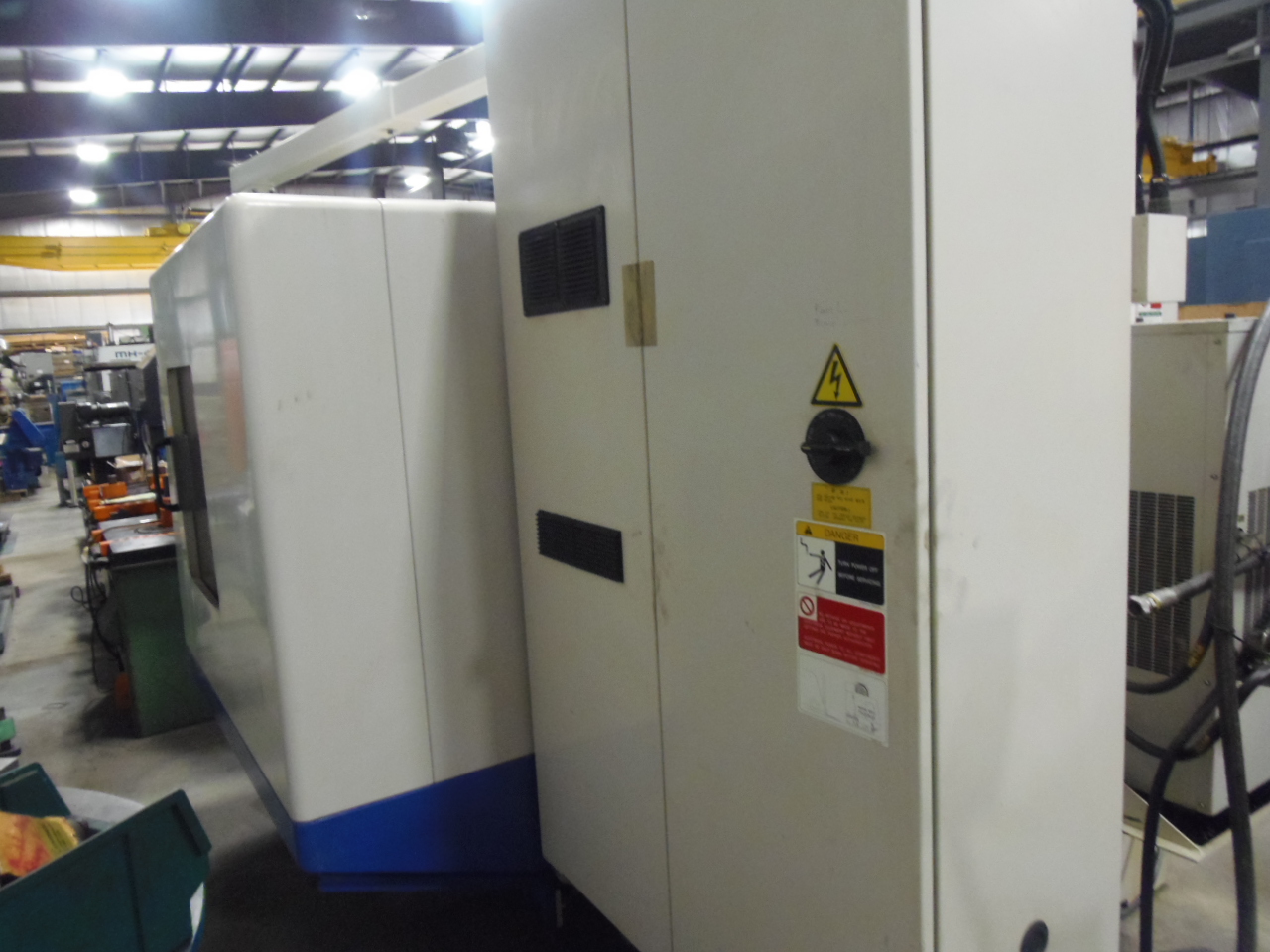

FULLY ENCLOSED GUARDING
ALL AVAILABLE MANUALS
