GENERAL SPECIFICATIONS:
MAKE:......................... DAEWOO
MODEL: ....................... DMH-400 DIAMOND SERIES
SERIAL#: ..................... AH4P0185
YEAR: ........................ 2000
DUAL PALLET SIZE: ............ 15.75"
PALLET ROTATION: ............. 360 POSITIONS 1 DEGREE
X TRAVELS: ................... 23.62 IN.
Y TRAVELS: ................... 22.05 IN.
Z TRAVELS: ................... 22.05 IN.
SPINDLE NOSE TO TABLE CENTER.. 5.91" - 27.95"
SPINDLE CENTER TO PALLET TOP.. 1.97" - 24.02"
RAPID TRAVERSE RATE........... 1575 IPM
CUTTING FEED RATE............. .04-787.4 IPM
TOOL CHANGER: ................ 60 ATC
SPINDLE TAPER: ............... 40 CAT
MAX SPINDLE RPM: ............. 12,000
MOTOR HP...................... 24.8/29.5 CONT/15 MIN
MACHINE WEIGHT................ 27,000 LBS
EQUIPPED WITH:

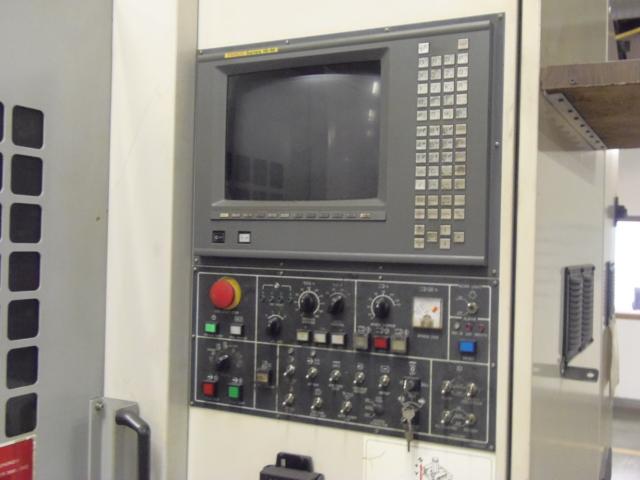

FANUC 16M CONTROL
COOLANT THROUGH SPINDLE

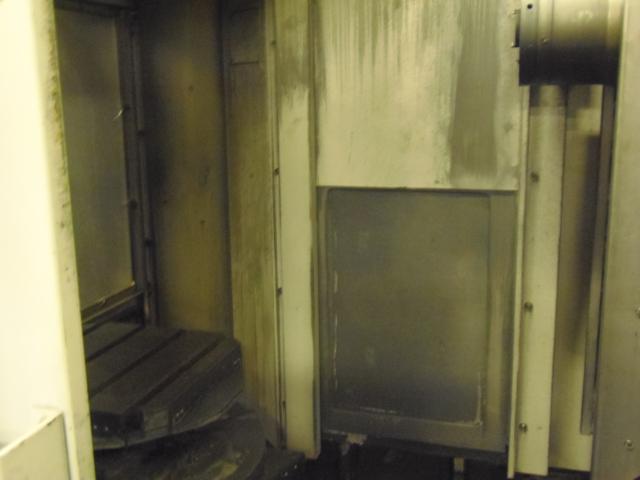

DUAL PALLET
CHIP CONVEYOR
UNDER POWER IN A CUSTOMERS SHOP
ONE OWNER MACHINE
SPECIFICATIONS SUBJECT TO VERIFICATION
