Specifications
| CNC Control |
yes |
| Type of CNC Control |
Fanuc 18T |
Equipped With
GENERAL SPECIFICATIONS:

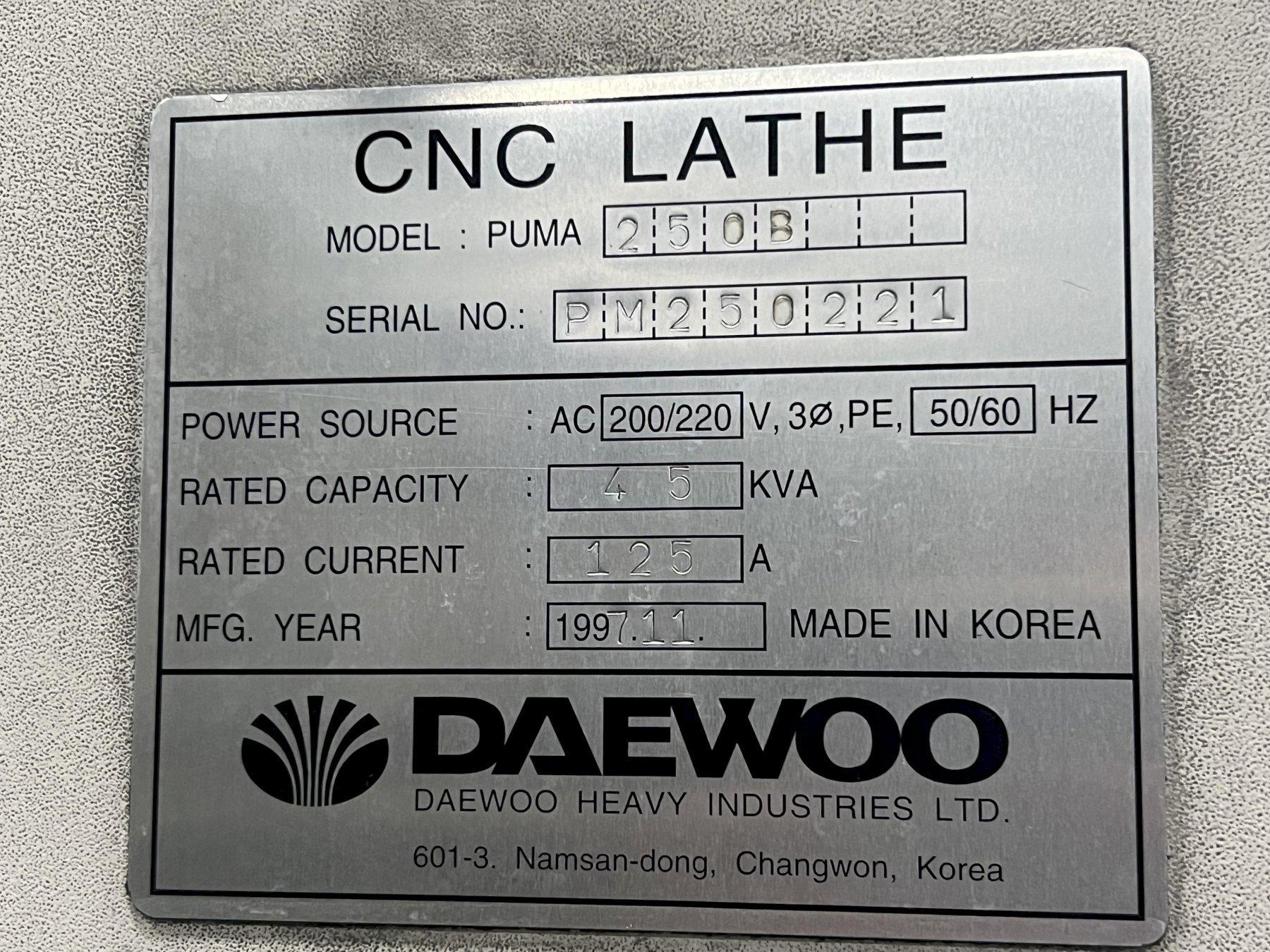

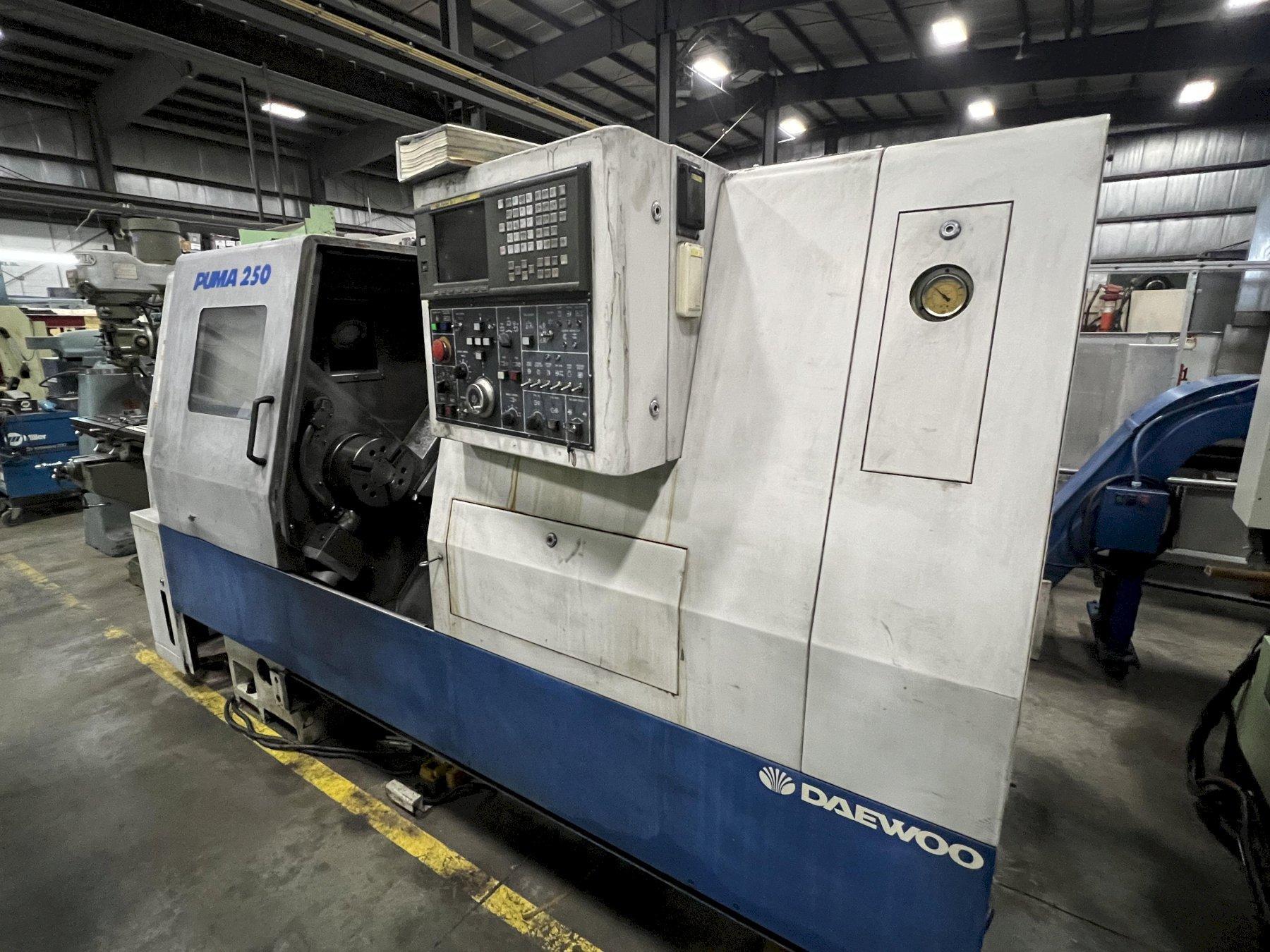

MAKE....................... DAEWOO
MODEL...................... PUMA 250B
SERIAL NUMBER.............. PM250221
AGE (YEAR)................. 1997
CAPACITY:
SWING OVER BED............. 22.4" (570 MM)
SWING OVER SADDLE.......... 14.5" (370 MM)
RECOM. MACHINING DIA....... 10" (255 MM)
MAX MACHINING DIA.......... 15.7" (400 MM)
MAX WORK LENGTH............ 25.6" (650 MM)
DRAW TUBE.................. 3" (77 MM)
TRAVELS:
X AXIS..................... 11" (282 MM)
Z AXIS..................... 26.7" (680 MM)

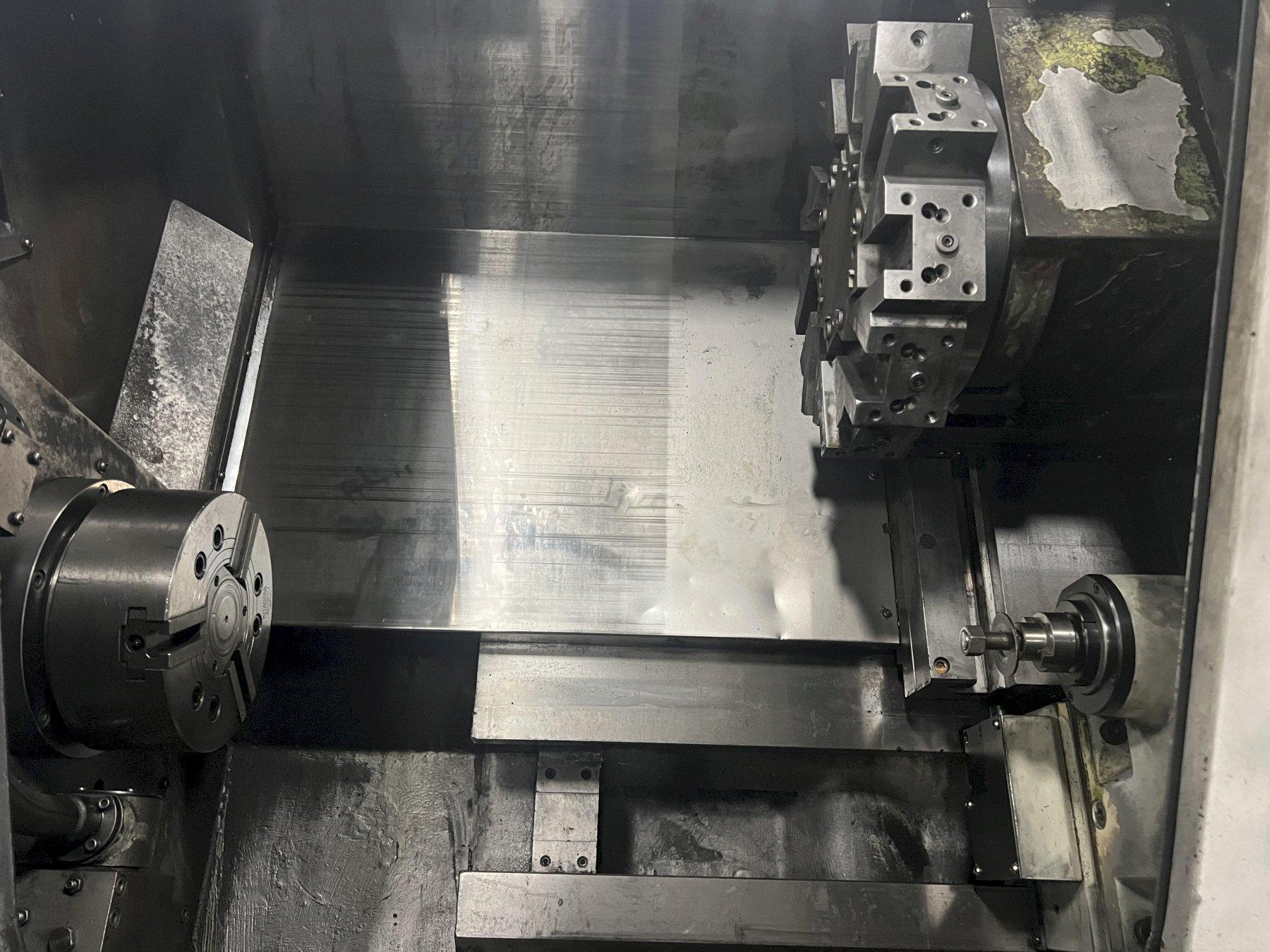

SPINDLE:

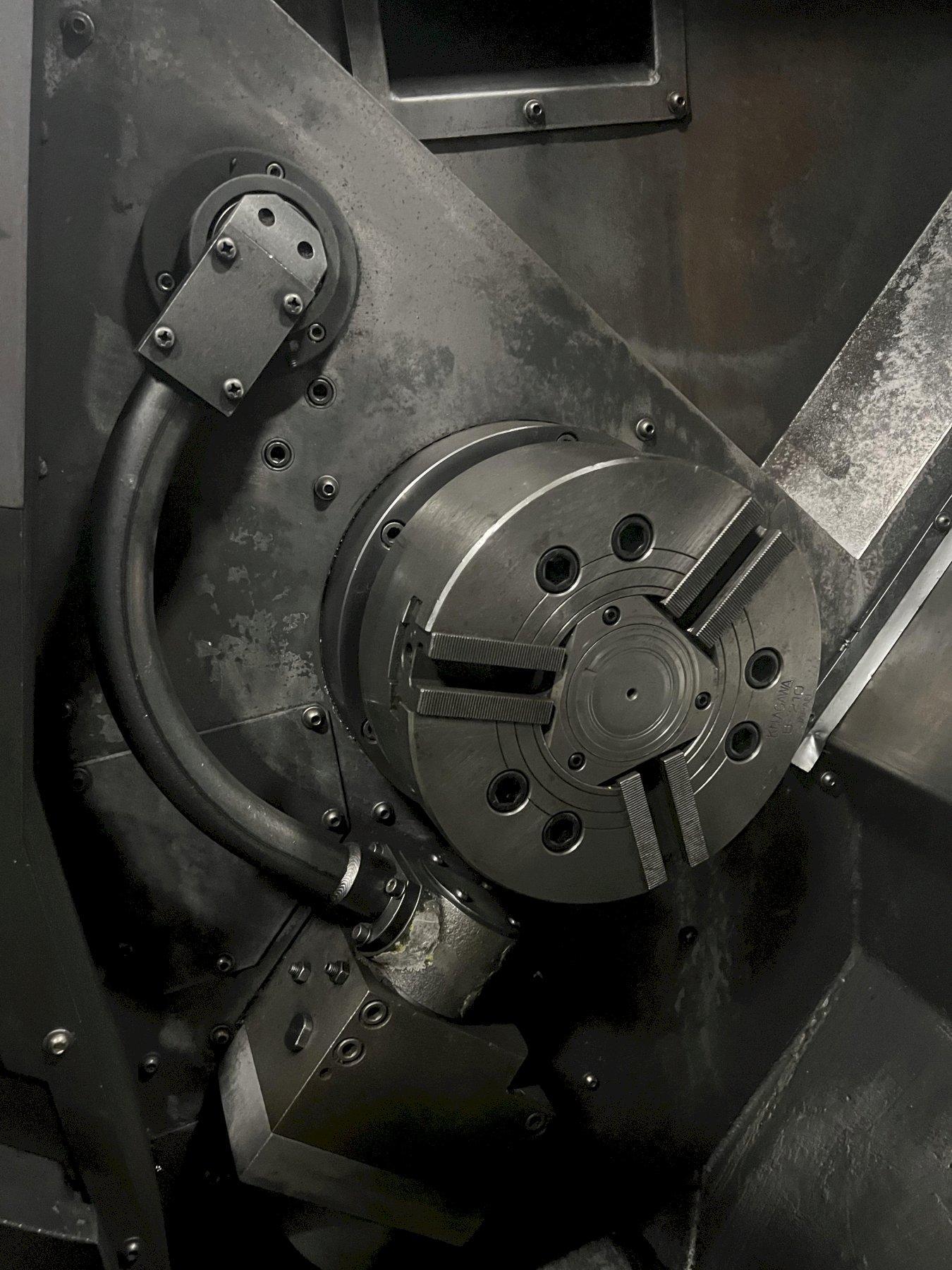

CHUCK DIA.................. 10" (254 MM)
SPEED RANGE................ 35-3, 500 RPM
SPINDLE NOSE............... A2-8
SPINDLE BORE DIA........... 3.5" (90 MM)

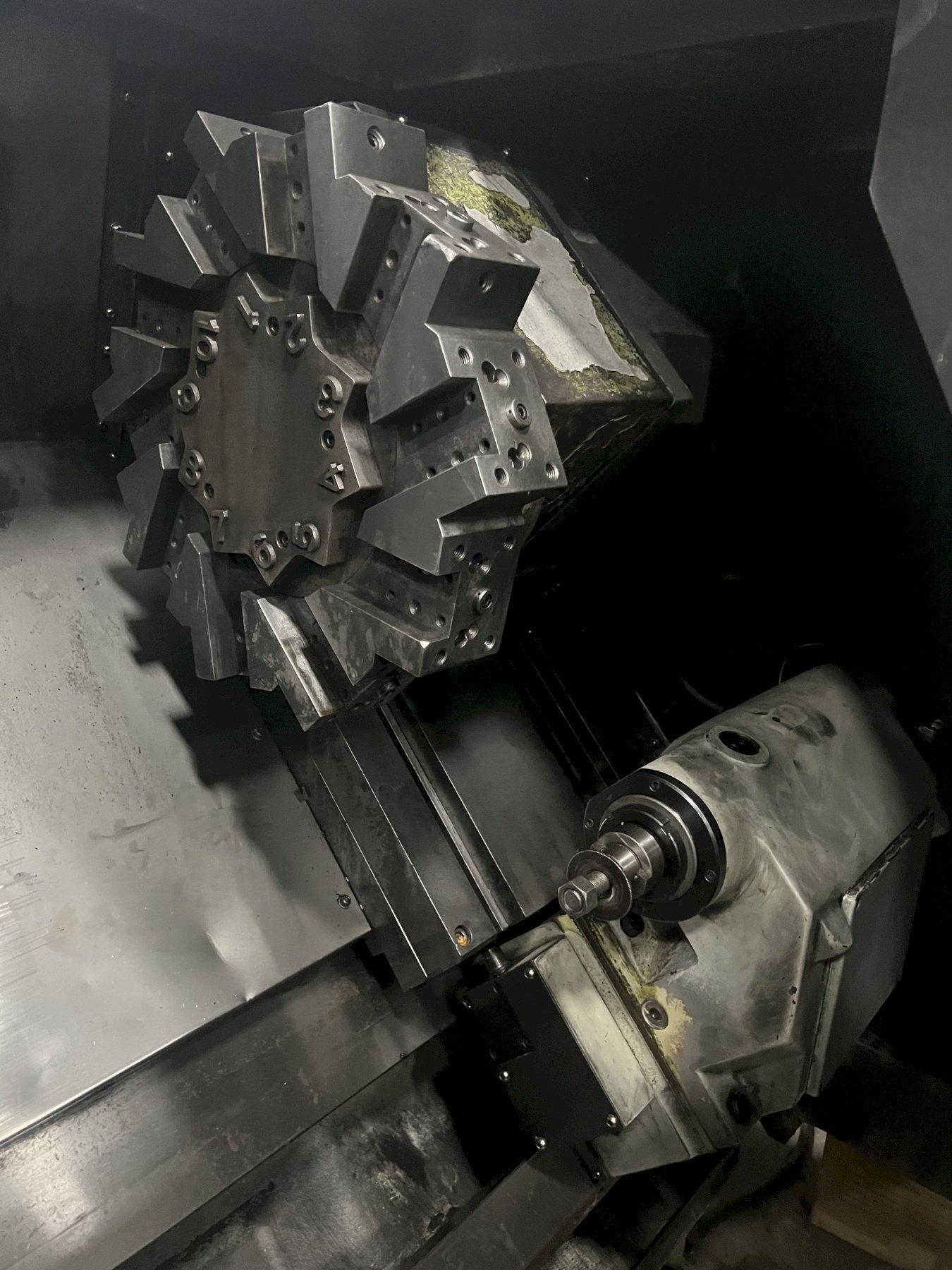

TURRET:
NO OF TOOL STATIONS........ 10
FEED RATES:
RAPID TRAVERS X............ 20,000 MM/MIN
Z.......................... 24,000 MM/MIN
CUTTING FEED X,Z........... 0.001 - 500 MM/REV
DIMENSIONS................. 135" X 70" X 90" H
WEIGHT..................... 5620 KG (12500 LBS)
EQUIPPED WITH:

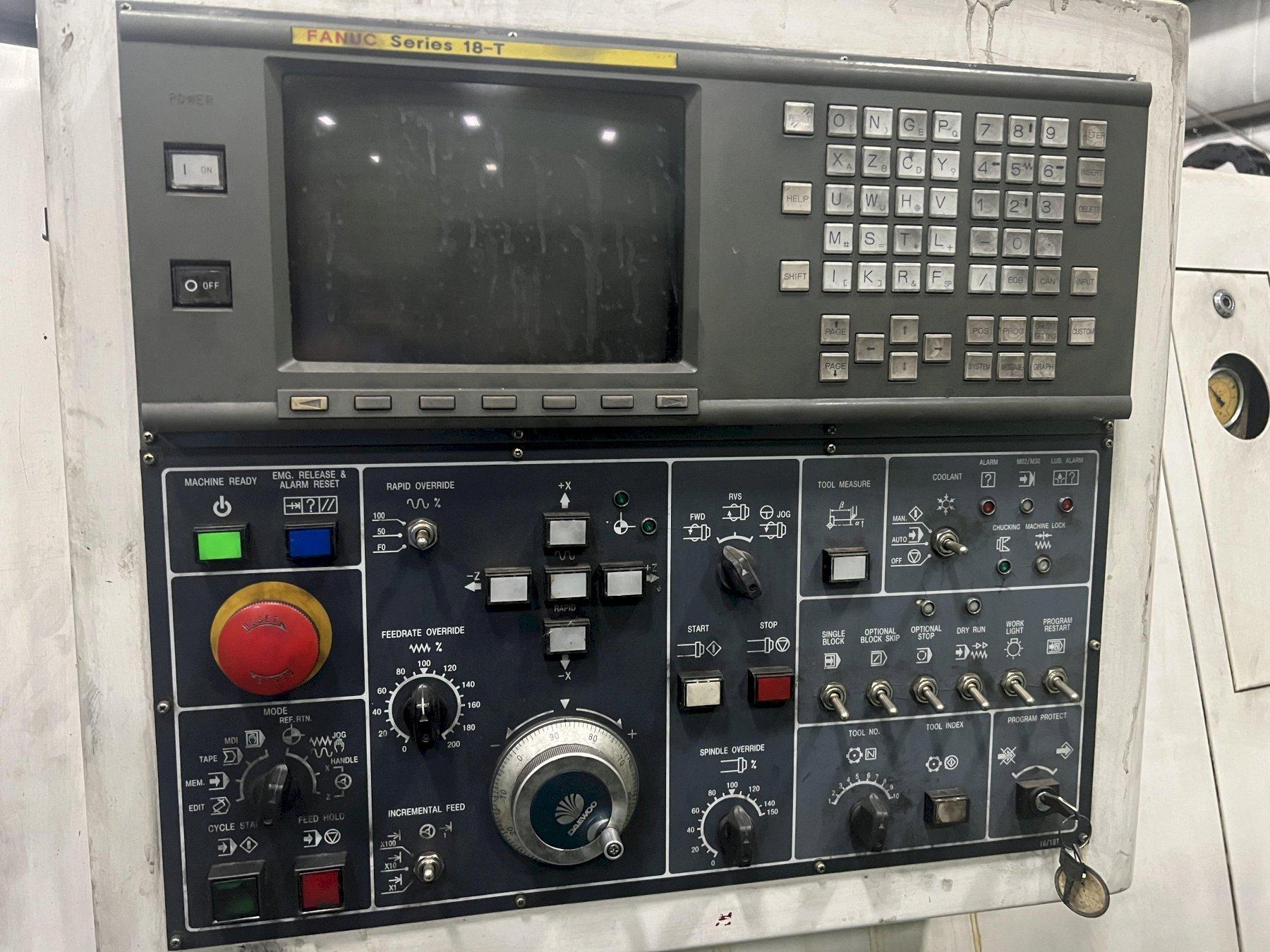

FANUC 18T CNC CONTROL
TAILSTOCK

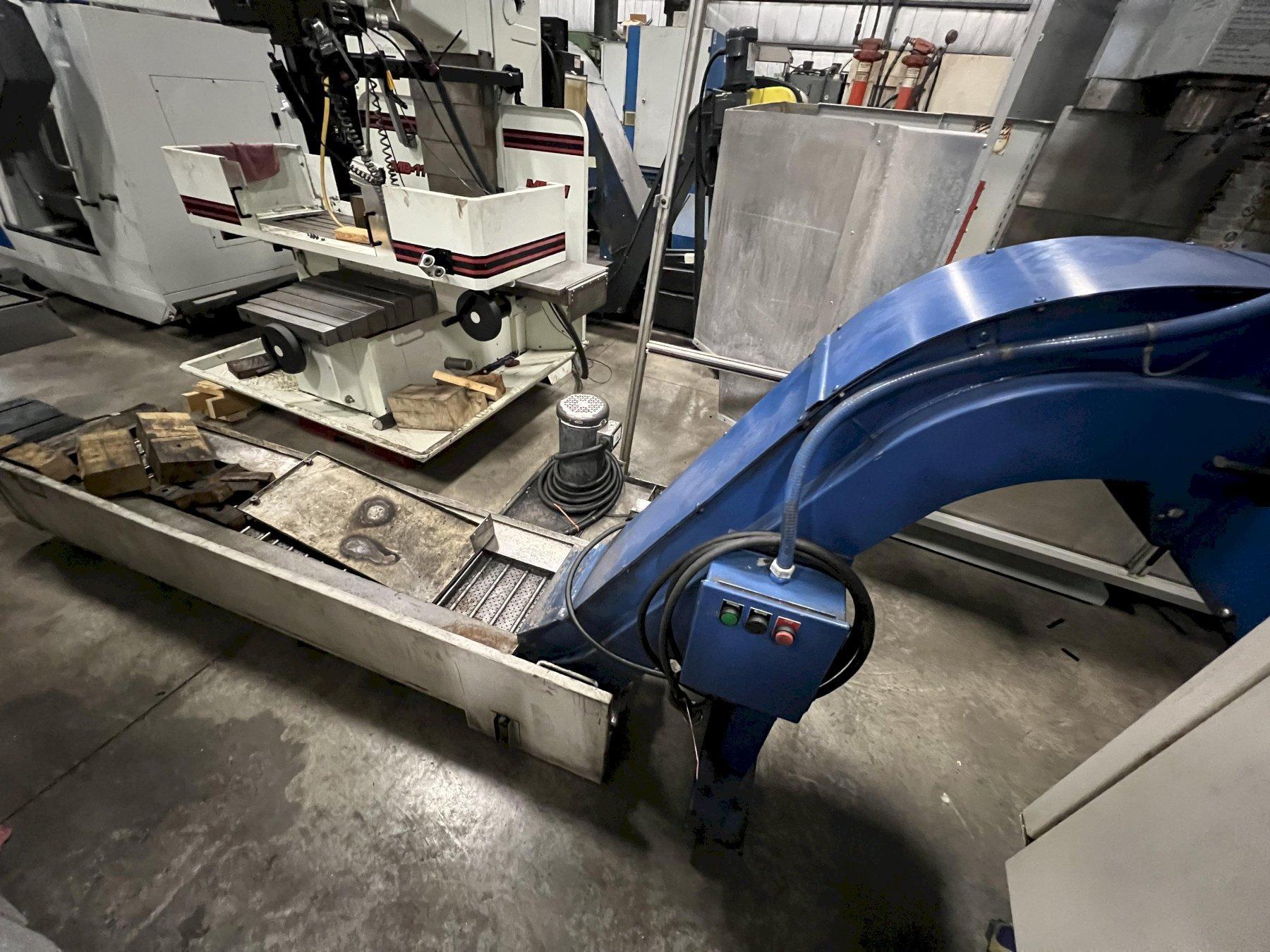

CHIP CONVEYOR / COOLANT
