Specifications
Equipped With
GENERAL SPECIFICATIONS:
NEW APPROXIMATELY-------------------------- 2000
SWING OVER BED----------------------------- 23"
MAXIMUM TURNING DIAMETER------------------- 15.7"
MAXIMUM SHAFT LENGTH ---------------------- 25.5"
SPINDLE BORE------------------------------- 3.5"
BAR CAPACITY------------------------------- 3"
TRAVEL AXIS: X----------------------------- 11.1"
Z----------------------------- 26.8"
SPINDLE SPEEDS----------------------------- 35 - 3500 RPM
SPINDLE NOSE------------------------------- A2-8
RAPID RATES AXIS: X------------------------ 630" MIN
Z------------------------ 945" MIN

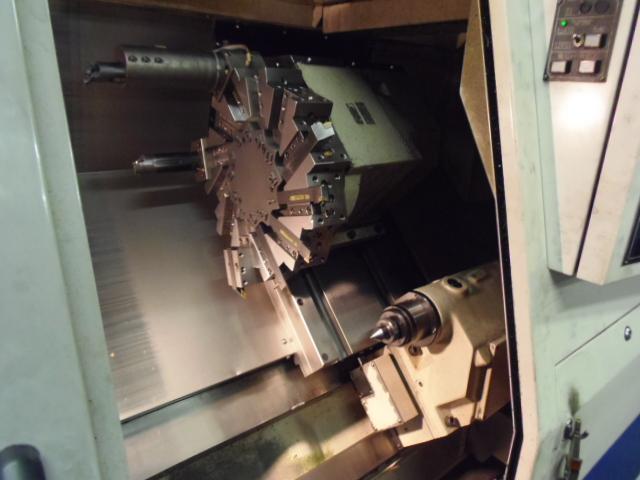

TURRET POSITIONS--------------------------- 12 WITH HOLDERS
MAIN MOTOR DRIVE--------------------------- 30 HP
MACHINE WEIGHT APPROX.--------------------- 13,000 LBS
EQUIPPED WITH:

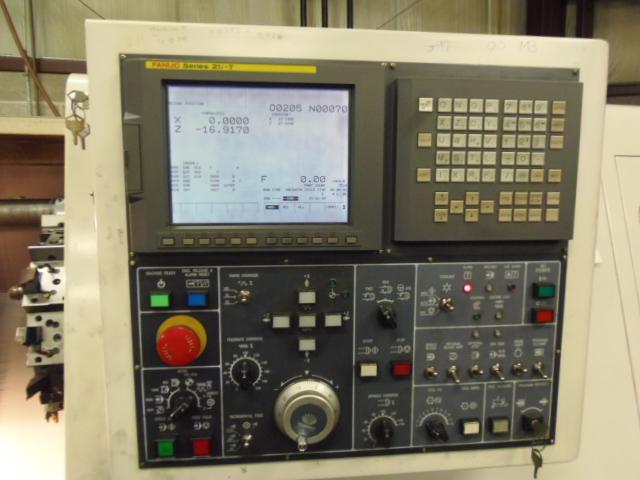

FANUC 21iT CONTROL

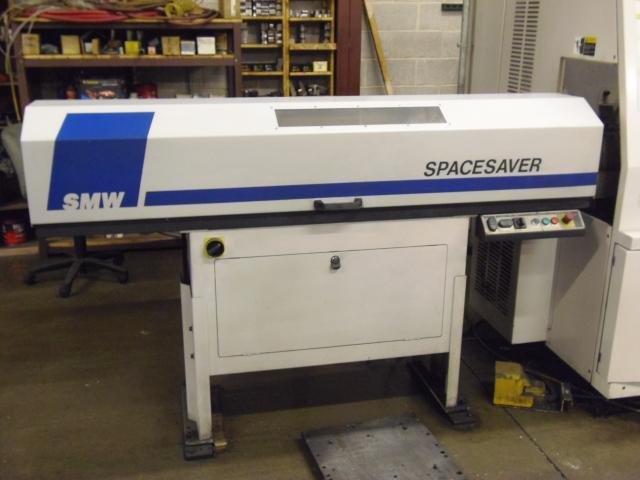

SMW SPACE SAVER BAR FEED WITH LINERS
CHIP CONVEYOR
COLLET CHUCK WITH COLLETS

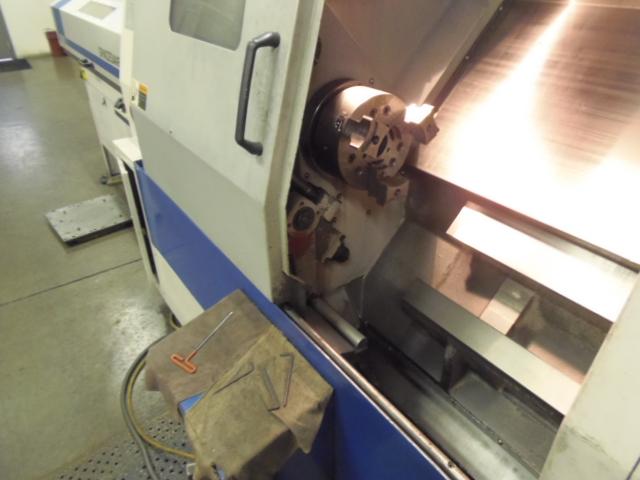

10" 3 JAW HYDRAULIC CHUCK
PROGRAMMABLE TAIL STOCK
TOOL PRESETTER
PARTS CATCHER
MISC MANUALS
MISC TOOL HOLDERS
UNDER POWER IN PLANT
ONE OWNER
