GENERAL SPECIFICATIONS:

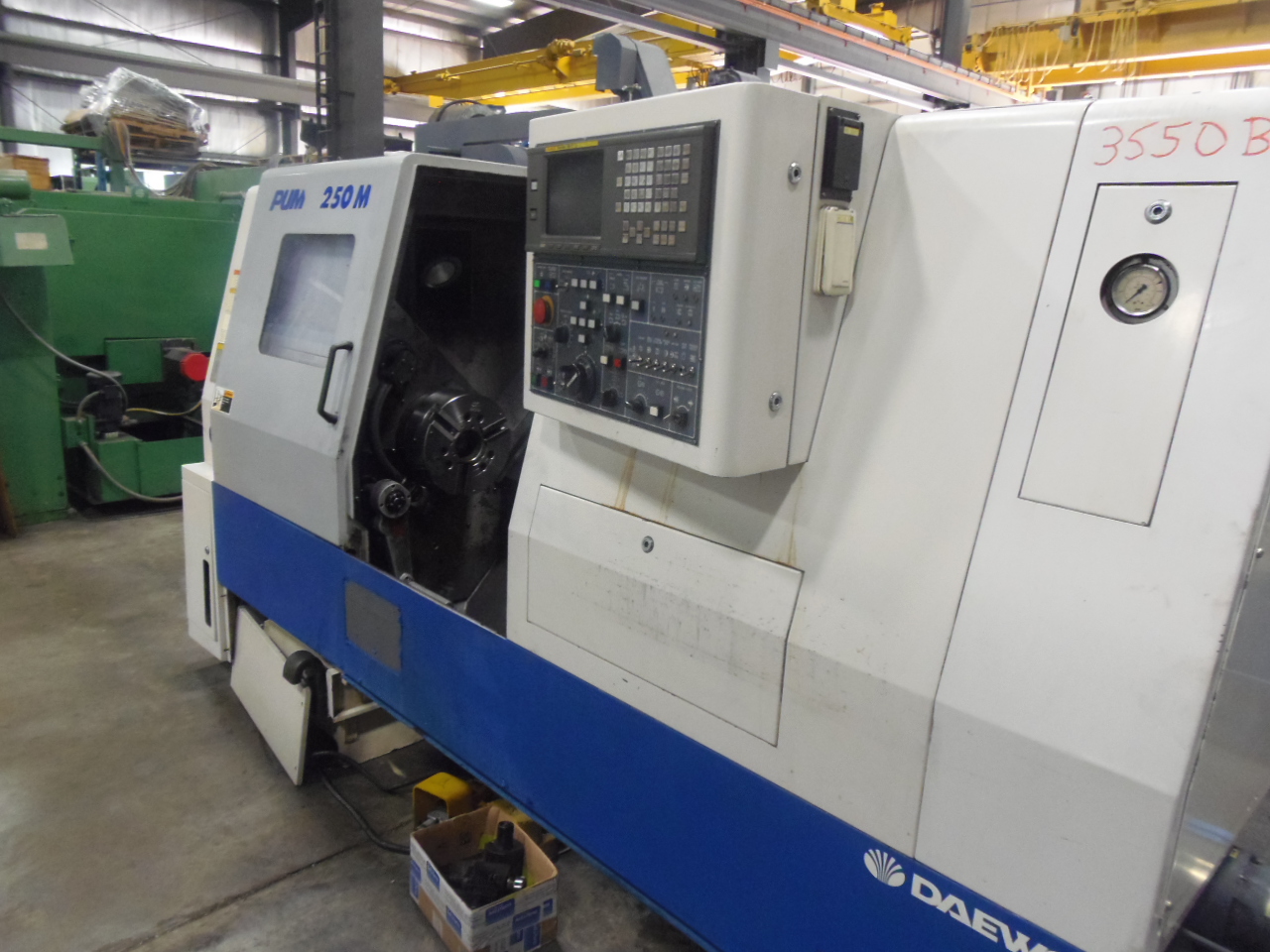

MANUFACTURER.................. DAEWOO
MODEL......................... PUMA 250M
AGE........................... 1997

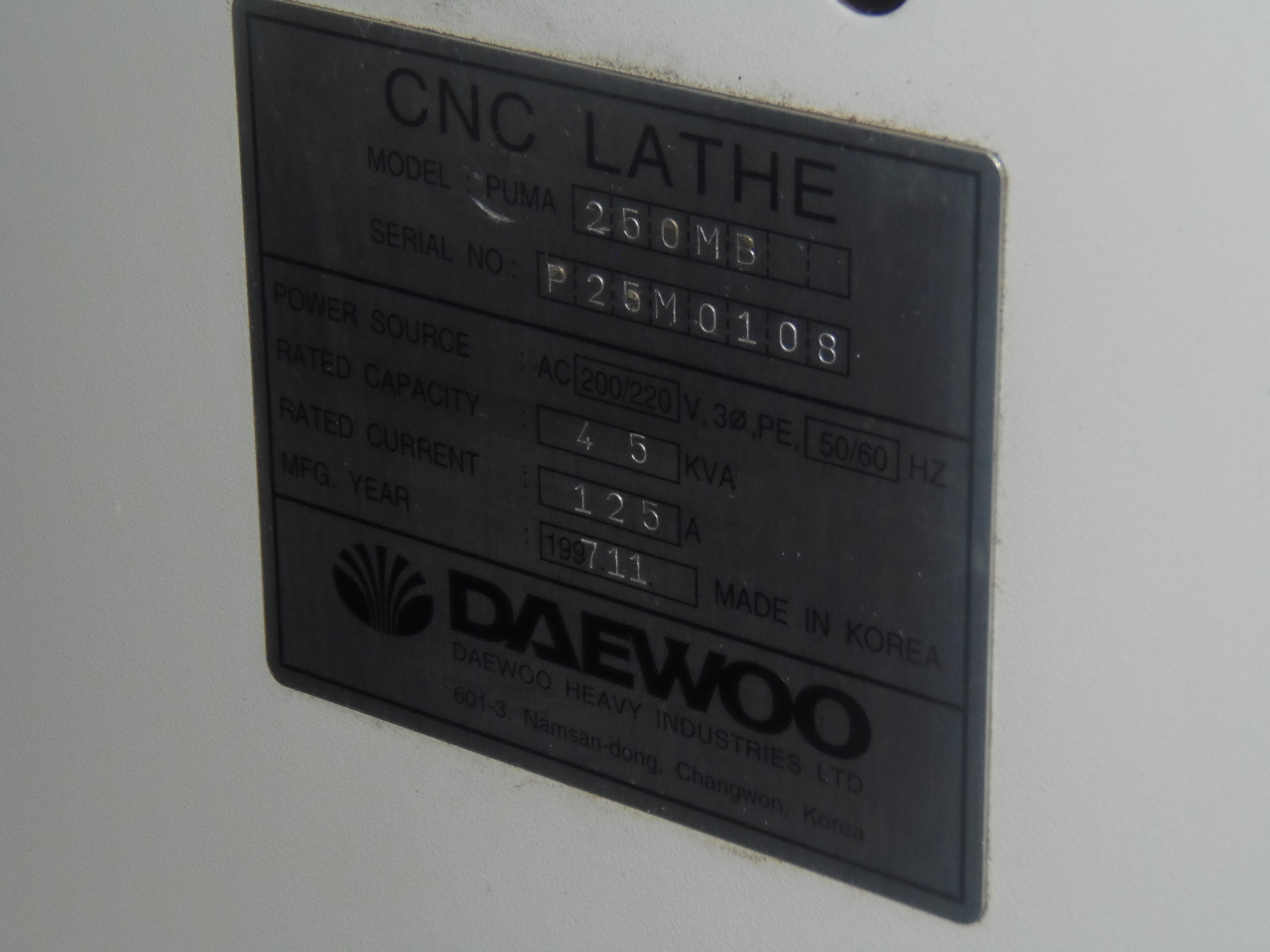

SERIAL NUMBER................. P250M0108
SWING OVER BED................ 22.44"
SWING OVER CARRIAGE........... 14.57"
MAXIMUM TURNING DIAMETER...... 14"
MAXIMUM TURNING LENGTH........ 25.59"
X AXIS TRAVEL................. 11.1"
Z AXIS TRAVEL................. 26.77"
C AXIS INDEXING............... 0.001 DEG.
RAPID TRAVERSE RATE X AXIS.... 800 IPM
RAPID TRAVERSE RATE Z AXIS.... 945 IPM
SPINDLE NOSE.................. A2-8
SPINDLE BORE.................. 3.54"
MAIN SPINDLE SPEEDS........... 35 - 3,500 RPM
SPINDLE MOTOR................. 30 HP

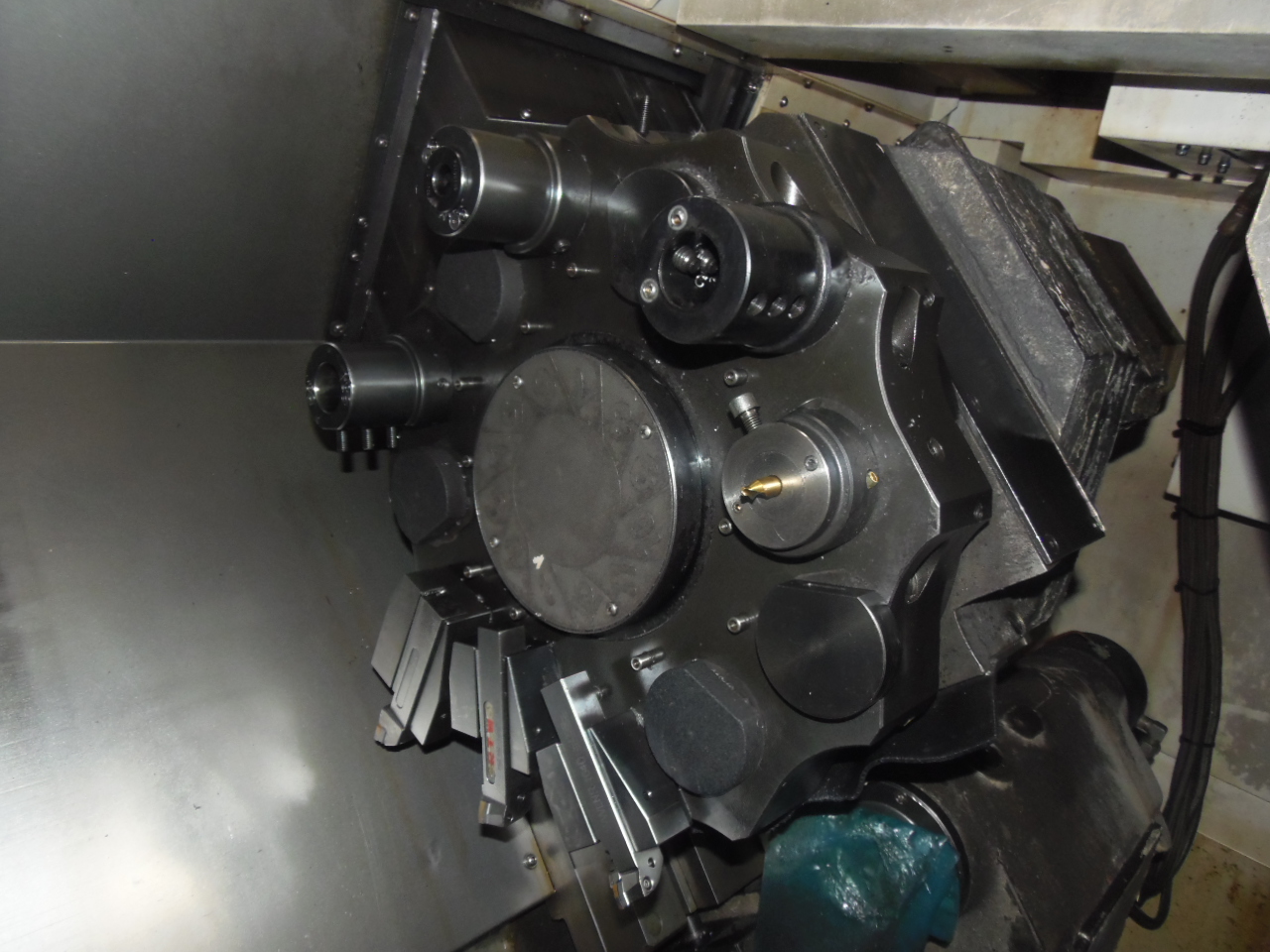

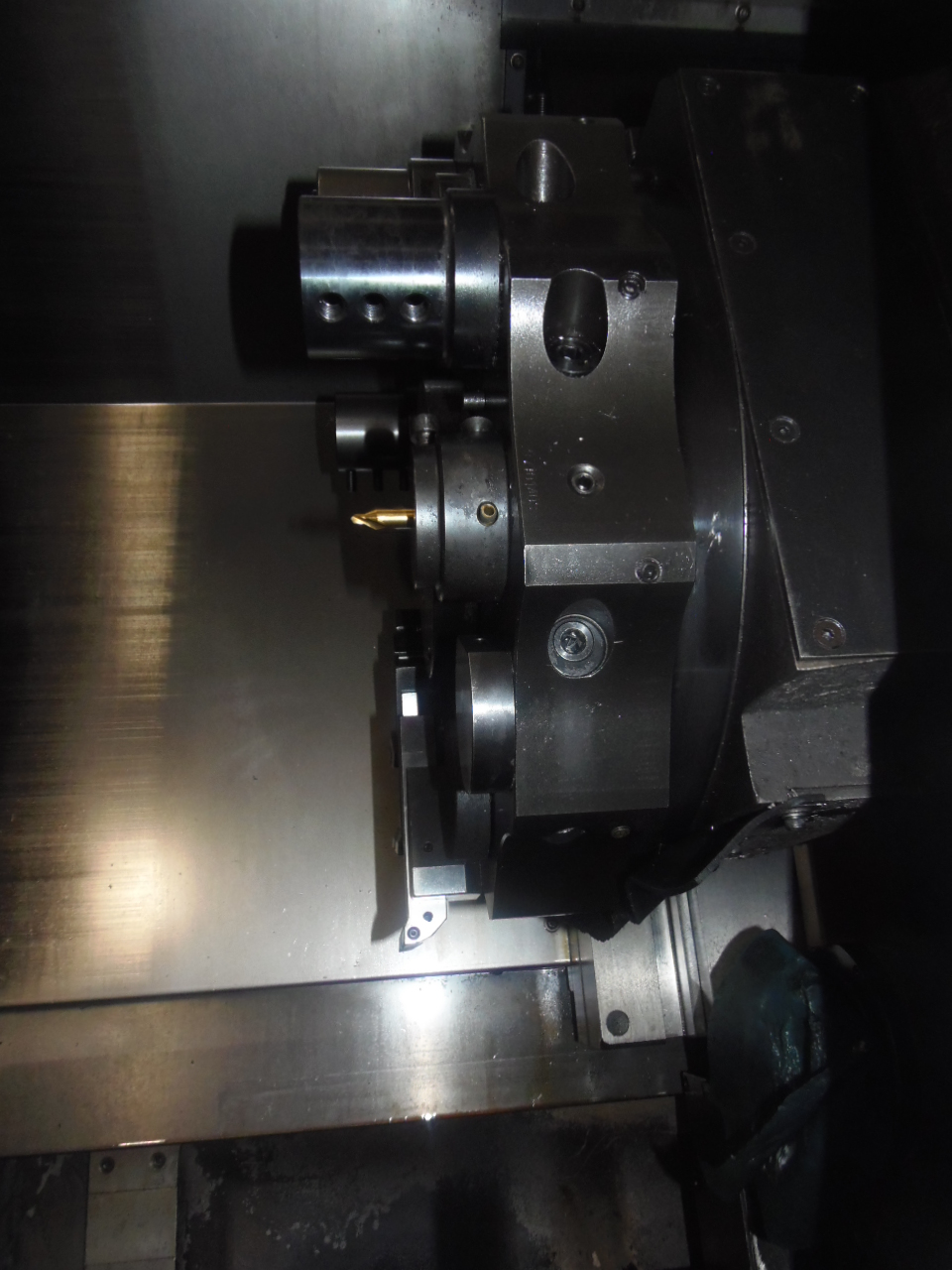

TURRET CAP.(ALL LIVE)......... 12 STATION TURRET
LIVE TOOLING MOTOR............ 5 HP
LIVE TOOLING SPEEDS........... 40 - 4,000 RPM
EQUIPPED WITH:

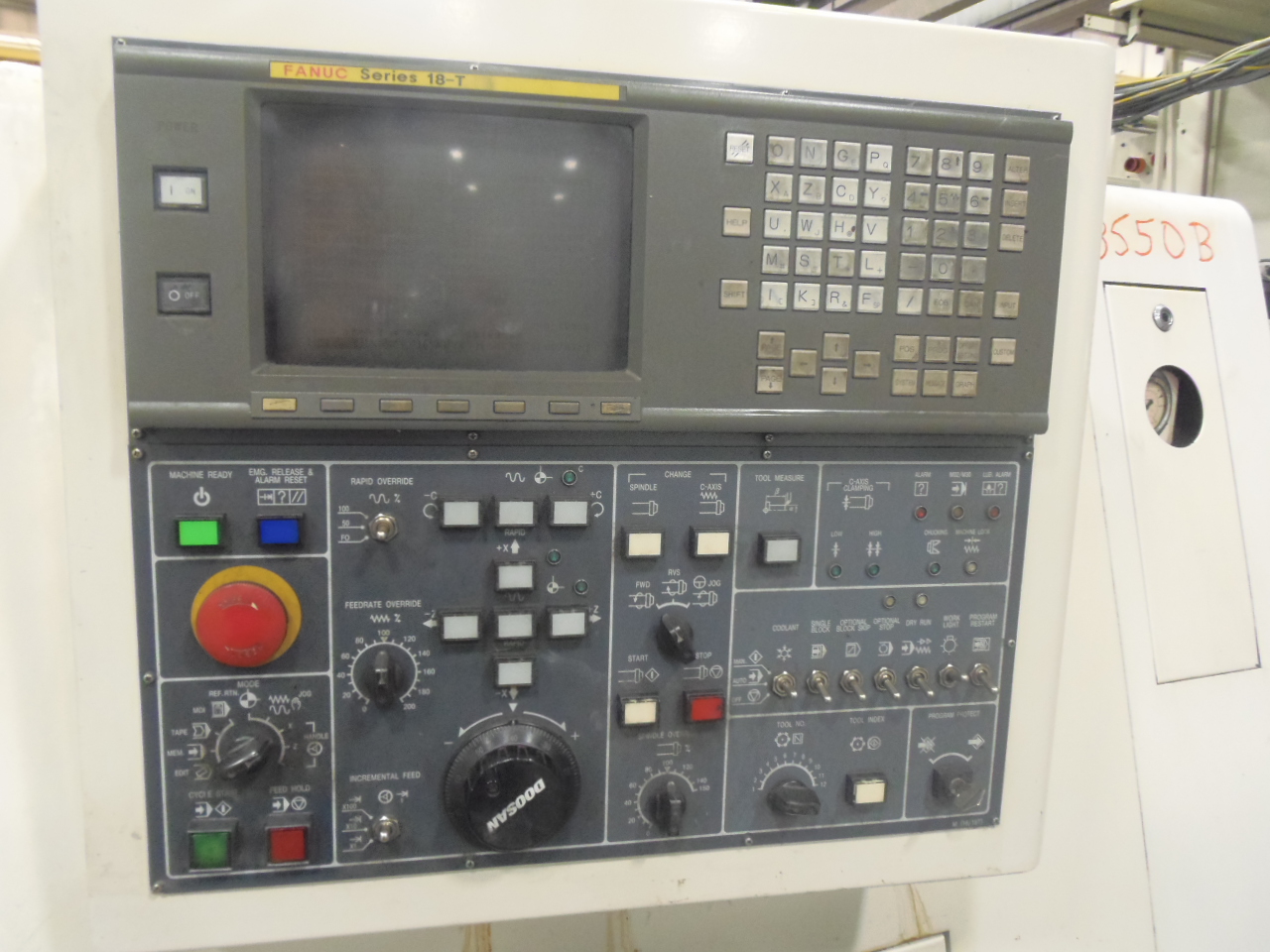

FANUC 18T-C CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

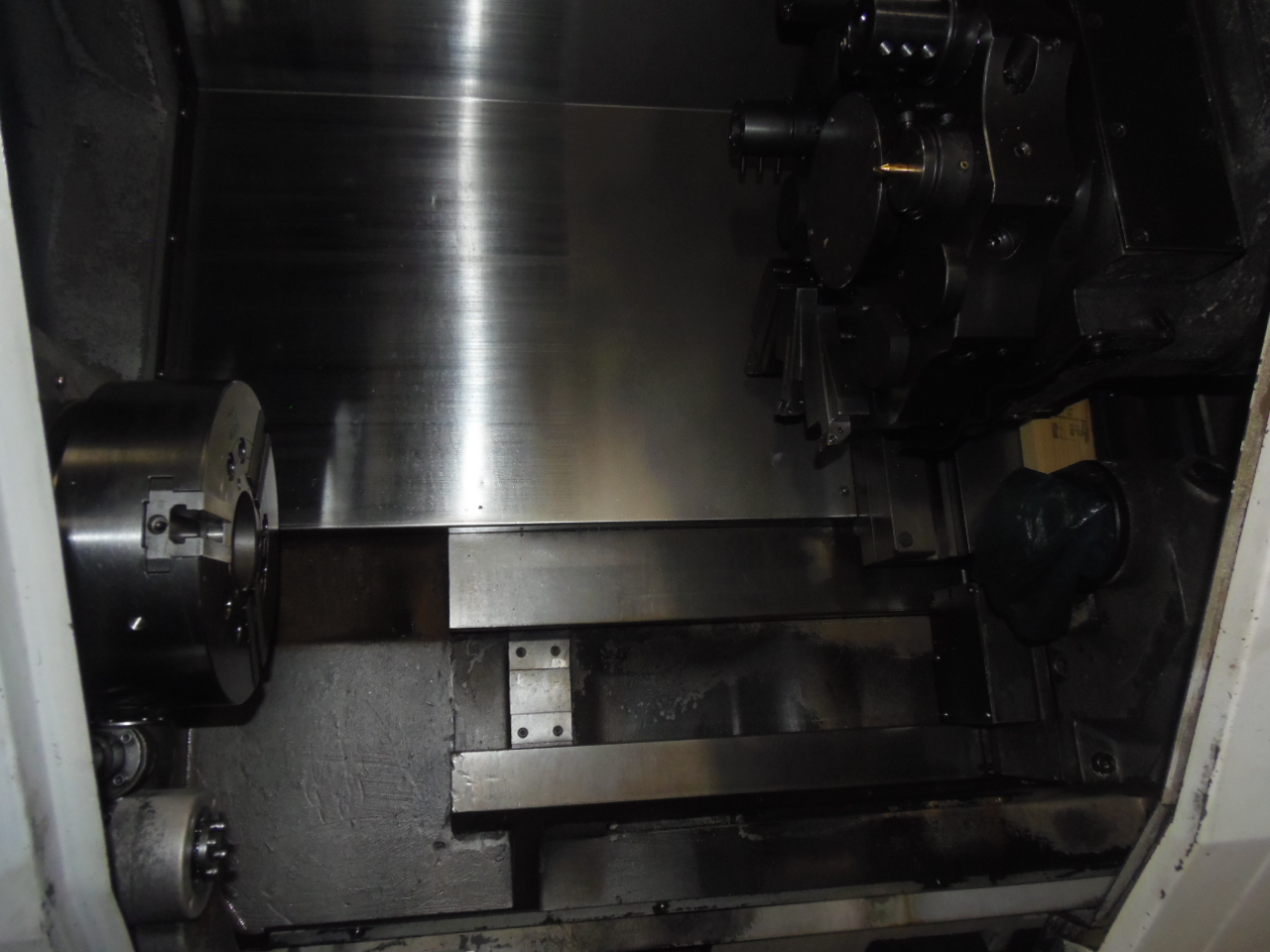

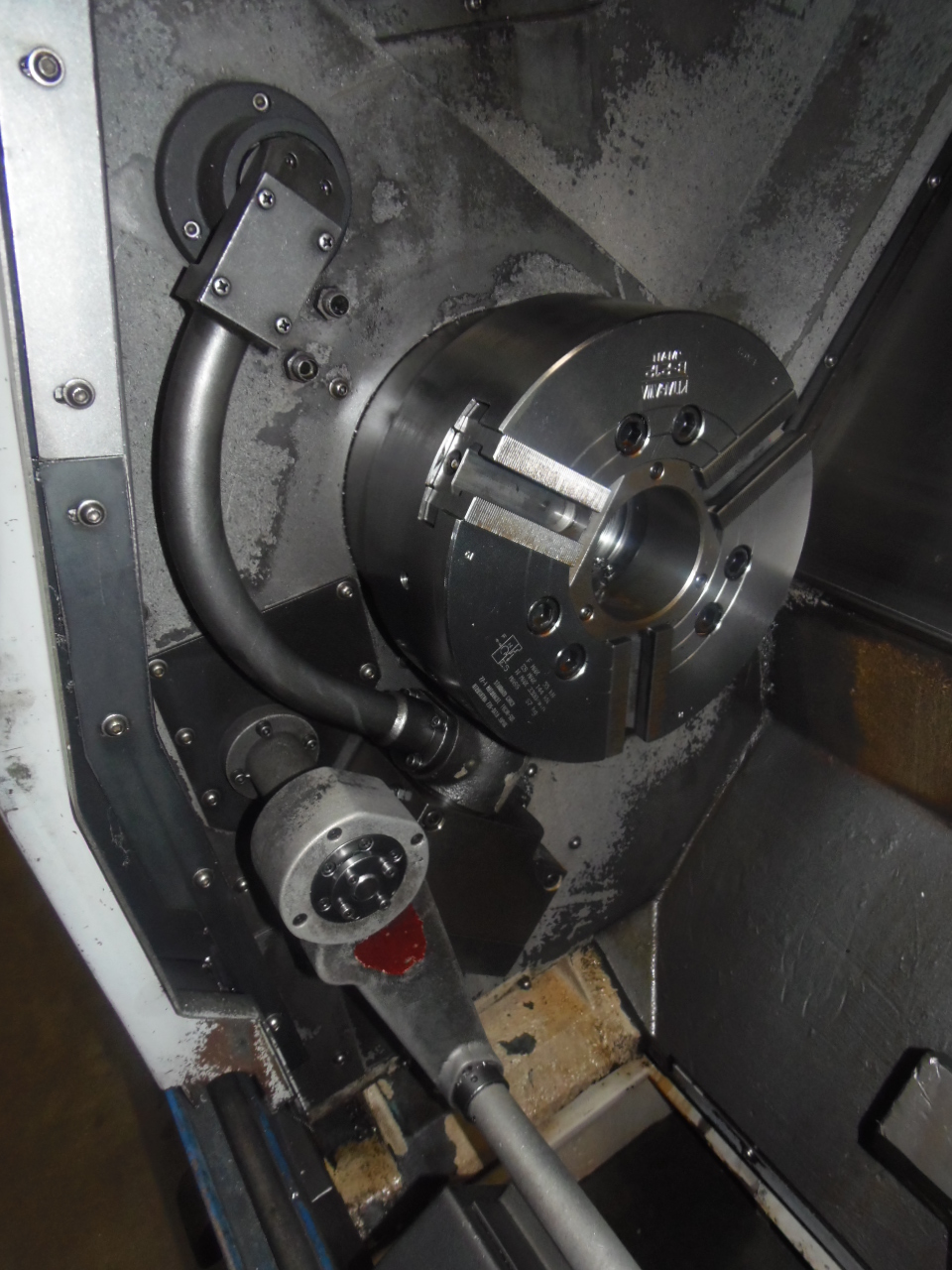

10" HYDRAULIC THROUGH HOLE CHUCK
TOOL PRE-SETTER

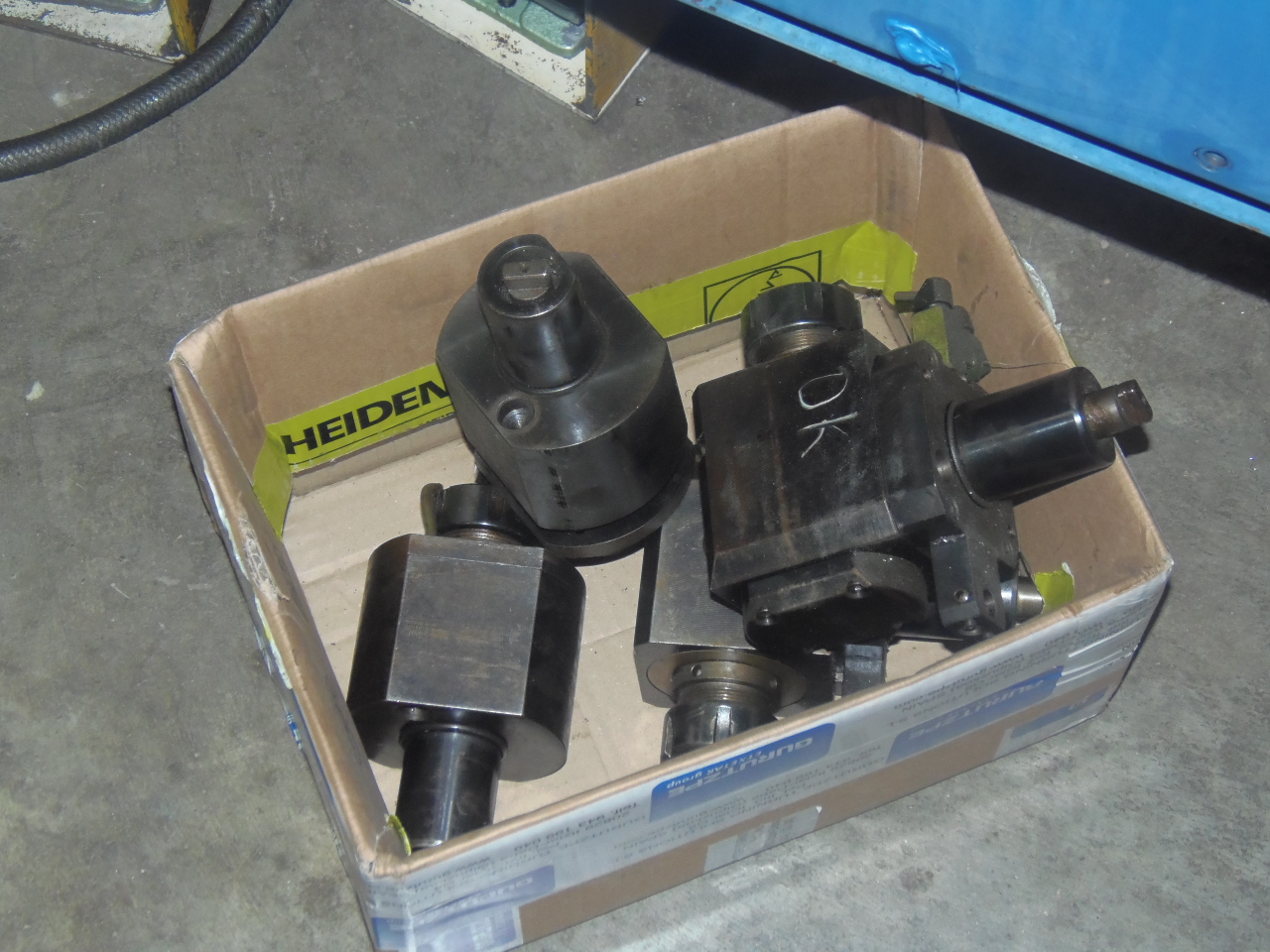

2 LIVE RIGHT ANGLE HEADS
2 LIVE STRAIGHT HEADS
STANDARD COOLANT SYSTEM WITH TANK & PUMP

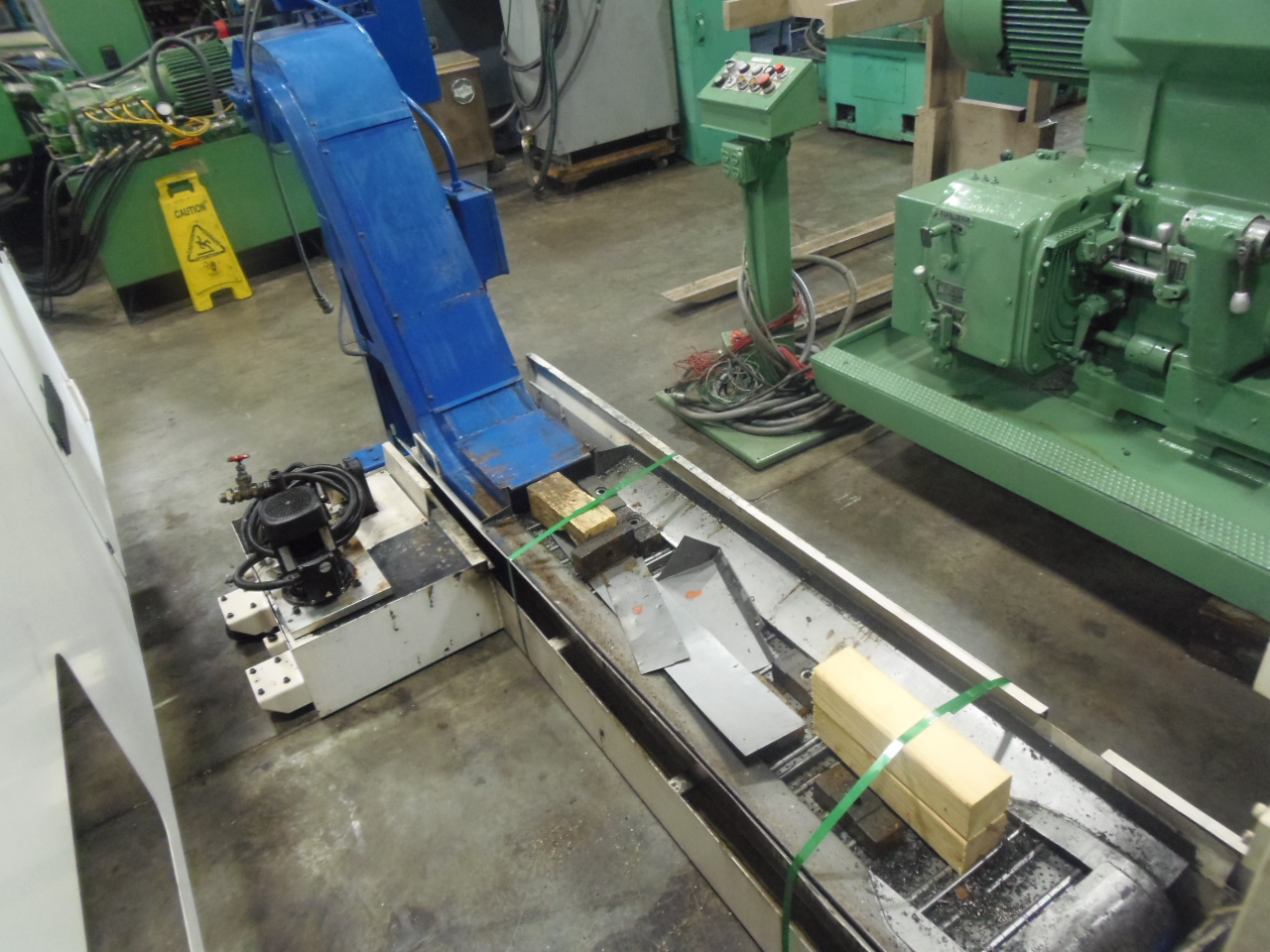

CHIP CONVEYOR
ALL AVAILABLE LIVE TOOLING HOLDERS
ALL AVAILABLE TURNING TOOL HOLDERS & MANUALS
