Specifications
Equipped With
GENERAL SPECIFICATIONS:

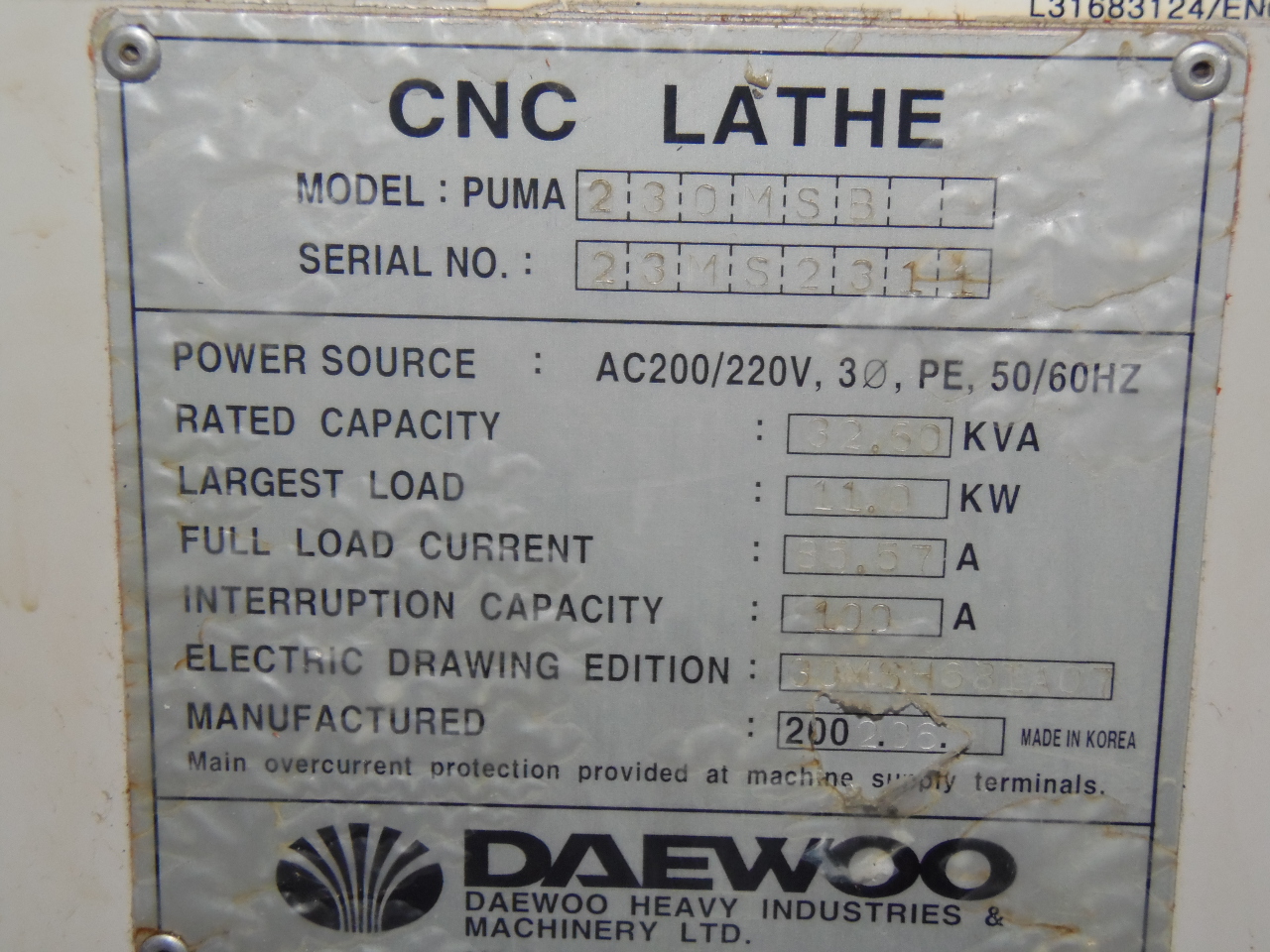

MANUFACTURER.................. DAEWOO

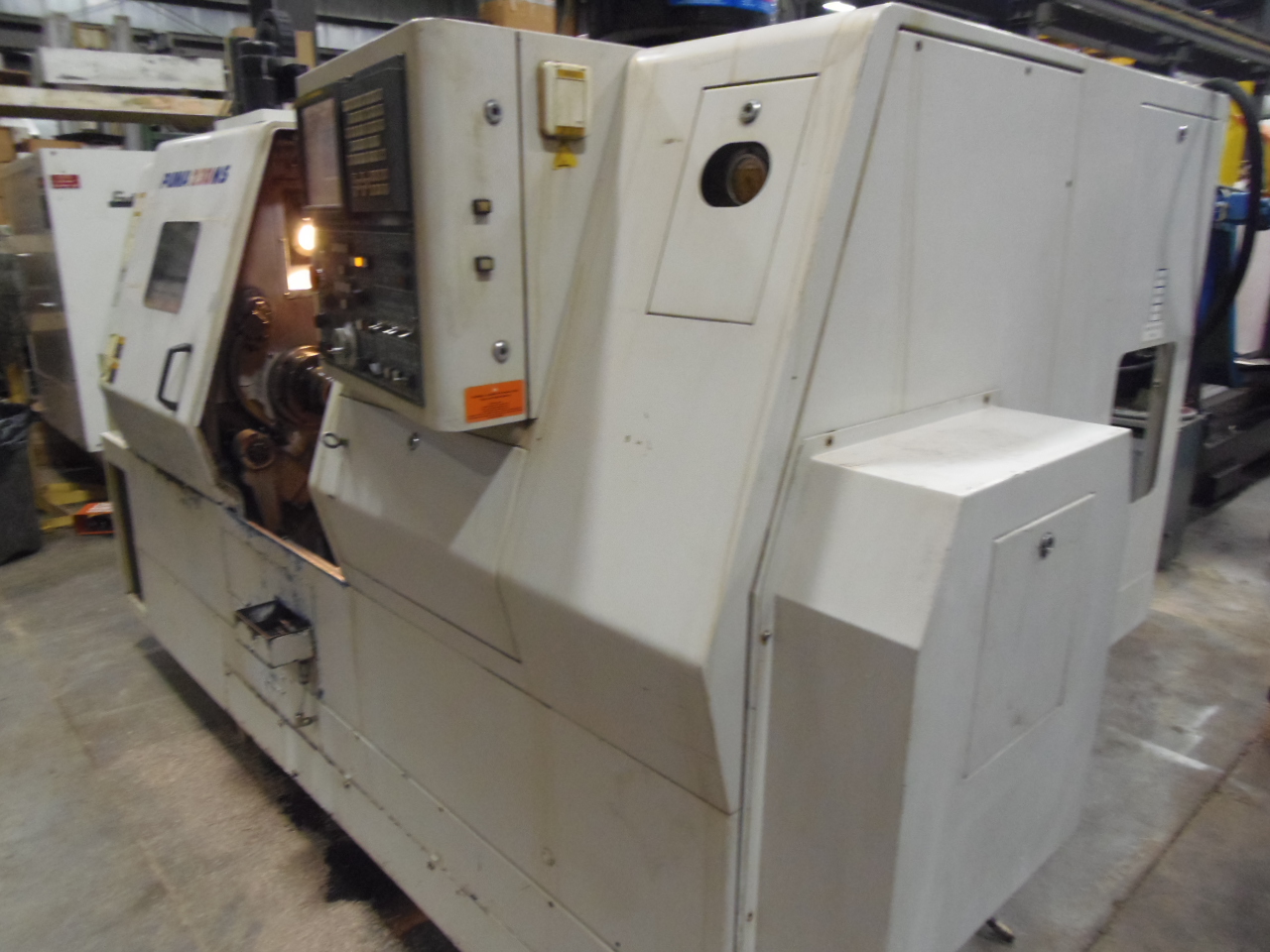

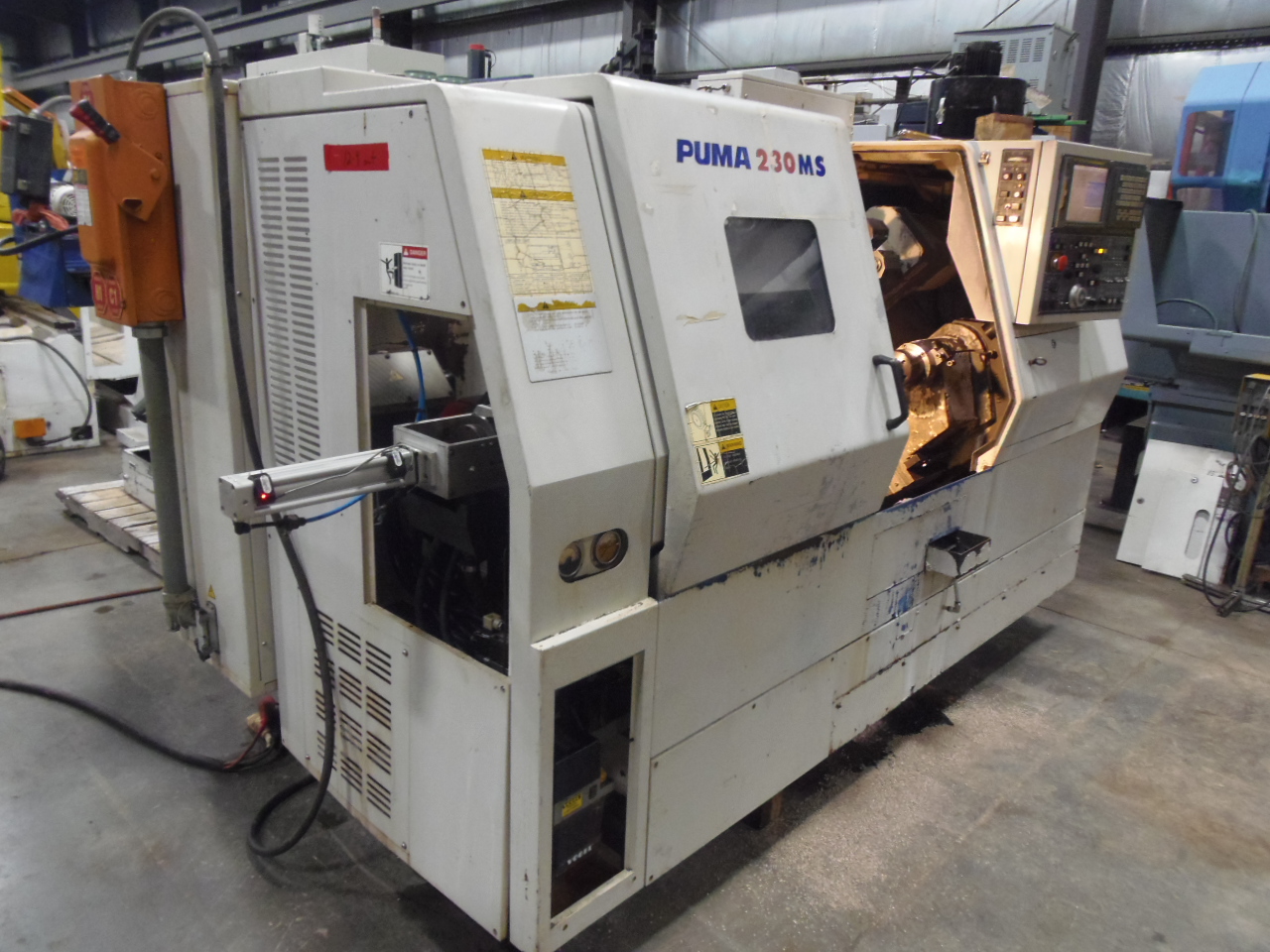

MODEL......................... PUMA 230 MSB
SERIAL NUMBER................. 23MS2311
AGE........................... 2001
SWING......................... 21.7"
TURNING DIAMETER.............. 11.4"
MAX. TURNING LENGTH........... 19.3"
BAR CAPACITY.................. 2.5"
MAIN SPINDLE SPINDLE BORE..... 2.99"
SUB SPINDLE SPINDLE BORE...... 1.77"

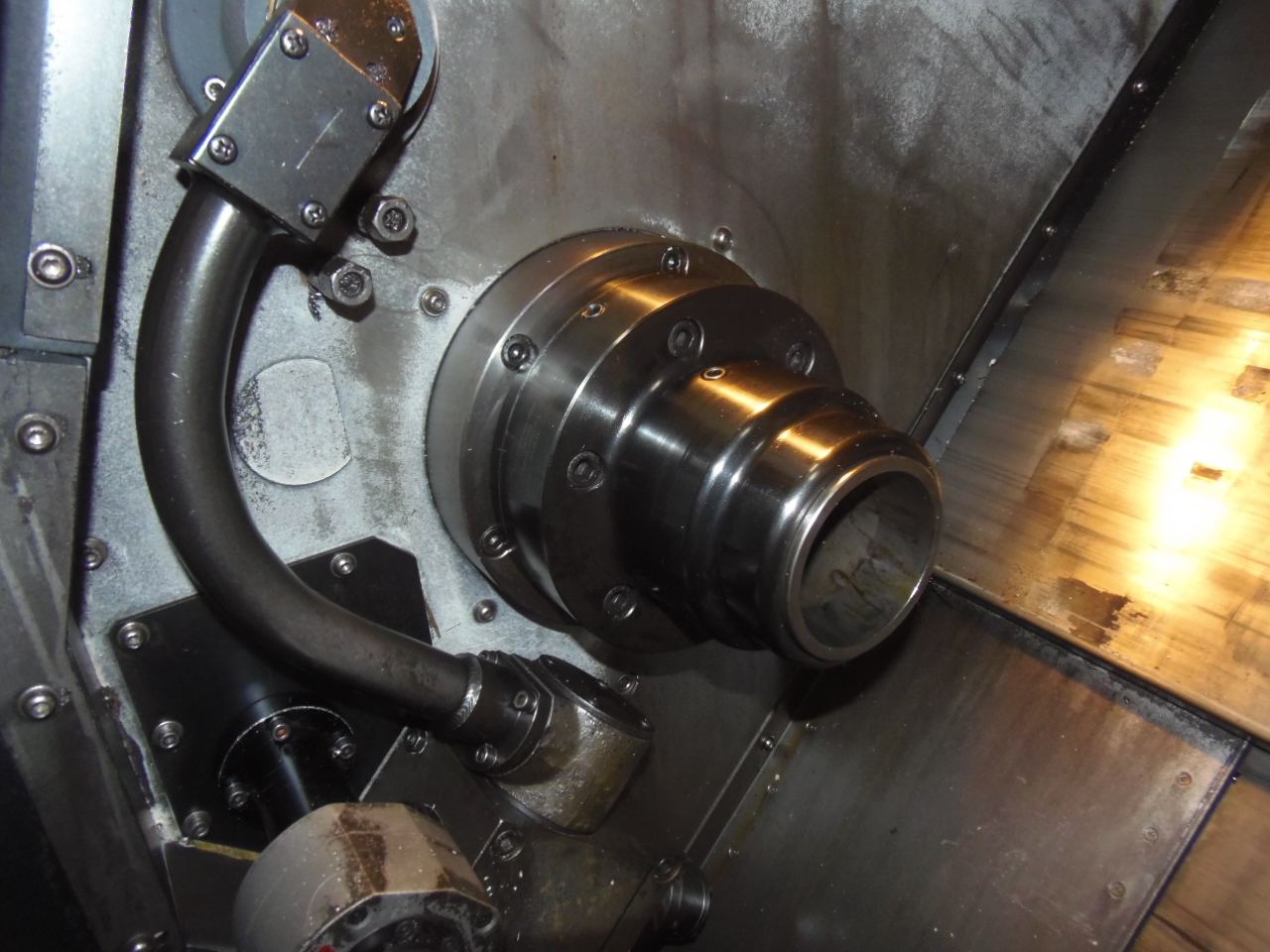

MAIN SPINDLE COLLET CHUCK..... ATS S20 TLF

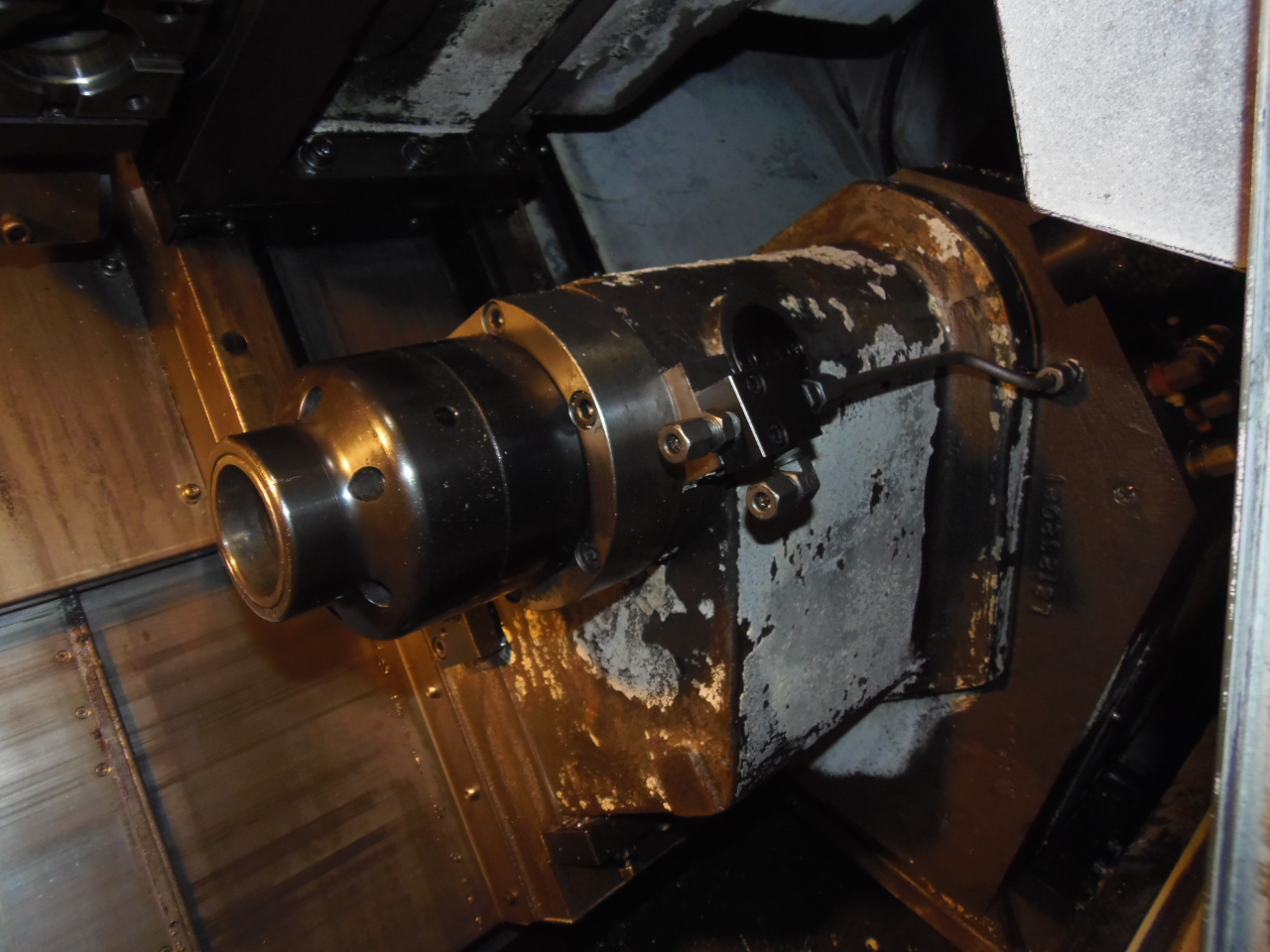

SUB-SPINDLE COLLET CHUCK...... ATS 3JTL
X-AXIS TRAVEL................. 8"
Z-AXIS TRAVEL................. 22.8"
X/B-AXIS RAPID TRAVERSE....... 787 IPM
Z-AXIS RAPID TRAVERSE......... 984 IPM
SPINDLE SPEED................. 45 - 4500 RPM
MAIN MOTOR.................... 20 HP
SUB SPINDLE SPEED............. 60 - 6,000 RPM
SUB SPINDLE MOTOR............. 7.5 HP
LIVE MILLING.................. YES
LIVE MILLING SPEED............ 5000 RPM
LIVE MILLING MOTOR............ 5 HP
C-AXIS........................ YES
C-AXIS INDEX ANGLE............ 360 DEGREE (.001 DEGREE)

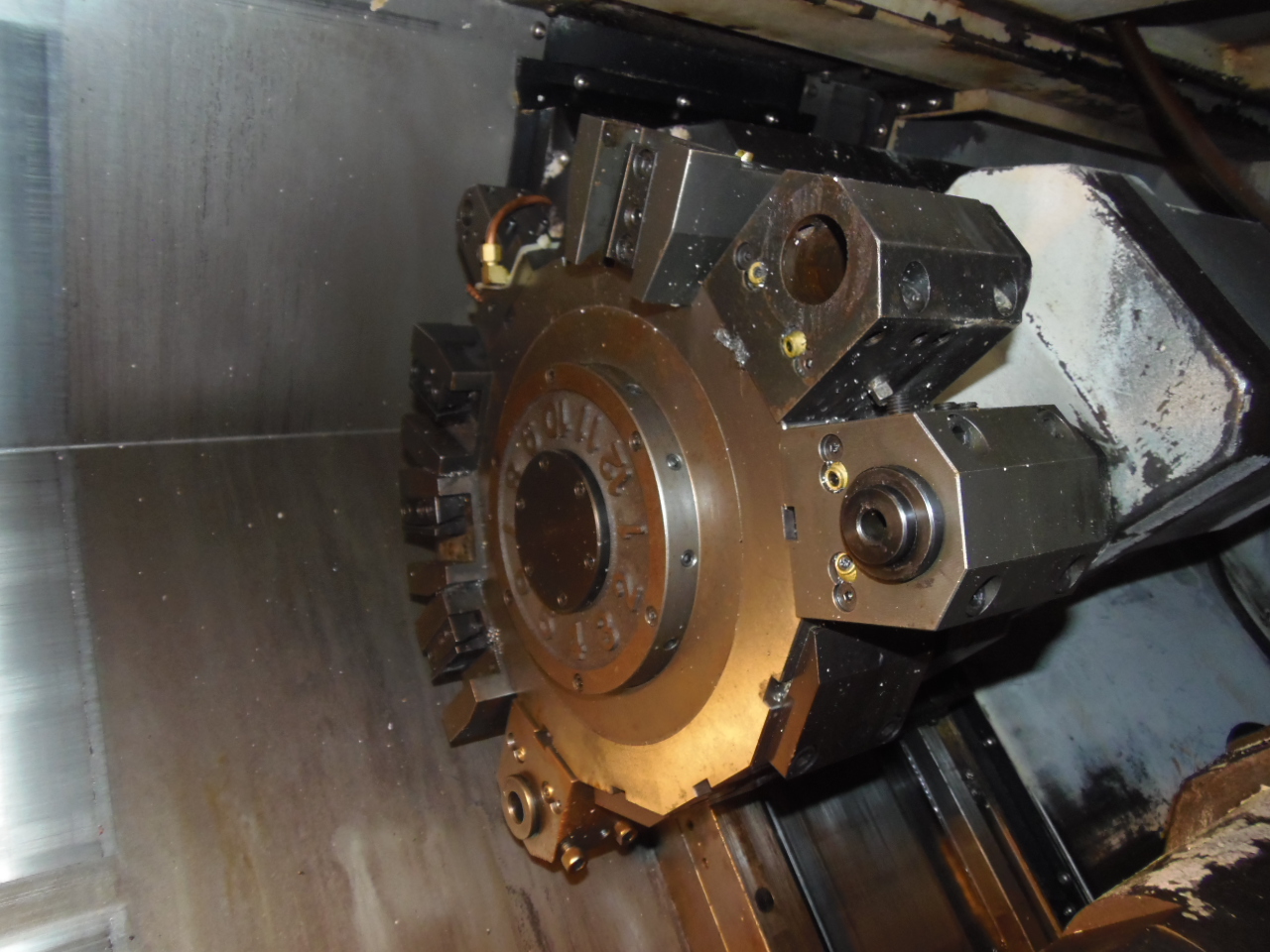

TURRET CAPACITY............... 12 TOOLS
MACHINE DIMENSIONS............ 70" X 74" X 73" HIGH
MACHINE WEIGHT................ 9,500 LBS
EQUIPPED WITH:

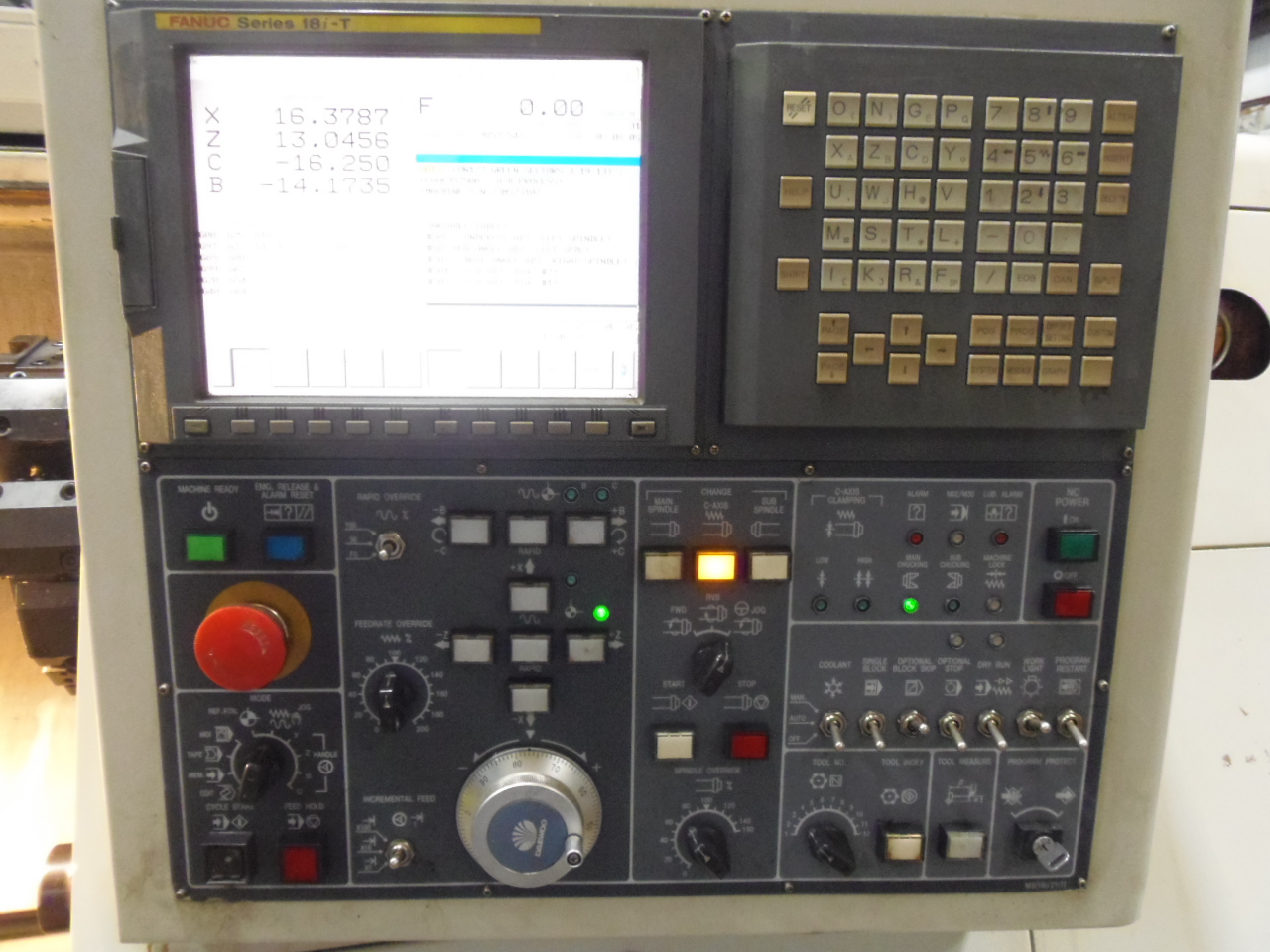

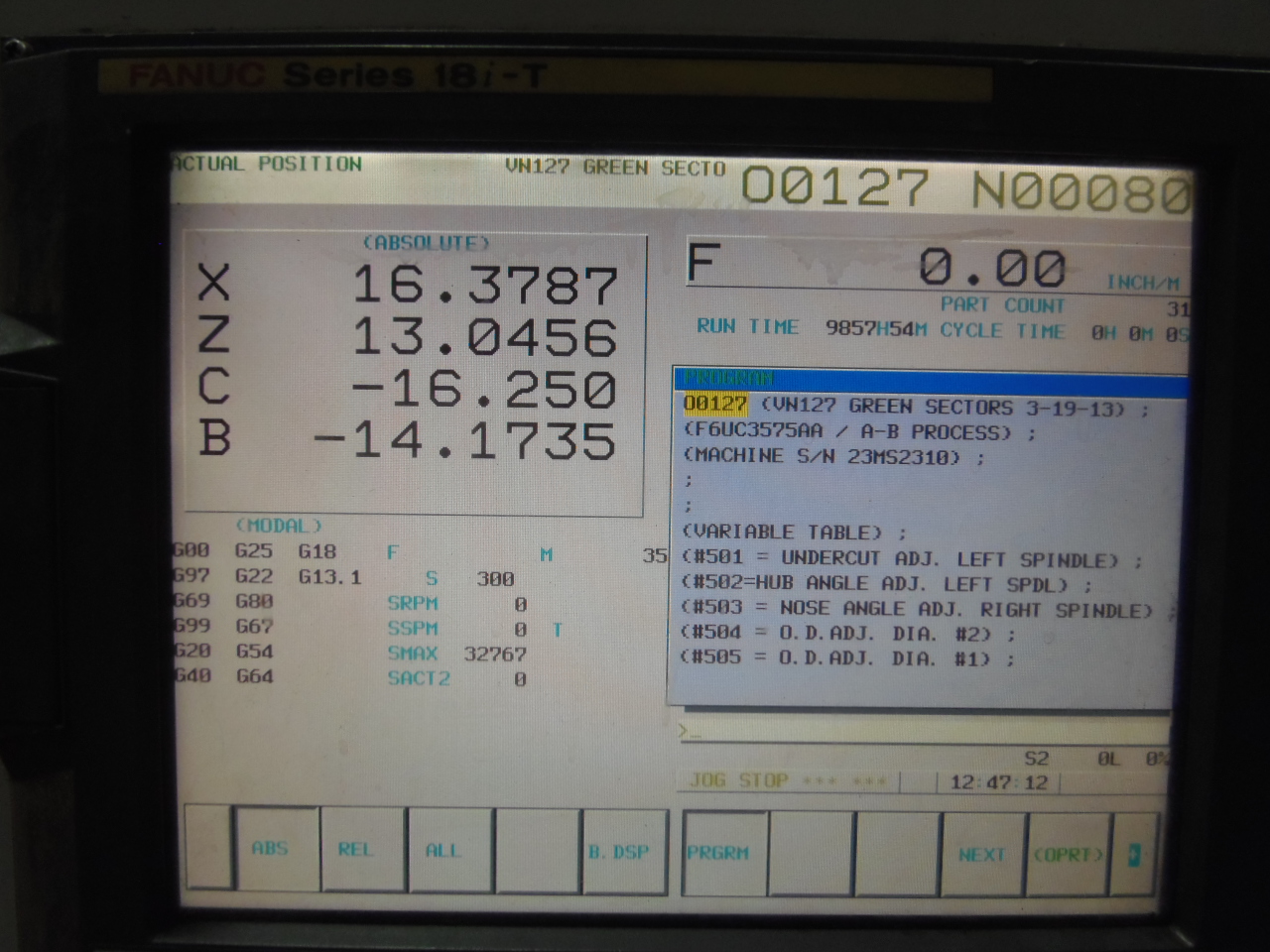

FANUC 18iTB CONTROL
TAILSTOCK
CHIP CONVEYOR
8 TOOL HOLDERS
TOOL PRESETTER ARM

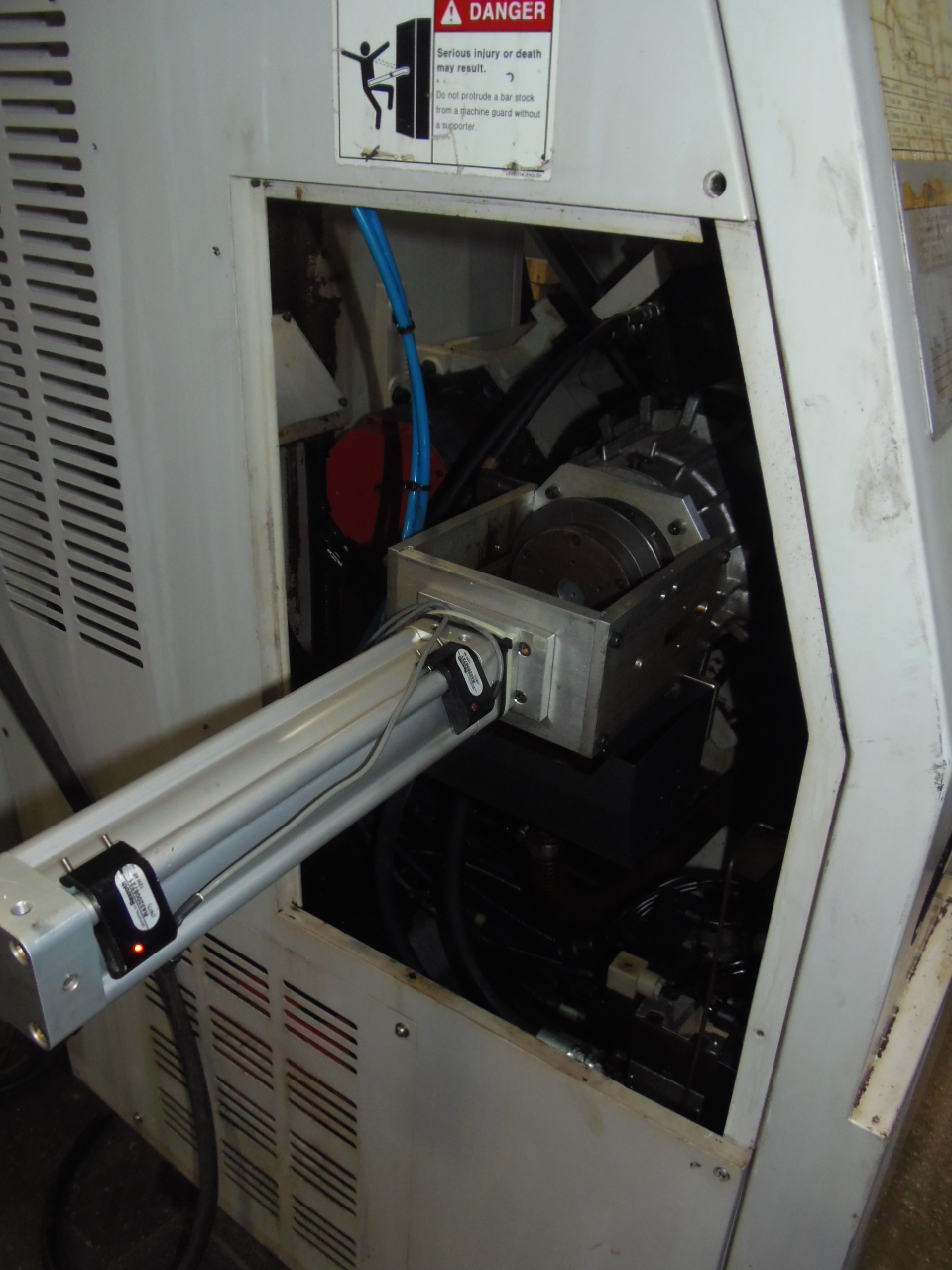

ATS 732AS-J55 2" CAPACITY S STYLE POWER COLLET CHUCK WITH
SAMCHULLY SYHL 1868CA-D ACTUATOR
SUB SPINDLE
LIVE TOOLING CAPABLE
* RAPIDS IN VIDEO AT 50% *
**A NEW 10" SAMCHULLY 3 JAW CHUCK WITH ADAPTER IS $3,300**
*** OPTIONAL UNUSED 6" 3 JAW SAMCHULLY CHUCK WITH DRAW TUBE AND ACTUATOR FOR $2750 ***
