Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER..................... DADSON
AGE.............................. 2005

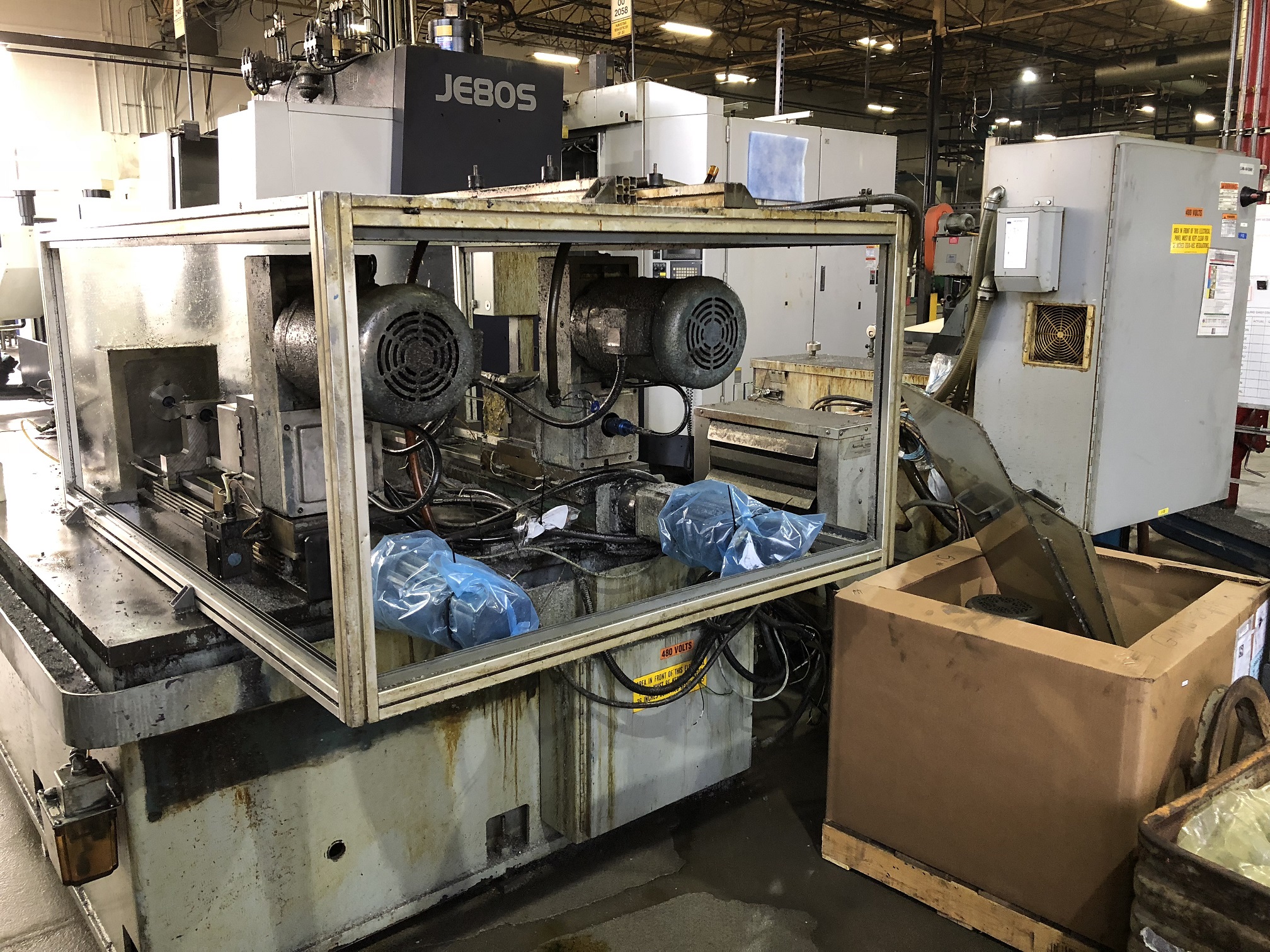

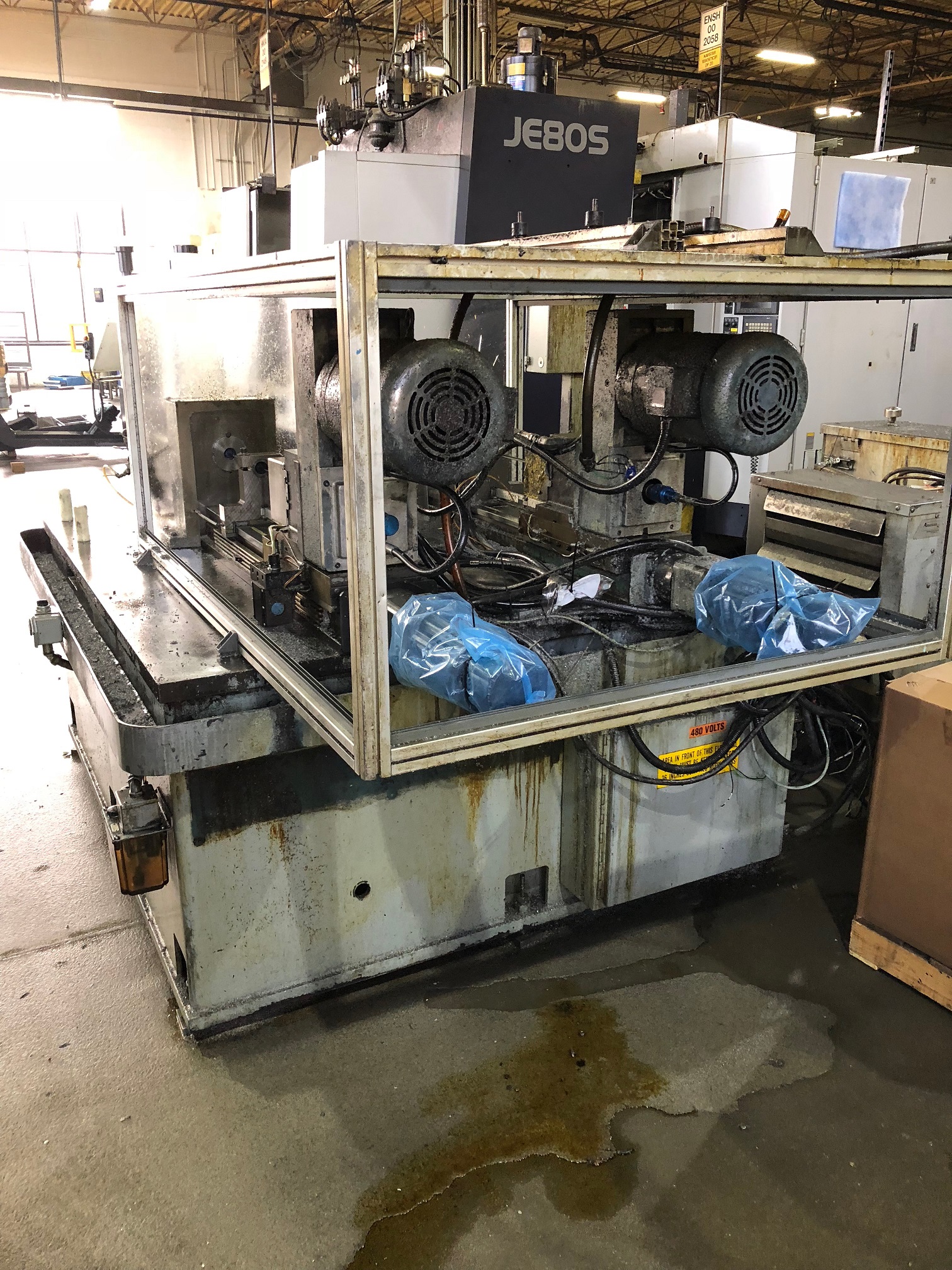

GUNDRILLING MODULE
MODEL......................... DS(2)10030
SLIDE CONSTRUCTION............ 9" HARDENED STEEL
FEED MOTOR.................... VARIABLE AC SERVO
FEED RATES.................... .25 TO 200 IPM INF. VARY
RAPID RATES................... 200 IPM VARY
DRILL DEPTH SETTING........... PROGRAMMABLE

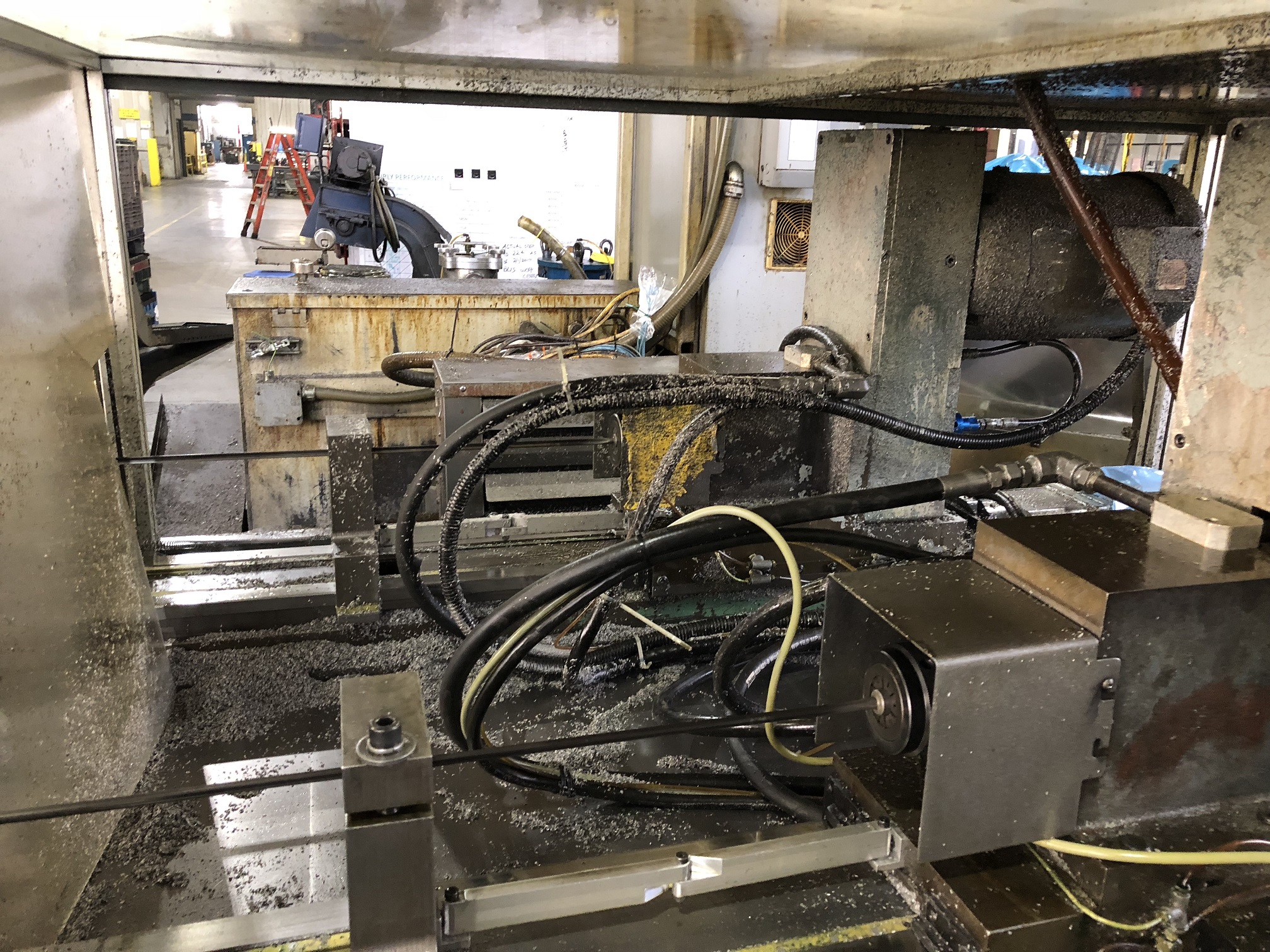

SPINDLE ASSEMBLY (2 SPINDLES). CARTRIDGE TYPE W/COLLET CHUCK
MAX. SPINDLE SPEED............ 6000 RPM

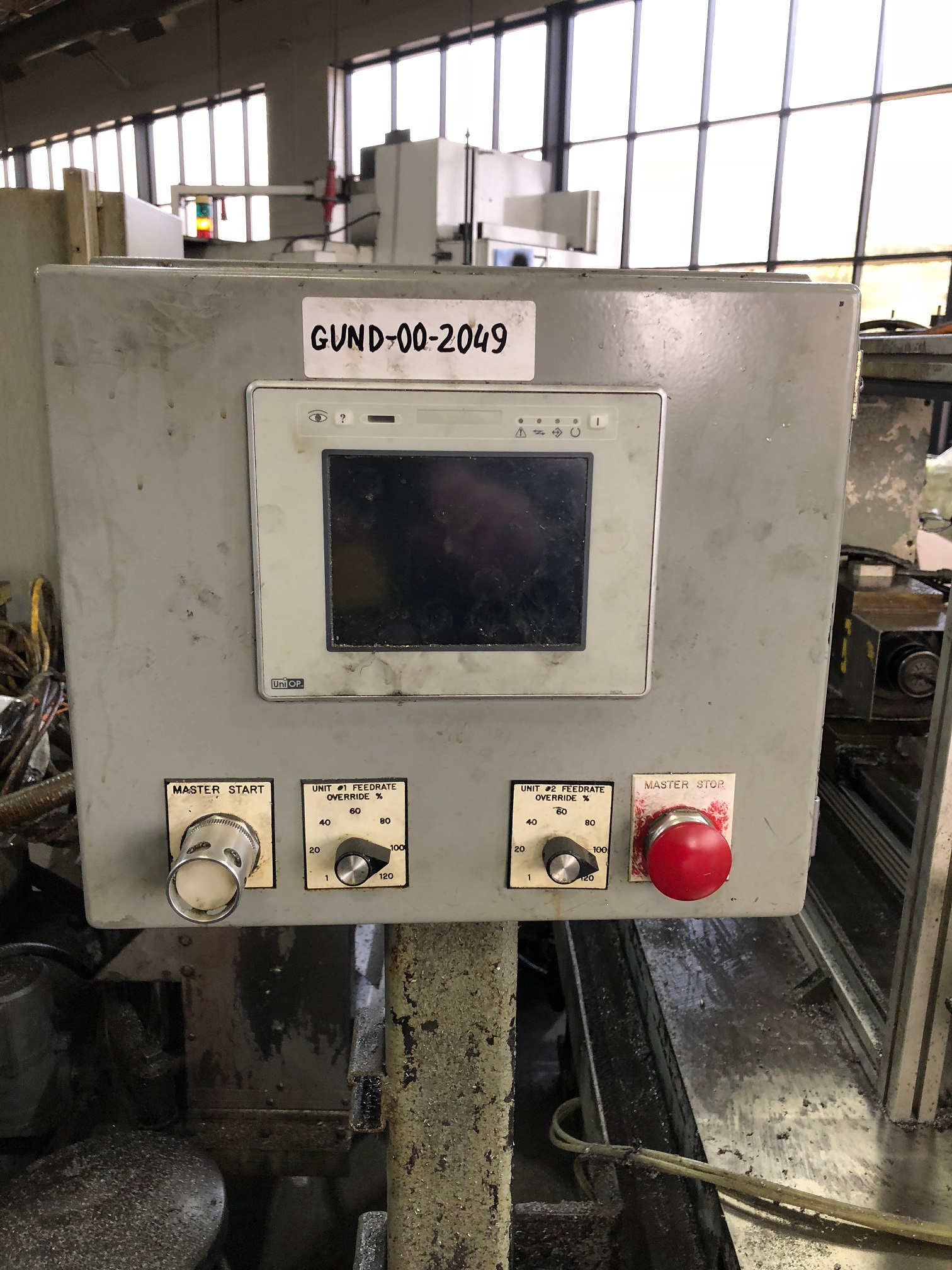

SPINDLE DRIVE................. 7.5 HP VARY SPEED WITH DIGITAL RPM METER, PROGRAMMABLE BY TOUCH SCREEN
WHIP GUIDE.................... 1 ASSEMBLY ON EACH SLIDE
LUBRICATION................... BIJUR
TOOL MONITOR.................. TOOL SAVER AM METER WITH PRESET OVERLOAD SHUTDOWN TO MONITOR TOOL WEAR, PROGRAMMABLE

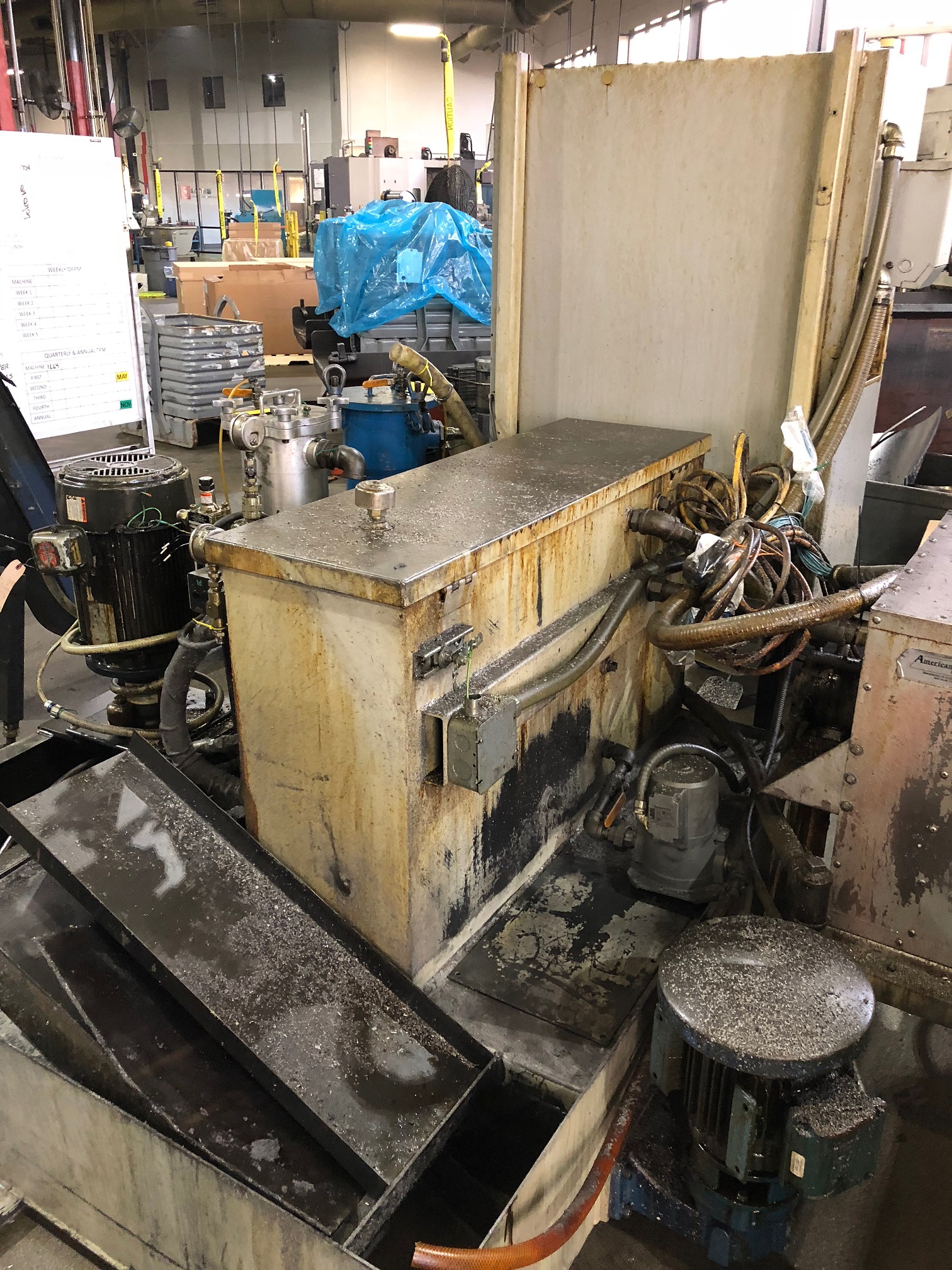

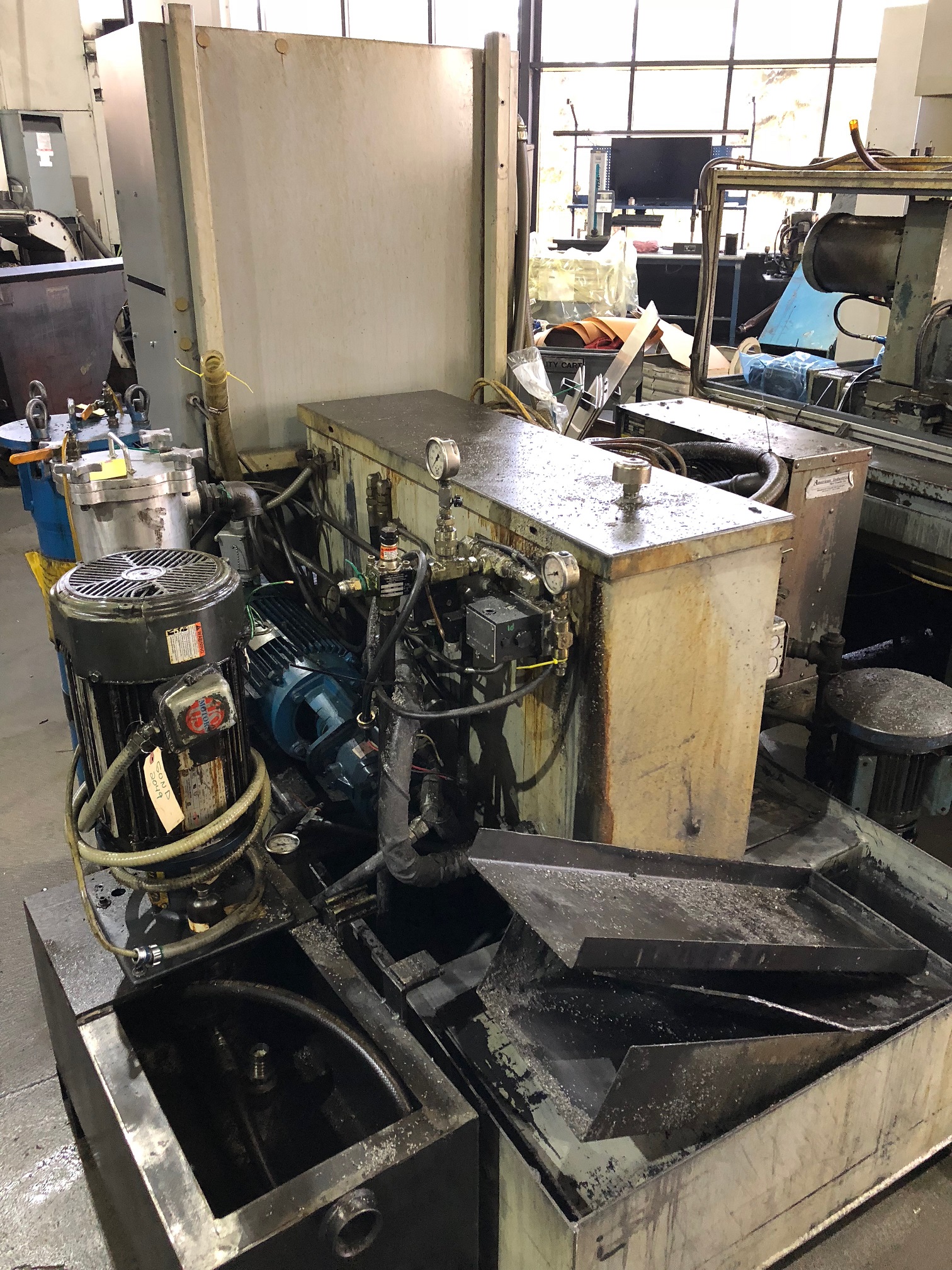

HIGH PRESSURE COOLANT SYSTEM
MODEL......................... DS30-150
SETTLING TANK SIZE............ 75 GALLON
OIL RESERVOIR SIZE............ 75 GALLON
PUMP MOTOR.................... 10 HP
HIGH PRESSURE PUMP............ 15 GPM @ 1500 PSI MAX. PRESSURE
FILTER UNIT................... 10 MICRON BAG-TYPE FILTER
25 MICRON ROUGH FILTER SPIN ON TYPE
AUTOMATIC SHUTDOWN OF MACHINE CIRCUIT AFTER FILTERS BECOME CONTAMINATED AND LOW PRESSURE PUMP WILL TRANSFER DIRTY OIL THROUGH FINAL FILTERS INTO CLEAN OIL RESERVOIR
EQUIPPED WITH:
20 HP PUMP DRIVE
7.5 HP SPINDLE DRIVES
INDRAMAT AC SERVO FEED MOTORS
ALLEN BRADLEY MICROLOGIX 1500 PROGRAMMABLE CONTROLLER
