Specifications
| CNC Control |
no |
| Dimensions |
30" X 30" X 40" H |
Equipped With
GENERAL SPECIFICATIONS:
MAKE...................... DC MORRISON
MODEL..................... 1.25" K

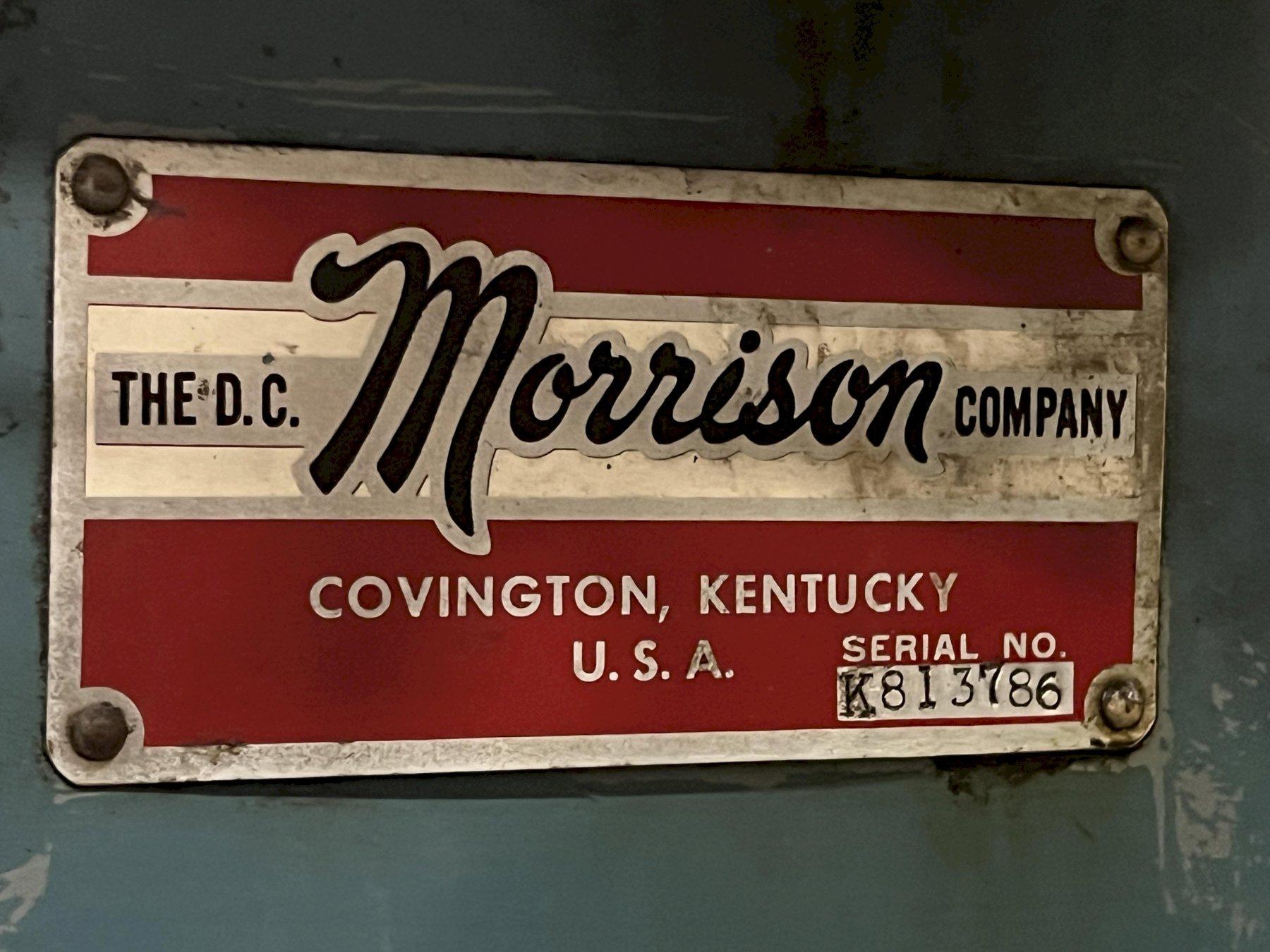

SERIAL NUMBER............. K 813786
CAPACITY.................. 1/16" - 1 1/4"
STROKE MAX................ 9"
LENGTH OF STROKES......... 3, 4.5, 6. 7.5, 9"
STROKES PER MIN........... 15-40 ADJUSTABLE
CUT DEPTH................. .002", .004", .006"
LARGEST DIA. CUTTER BAR... 1.25"
DIST. FROM 1" CUTTER TO COLUMN.. 16 1/4"
TABLE SIZE................ 24" X 27"
TABLE HEIGHT FROM FLOOR... 36"

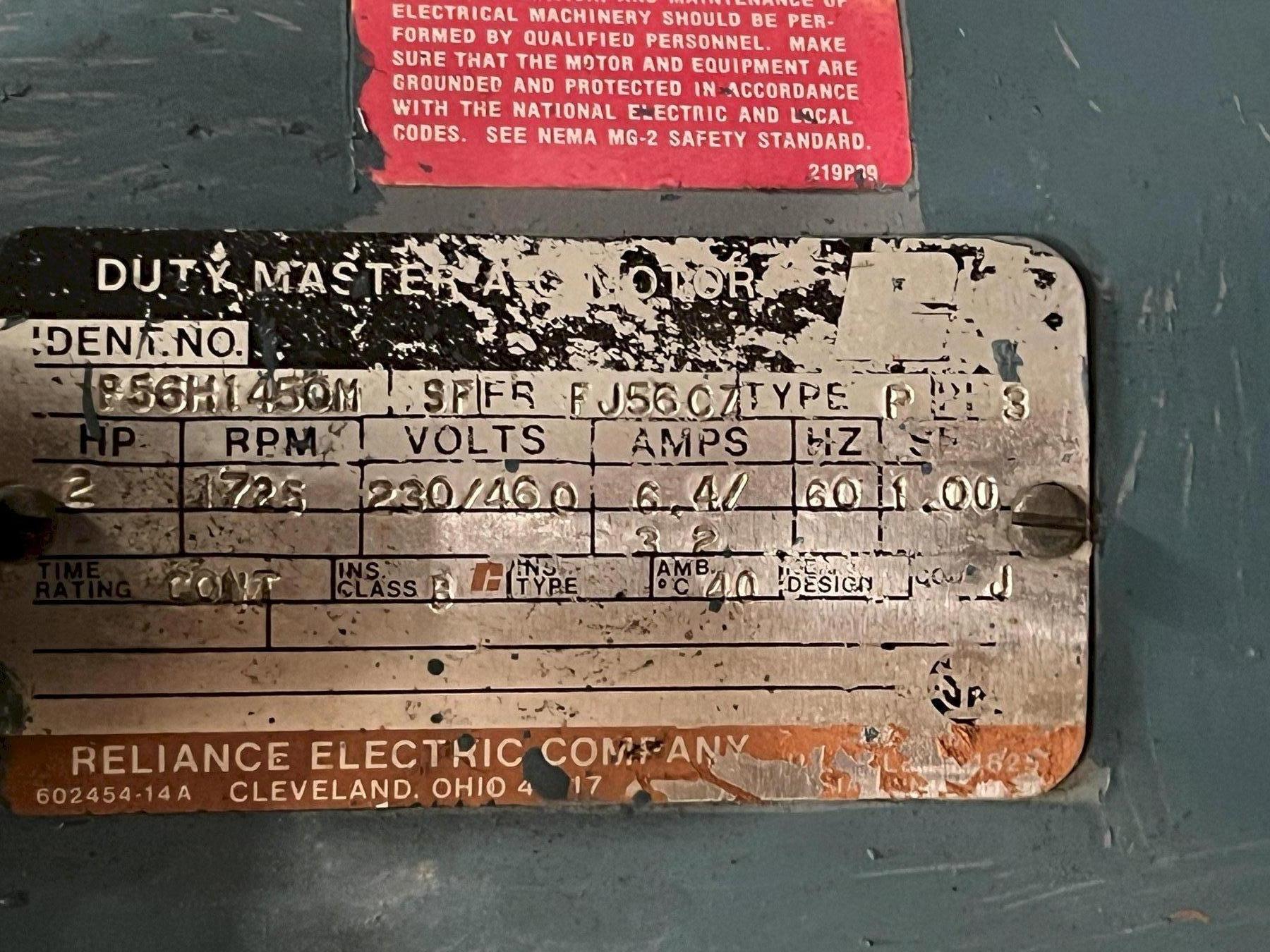

MOTOR..................... 2 HP
WEIGHT.................... 1400 LBS
DIMENSIONS................ 36" X 48" X 54"
EQUIPPED WITH:

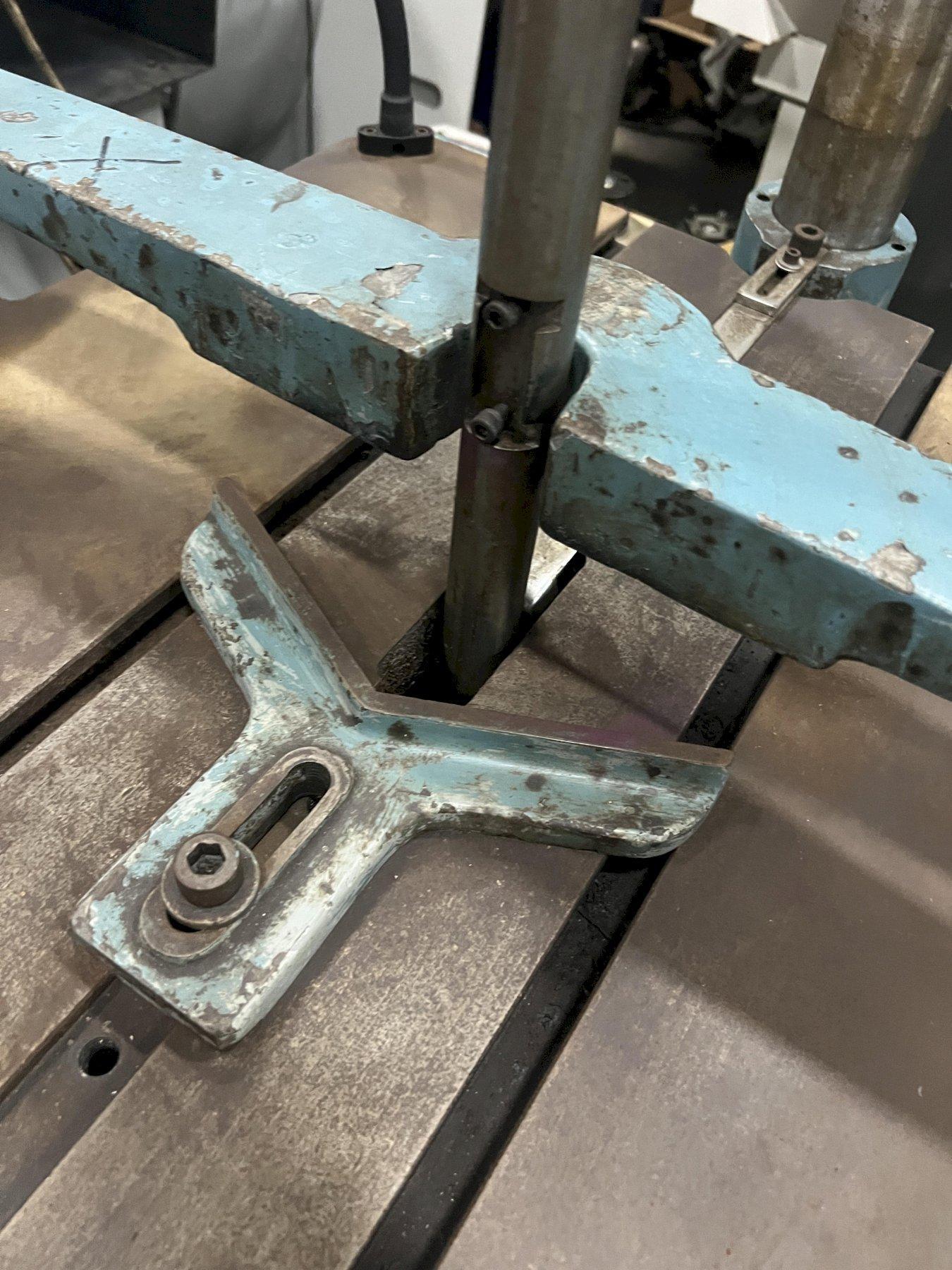

CENTERING VEE AND HOLDING CLAMP
SPECIFICATIONS SUBJECT TO VERIFICATION
