Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER CONTROL LASER CORPORATION

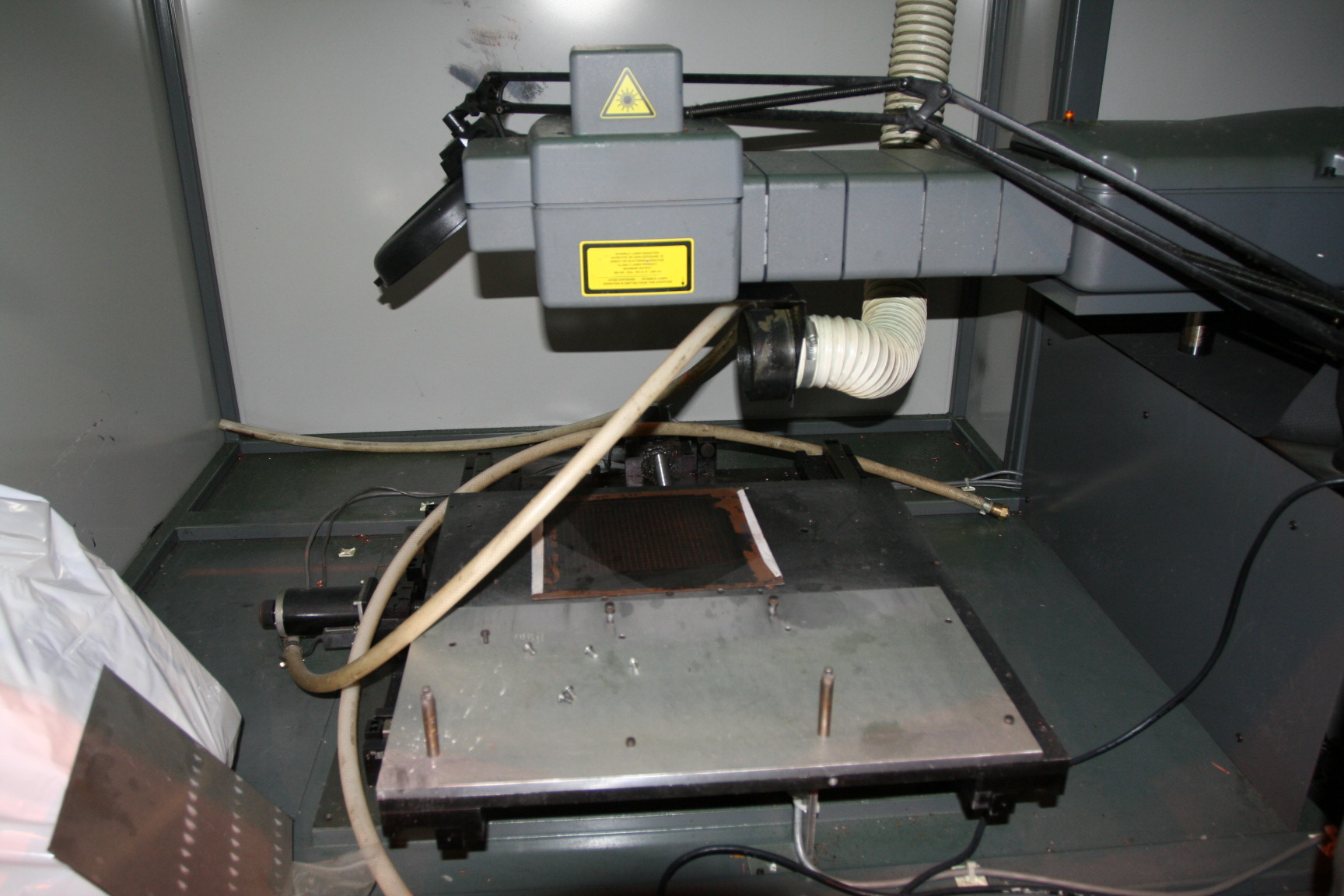

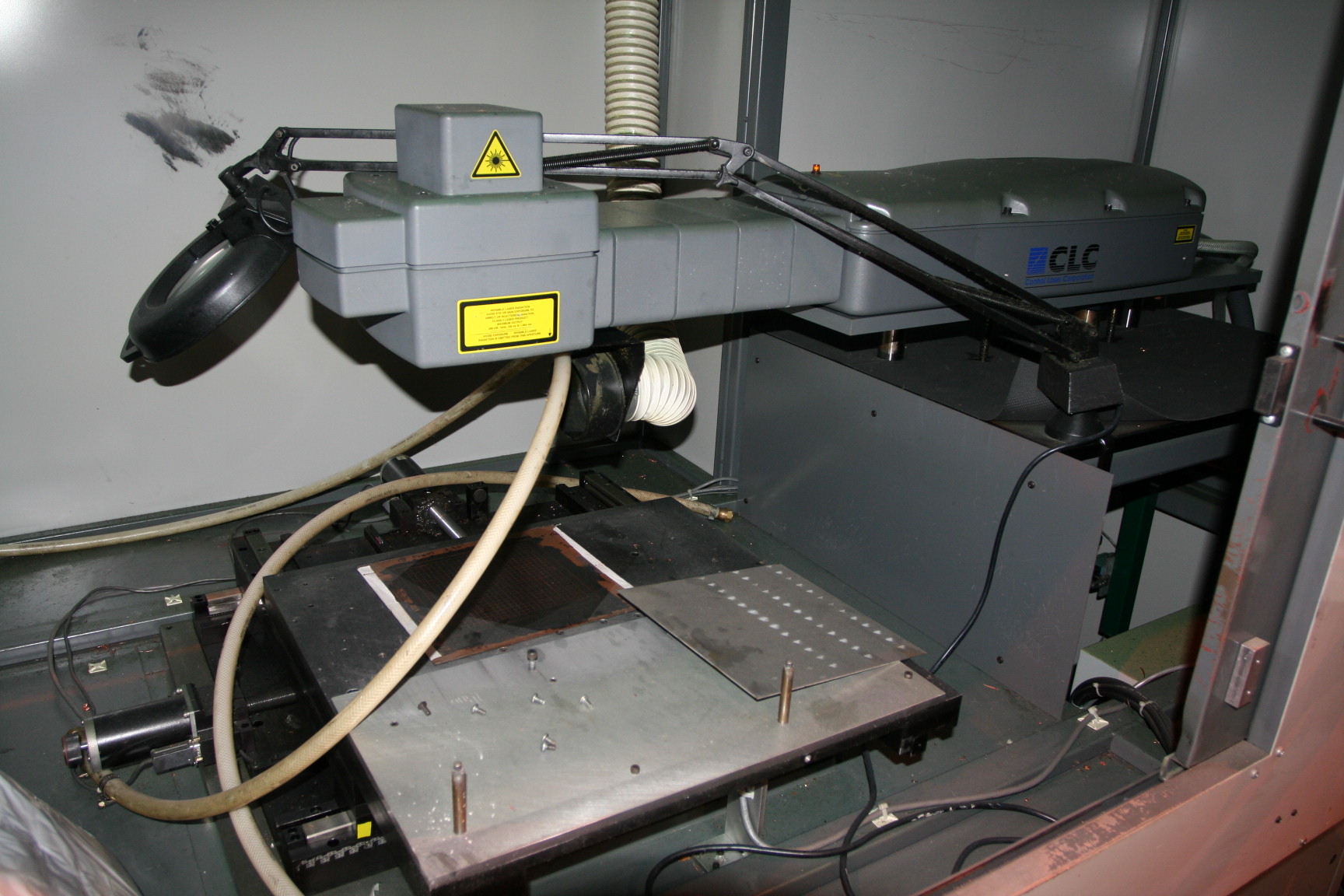

MODEL ICON LS-900
SERIAL NUMBER 0791010631
NEW (APPROX.) 2001
POWER AT WORK STATION 72
ND:YAG LASER 90 WATT
CHARACTER SIZE .025-4.0"
MARKING SPEED UP TO 275" PER SECOND
POSITIONING SPEED 1,968" PER SECOND
MARKING FIELD 6" x 12"
WORKING DISTANCE 7.88" X 13.39"
DEPTH OF FIELD .059" X .133"
WRITING MODES LINEAR, RING, ANGULAR
ELECTRICS 220V/3PH
WEIGHT (APPROX.) 950 LBS.
EQUIPPED WITH:
LASER CONTRLLER-IPM-COMPATIBLE PENTIUM TYPE, 1.44 MB FLOPPY DISK DRIVE, CD-ROM DRIVE WITH CASSETTE LOAD, 15' SUPER-VGA MONIITOR, SELF DIAGNOSTICS, OPERATOR VIEWABLE,
MANUALS-INSTALLATION AND MAINTENANCE, SPARE PARTS, OPERATIONS/PROGRAMMING

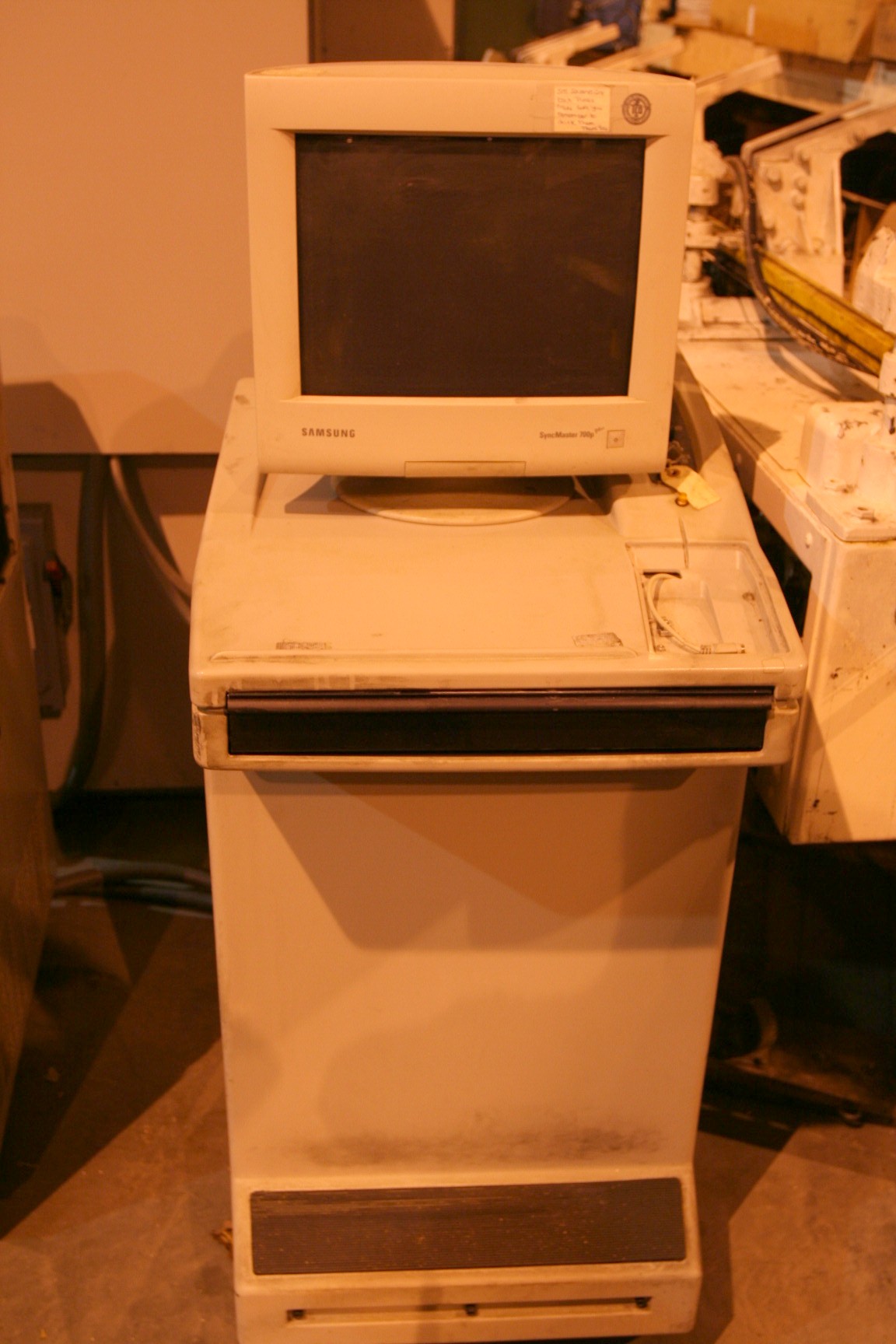

PENTIUM COMPUTER WITH SOFTWARE
CHILLER
CHARACTER FONTS-HELVETICA, OCR-A, BARCODE-39, SCRIPT, BLOCK, GOTHIC, AND TRUE TYPE FONTS. IMPORTS TRUE TYPE (*.TTF) AND AUTOCAD (*.SHX) FONTS
GRAPHICS-USER PROGRAMMABLE IMPORTS BITMAP (*.BMP, *.PCX) AND VECTOR (*.DXF, *.SHX, *.PLT) GRAPHICS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
