Specifications
Equipped With
GENERAL SPECIFICATIONS:

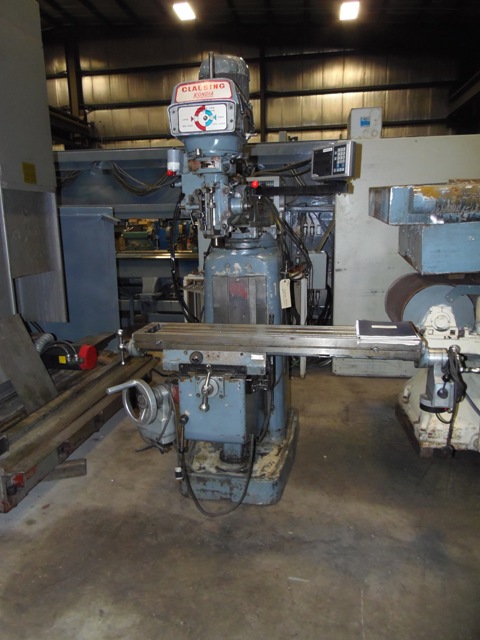

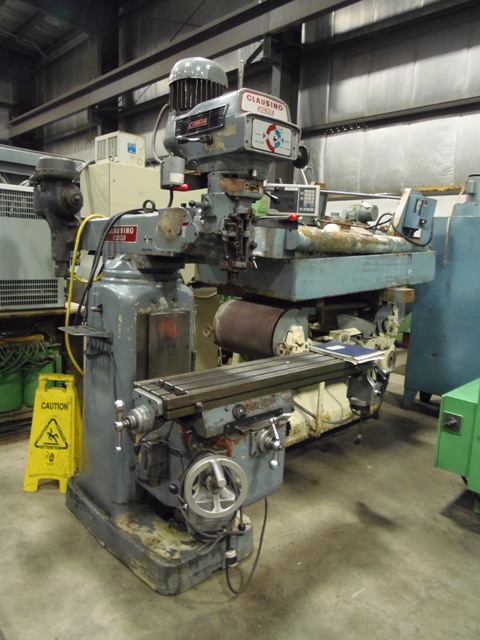

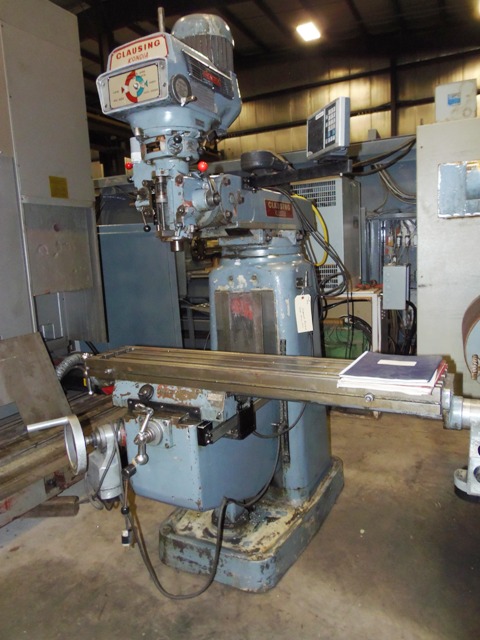

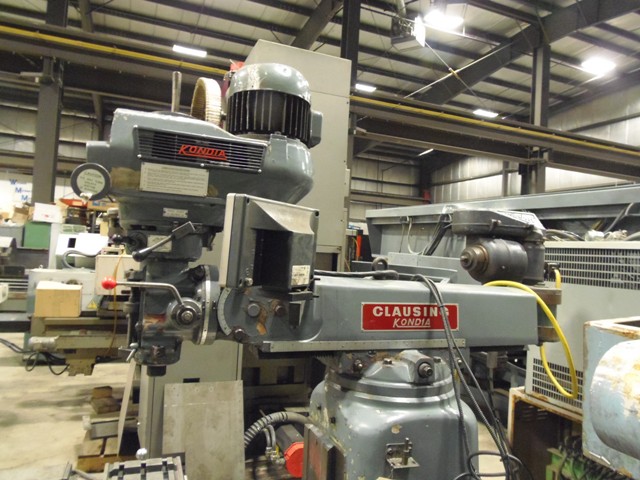

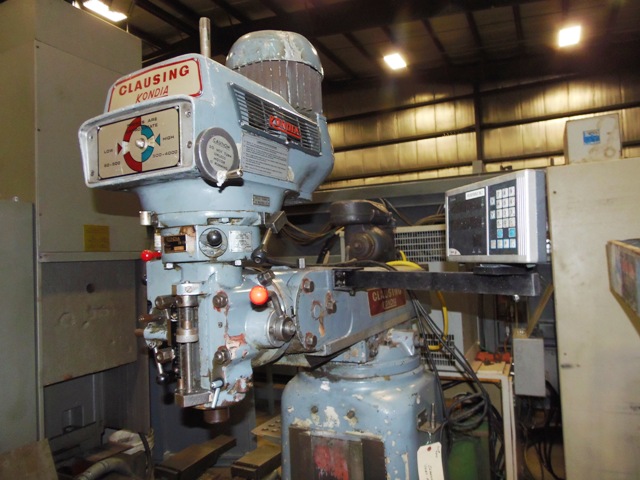

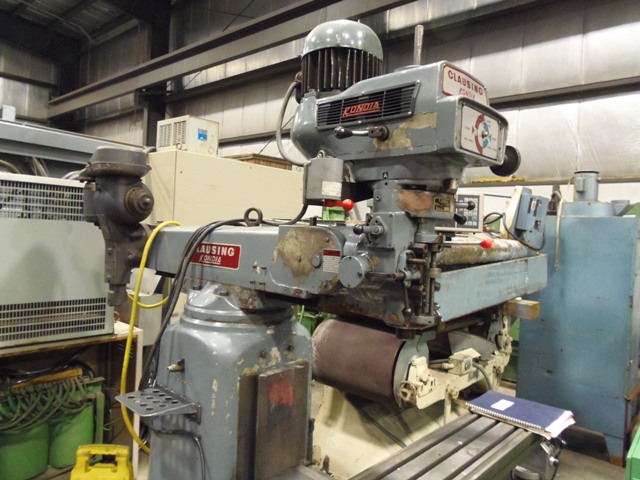

MANUFACTURER.................... CLAUSING KONDIA
MODEL .......................... FV1
SERIAL NUMBER................... R-543
AGE APPROXIMATELY............... 1994
TABLE SIZE ..................... 9 X 48
TRAVELS (X)..................... 36"
(Y)............................. 14"
(Z)............................. 5"
(KNEE).......................... 16.5"
SPINDLE MOTOR .................. 3 HP
SPINDLE SPEED VARIABLE ......... 60-4000 RPM
SPINDLE TAPER................... R-8
SPINDLE TO TABLE DISTANCE........18 5/16"
WEIGHT APPROX................... 3000 LBS
EQUIPPED WITH:
2 AXIS FAGOR DRO

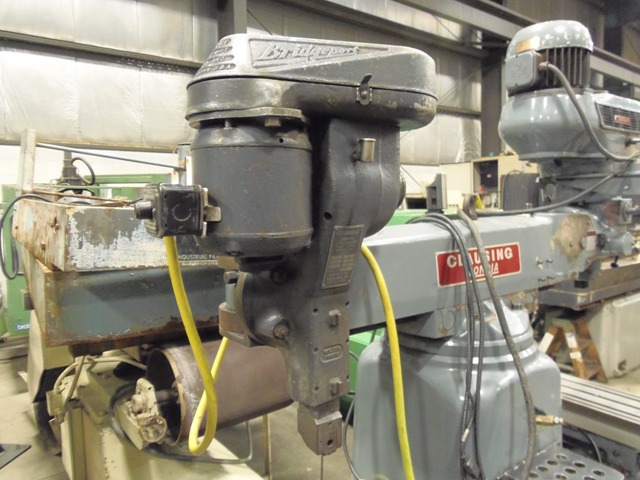

BRIDGEPORT SLOTTING HEAD
POWER FEEDS ON THE X AND KNEE (Z)
