GENERAL SPECIFICATIONS:
MAKE...................... CLAUSING COLCHESTER
MODEL..................... 15

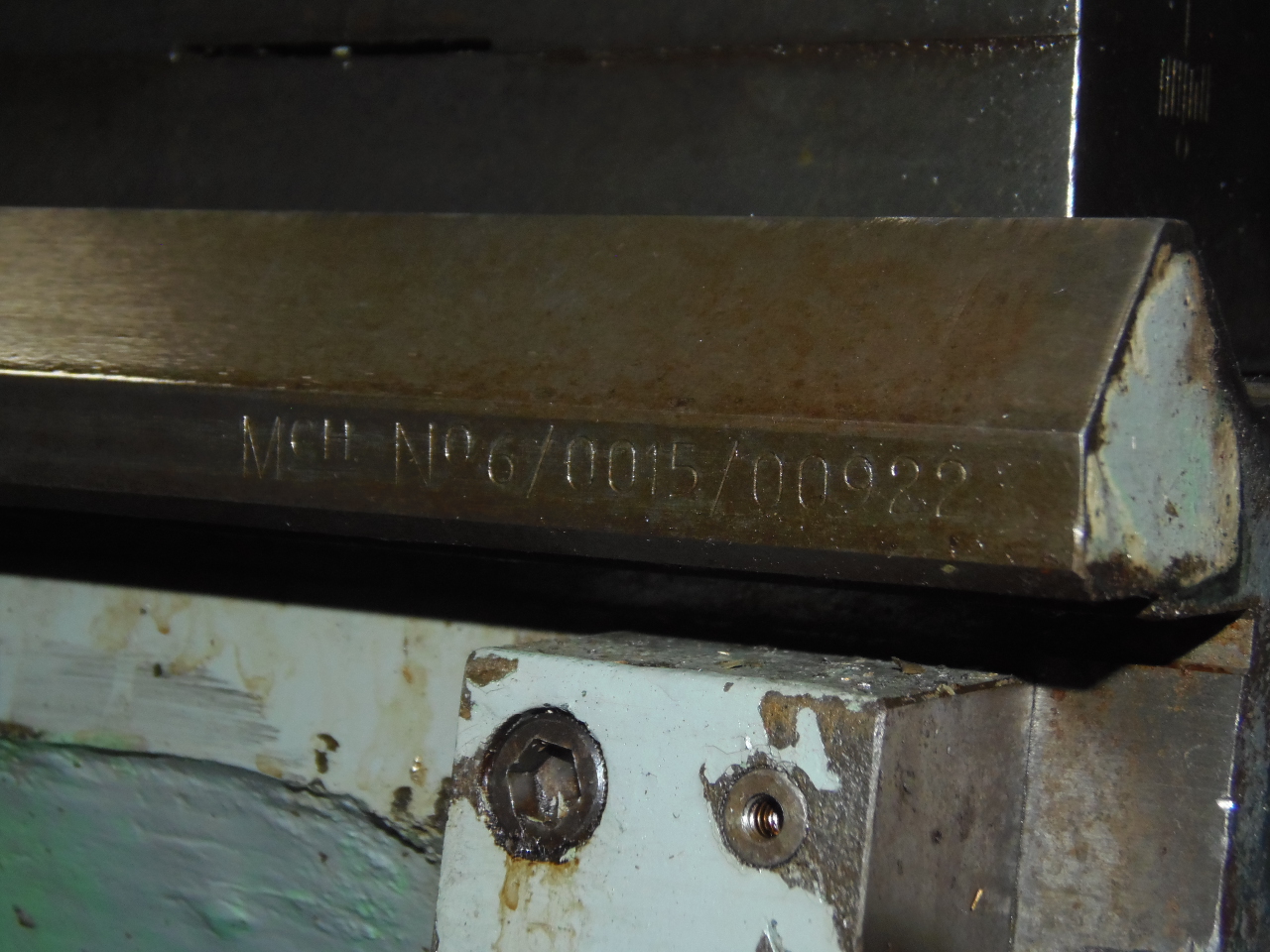

SERIAL NUMBER............. 6/0015/00922
AGE (YEAR)................ 1968
SWING OVER WAYS........... 15"
SWING OVER C.S............ 9"
CENTER DISTANCE........... 50"

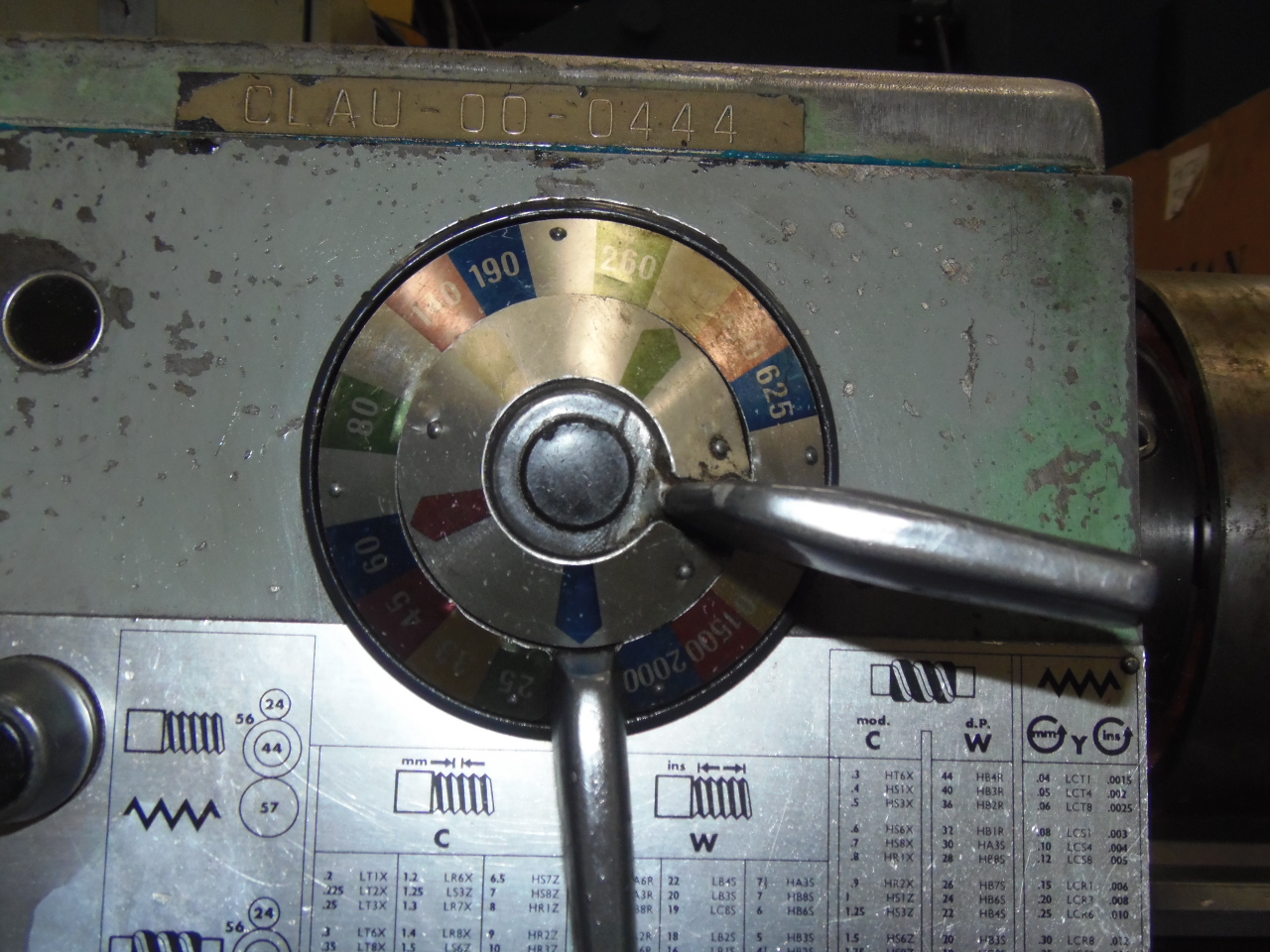

SPINDLE SPEEDS............ 25-2000 RPM
SPINDLE THRU HOLE......... 2" APPROX
SPINDLE MOUNT............. D1-6
SPINDLE MOTOR............. 7.5 HP
VOLTAGE................... 240V / 3PH
DIMENSIONS................ 97" X 44" X 51"
WEIGHT APPROX............. 3,000 LBS.
EQUIPPED WITH:

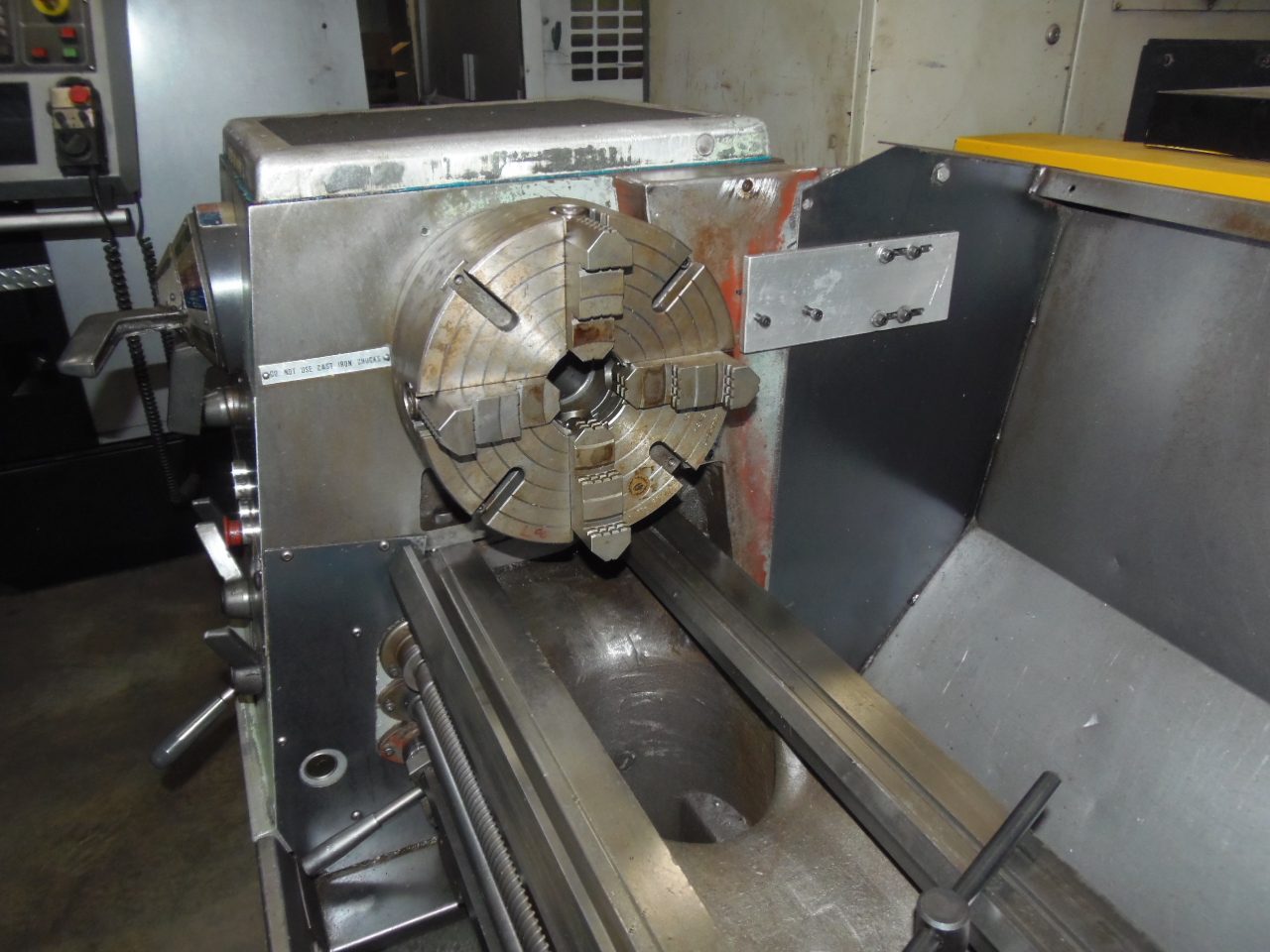

10" 4-JAW CHUCK
HARDENED WAYS

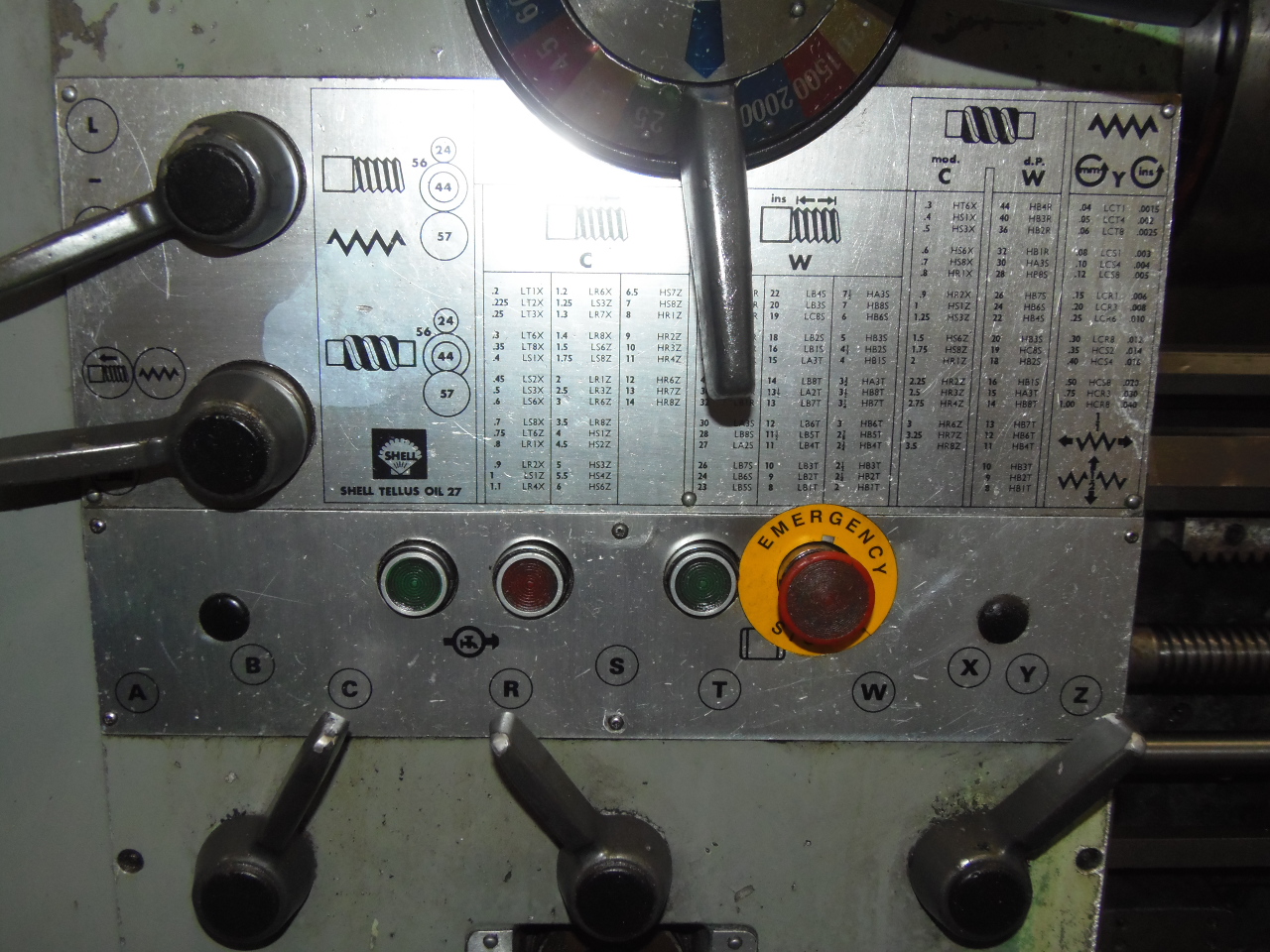

INCH / METRIC THREADING
COOLANT
GUARDS
SPECIFICATIONS SUBJECT TO VERIFICATION
