Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER...................... CLAUSING
MODEL............................. 15/1687
SERIAL NUMBERS.................... 535018,19,20

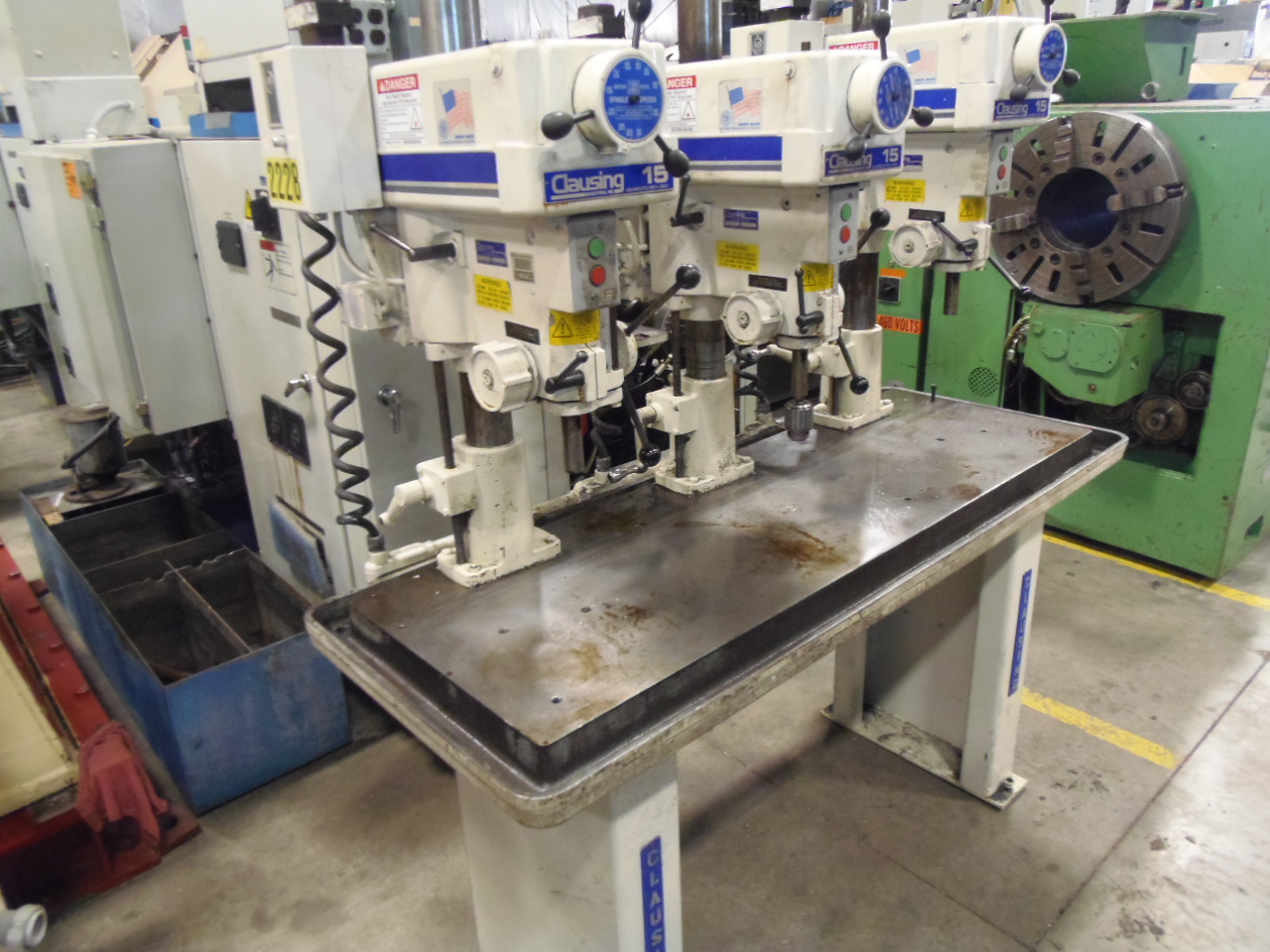

NUMBER OF SPINDLES................ 3
SPINDLE TAPER..................... #2 MT

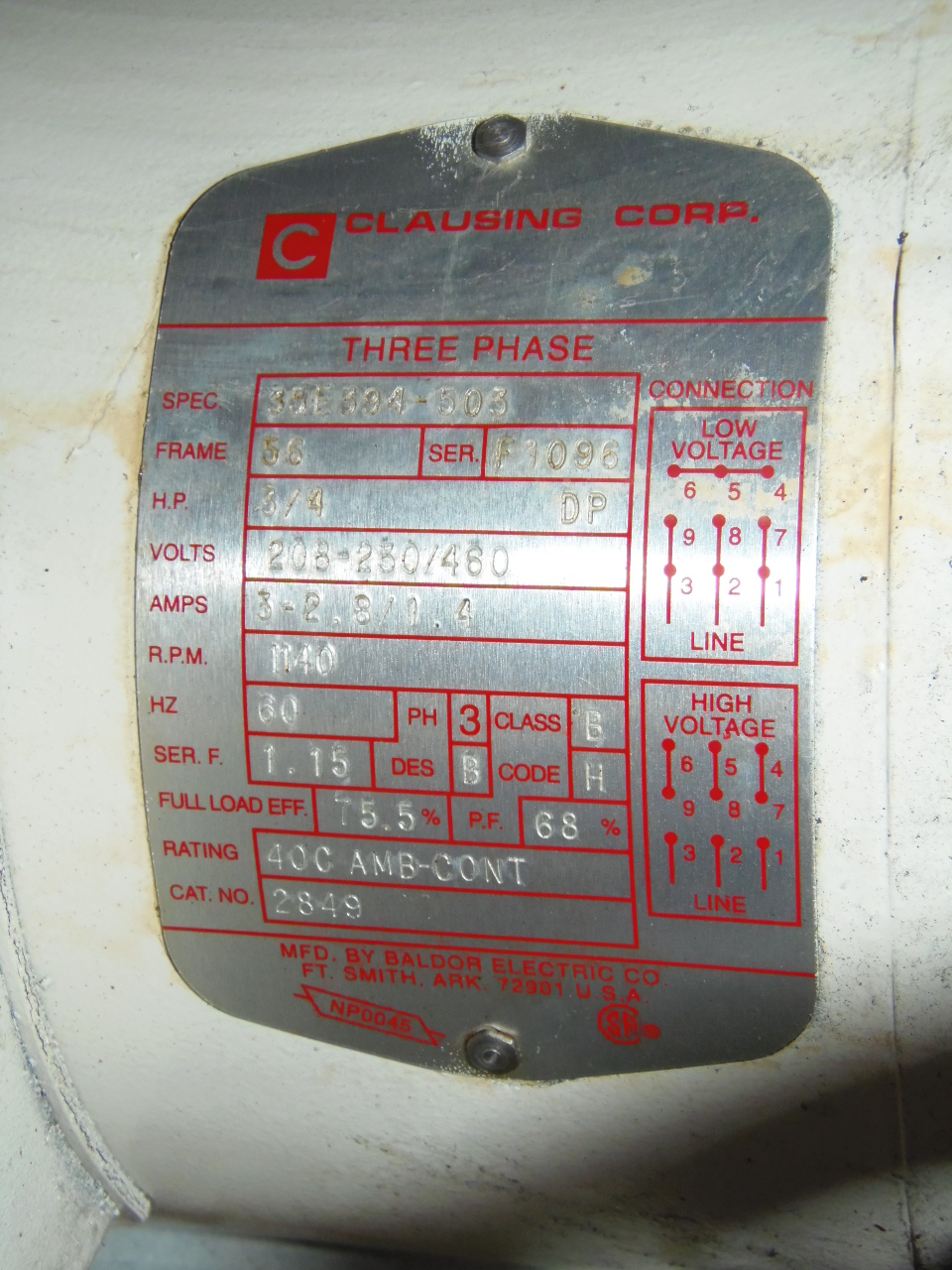

HP PER SPINDLE.................... 3/4 HP
QUILL STROKE...................... 4 3/4"
CAPACITY HAND FEED................ 5/8"
COLUMNS DIAMETER(GROUND STEEL).... 3"
COLUMNS LENGTH.................... 37"
SPINDLE CENTER DIST............... 20"
SPINDLE TO TABLE (MAX)............ 23"
TABLE SIZE........................ 30" X 60"

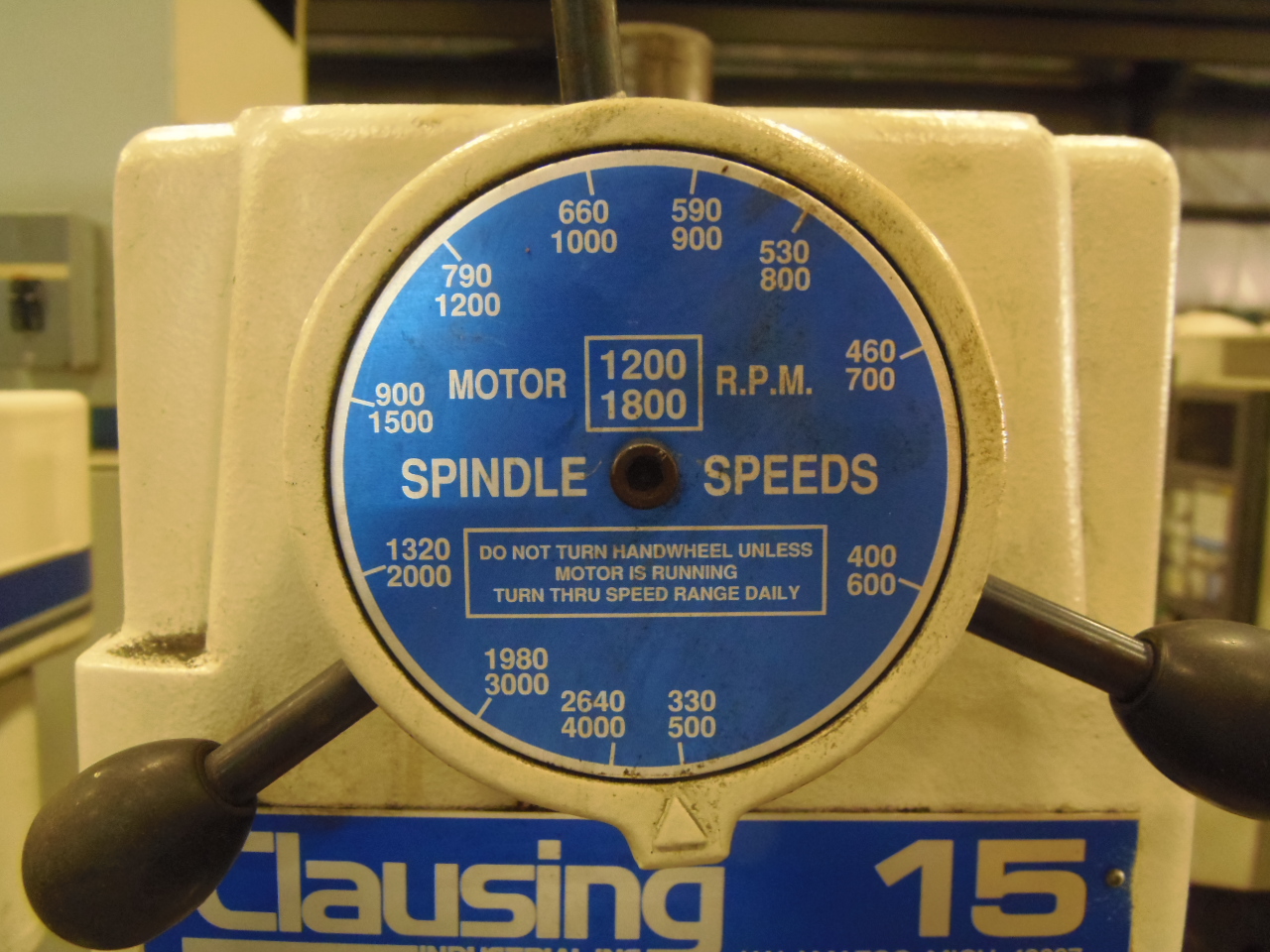

RPM RANGE......................... 330 - 2000
APPROX. SHIPPING WEIGHT........... 1500 LBS
