Specifications
Equipped With
GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1996
MAX. MACHINING DIAMETER 1.25"
MAX. MACHINING LENGTH 9.84"
MAX. DRILLING DIAMETER 0.47"
MAX. TAPPING DIAMETER M10
SPINDLE SPEED 200 TO 8,000 RPM
TOOL SPINDLE SPEED 200 TO 5,000 RPM
BACK SPINDLE SPEED 200 TO 6,000 RPM
NUMBER OF TOOLS TO BE MOUNTED 16
LATHING 5
ROTARY TOOL 3
FRONT DRILLING 3
BACK DRILLING 5
TOOL SIZE 5/8 " X 5/8" X 5.12"
RAPID FEED RATE: X1 AXIS 629.92"/MIN.
Z2 AXIS 708.66"/MIN.
Y1 AXIS 787.40"/MIN.
FLOOR SPACE 50" X 109.65" X 69.29"
WEIGHT 5,732 LBS.
EQUIPPED WITH:

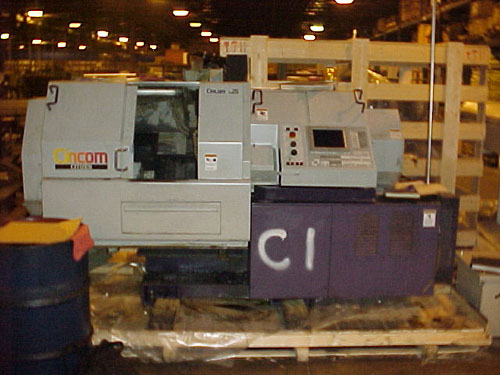

**ORGINALLY A L25 CONVERTED BY CITIZEN INTO A L32**

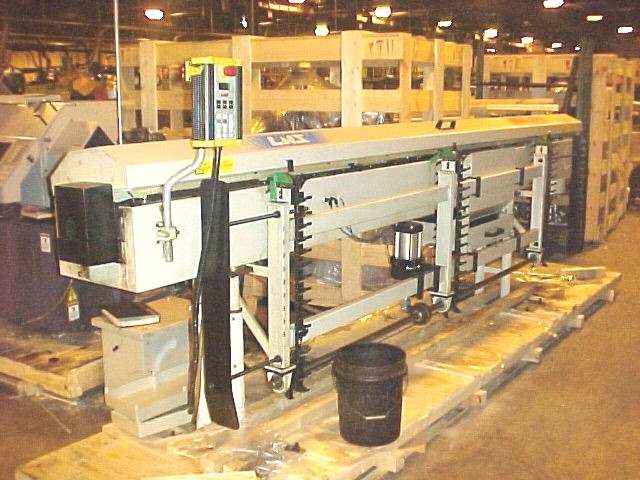

LNS MINI SPRINT BAR FEED
PARTS CATCHER

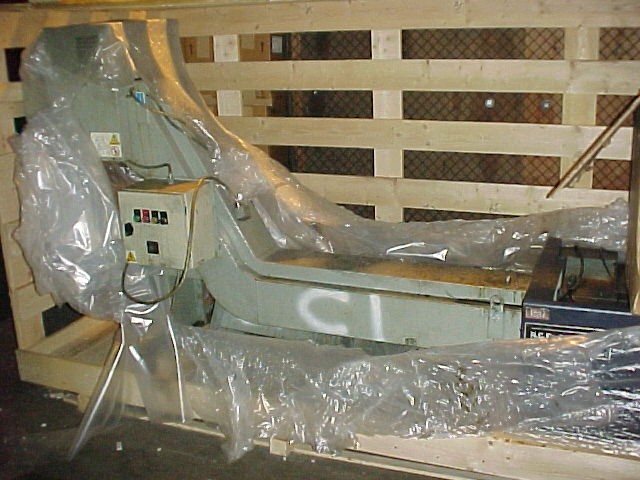

CHIP CONVEYOR
