GENERAL SPECIFICATIONS:

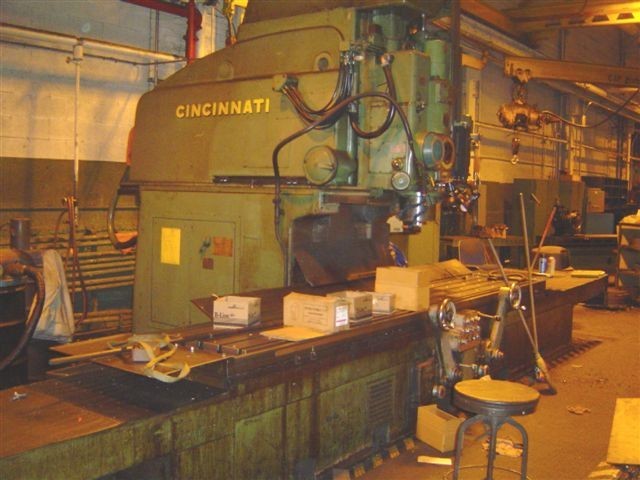

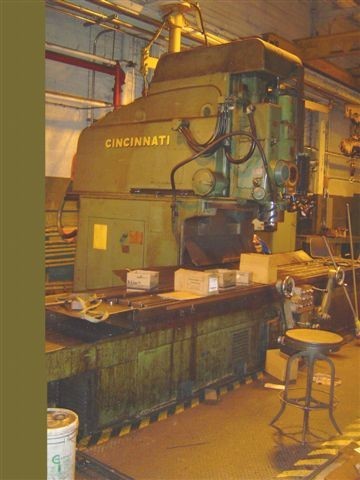

MANUFACTURER CINCINATTI
SERIAL # 58HV5P-2
NEW APPROXIMATELY 1964
TABLE:
SIZE 28" X 11'11"
SIZE OF T BOLT SLOTS .8125"
NUMBER OF T BOLT SLOTS 5
T SLOT SPACING 5"
LONGITUDINAL TRAVEL 120"
LONGITUDINAL RAPID TRAVERSE 120 IPM
HEAD:
MINIMUM DISTANCE HEAD TO TABLE 12"
MAXIMUM DISTANCE SPINDLE TO TABLE 26"
VERTICAL TRAVEL OF SPINDLE TO HEAD 14"
HEAD CROSS TRAVEL 30"
HEAD CROSS-RAPID TRAVERSE 120 IPM
DIAMETER OF NOSE 5.0625" (50# TAPER )
DIAMETER OF DRAW BOLT 1.125"
COOLANT YES
MOTOR - SPINDLE DRIVE 20 HP
MOTOR - HYDRAULIC PUMP 7 1/2 HP
SPINDLE SPEED (VARY) 80 - 1600 RPM
