Specifications
Equipped With
GENERAL SPECIFICATIONS:

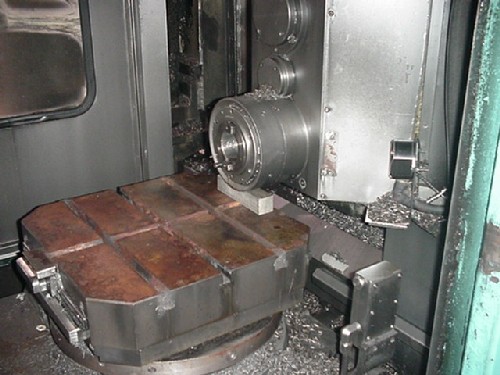

PALLET SIZE 19.7" x 19.7"
NUMBER OF PALLETS 12
MAXIMUM TABLE LOAD 2,000 LBS
SPINDLE NOSE TO PALLET CENTER 5" - 31"
SPINDLE CENTER TO PALLET SURFACE 0" - 26"
X AXIS TRAVEL 32"
Y AXIS TRAVEL 26"
Z AXIS TRAVEL 26"
B AXIS INDEXING 0.001 DEG.
RAPID TRAVERSE RATE X, Y & Z AXES 720 IPM
CUTTING FEED RATE 0.1 - 720 IPM
SPINDLE SPEEDS 35 - 6,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 25 HP AC

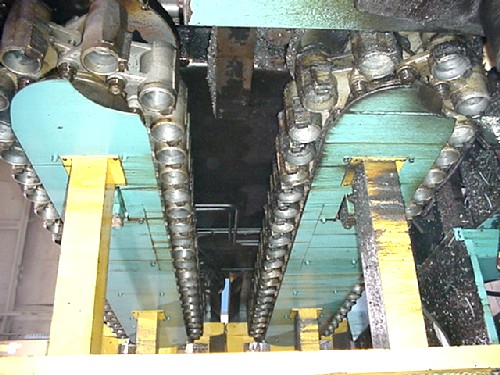

TOOL CHANGER CAPACITY 90 STATION ATC
MAXIMUM TOOL WEIGHT 60 LBS
POWER REQUIREMENTS 575V/3/60
EQUIPPED WITH:
ACRAMATIC 850 CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE (200 PSI)
RENISHAW INTEGRATED PART PROBING (SPINDLE PROBE)
PALLET WASH SYSTEM, TOOL LENGTH MEASUREMENT

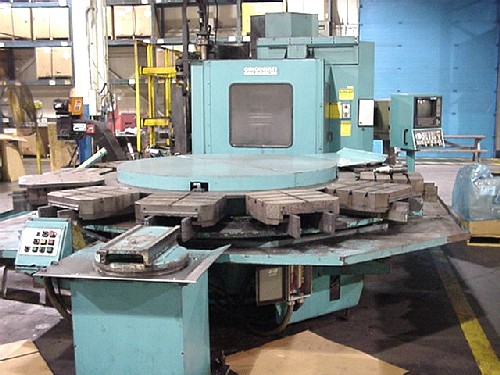

FACTORY INSTALLED 12 PALLET CHANGER W/ LOAD STATION
EXTERNAL DISCHARGE LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
