Specifications
Equipped With
GENERAL SPECIFICAITONS:

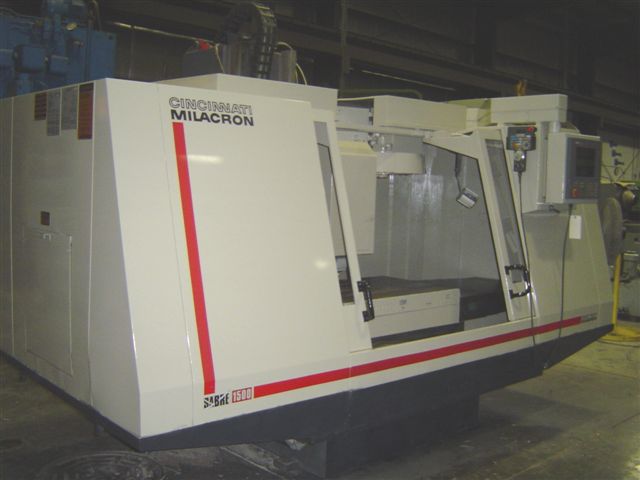

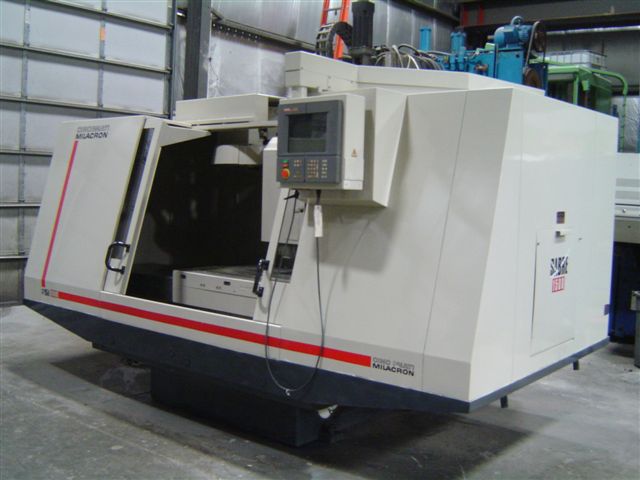

MANUFACTURER CINCINNATI
MODEL SABRE 1500
SERIAL # 7047-A0196-0025
NEW (APPROX.) 1996
(X) TRAVEL 60" (1524mm)
(Y) TRAVEL 30" (762mm)
(Z) TRAVEL 32" (812mm)
TABLE SIZE 64" x 30" (1625 x 762mm)
MAX. WORKLOAD 2,800 LBS. (1272 kg)
SPINDLE TAPER 40
NUMBER OF TOOLS IN CHANGER 42
DRIVE MOTOR 15 HP
SPINDLE SPEED 60-8000 RPM
WEIGHT (APPROX.) 20,900 LBS.
DIMENSIONS (APPROX.) 189" x 154" x 142"H
EQUIPPED WITH:

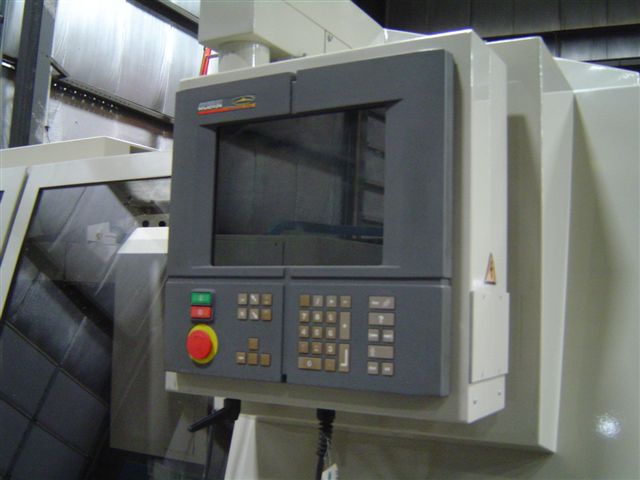

ACRAMATIC 2100 PC BASED CONTROL
COOLANT SYSTEM
THRU SPINDLE COOLANT
RIGID TAPPING
CHIP CONVEYOR
AVAILABLE MANUALS
THIS MACHINE HAS BEEN USED IN A TOOL ROOM ENVIORMENT RUNNING TOOL STEEL AND ALUMINUM
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
