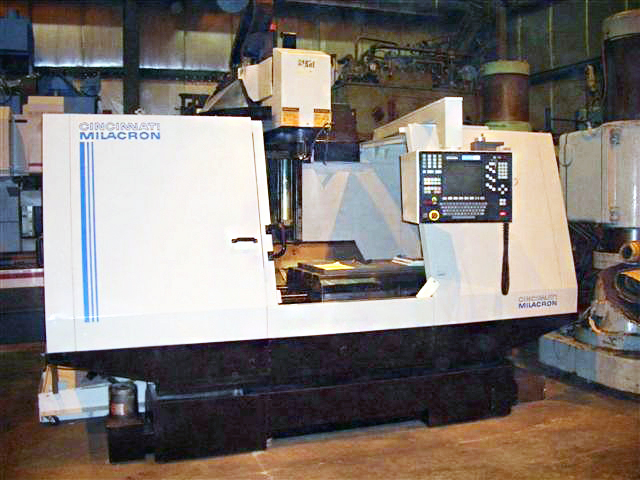

CINCINNATI SABRE 1250, 50"-X, 26"-Y, 26"-Z, 28" THROAT, 54" x 30" TBL, 40 TAPER, ACRAMATIC 850SC CTRL

GENERAL SPECIFICAITONS:
MANUFACTURER CINCINNATI
MODEL SABRE 1250
SERIAL # 7037-A01-91-1034
NEW (APPROX.) 1991
(X) TRAVEL 50"
(Y) TRAVEL 26"
(Z) TRAVEL 26"
THROAT DEPTH 28"

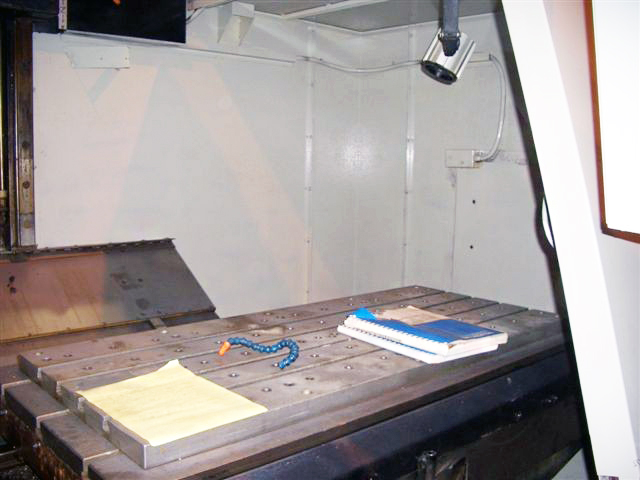

TABLE SIZE 54" x 30"
MAX. WORKLOAD 2,000 LBS.
SPINDLE TAPER 40

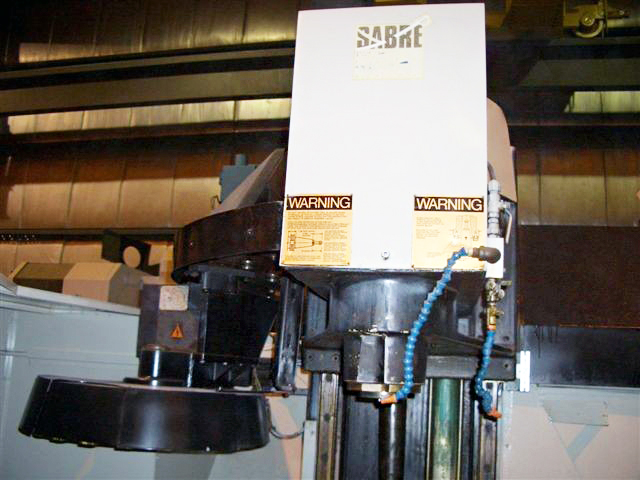

NUMBER OF TOOLS IN CHANGER 21
DRIVE MOTOR 12 HP
SPINDLE SPEED 60-8000 RPM
WEIGHT (APPROX.) 20,000 LBS.
DIMENSIONS (APPROX.) 181" x 154" x 142"H

EQUIPPED WITH:

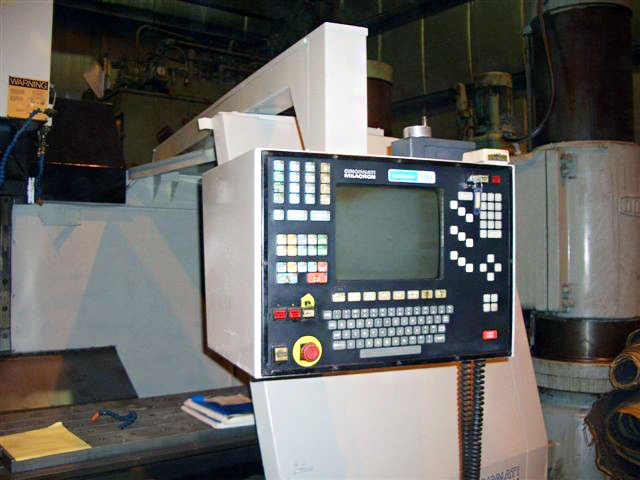

ACRAMATIC 850SX CONTROL
COOLANT SYSTEM
INSPECT UNDER POWER IN OUR FACILITY TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
