GENERAL SPECIFICATIONS:

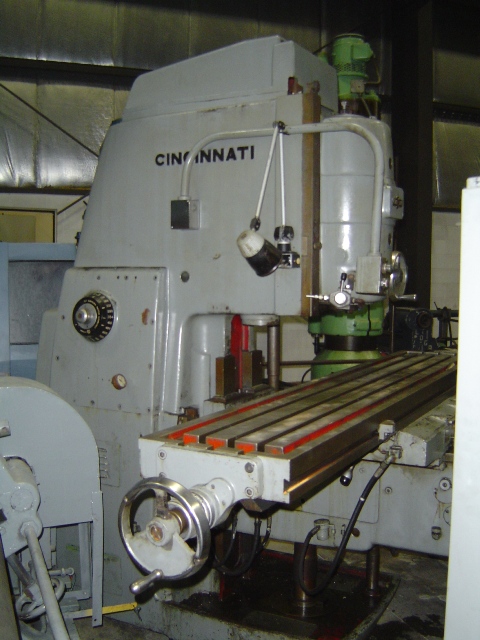

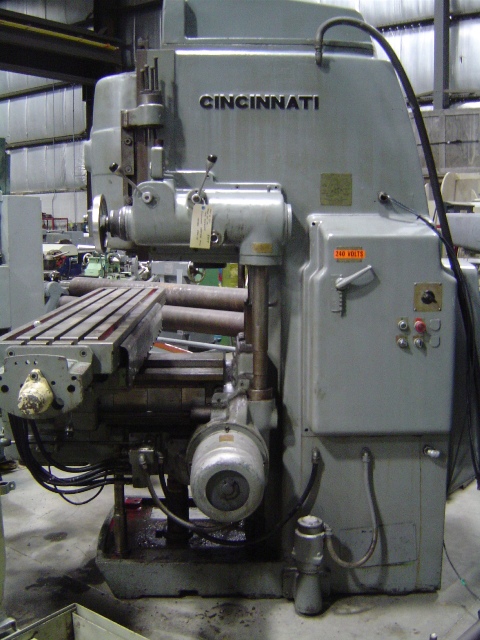

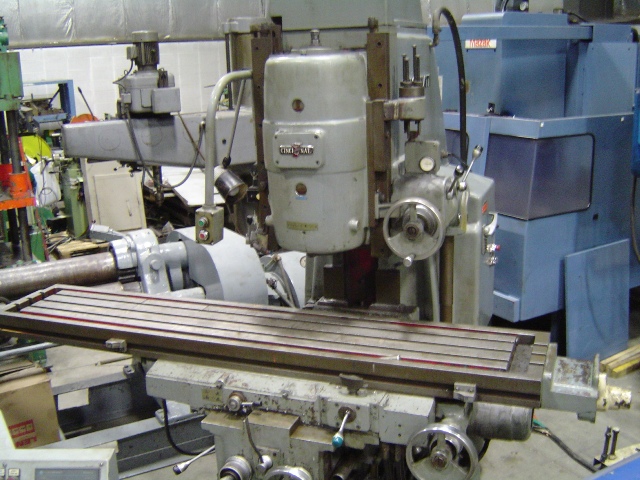

MANUFACTURER CINCINNATI
MODEL 520-16
NEW APPROXIMATELY 1980
SERIAL 310445-V78-0004
TABLE:
WORKING SURFACE 87-3/4" X 16-1/4"
SIZE OVERALL 87-3/4" X 16-1/4A"
T-SLOTS (3) 13/16"
DISTANCE BETWEEN SLOTS 3-1/4"
RANGE:
LONGITUDINAL 50"
CROSS 16"
VERTICAL 20"
HEAD TRAVEL 6"
CENTERLINE SPINDLE TO TOP
OF TABLE MAX. 20"
MIN. 0"
SPINDLE:
SPINDLE NOSE NO. 50 STD.
HOLE FOR DRAW-IN BOLT 1-1/8"
SPEEDS (24) 16-1600 RPM
FEEDS:
NUMBER OF FEEDS 32
RANGE: LONGITUDINAL AND CROSS 3/8"-90"/MIN.
VERTICAL 3/16"-45"/MIN.
POWER RAPID TRAVERSE:
LONGITUDINAL AND CROSS 150"/MIN.
VERTICAL 75"/MIN.
OVERARM:
UNDERSIDE TO CENTERLINE OF SPINDLE 7-3/8"
DRIVE:
SPINDLE DRIVE MOTOR 20 HP
FEED DRIVE MOTOR 5 HP
CUTTING FLUID PUMP MOTOR 1/10 HP
MACHINE WEIGHT 12,500 LBS
