Specifications
Equipped With
GENERAL SPECIFICAITONS:
MANUFACTURER CINCINNATI MILACRON
MODEL SABRE 1250
SERIAL # 7037-A0A-97-0396
NEW (APPROX.) 1997
X AXIS CAPACITY 50"
Y AXIS CAPACITY 30"
Z AXIS CAPACITY 32"
THROAT DEPTH 30"
WORKING SURFACE 54" x 30"
MAXIMUM WORKLOAD 2,000 LB.
RAPID TRAVERSE X-Y 945 IPM
RAPID TRAVERSE Z 710 IPM
FEED RATES 0.1 - 590 IPM
SPINDLE DRIVE 60 - 8,000 RPM
SPINDLE DRIVE MOTOR 12 HP
TYPE SPINDLE DRIVE DIRECT DRIVE-VARIABLE AC
DIMENSIONS (APPROX.) 181" x 154" x 142"H
WEIGHT (APPROX.) 19,360 LBS.
EQUIPPED WITH:

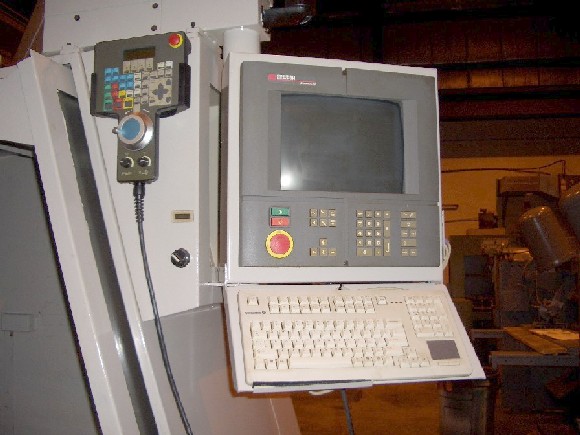

ACRAMATIC 2100 CNC CONTROL
42 AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
THRU-SPINDLE COOLANT
