Specifications
Equipped With
GENERAL SPECIFICATIONS:

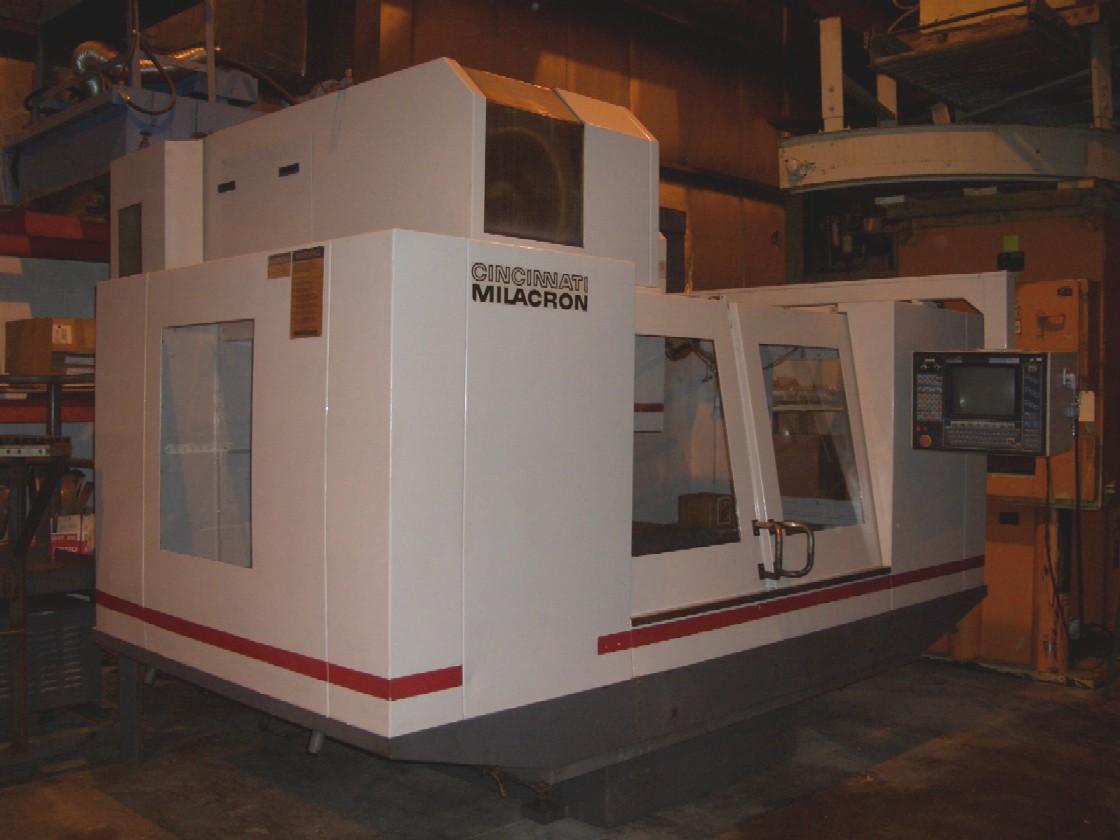

MANUFACTURER CINCINNATI
MODEL LANCER 1250
NEW (APPROX.) 1994
TABLE SIZE 60" x 30.11"
MAXIMUM TABLE LOAD 4,400 LBS
SPINDLE NOSE TO TABLE TOP 9" - 39"
X AXIS TRAVEL 50"
Y AXIS TRAVEL 30"
Z AXIS TRAVEL 30"
RAPID TRAVERSE RATE X AXIS 945 IPM
RAPID TRAVERSE RATE Y AXIS 945 IPM
RAPID TRAVERSE RATE Z AXIS 945 IPM
CUTTING FEED RATE 0.1 - 590 IPM
SPINDLE SPEEDS 60 - 6,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 25 HP AC
TOOL CHANGER CAPACITY 30 STATION ATC
MAXIMUM TOOL WEIGHT 44 LBS
EQUIPPED WITH:

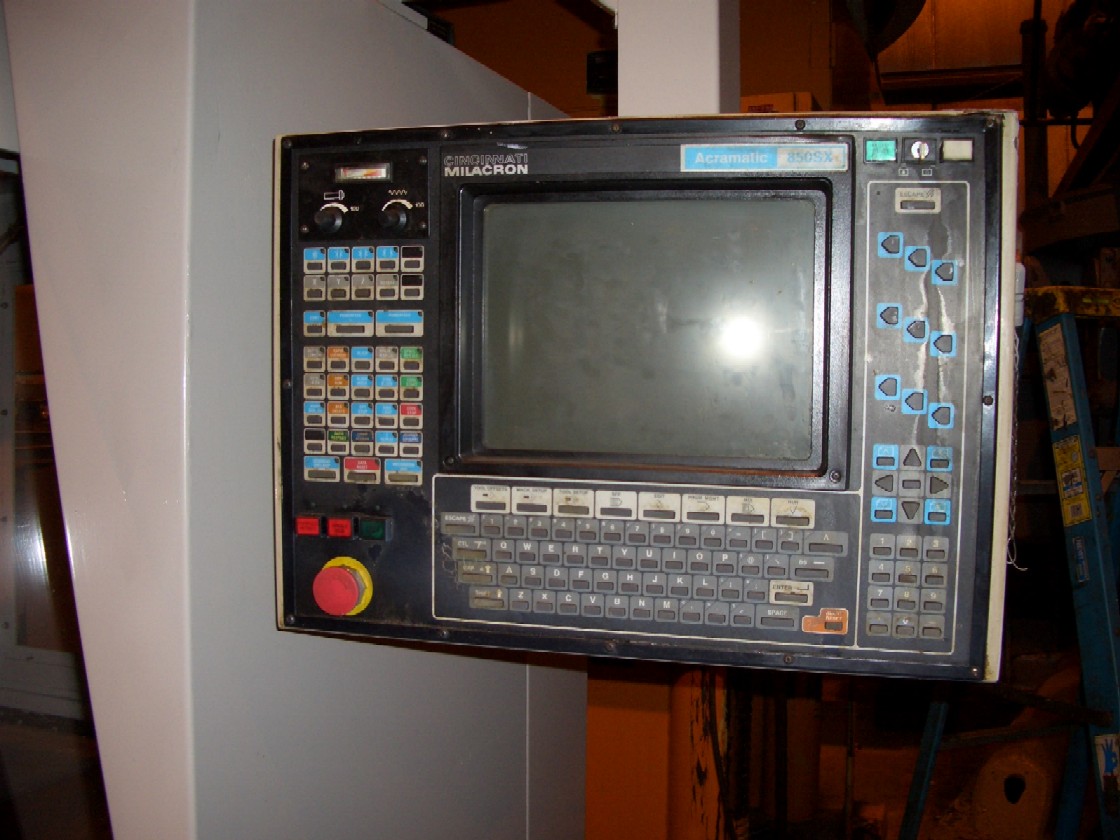

ACRAMATIC 850SX CONTROL
RS-232C PORT INTERFACE FOR DNC OPERATION
COOLANT THROUGH
SPINDLE OIL COOLER (CHILLER)
CHIP CONVEYOR
3.5" FLOPPY
FULLY ENCLOSED GUARDING
ALL AVAILABLE MANUALS
