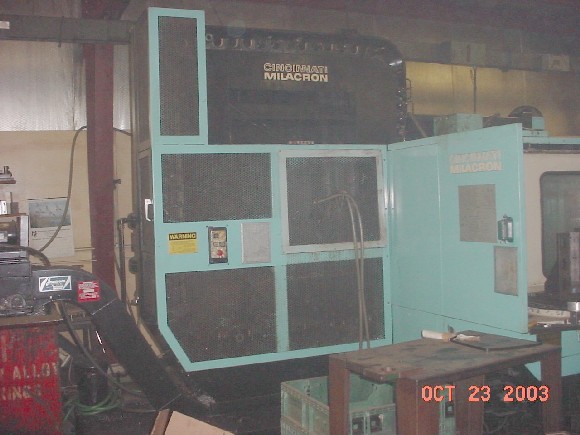

CINCINNATI HPMC HORIZ. MACHINING CENTER, 15000 RPM, 4O TAPER, 60 TOOLS, ACRAMATIC 850, 20 X 20 X 15 TRAVELS

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1987

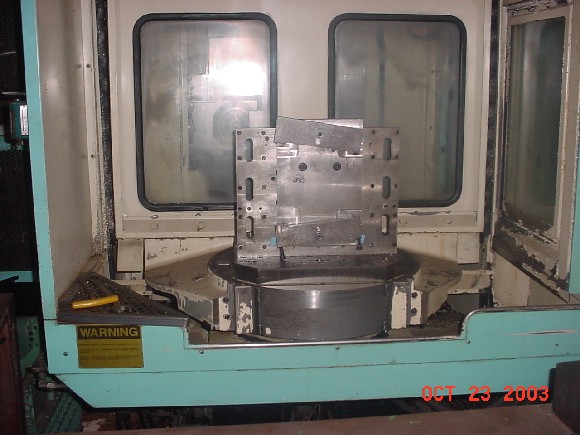

PALLET SIZE (2) 19.7"

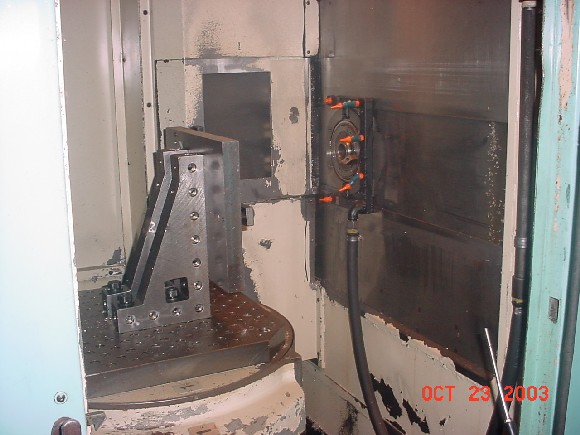

TABLE ROTATION FULL 4TH AXIS
TRAVELS: X 20"
Y 20"
Z 15"
SPINDLE CENTER TO PALLET: 4" TO 24"
RAPID TRAVERSE RATE 1200 IPM
SPINDLE SPEEDS 750 TO 15000 RPM
SPINDLE MOTOR 20 HP
SPINDLE TAPER CAT 40
TOOLS 60

EQUIPPED WITH:

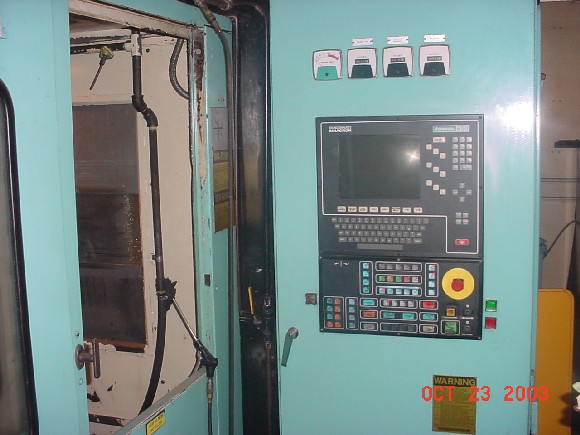

ACRAMATIC 850 CONTROL
11,500 IN CUT HOURS
CHIP CONVEYOR
INPLANT UNDERPOWER
