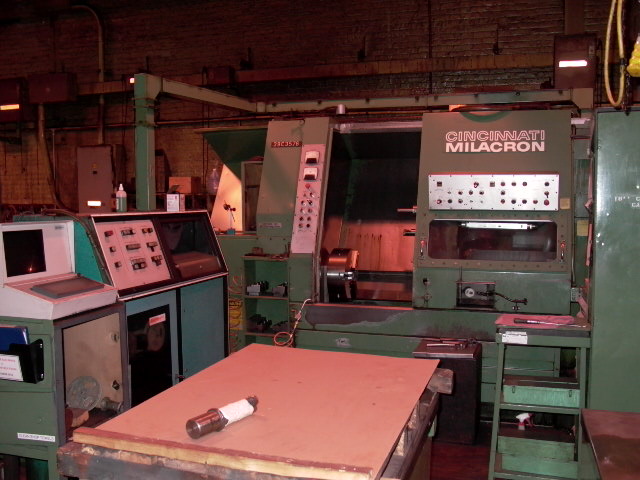

CINCINNATI CINTURN 18C, 4-1/2" HOLE, 18" CHUCK, 50 HP, 200 IPM, CHIP CONVEYOR, ACRAMATIC CTRL

GENERAL SPECIFICAITONS:
MANUFACTURER........................ CINCINNATI
MODEL............................... 18C
SWING OVER WAYS..................... 30.5"
SWING OVE RCROSS SLIDE.............. 20.5"
CHUCK SIZE.......................... 18"
RPM RANGE........................... 16 - 1600
SPINDLE HOLE........................ 4.5"
SPINDLE NOSE........................ A1-11
HORSEPOWER.......................... 50
Z AXIS TRAVEL....................... 42"
RAPIDS.............................. 200 IPM
DIMENSIONS (WITHOUT CHIP CONVEYOR).. 88"W x 12'6"
DIMENSIONS (WITH CHIP CONVEYOR)..... 88"W x 16'6"

EQUIPPED WITH:
ACRAMATIC CONTROL
CHIP CONVEYOR
