Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 20.5" x 37.4"
MAXIMUM TABLE LOAD 1000 LBS
SPINDLE NOSE TO TABLE TOP 5" - 25"
X AXIS TRAVEL 30"
Y AXIS TRAVEL 20"
Z AXIS TRAVEL 20"
RAPID TRAVERSE RATE X, Y & Z AXES 787 IPM
CUTTING FEED RATE 0.1 - 472 IPM
SPINDLE SPEEDS 60 - 8,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 15 HP AC

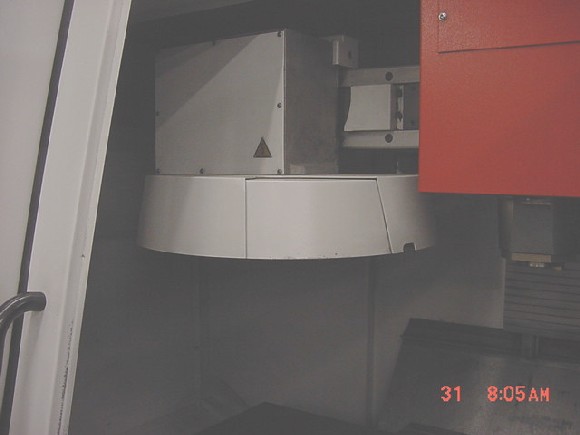

TOOL CHANGER CAPACITY 21 STATION ATC
MAXIMUM TOOL WEIGHT 15 LBS
MAXIMUM TOOL LENGTH 12"
EQUIPPED WITH:

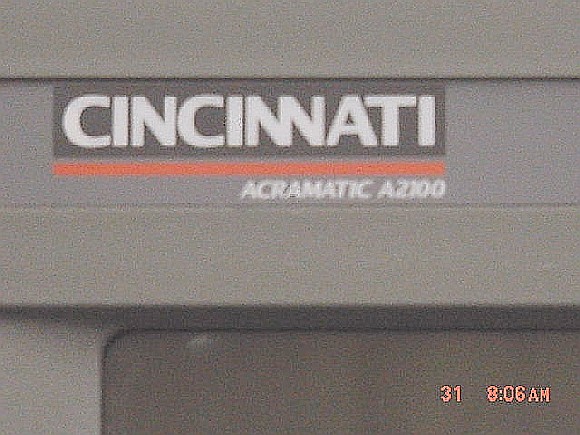

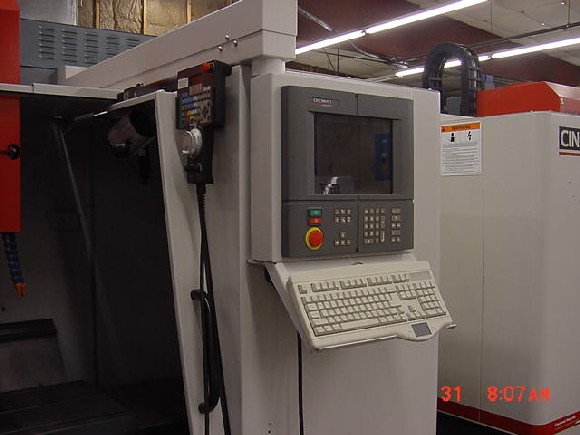

ACRAMATIC 2100 PC-BASED CNC CONTROL WITH 9" TOUCH SCREEN
RS-232C PORT INTERFACE & ETHERNET CARD FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPPING)
FULL CONTROL HAND-HELD PENDANT FOR ACRAMATIC 2100
FULL SIZED KEYBOARD FOR DATA INPUT, 3.5" FLOPPY DRIVE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
