Specifications
Equipped With
GENERAL SPECIFICATIONS:

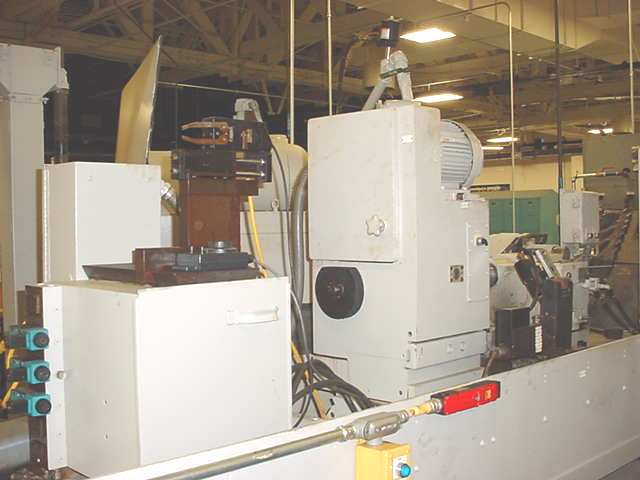

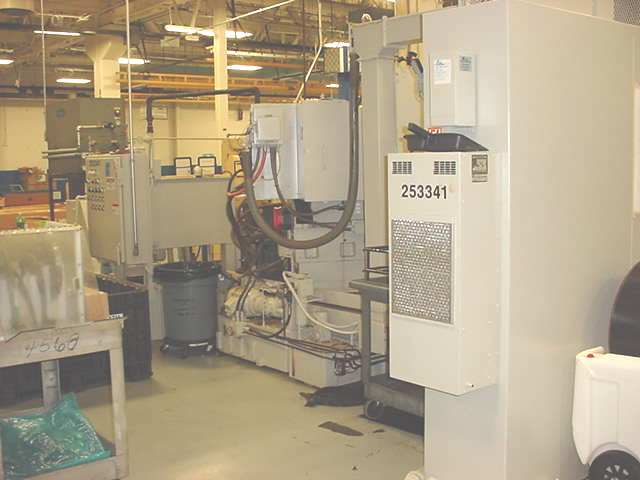

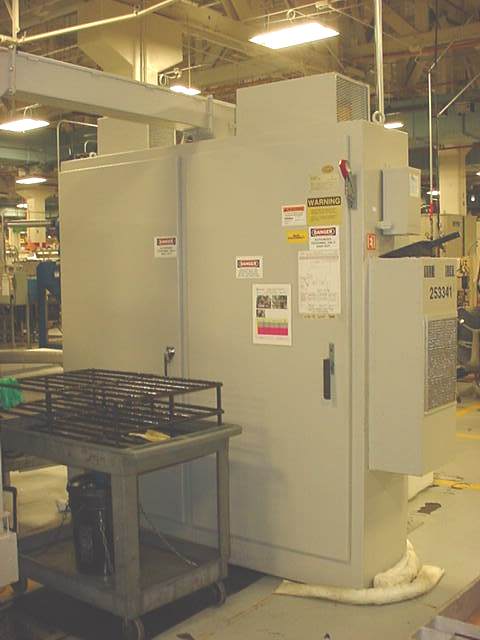

MANUFACTURER...................... CINCINNATI
MODEL............................. STEPTRONIC 480
SERIAL NUMBER..................... 3548K0284-0005
AGE (YEAR)........................ 1998

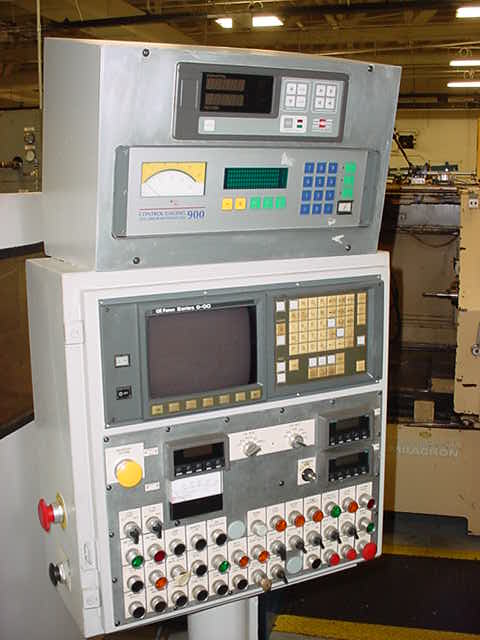

CONTROL........................... FANUC OG
CONTROL FEATURES:................. CIRCULAR INTERPOLATION
................. PLUNGE MULTI DIAMETERS
MAX. WORK PIECE DIAMETER.......... 24"
NOMINAL WORK PIECE LENGTH......... 40"
GRIND ANGLE....................... 30 DEGREE

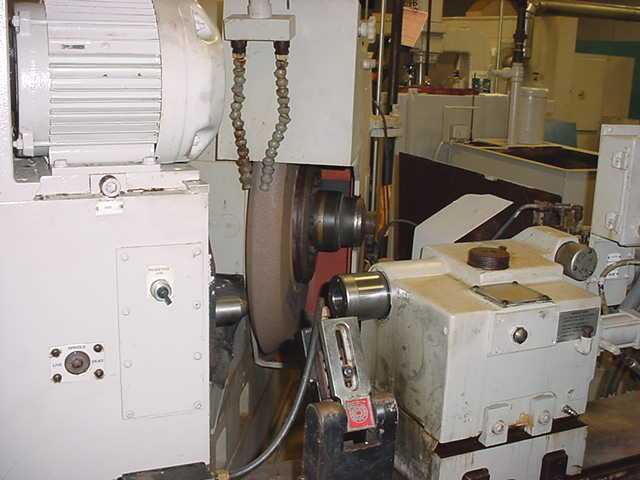

GRINDING WHEEL DIMENSIONS......... 30" X 16" X 4"
SPINDLE MOTOR..................... 20 HP
SPINDLE SPEED..................... 180 SPEEDS IN 6 RANGES
TOTAL TABLE TRAVEL................ 68"
DEAD SPINDLE TAPER................ 14 JARNO
FOOT STOCK........................ 14 JARNO
EQUIPPED WITH:
BALL SCREWS X & Y
CONTROL GAGE #900 SIZING GAUGE
CNC ROTARY DRESSING OFF OF TAIL STOCK
AUTO DRESSER
SCHMIDT INDUSTRIES DYNAMIC WHEEL BALANCER
ARNOLD FLAG GAUGE
VARIABLE SPEED LIVE/DEAD HEADSTOCK

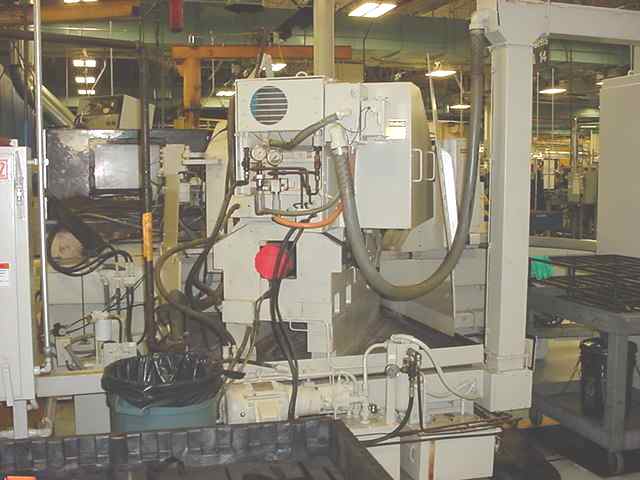

HYDRAULIC FOOT STOCK
GAP ELIMINATOR

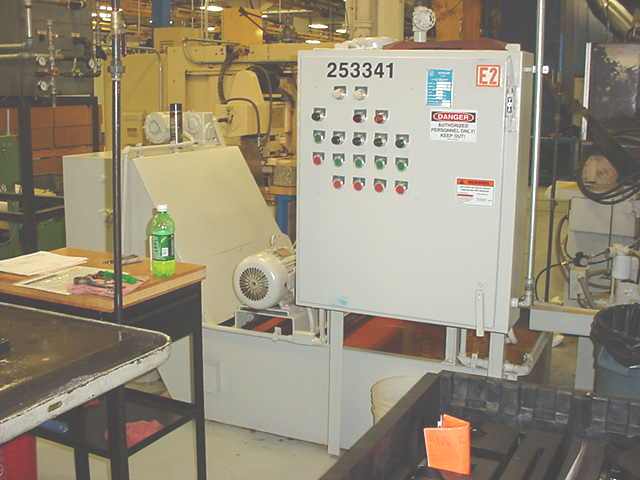

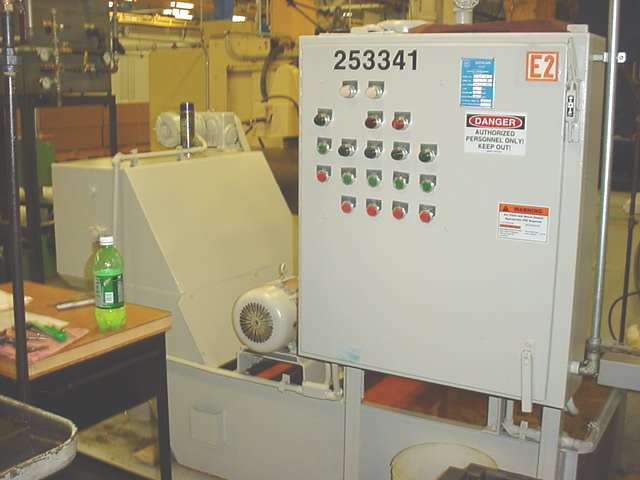

COOLANT SYSTEM
SPECIFICATIONS SUBJECT TO VERIFICATION
