Specifications
Equipped With

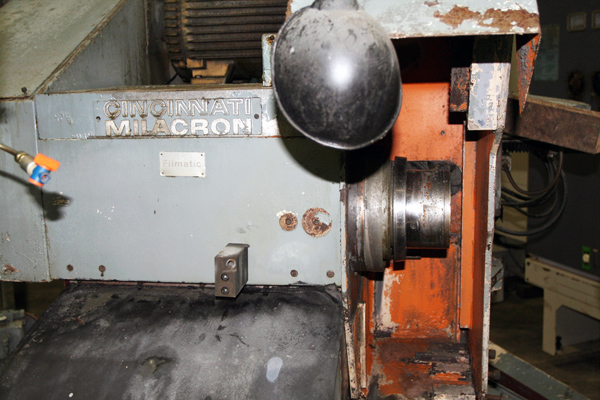

MANUFACTURER....................CINCINNATI

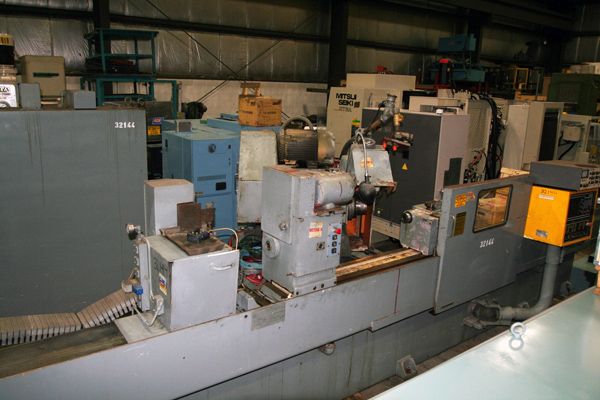

MODEL...........................14 X 100-30 480 STEP GRINDER
YEAR............................1984
SERIAL NUMBER...................3590STP84-001
GENERAL SPECIFICATIONS:
SWING...........................14" (356 MM)

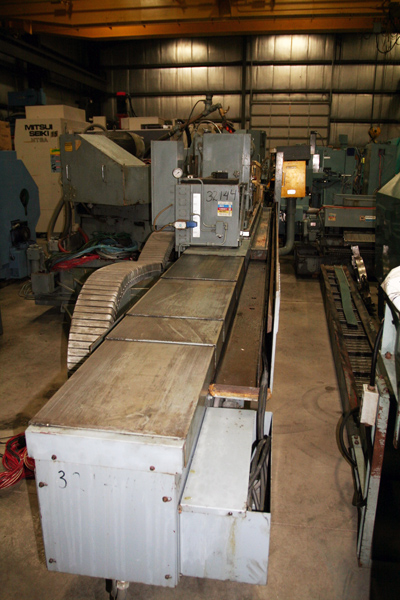

MAX. WORKPIECE LENGTH...........100" (2540 MM)

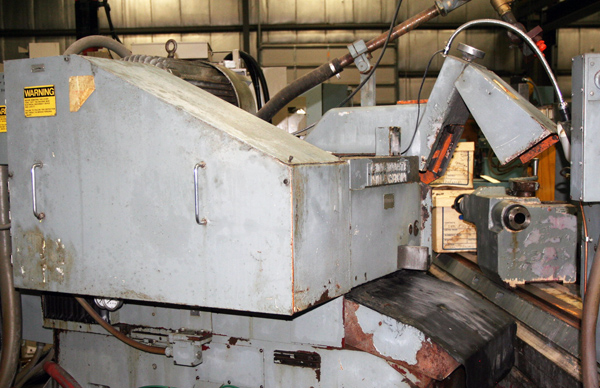

MAX. GRINDING WHEEL DIAMETER....30" (762 MM)
WHEEL WIDTHS....................1" - 6" (25.4-152.4 MM)
WHEEL MOUNTING HOLE.............12" (304.8 MM)
GRINDING WHEEL SURFACE SPEED....8500 FT/MIN (43.18 M/S)
GRINDING WHEEL SPINDLE SPEED....1082 RPM WITH NEW WHEEL

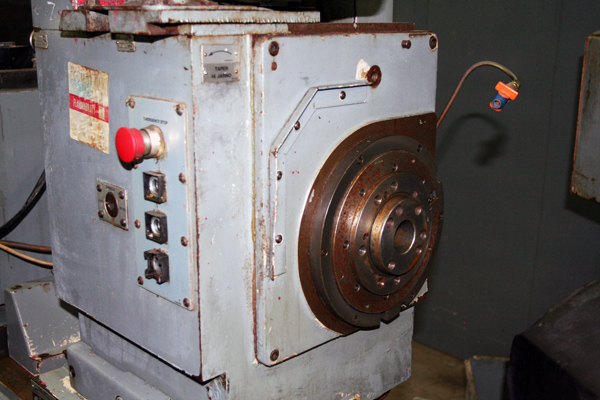

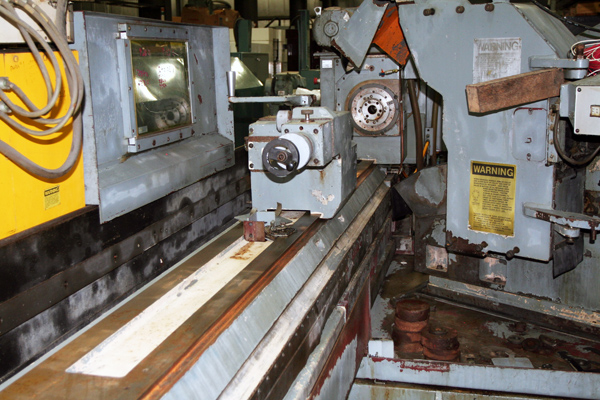

HEADSTOCK TYPE..................LIVE AND DEAD SPINDLE COMBINATION
HEADSTOCK SPEED RANGE...........10 - 550 RPM
SHEAVE RATIO 3 TO 1...........10-90 RPM (6-14" WORKPIECE)
SHEAVE RATIO 10 TO1.......... 30-270 RPM (2-7" WORKPIECE)
SHEAVE RATIO 5 TO 1...........60-550 RPM (1 - 4" WORKPIECE)
HEADSTOCK MOTOR................ 3 HP
HEADSTOCK TAPER.................14 JARNO
EQUIPPED WITH:

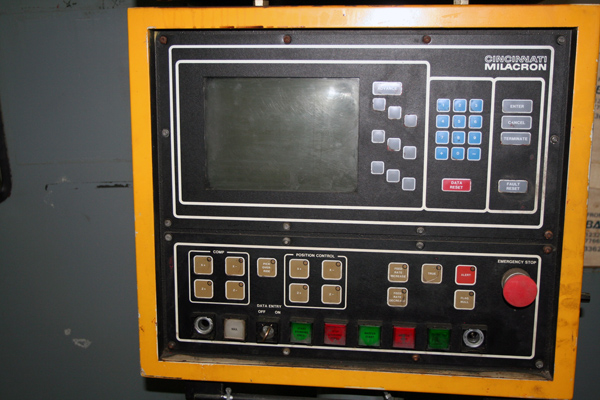

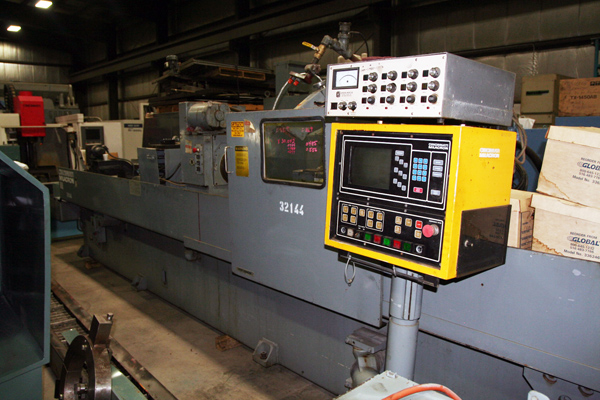

ACCRAMATIC 700 CNC CONTROL

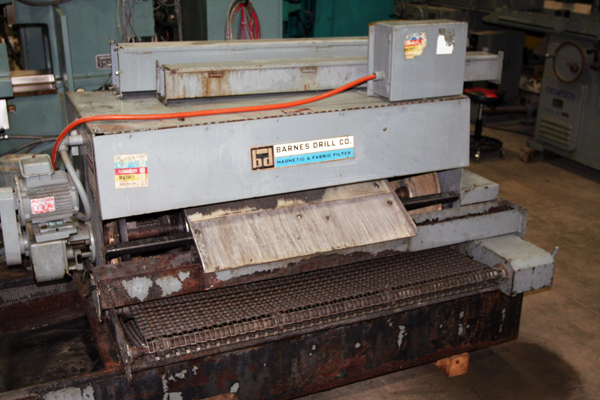

BARNES COOLANT SYSTEM WITH FIBER AND MAGNETIC SEPARATION
LARGE AMOUNT OF MANUALS AND PRINTS
30 DEGREE ANGLE HEAD
