Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER....................... CINCINNATI
MODEL.............................. 430-266 HYPOWERMATIC
SERIAL ............................ 311443D79-0001
TABLE SIZE........................ 26" X 100"
RPM RANGE ......................... 30-1200 RPM
SPINDLE TAPER...................... 50
DISTANCE BETWEEN SPINDLES.......... 33"
TABLE TRAVEL ...................... 72"
HORSEPOWER ........................30
VERTICAL TRAVEL ...................14-1/2"
QUILL SIZE........................ 8-1/2"
HYDRAULIC FEED MOTOR ..............7-1/2 HP
WIRED ............................. 440V/3/60
EQUIPPED WITH:
AUTO RETRACT

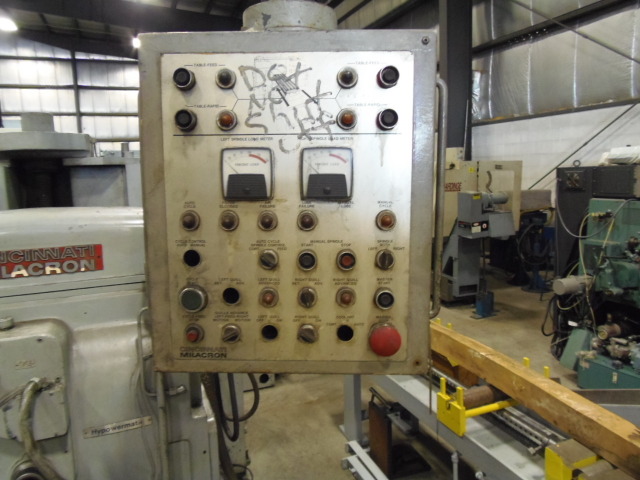

PENDENT CONTROL
WET BASE
MISC CHANGE GEARS
