GENERAL SPECIFICATIONS:

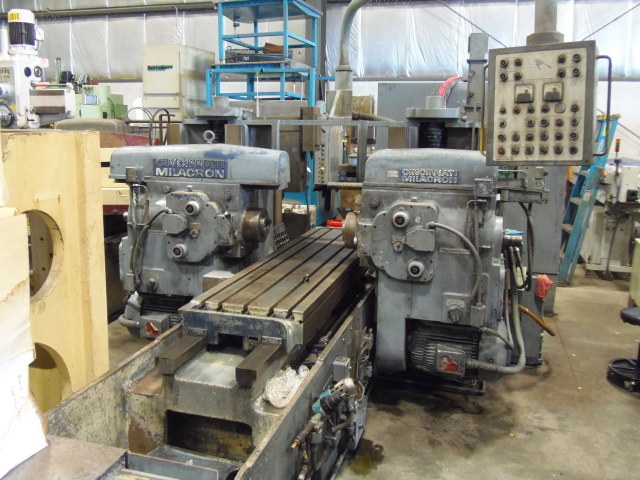

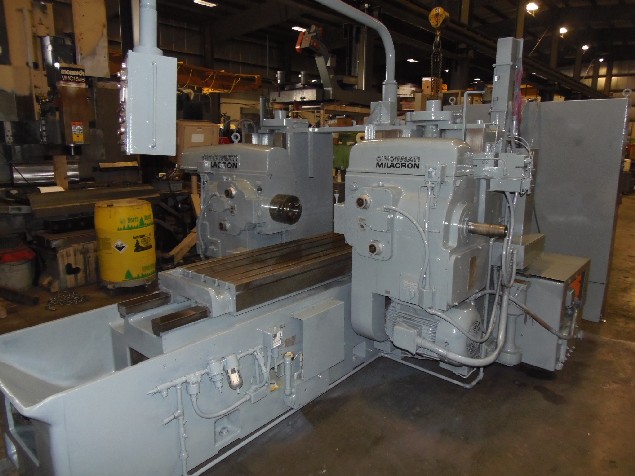

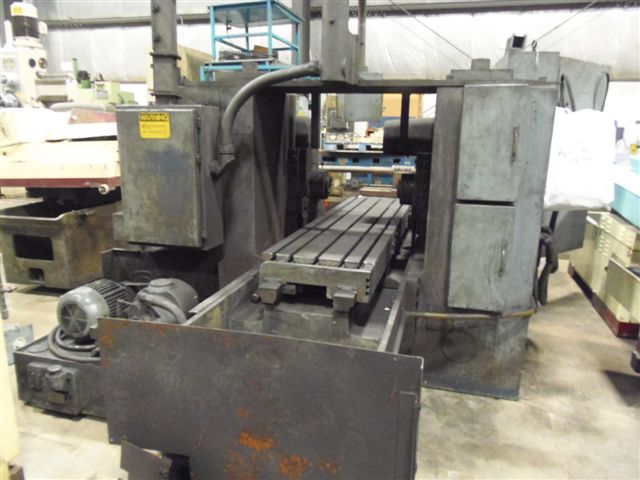

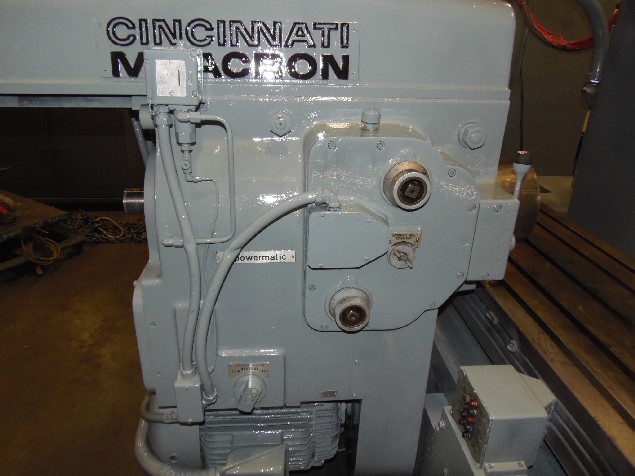

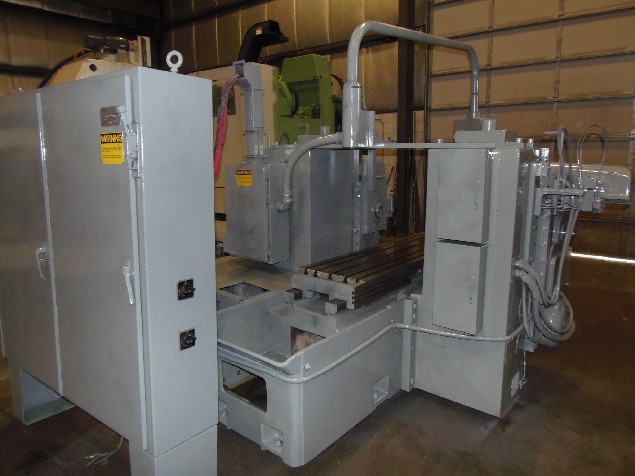

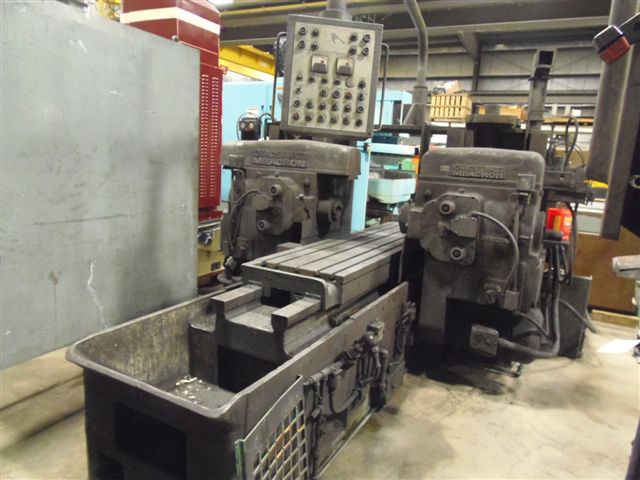

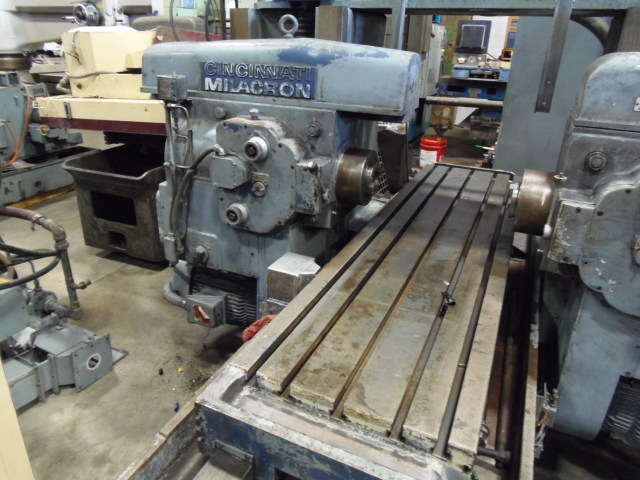

MANUFACTURER....................... CINCINNATI
MODEL.............................. 430-225
SERIAL ............................ 3111442D83-0001

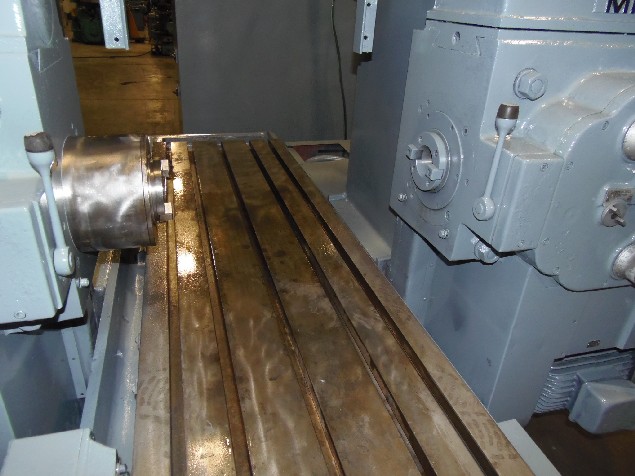

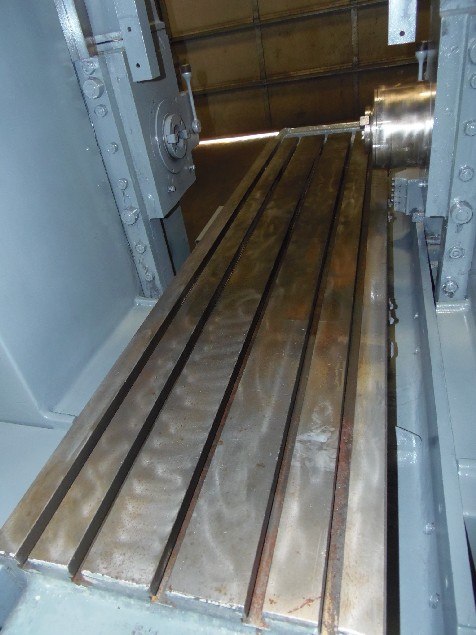

TABLE SIZE......................... 22" X 84" (558 MM X 2133 MM)

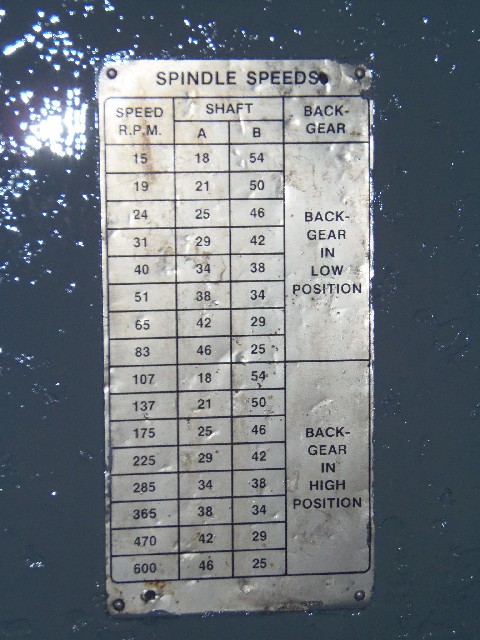

RPM RANGE WITH PROPER GEARS........ 30-1200 RPM
SPINDLE TAPER...................... 50
DISTANCE BETWEEN SPINDLES.......... 29" (736 MM)
TABLE TRAVEL ...................... 60" (1524 MM)
HORSEPOWER PER SPINDLE............. 30
VERTICAL TRAVEL ................... 14-1/2" (368 MM)
QUILL SIZE......................... 8-1/2" (215 MM)
QUILL TRAVELS...................... 6.25" (158 MM)

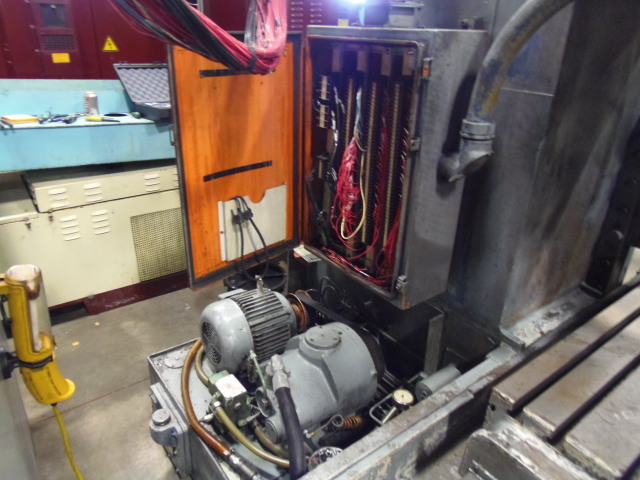

HYDRAULIC FEED MOTOR .............. 7-1/2 HP
WIRED ............................. 440V/3/60
EQUIPPED WITH:
AUTO RETRACT
POWER QUILL MOVEMENT
AUTO CYCLE

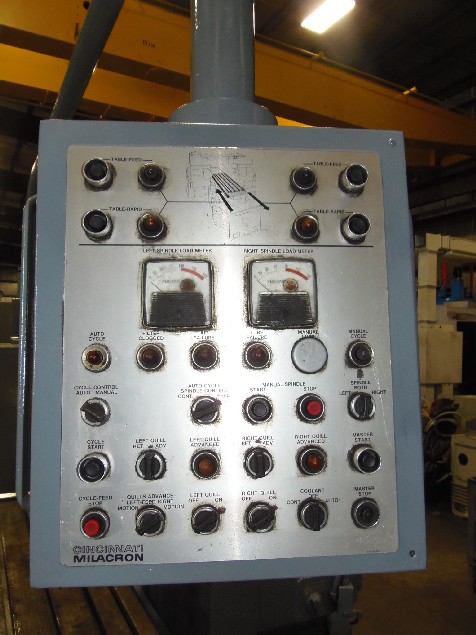

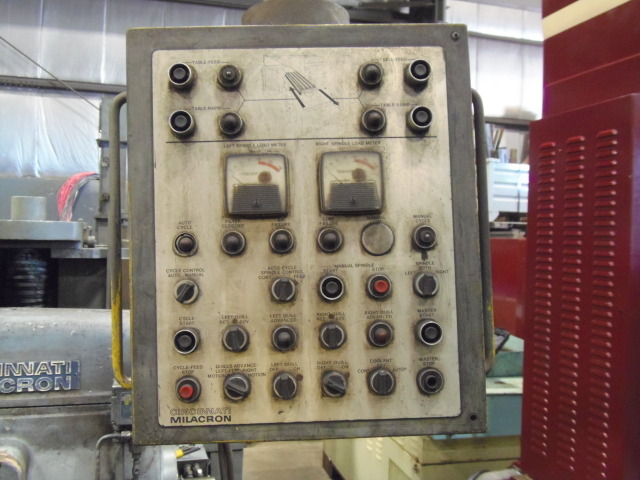

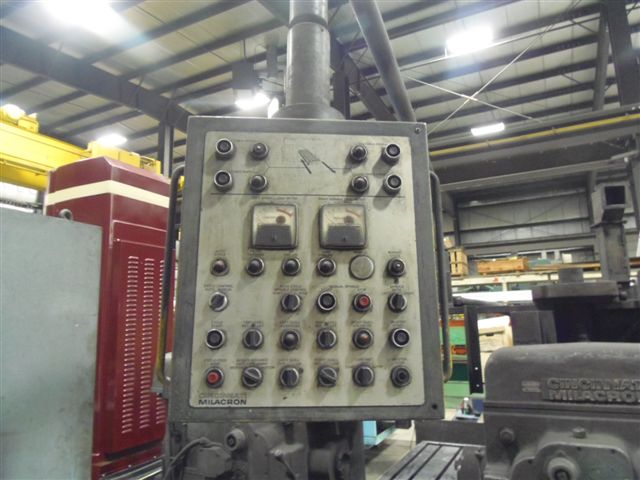

PENDENT
WET BASE
MISC CHANGE GEARS
SPECIFICATIONS SUBJECT TO VERIFICATION
