CINCINNATI 18U X 100, ACRA 900, 28" SW, 4.5" HOLE, 18" CHK,

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1984
SWING OVER SLANT BED 28"
SWING OVER CARRIAGE 18"
DISTANCE BETWEEN CENTERS 100"
HOLE THRU SPINDLE 4.56"
TURRET CROSS TRAVEL (X-AXIS) 22.5"
LONGITUDINAL TRAVEL (Z-AXIS) 103.5"
SPINDLE SPEEDS 16-1600 RPM
SPINDLE MOTOR 50 HP
FEED RATE 0-200 IPM
RAPID TRAVERSE RATE 400 IPM

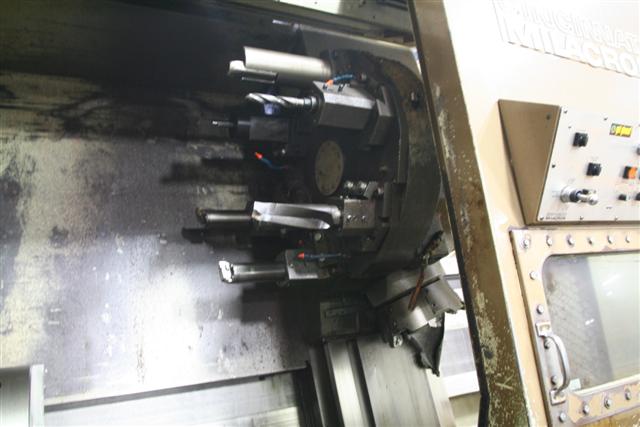

TURRET POSITIONS 6 I.D. & 6 O.D.
DIMENSIONS (APPROX.) 22'Lx8'Wx121"H
WEIGHT (APPROX.) 31,800 LBS.

EQUIPPED WITH:

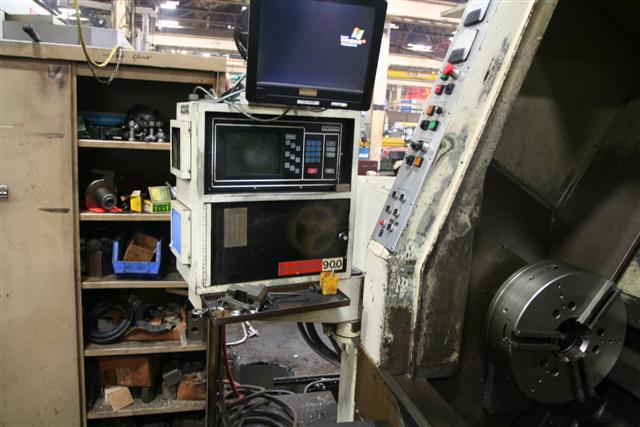

ACRAMATIC 900 CNC CONTROL W/CRT

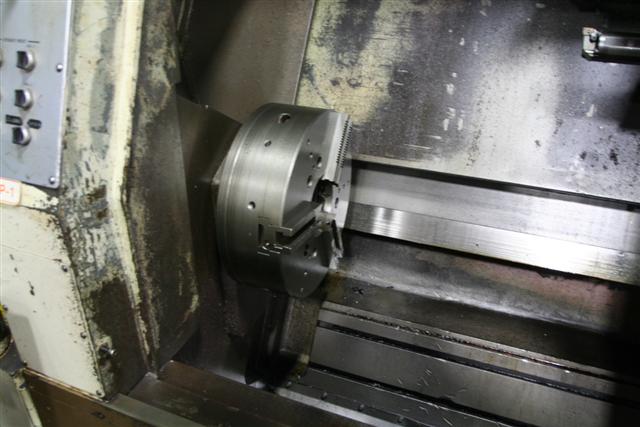

18" 3-JAW CHUCK

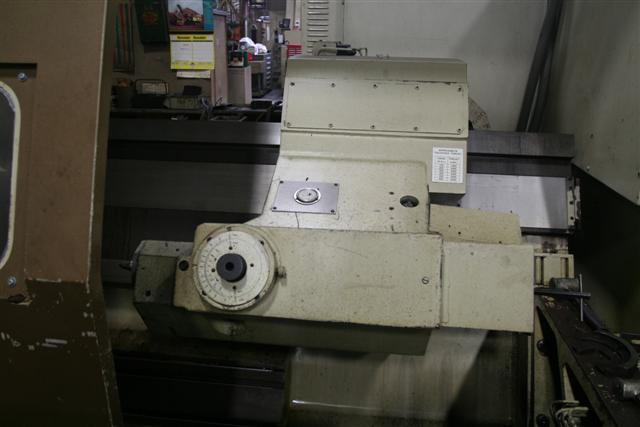

PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
COOLANT SYSTEM
