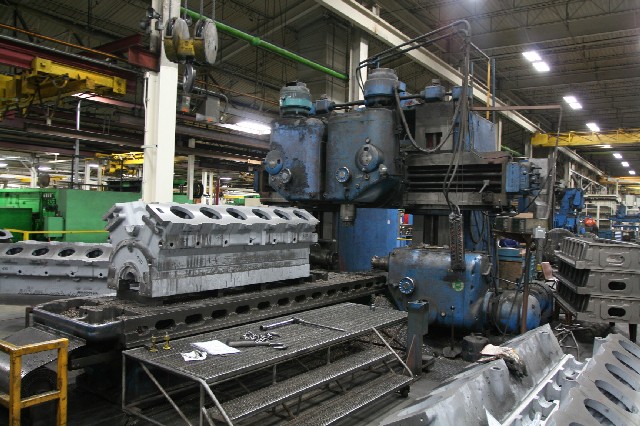

CIN. HYPRO 44 X 144 PLANER MILL, REBUILT 1980, 60" VERT., 4 MILLING HEADS, 20 HP

GENERAL SPECIFICATIONS:

MANUFACTURER----------------------------CINCINNATI HYPRO
SERIAL NUMBER---------------------------6444
AGE-------------------------------------1948 REBUILT 1980
TABLE SIZE------------------------------44" X 144" (1118 X 3658)
TABLE TRAVEL----------------------------160" (4064)
DISTANCE BETWEEN HEADS------------------54" (1372)
DISTANCE UNDER RAIL---------------------66" (1676)
QUILL MOVEMENTS-------------------------16" (406)
# OF HEADS------------------------------4
SPINDLE TAPER---------------------------50
HORSEPOWER OF HEADS---------------------20
HEAD SPEEDS (LOW)-----------------------10-36 RPM
(HIGH)----------------------55-200 RPM

EQUIPPED WITH:

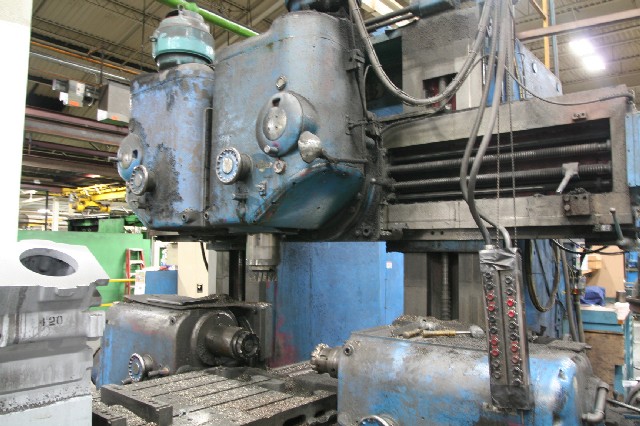

2 RAIL HEADS
2 SIDE HEADS

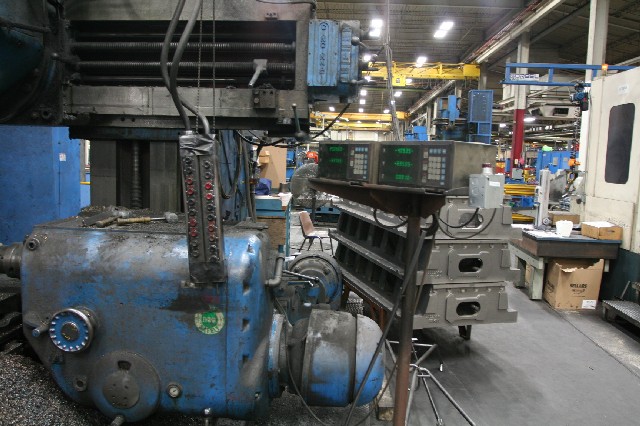

DIGITAL READOUTS FOR RAIL VERTICAL, SIDE HEADS UP/DOWN, AND RAIL HEADS IN/OUT
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
