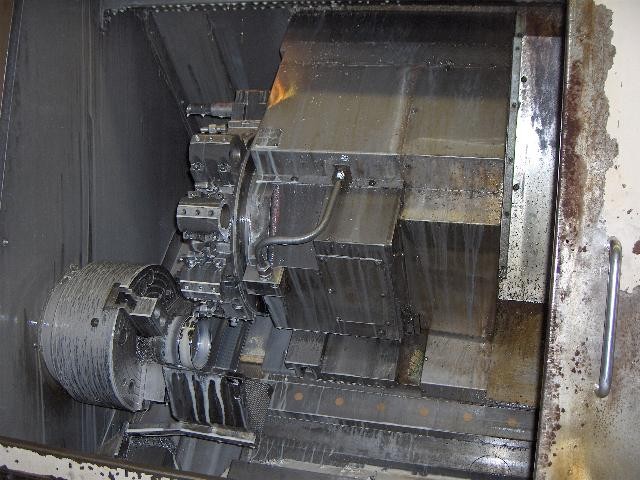

CHURCHILL HC4/10, 24" SW, 40" BC, 3.15" BAR CAP., A2-8 NOSE, 3.5" BORE, FANUC 10-T, 1985

GENERAL SPECIFICATIONS:
MANUFACTURER CHURCHILL
MODEL HC4/10
NEW (APPROX.) 1985
SWING OVER BED 24"
SWING OVER CROSS SLIDE 14"
DISTANCE BETWEEN CENTERS 40"
BAR CAPACITY 3.15"
SPINDLE NOSE A2-8
SPINDLE BORE 3.5"
SPINDLE SPEEDS 30 - 3000 RPM
SPINDLE MOTOR 24 KW (APPROX. 30 HP)
TURRET STATIONS 12
X-AXIS TRAVEL 7"
Y-AXIS TRAVEL 40"
ELECTRICS 460/3/60

EQUIPPED WITH:

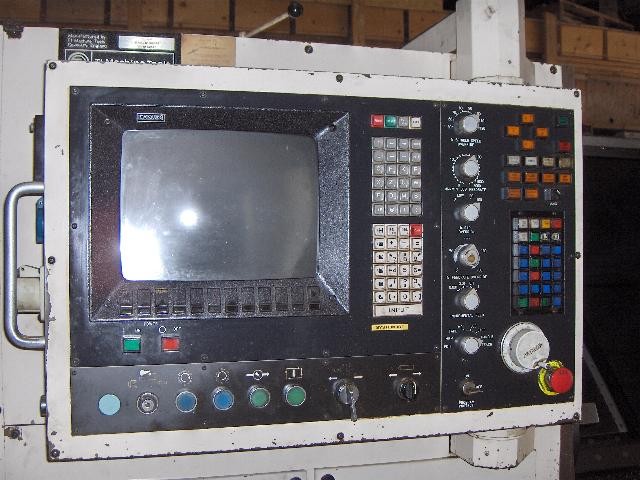

FANUC 10-T CONTROL
12" CHUCK
CHIP CONVEYOR
PARTS CATCHER
ASSORTED TOOLHOLDERS
