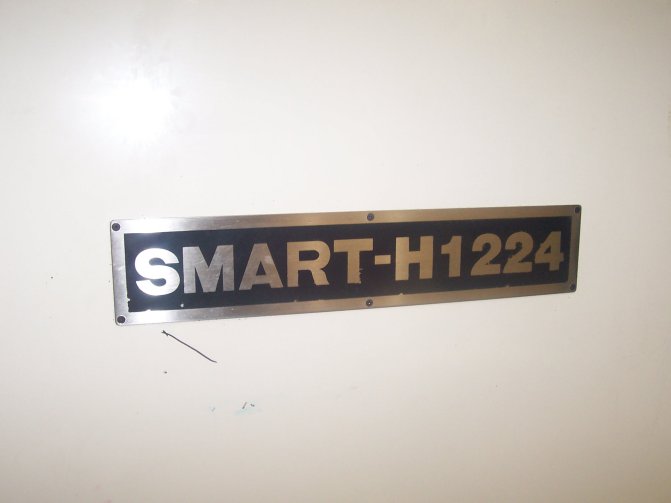

CHEVALIER SMART H1224, 2001, 12 X 24, COOLANT WITH FILTRATION, CANNED CYCLES

Specifications:
Manufacturer                                   Chevalier
Serial number                                   SE903001
Year mfg.                                          2001
Chuck Size                                       12" x 24"
Height under Wheel                          14"
Wheel Size                                       14"x 2" x 5"
Spindle Horsepower                         7.5 HP (Upgraded Variable Speed Spindle by AC Frequency Converter)
Automatic Downfeed Increment       .0001"
Number of CNC Axes                     2
Ballscrews in Z and Y axis
Overall Dimensions                           72" f-b x 128"l-r x 84"h

Includes:
Coolant System with Paper Filter
OS Walker Electric Chuck (LPB)
7.5 HP Variable Speed Spindle by AC Frequency Converter 230 volt
Auto chuck Control
Machine Lamp for Full Splash Guard

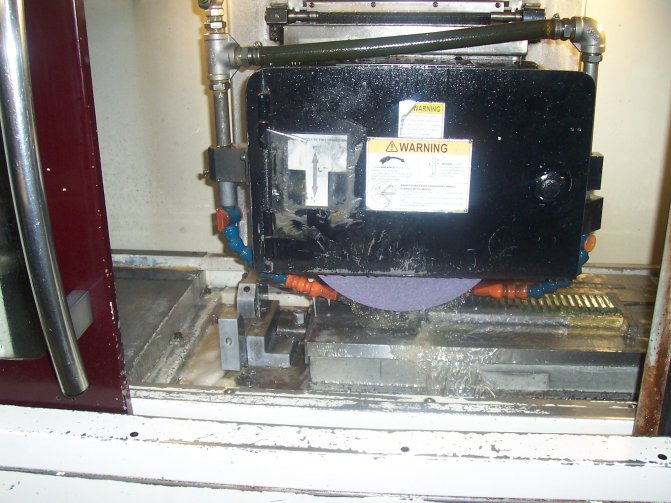

Full Enclosed Splash Guard
3 Face Side Mount Dresser

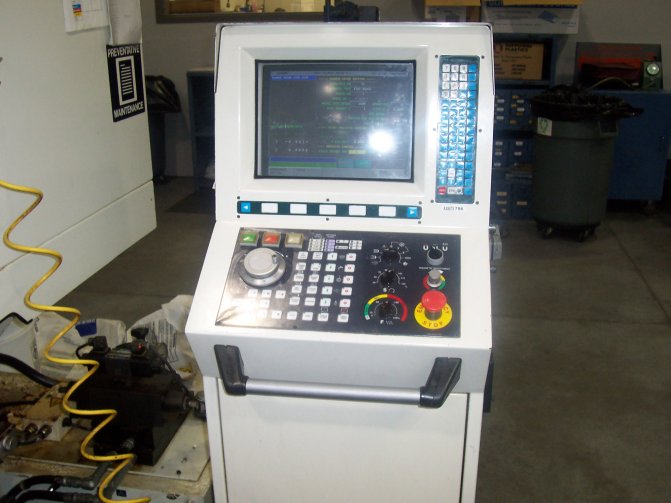

Features: 15" Color Monitor with full alphanumeric key board.  RS 232 port and floppy drive for CAD/ CAM Files.  Canned Cycles: surface, plunge/slice, crisscross, step and profile grinding. Automatic Wheel Dresser with Compensation.  Simulation mode for programming and previewing single part/prototype runs.  Dressing Options: 3 Point Dresser.
