Specifications
Equipped With
GENERAL SPECIFICATIONS:

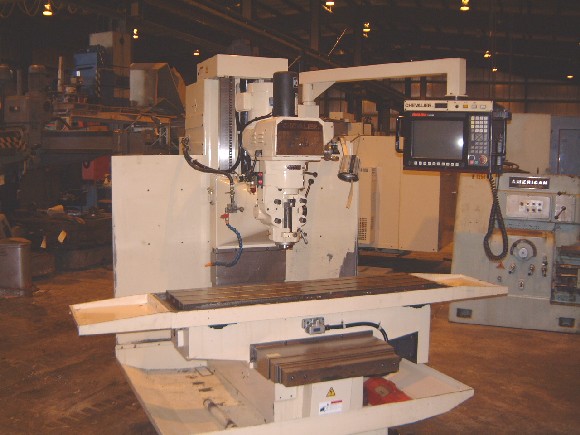

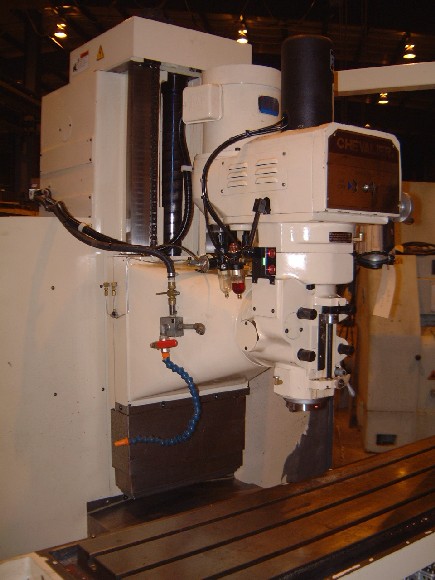

MANUFACTURER CHEVALIER
MODEL FALCON 2040MB-D
NEW (APPROX.) 1998
X TRAVEL 40"
Y TRAVEL 20"
Z TRAVEL 24"
QUILL TRAVEL 5"
TABLE SIZE 13" x 54"
HORSEPOWER 5 HP
SPINDLE TAPER NST 40
SPEED RANGE 80 - 4000 RPM
HEAD SWIVEL (R & L) 90 DEG.
Z RAPID TRAVEL 200 IPM
X & Y RAPID TRAVEL 300 IPM
DIMENSIONS (APPROX.) 87" x 75" x 93"
WEIGHT (APPROX.) 6,600 LBS.
EQUIPPED WITH:

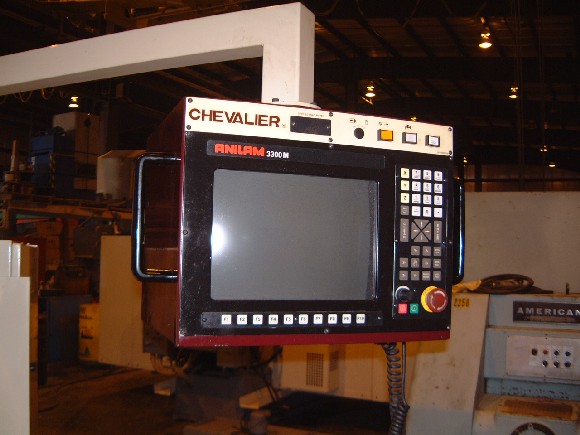

ANIMLAM 3300M 3-AXIS SIMULTANEOUS CONTROL
14" CRT
3.5" FLOPPY DISK
1.44 MB HARD DISK DRIVE
EASY TO USE MACHINISTS PROGRAMMING LANGUAGE
DRAW WHILE CUTTING GRAPHICS & SIMULATION GRAPHICS
RS 232
MACHINE ERROR COMPENSATION
RATE
MIRROR IMAGE
SCALING
SUB-PROGRAMS
REPEAT LOOPS
CANNED CYCLES
OFF SETS
RUBBER WAY COVERS
CHIP PAN
FLOOD COOLANT
AUTOLUBE
