MACHINE SPECIFICATIONS:

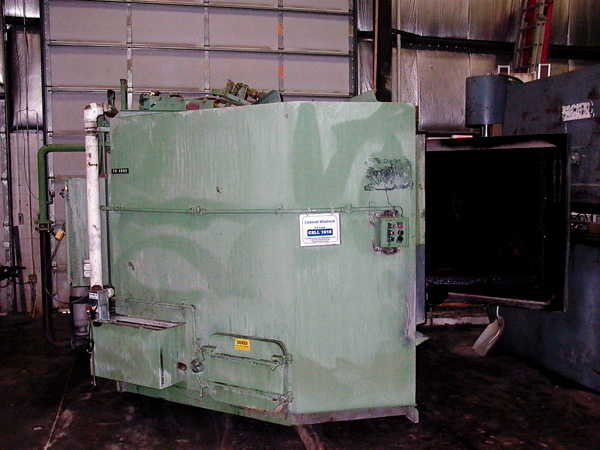

MAKE: ----------------------- CONTINENTAL EQUIPMENT CORP
MODEL: ---------------------- C306
SERIAL #: ------------------- PW93-C306

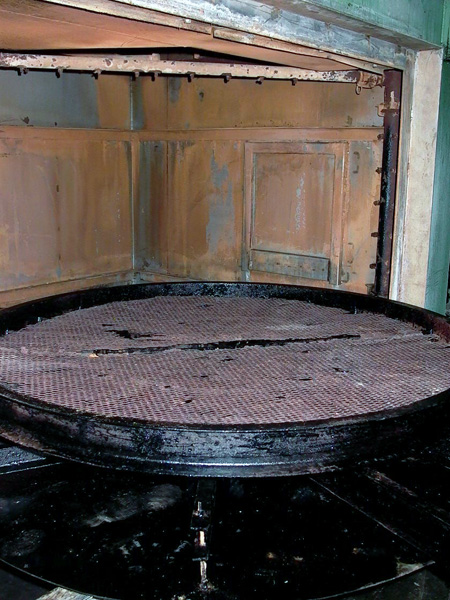

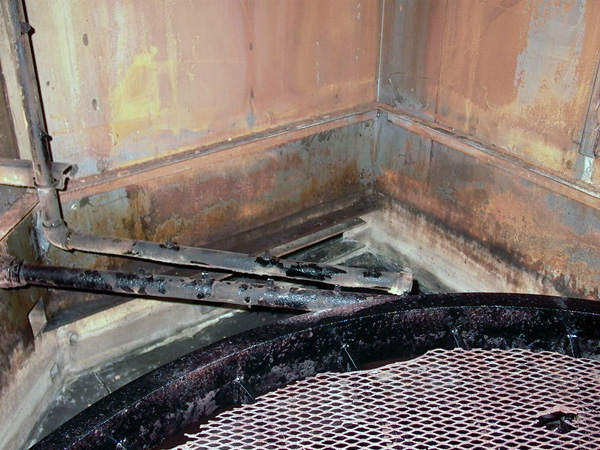

ROTARY TABLE DIAMETER: ------ 60 INCH

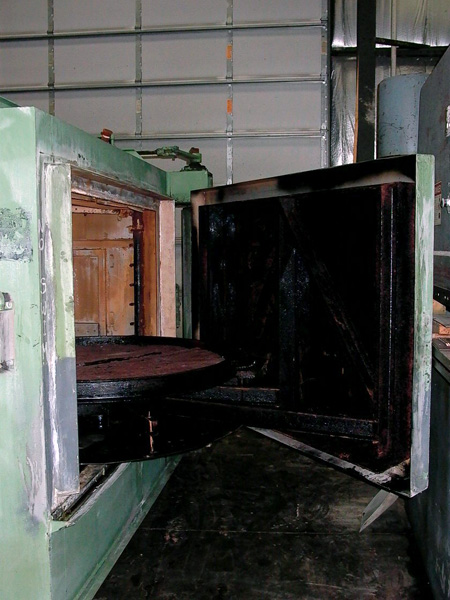

DOOR OPENING/PART HEIGHT: --- 3 FT
WASH CYCLE:
MAX TEMP: ------------------- 150 F
TIME CYCLE: ----------------- 1-30 MIN.
NO. PIPES: ------------------ 3
NO. NOZZLES: ---------------- 30 / H1-4UI6540 / 40 PSI / 4 GPM EACH
TANK CAPACITY: -------------- 650 GAL.

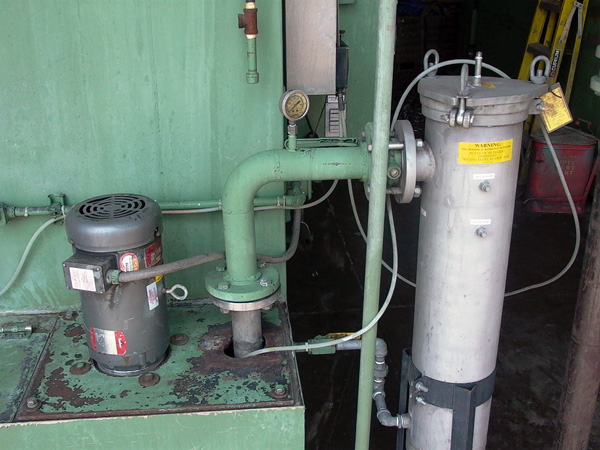

PUMP: ----------------------- 120 GPM / HEAD 125 FT

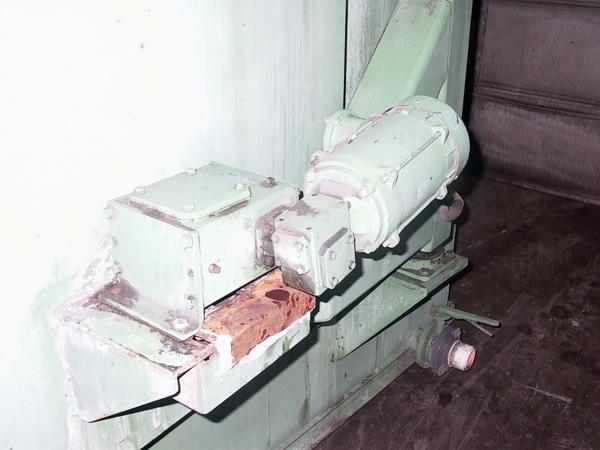

MOTOR: ---------------------- 7.5 HP / 3600 RPM
STEAM HEAT: ----------------- 385,000 BTU/HR
RINSE CYCLE:
MAX TEMP: ------------------ 125 F
TIME CYCLE: ---------------- .1 - 1 MIN.
NO. PIPES: ----------------- 2
NO. NOZZLES: --------------- 5 / 3-8HHSS22 / 20 PSI / 3 GPM EACH
PUMP: ---------------------- 15 GPM
STEAM HEAT: ---------------- 300,000 BTU/HR
DIMENSIONS: 12' X 11'
WEIGHT: 8,000 LBS.
*NO HEATING ELEMENT
SPECIFICATIONS SUBJECT TO VERIFICATION
