GENERAL SPECIFICATIONS:

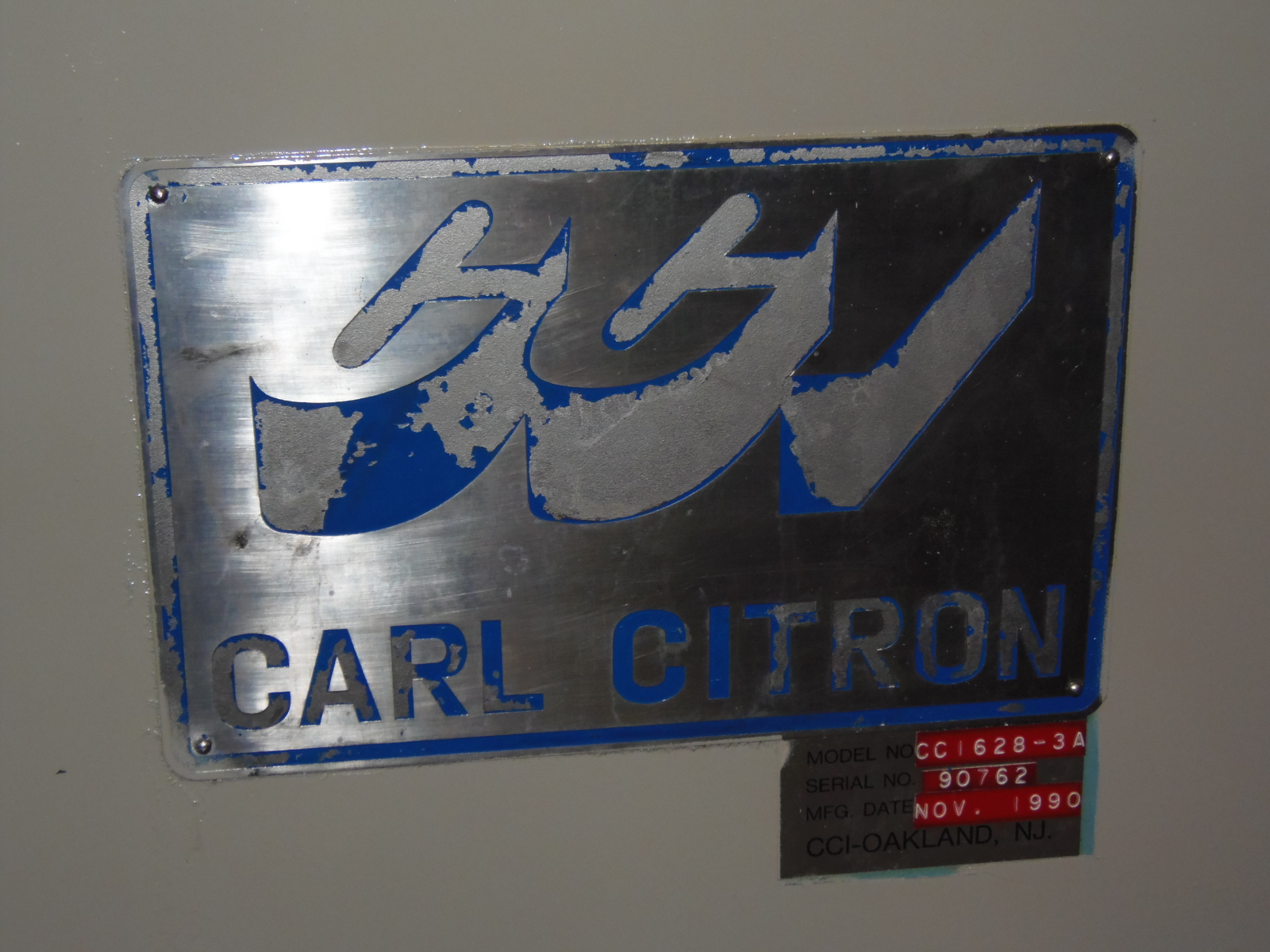

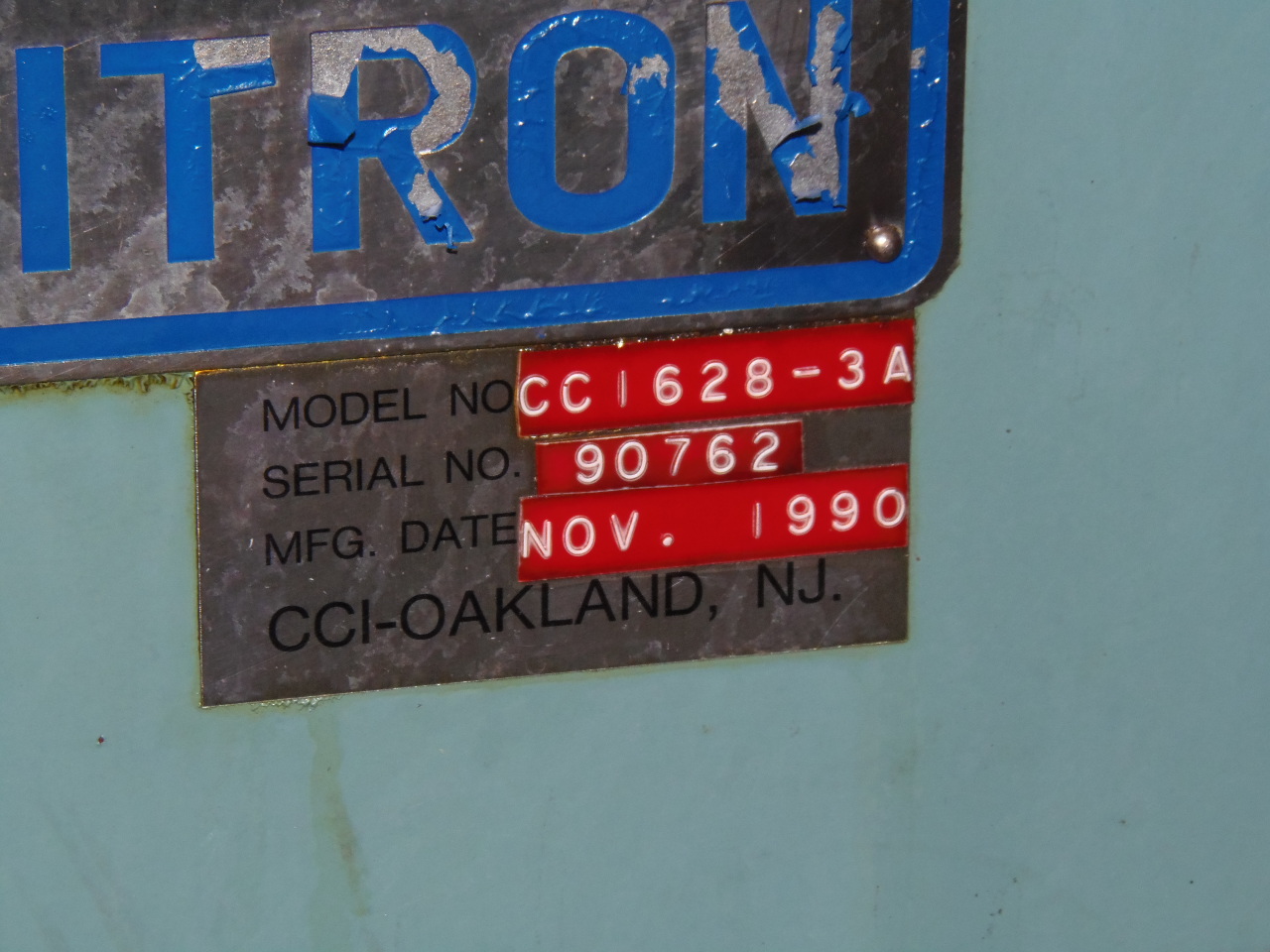

SERIAL NUMBER..................... 90762
AGE (APPROX)...................... 1990

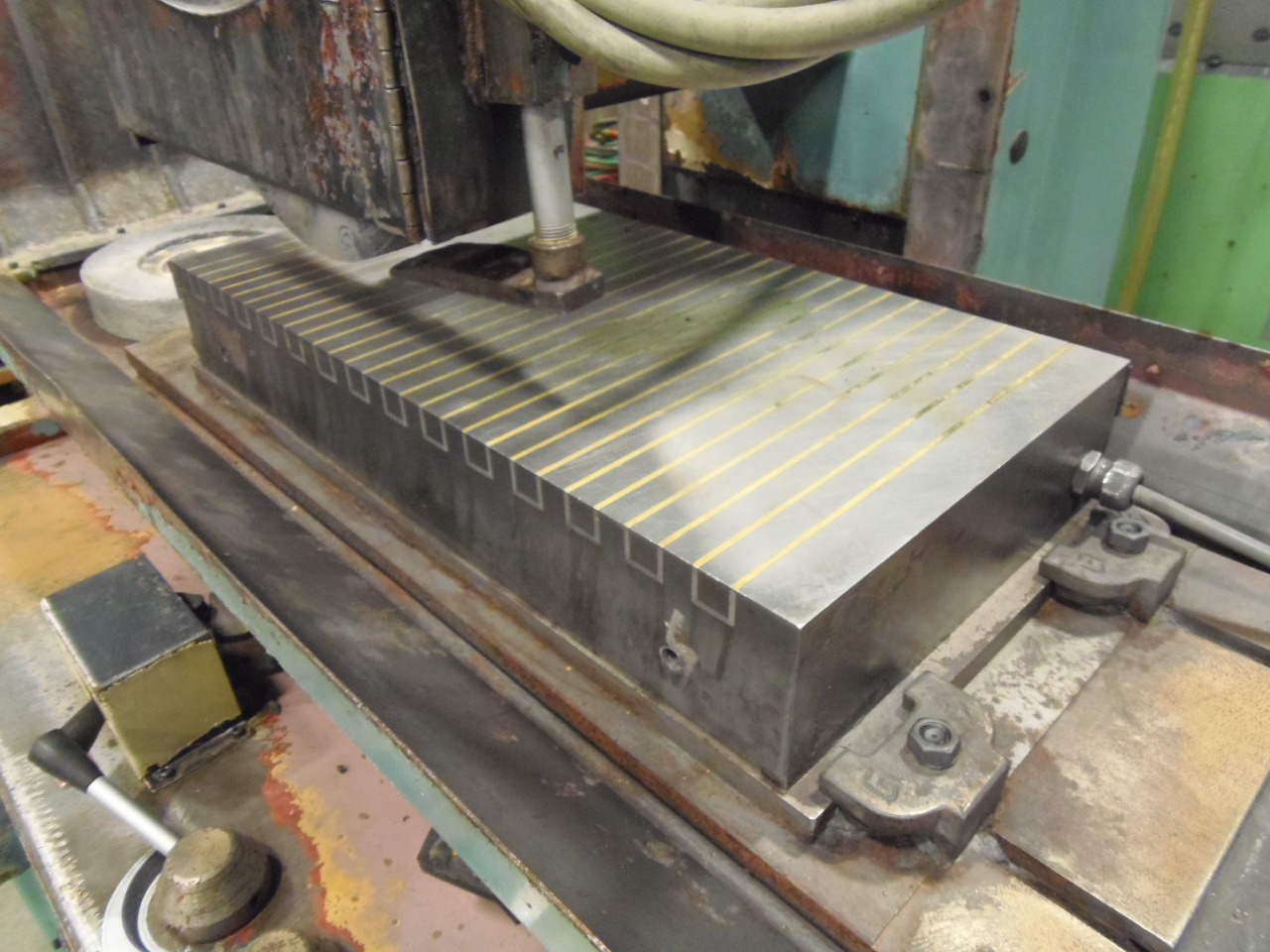

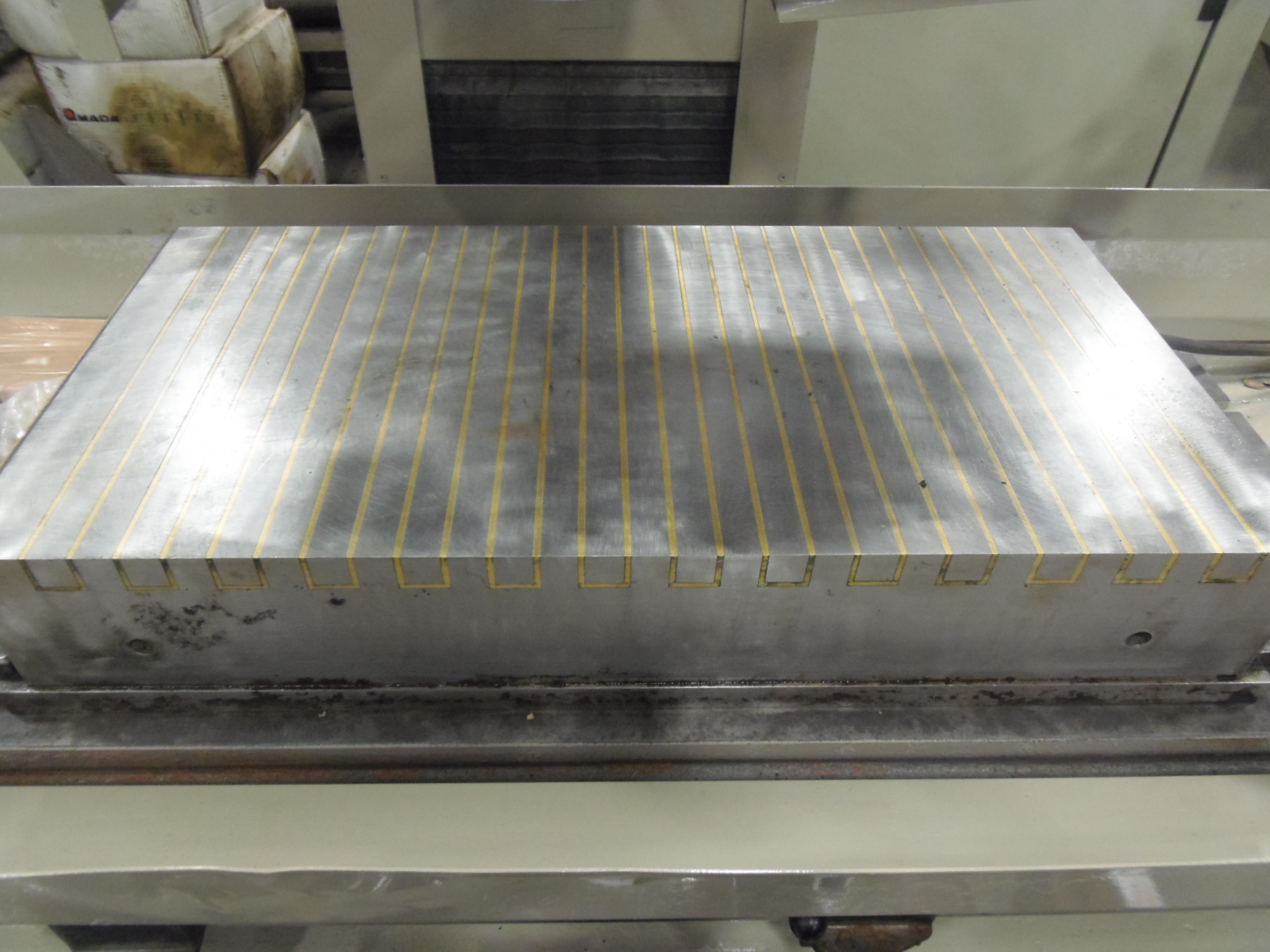

TABLE CLAMPING SURFACE............ 35.4" X 14"
TRAVELS
LONGITUDINAL................... 32.2"
CROSS.......................... 17"
MAX DISTANCE SPINDLE CENTER
TO TABLE.......................... 25.6"
RAPID DOWN FEED................... 9"/MINUTE
DOWN FEED PER DIVISION............ 0.0001"
AUTO DOWNFEED 6 STEPS............. 0.00025 - 0.002"
LONGITUDINAL TABLE SPEED.......... 3 - 85 FPM
CROSS FEED INTERMITTENT........... .004 - .62"
CROSS FEED CONTINUOUS............. 3.3 FPM
CROSS FEED PER DIVISION........... .001"

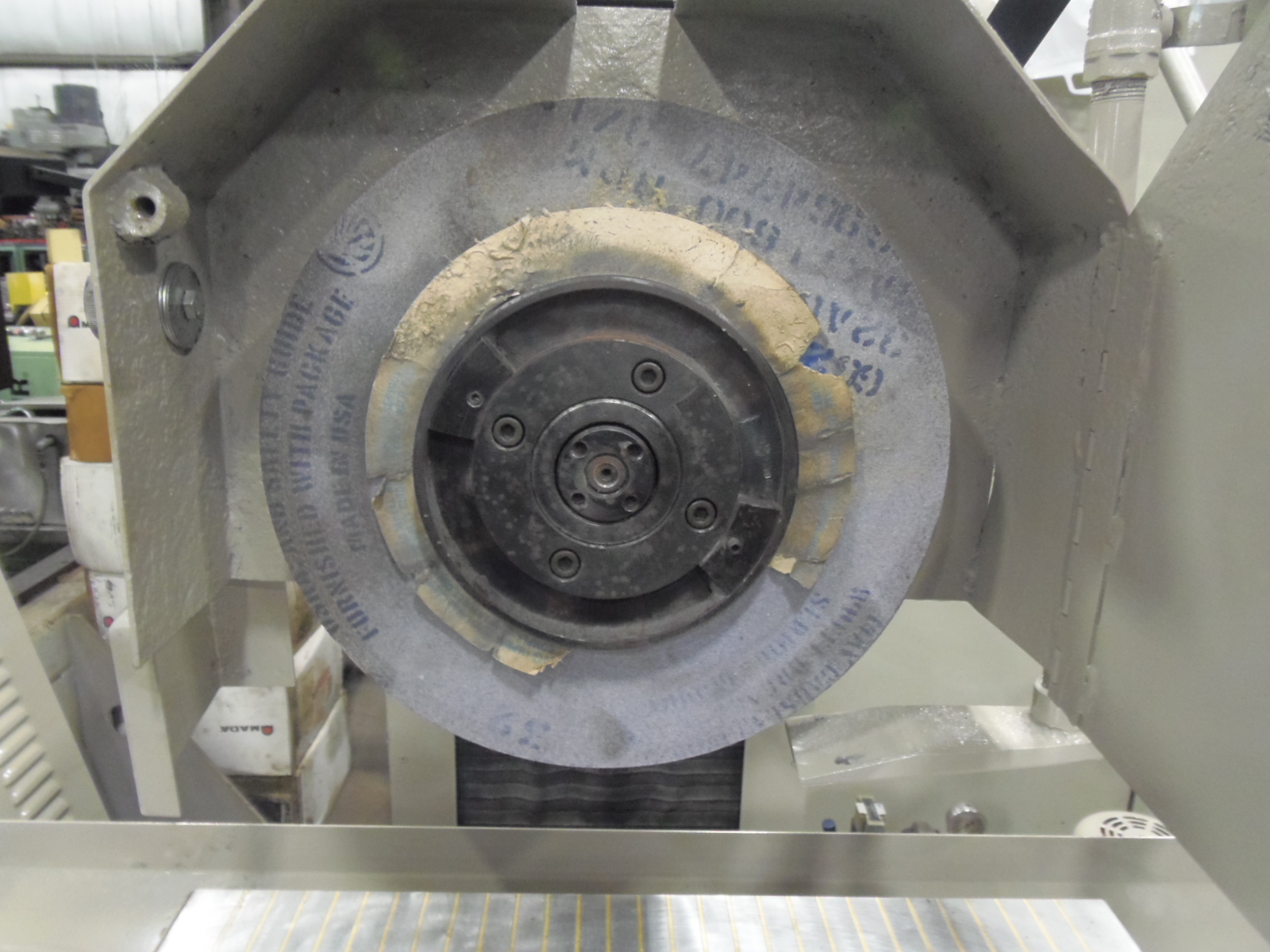

GRINDING WHEEL DIMENSIONS......... 12" X 5" X 1.5"
SPINDLE SPEED..................... 1720 RPM

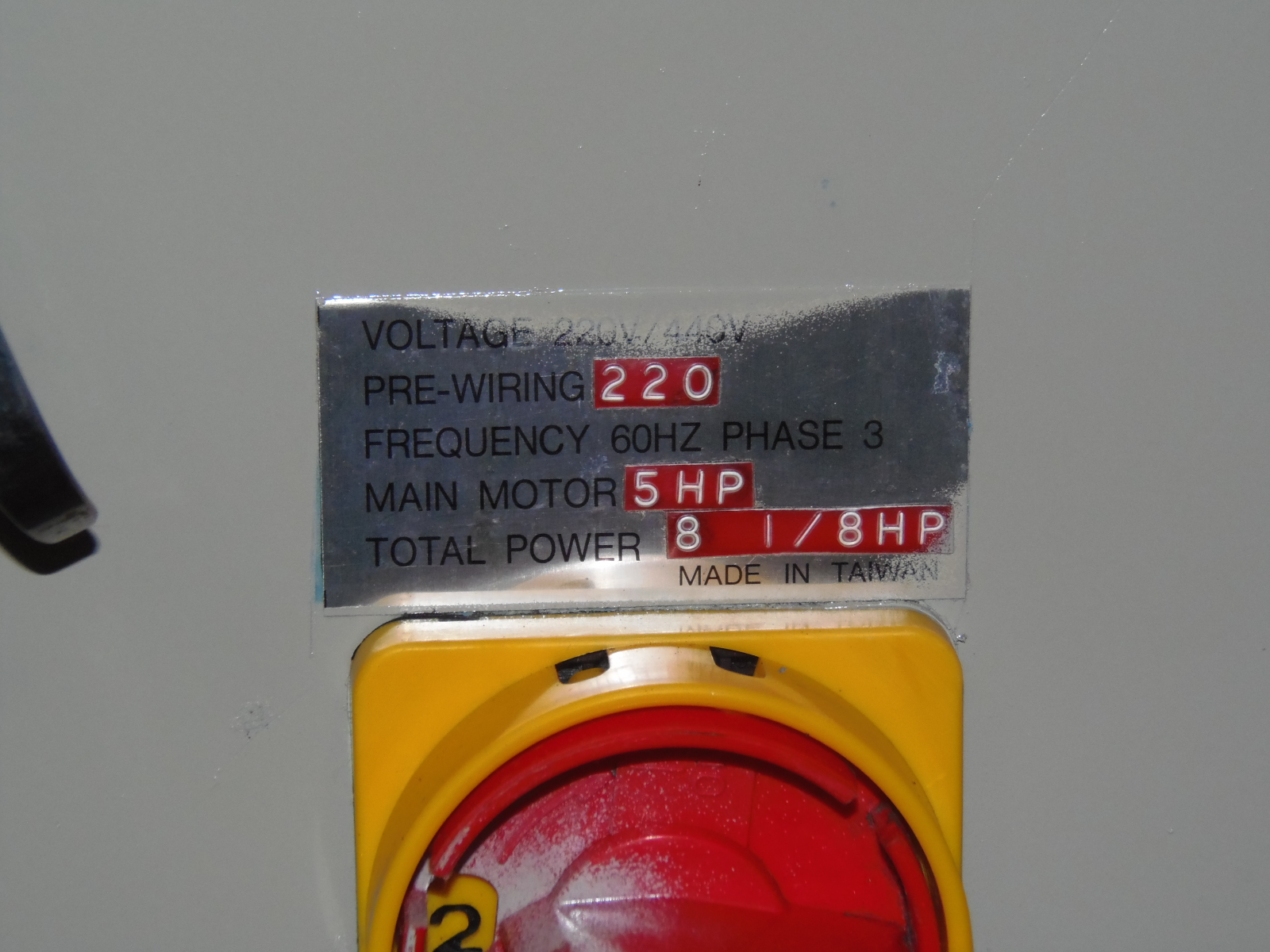

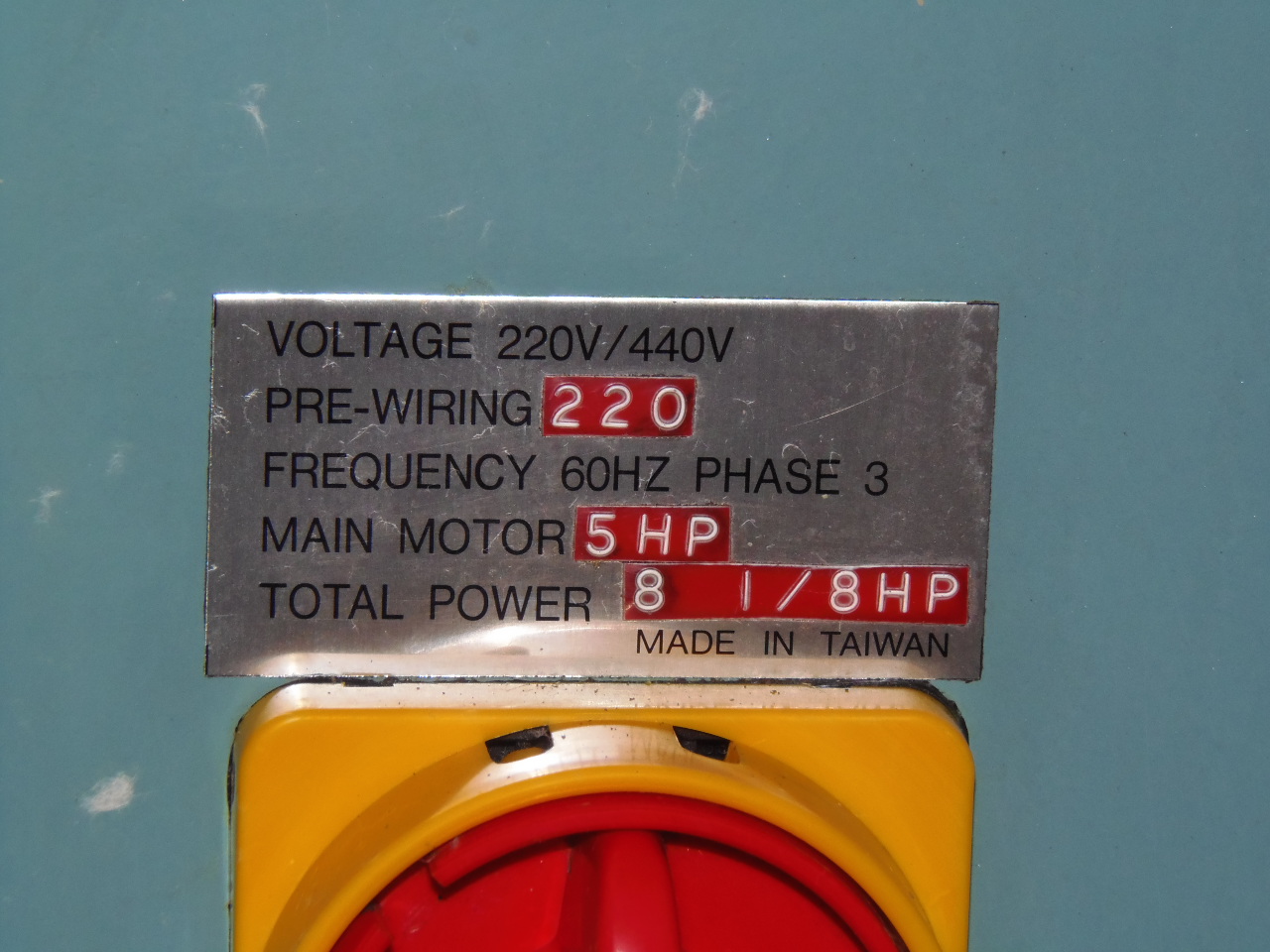

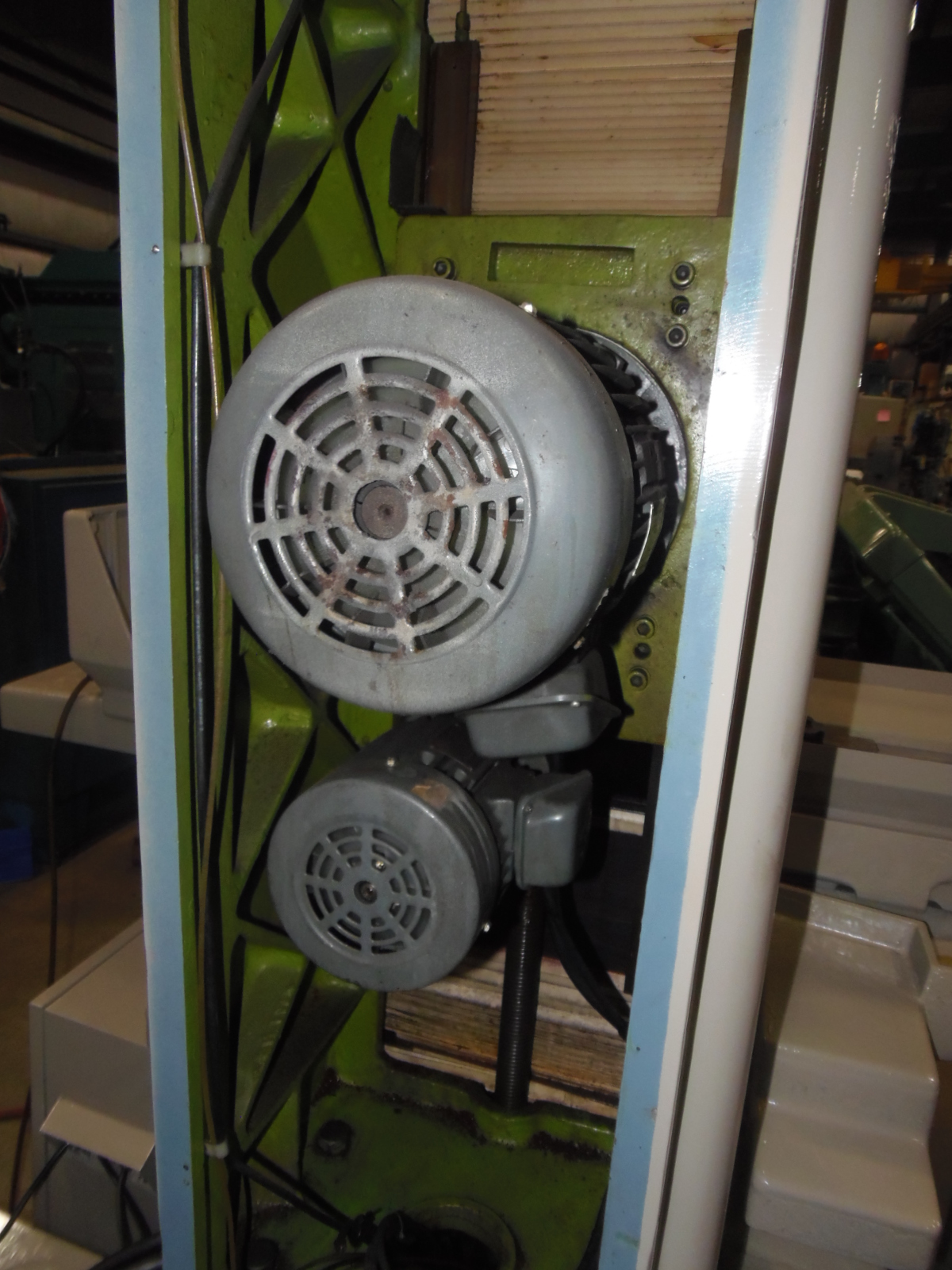

SPINDLE MOTOR..................... 5 HP

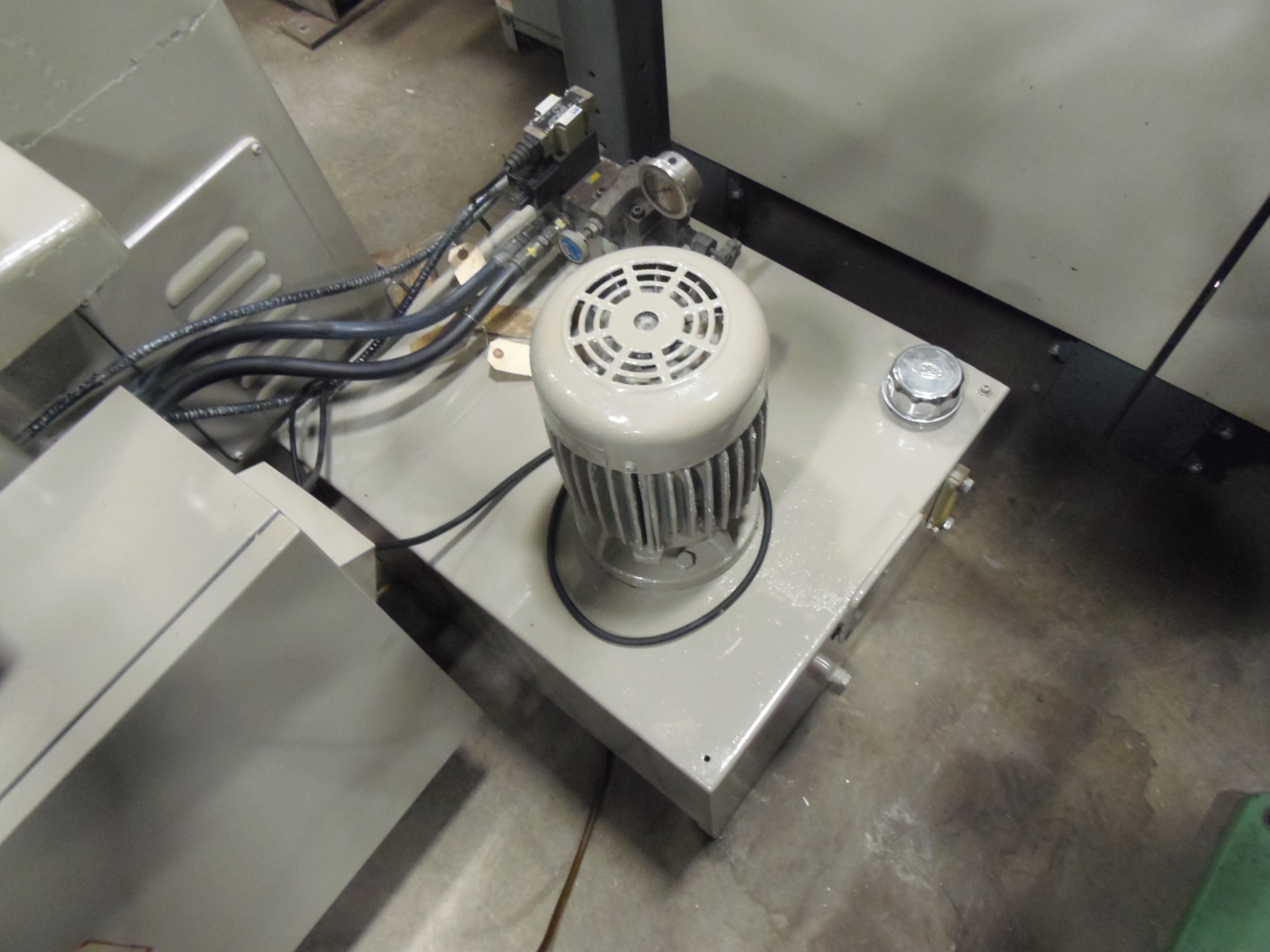

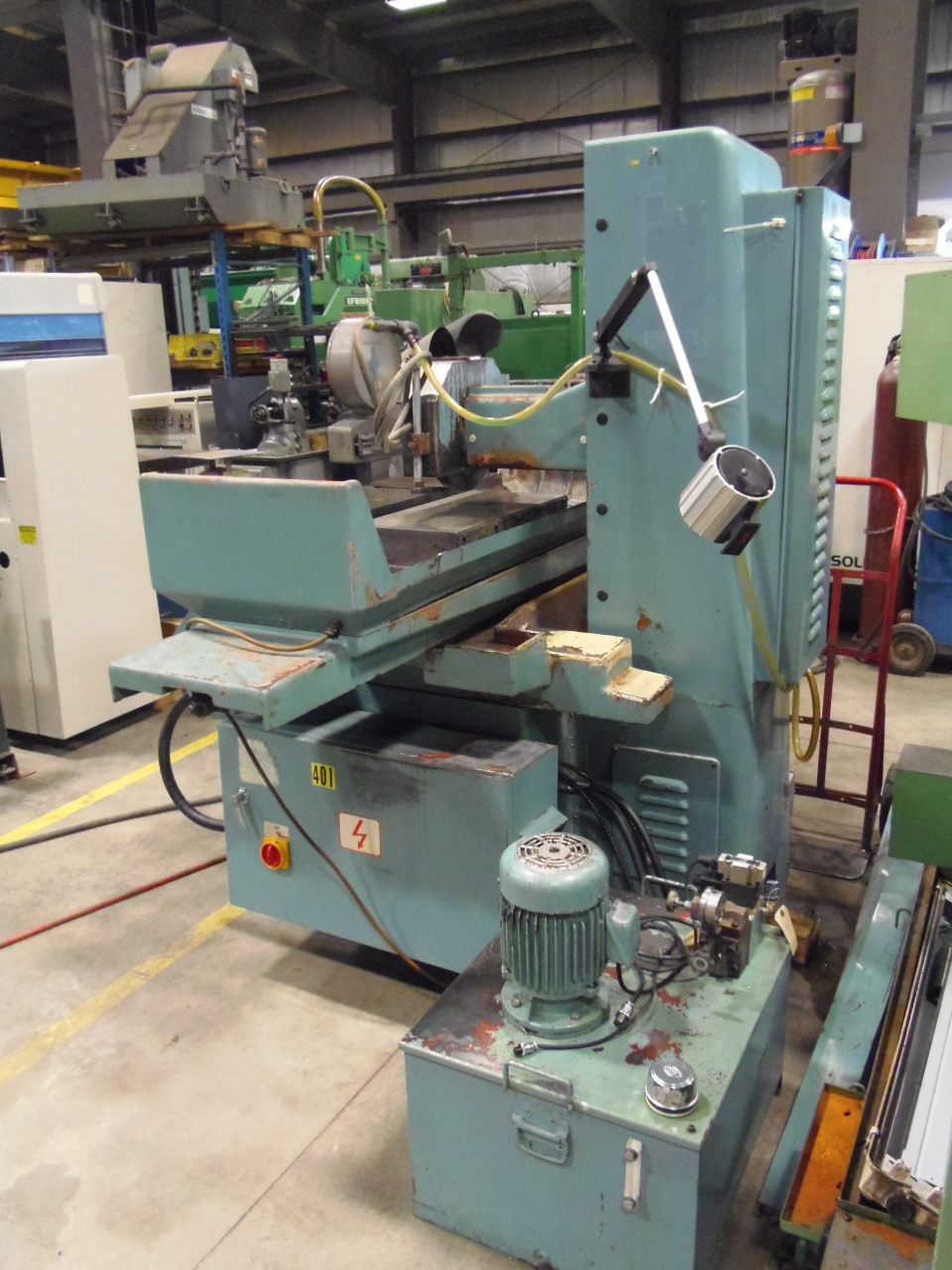

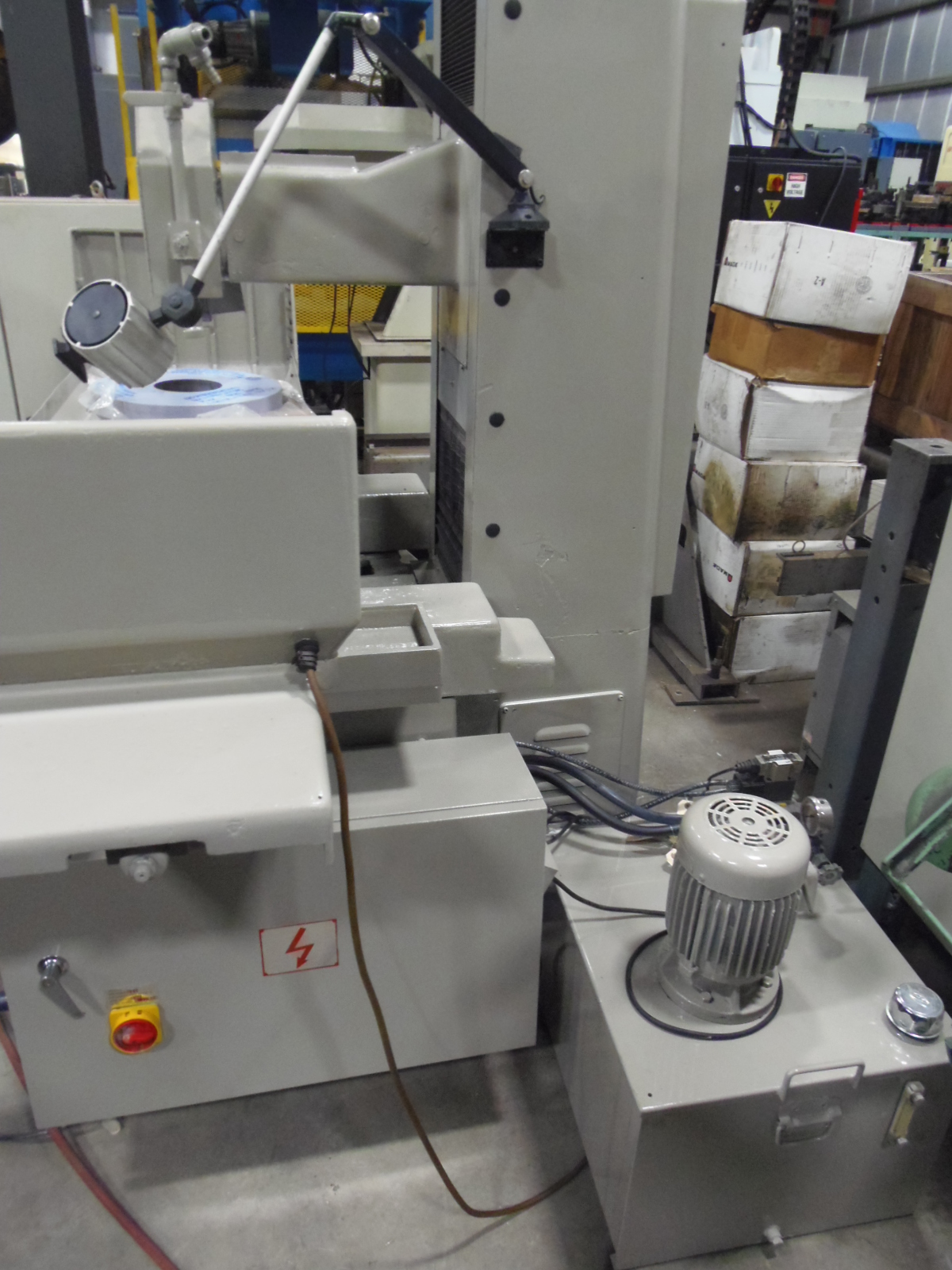

HYDRAULIC PUMP MOTOR.............. 2 HP
FLOOR SPACE....................... 117" X 77"
APPROX. WEIGHT.................... 6820 LBS
EQUIPPED WITH:

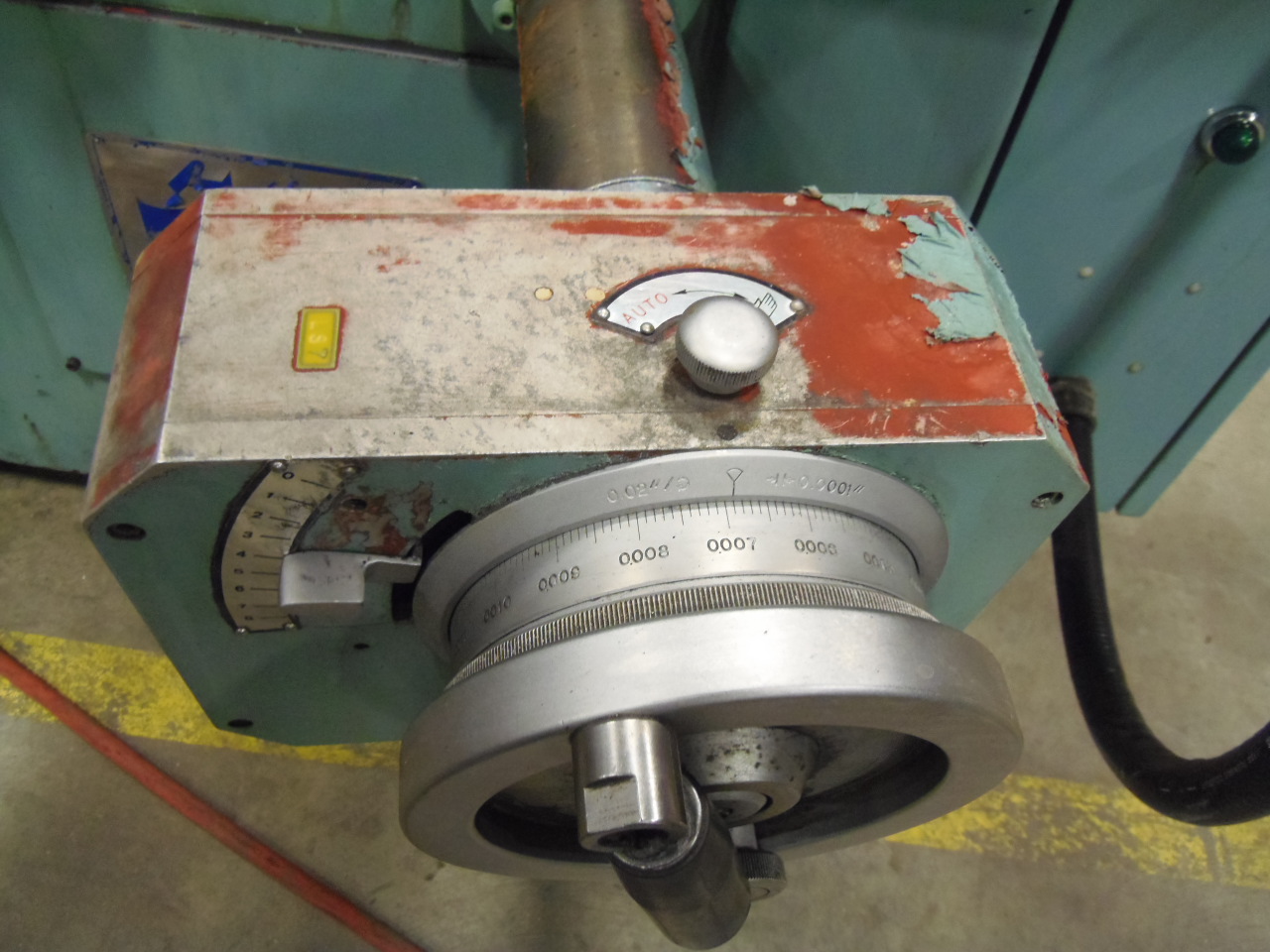

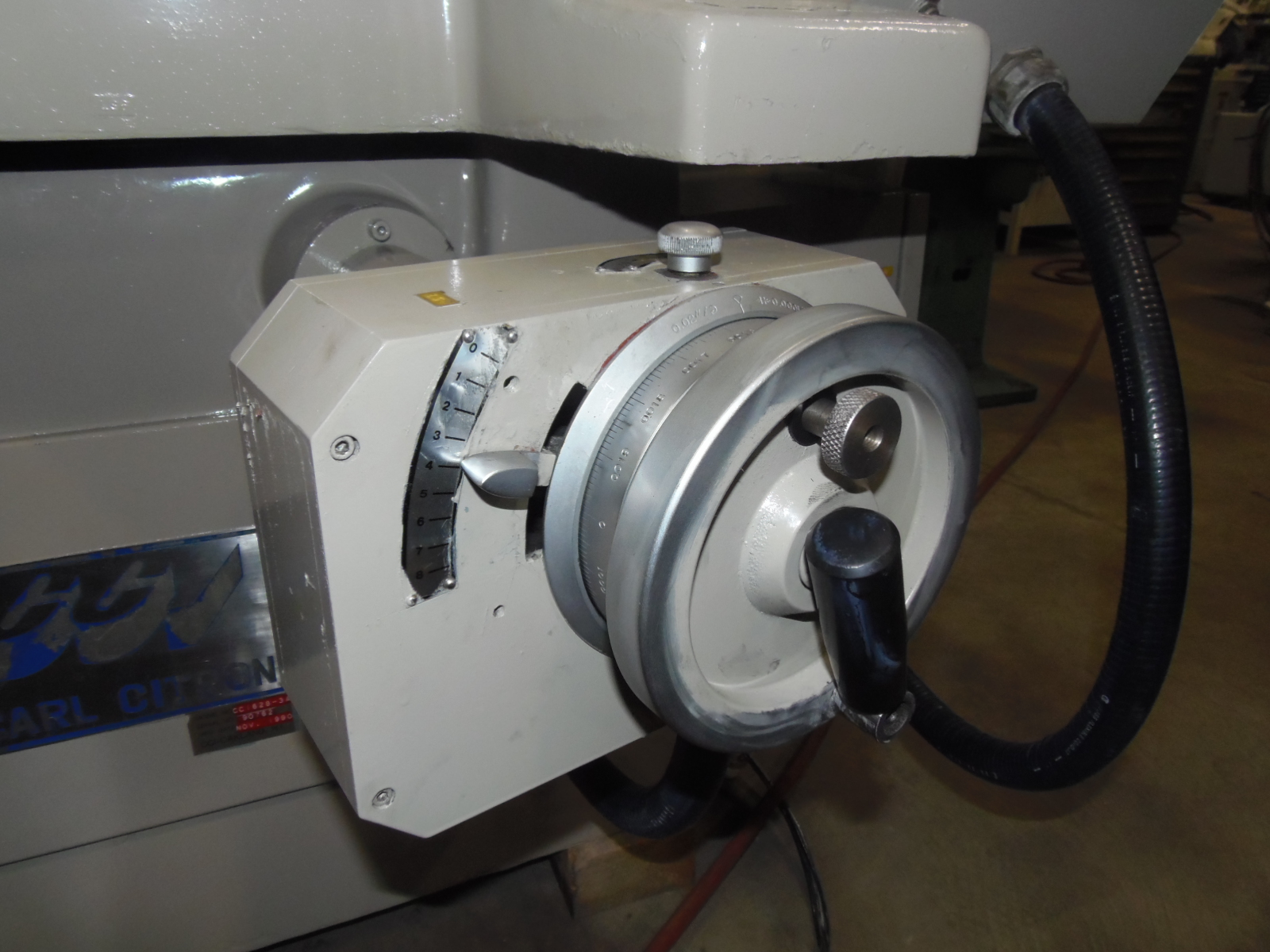

INCREMENTAL DOWN FEED
COOLANT SYSTEM

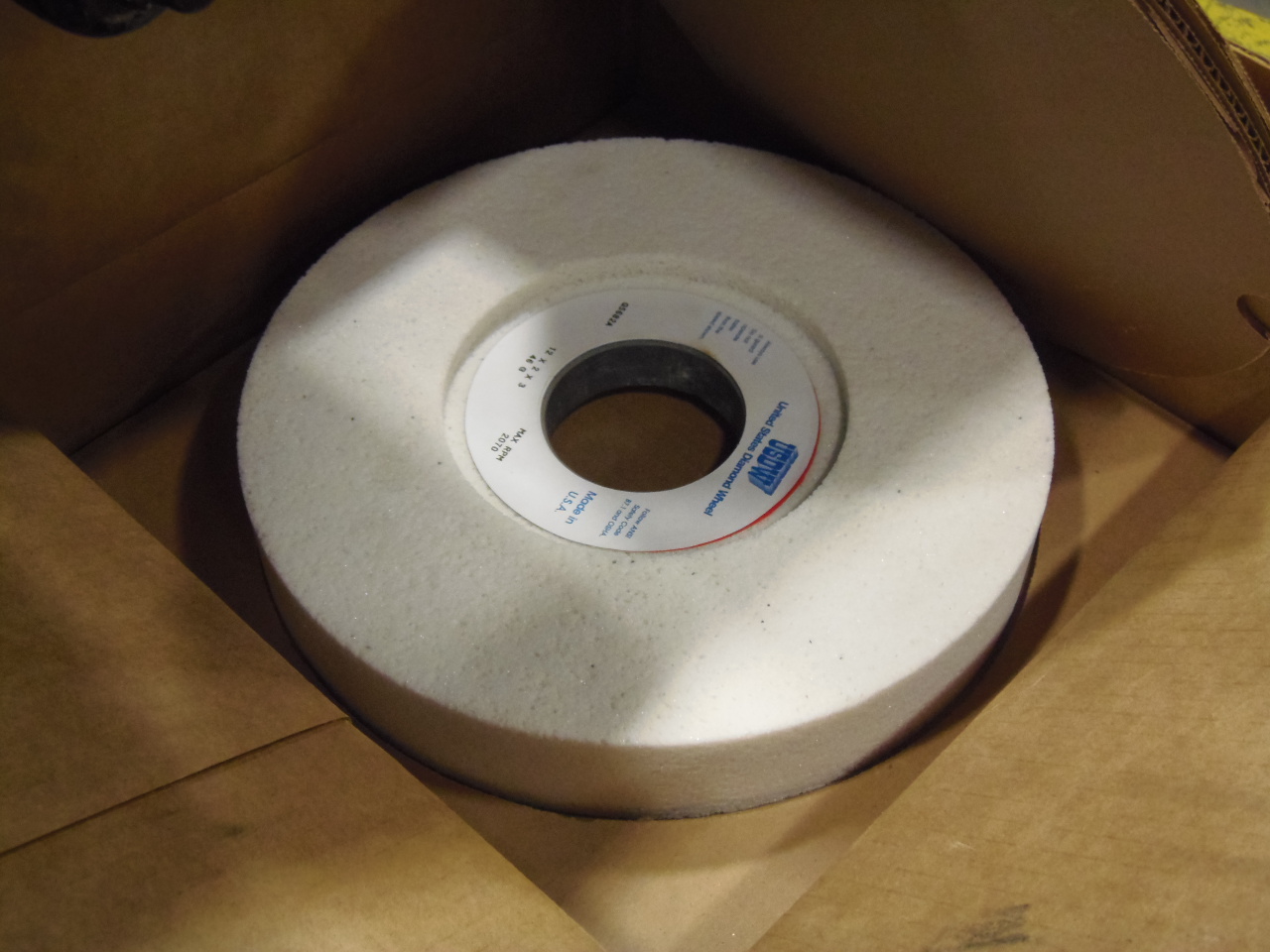

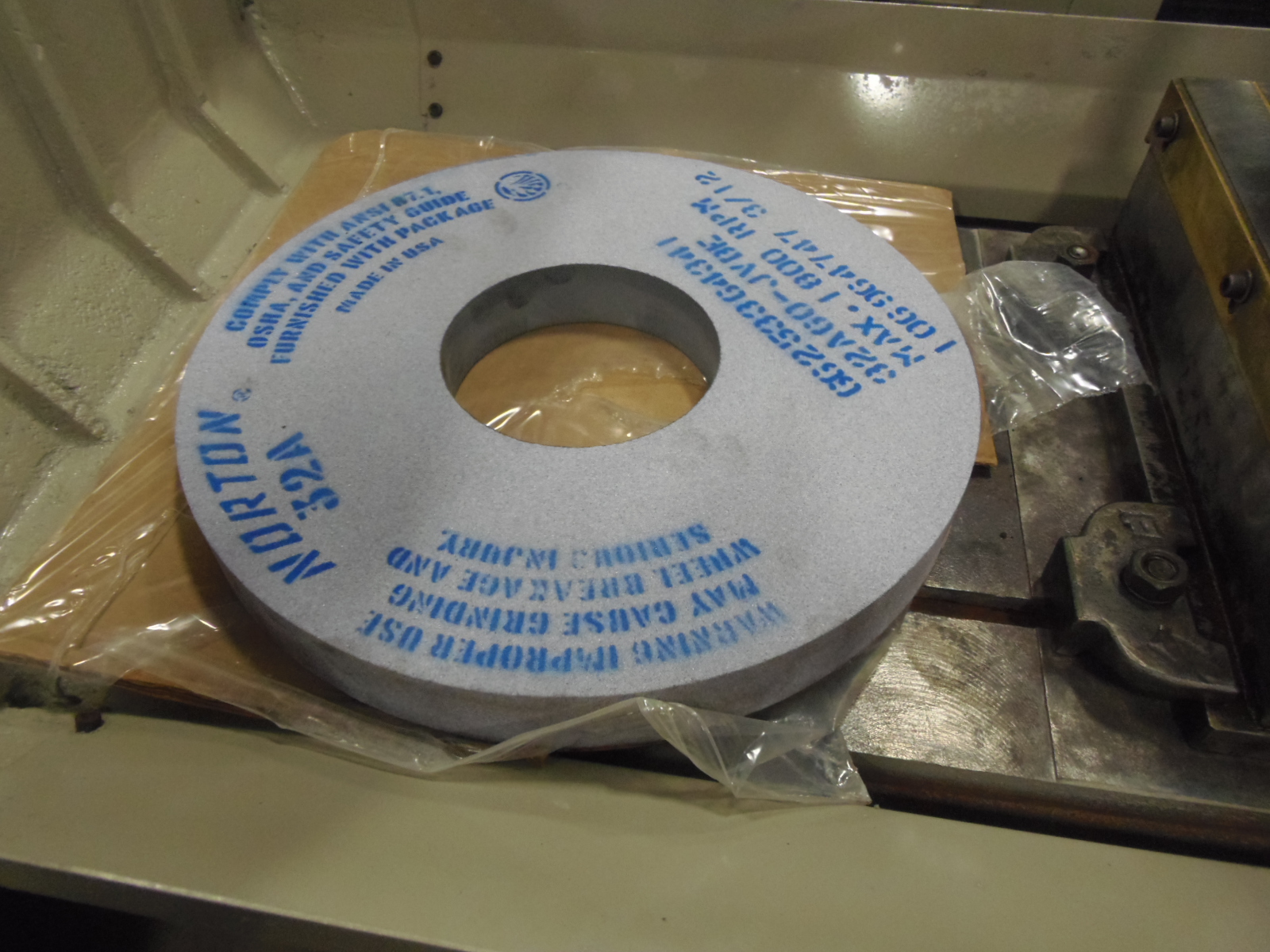

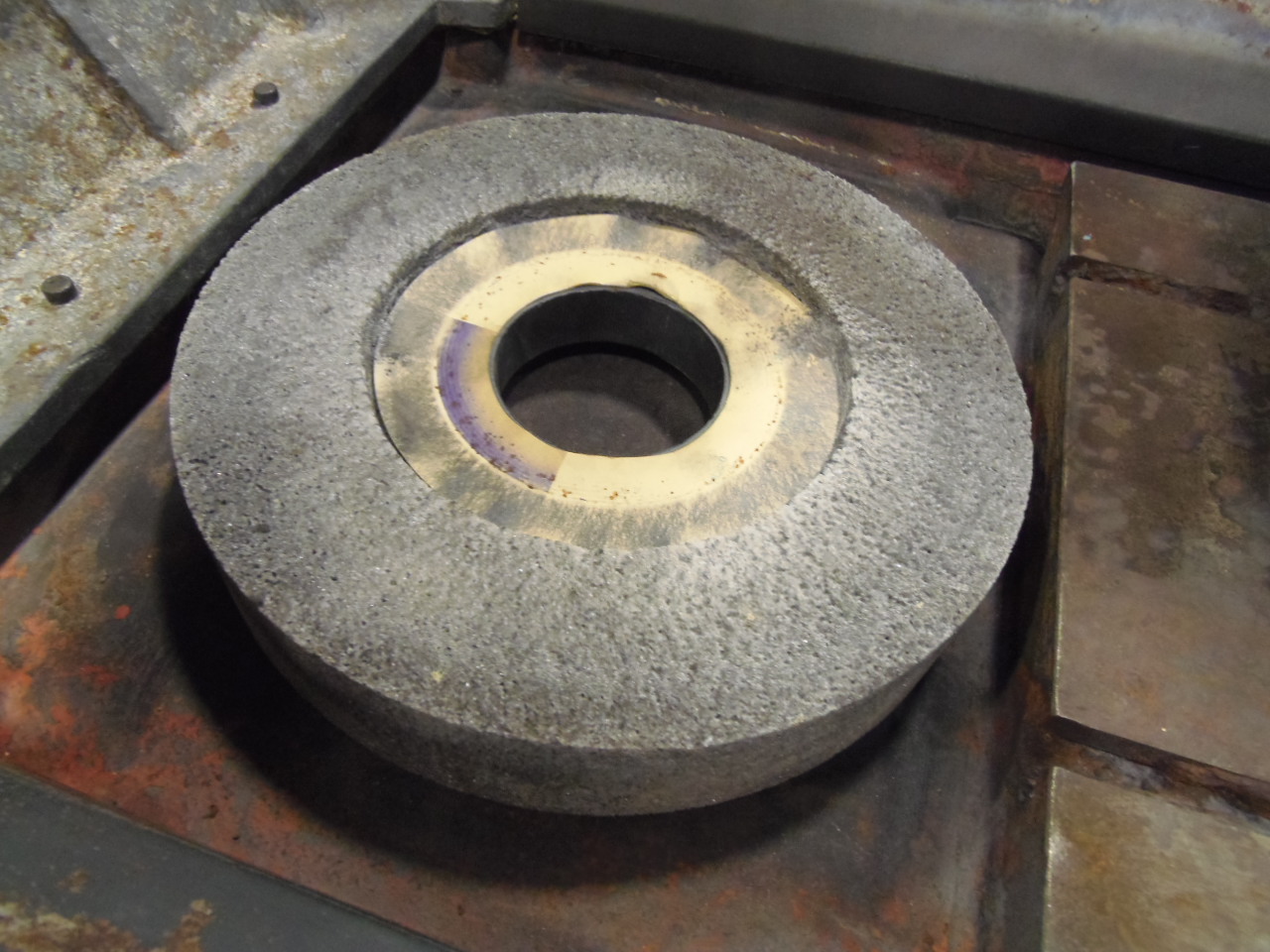

EXTRA WHEELS
SPECIFICATIONS SUBJECT TO VERIFICATION
