Specifications
Equipped With
Drill Capacity in Steel (C 1040) 1 3/4" (2" capacity in Bll12)
Tap Capacity in Steel (C1040) 1 3/4" - 12Number of tool holders 30
Quill Travel Up and Down 16" (4" req. for Tool Change)

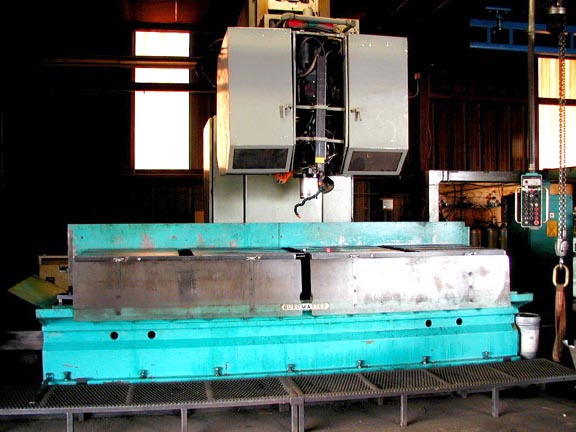

X and Y Axis Movement by Traveling Column 36" x 144"
Spindle-to-Table: Quill Up, Head Up 40"Down, Head Down 2"Head Adjustment, Up-Down 22"
Throat Depth 41"
Spindle taper Cat #45 Quill Diameter 6"
SPEEDS AND FEED RATES
Spindle Speeds - Programmable 30 - 3000 RPM Quill Feeds - Programmable in IPM 1/2 - 99
Quill Rapid Traverse Rate 180 ipm
Positioning Speed w/ Unidirectional App 150 ipm
Positioning Table Setting Time (maximum) 1 second
Milling Feed Rates (programmable) 0 - 99 ipm
ACCURACIES
Positioning Accuracy +/- .001" in 24" (not to exceed +/-.002 total)
Repeatability of positioning +/- .0005"Spindle Run-out .0005" TIR
X and Y Axis Position Feedback is by Farrand Inductosyn scales for added accuracy.
MOTOR AND TRANSMISSIONSpindle Motor, AC Continuous Duty 15 HP (20 HP @15 minutes)
Table and Saddle Motors, DC 3/4 HP
Sliding Head Elevating Motor, AC 3/4 HPHydraulic Power Unit 3 HPPower 460/60/3 Amps DIMENSIONSTravelling column floor space 271"L x 136"WColumn height 13'Table floor space 164-1/2" x 42"W x 26-1/2"HWeight 42,000 lb
--------------------------------------------------------------------------------
FEATURES

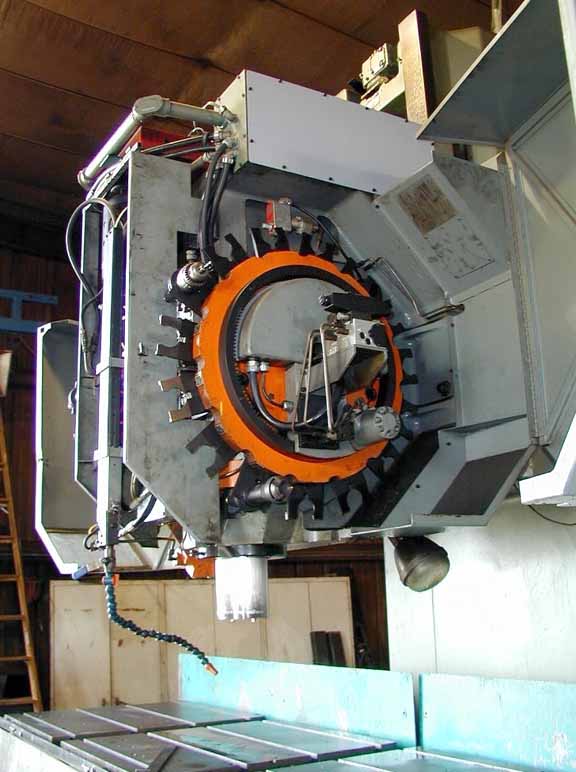

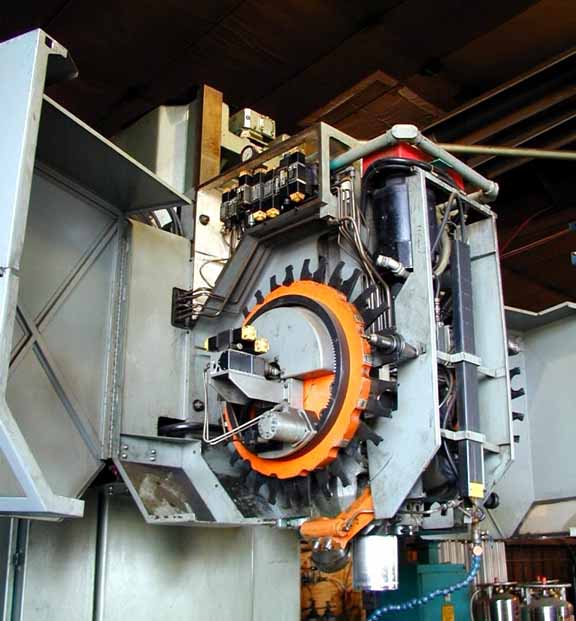

SPARE PARTS FOR BURGMASTER VTC-30-TC:1.-- X,Y Axis servomotor. G.E. I lip DC brush type.2.-- Z Axis servomotor. GE. torque rated brush type.3.-- Tool Locking fingers, 1 set of 24.-- Tycoway roller bearing assembly, large size.5.-- Tycoway roller bearing assembly, small size.6.-- Tool changer hydraulic valve solenoid, ll5VAC.7.-- Lube system solenoid type air valve, ll5VAC.8.-- Brushes for X and Y axis servomotors, I set of 2.9.-- Brushes for Z axis servomotor, l set of 2.10.- Tachometer generator for velocity' feedback, X, Y, & X axes.11.- DPDT 24VDC plug-m style miniature relay.12.- DPDT 90VDC plug in style miniature relay.13.- +SV, +/-12V power supply, Jameeo Electronics.14.- Tool magazine position PC card w/reed switches.15.-- Fuso kit for CE Fanuc CNC control_16.- Tool change quill position switches. 1 set, 2 pieces.17.- Tool change ann position switches. I set, 2 pieces.18.- Inductosyn scale linear position sensor. 2 pieces.19.- Inductosyn scale slider pickup unit.20.- Z axis servo drive, AMC model 100A8.21.- X, Y servo drive loop contactor. G.E. 90 VDC.22.- Full wave bridge type rectifier for field power supply.23.- X, Y Axis servo drive, AMC model 50A20.24.- Tool change grippers. 1 set, 2 pieces.25.- Tips for grippers, 1 set, 2 pieces.
--------------------------------------------------------------------------------
EQUIPPED WITH
- Renishaw probes and the software for both tool length setting and part probing- Sliding Head Adjustment Up and Down Power Actuated and Automatically Clamp- Angular Contact Spindle Bearings- Variety of tool holders- Spare parts kit (see features) - Complete operating, programming, and maintenance documentation in both printed and CD-ROM format.GE FANUC MODEL OMC CNC CONTROL FEATURES: CRT/MDI 9" Monitor Remote Program Loading Three Simultaneous Controlled Axes Linear and Circular Interpolation Machine Zero -- Stored Axis Travel Limits Tool Offsets with Tool Length Compensation Direct RPM Programming of Spindle Speeds Decimal Point Input, IPM Feed Rate Programming Mirror Image (Axis Inversion) Integrated Programmable Controller (PMC-L) Hand wheel (Manual Pulse Generator) Dry Run and Single Block Modes for Program Proving Canned cycles for Drilling, Tapping, and Boring (GS0 - 89) Programming with Absolute or Incremental Commands (G90, 91) Traverse and Feedrate Overrides on GE Fanuc Operator's Panel 320 Meters Tape Program Storage Cutter Diameter Compensation Run Time and Piece Parts Counter Custom Macro B Inch/Metric Conversion Leadscrew Pitch Error Compensation Background Editing
