Specifications
Equipped With
GENERAL SPECIFICATIONS:

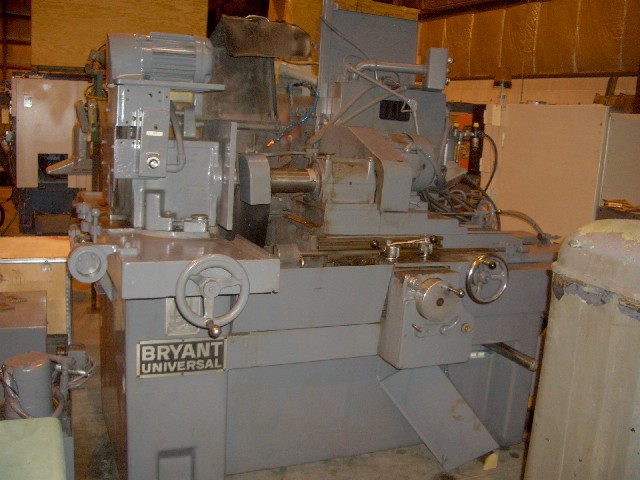

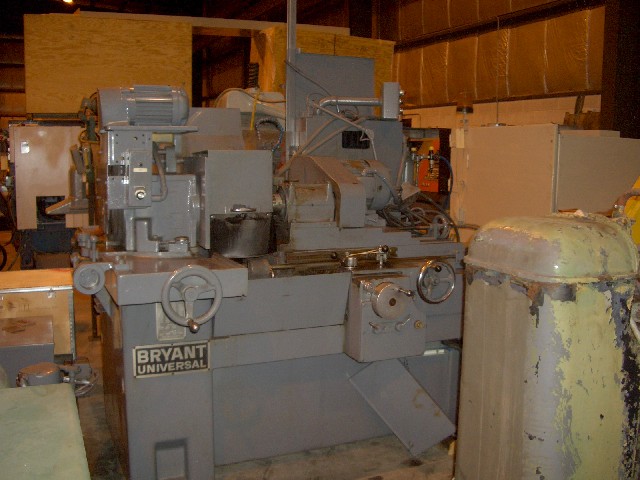

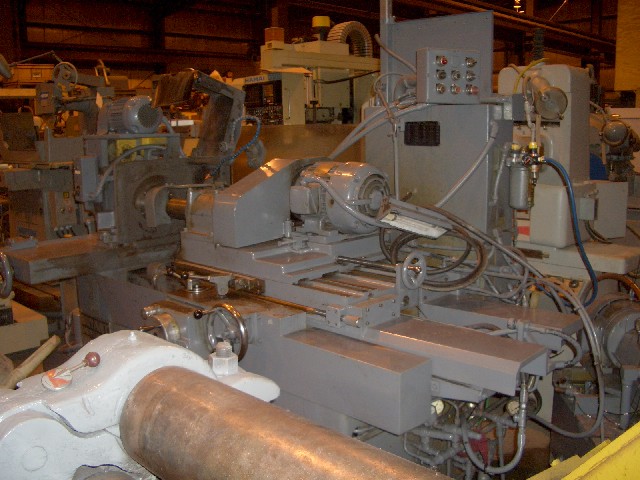

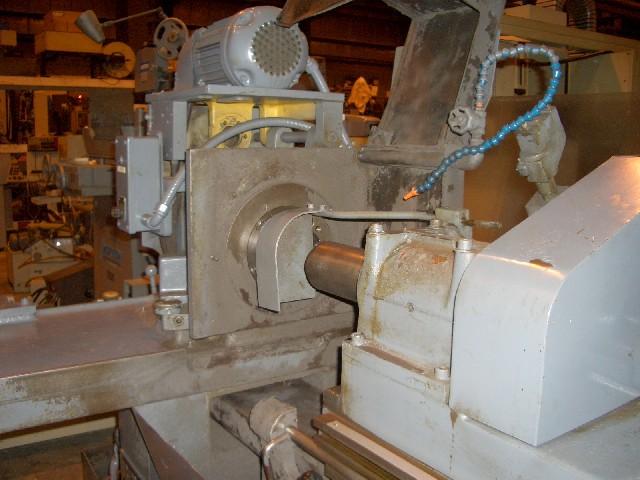

MANUFACTURER BRYANT
MODEL Y-12
SERIAL# Y12-700
SWING (WITHOUT GUARD) 23"
(WITH GUARD) 16"
(WORKHEAD SWIVELED) 12"
ANGULAR ADJUSTMENT OF WORKHEAD 90 DEGREES
WHEELHEAD CROSSFEED TRAVEL 1 1/2"
WORKHEAD CROSS SLIDE TRAVEL 15 1/2"
MAX TABLE TRAVEL 20"
STROKE 16"
MINIMUM GRINDING STROKE 1/8"
CENTER OF WORKHEAD SPINDLE TO FLOOR 46"
WORKHEAD FLANGE 6" D1 ASA STANDARD CAM LOCK SPINDLE NOSE
TABLE SPEED 25 FPM
WORKHEAD SPEED (VARIABLE) 50-425 RPM
POWER CROSSFEED INCREMENTS .00025 TO .001
WHEELHEAD MOTOR 5 HP
OIL TANK CAPACITY 30 GAL
FLOOR SPACE W/COOLANT TANK 111" X 67"
APPROXIMATE WEIGHT 6800 LBS
EQUIPPED WITH:
COOLANT TANK 50 GAL CAPACITY TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
